2021 Good Quality Automatic Diecutter - GUOWANG T-1060BF DIE-CUTTING MACHINE WITH BLANKING – Eureka

1. FEEDER

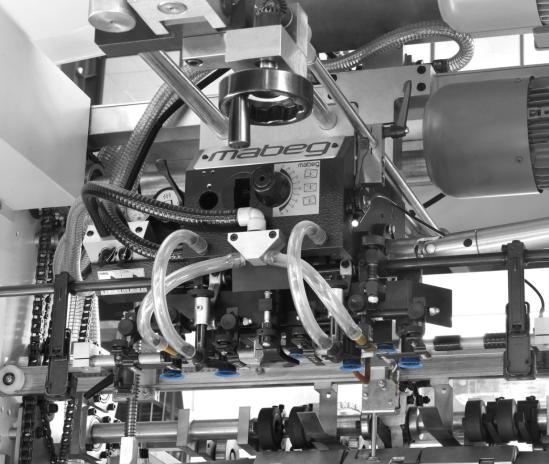

High quality MABEG feeder head imported from Germany(option), 4 pick-up suckers and 4 forward suckers, ensure stable and fast feeding.
Pre-loading device to feed paper without stopping the machine, maximum stack height 1600mm
Pre-loading tracks help the operator push paper stack to feeding position accurately and conveniently.
Side lays can be adjusted to fit different paper.
Paper transferred to the front lay will slow down to ensure accurate positioning.
Transferring plate is stainless steel imported from Germany to make the paper conveying smooth and fast.

2. DIE-CUTTING UNIT

Precise and stable control of die cutting pressure, controlled by FUJI servo motor

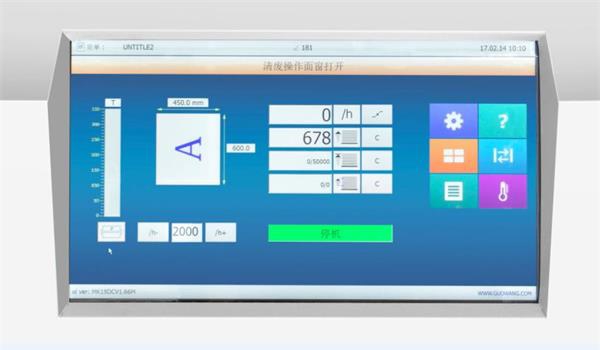

Easy to use graphic interface by 19 inch touch screen with precision up to 0.01mm.

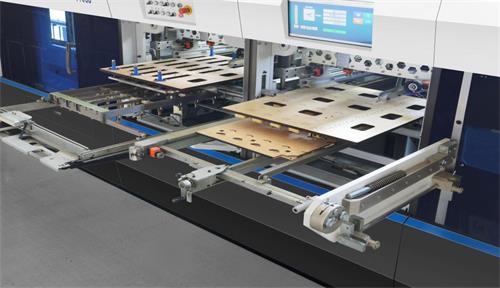

Die-cutting chase and plate are locked by pneumatic cylinder from Japanese SMC, with misplace sensors to avoid damage caused by human factors.

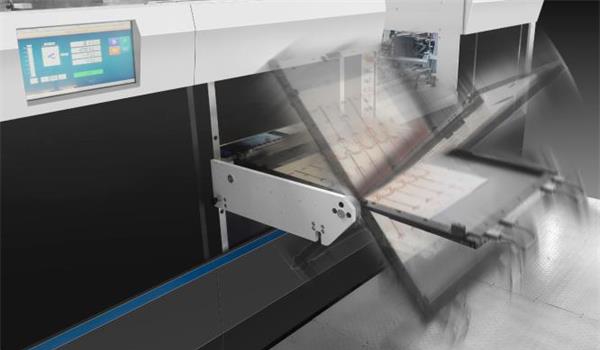

Die-cutting chase adopts the center-line system for fast positioning , so that the operator don’t need to consider the left-right position of the die board.
Die-cutting boards of non-standard size can also be installed by using auxiliary tools to facilitate applicability of customers’ cutting boards from different models .

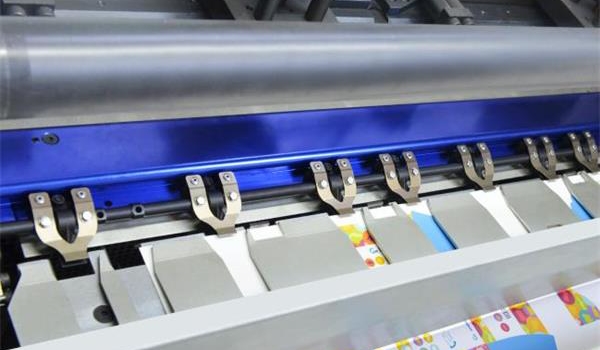

Gripper bar, of special aluminum alloy , the surface after oxidation treatmentadopts double-cam opening method to release the paper during running. It can reduce the inertia of paper to collect the thin paper in order easily.

3. STRIPPING UNIT

Pneumatic lifting stripping chase
Center-line system and quick-lock device for stripping board to achieve quick job changing
Stripping chase position memorization.

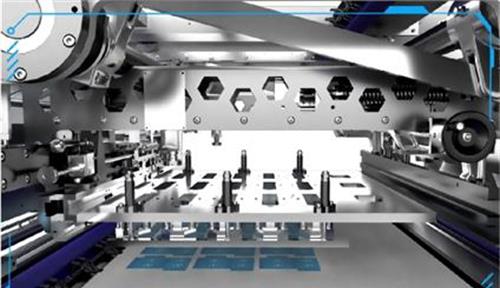

4. BLANKING UNIT

Center-line system and quick-lock device for blanking board to achieve quick job changing
One button for sample sheet taking, easier for inspection of quality.
Intelligent operation from monitor to choose different mode of inserting sheet.

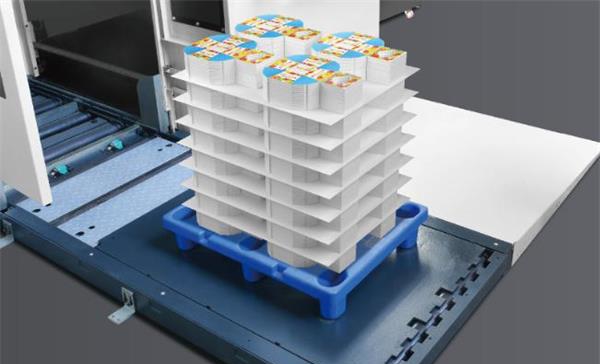

5. DELIVERY UNIT

Non-stop delivery unit.a

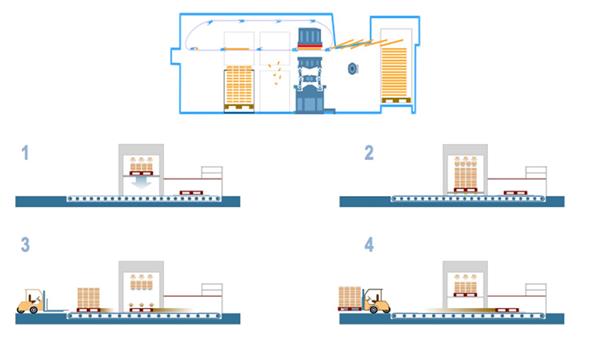

Automatic paper pile transfer, transfer working pallet to delivery unit, then place the empty pallet to wait for proceeding, can reduce manual intervention and ensures non-stop delivery.

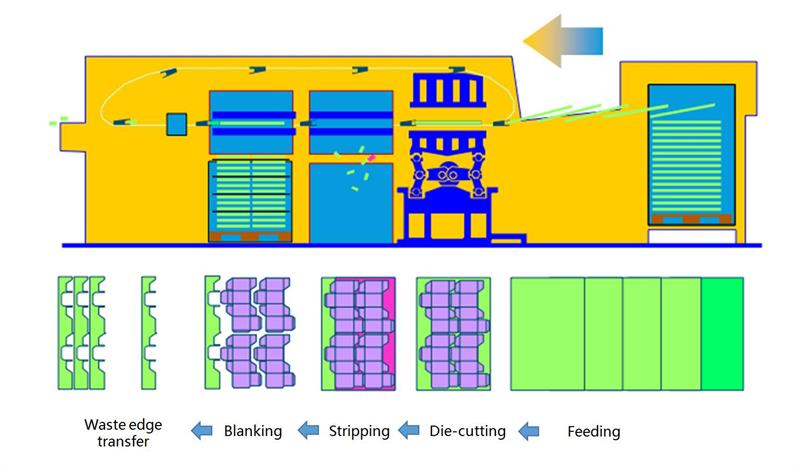

6. WORK FLOW
