2021 wholesale price Roll Feed Paper Bag Machine - Automatic round rope paper handle pasting machine – Eureka Detail:
|
Overall dimension |
L6000*W2450*H1700mm |
|
Motor brand |
Longbang geared motor |
|
Total power |
380V，10KW，50HZ |
|
Servo motor brand |
Siemens |
|
Servo motor power |
750W one group |
|
PIC programming brand |
Siemens |
|
Hot melt machine brand |
JKAIOL |
|
Mechanical arm |
DELTA Taiwan |
|

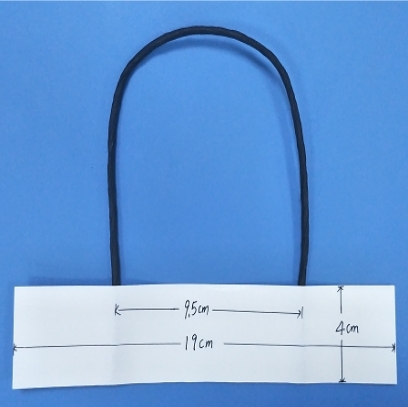

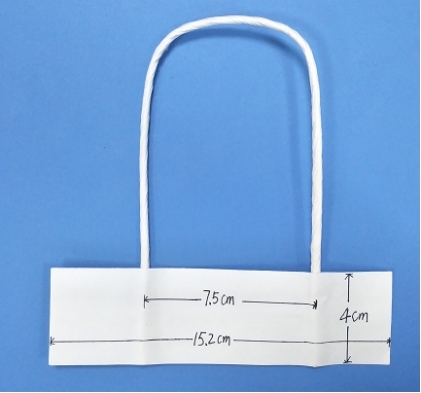

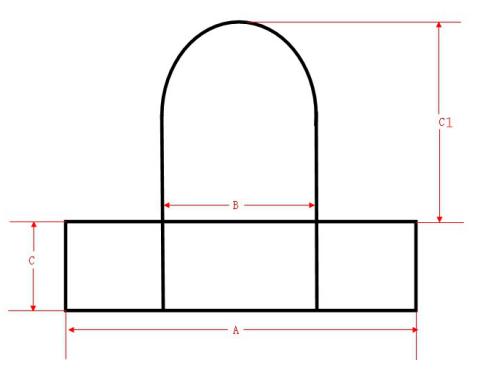

Handle length |
130、152mm、160、170、190mm |
|
Paper width |
40mm |
|
Paper rope length |
360mm |
|
Paper rope height |
140mm |
|
Paper Gram Weight |
80-140g/㎡ |
|
Bag width |
250-400mm |
|
Bag height |
250-400mm |
|
Top opening size over 130mm |
(Bag Width minus the width of folding ) |
|
Production speed |
33-43pcs/min |
|
Part Name |
Qty |
Unit |
|
SLIDDER |
2 |
SETS |
|
MOULD |
2 |
PCS |
|
CHAIN |
1 |
SETS |
|
GLUE WHEELER |
2 |
PCS |
|
ROUND KNIFE |
1 |
PCS |
|
SQUARE KNIFE |
2 |
PCS |
|
CUTTER WHEEL |
2 |
PCS |
|
TOOL BOX |
1 |
SETS |
|
name |
Overall dimension（With the cases） |
Gross Weight |
|
MAIN MACHINE |
2300*1300*1950mm |
1500kg |
|
MATERIAL HOLDING FRAME + Control box |
2600*850*1750mm |
590kg |
|
Pasting unit |
2350*1300*1750mm |
1170kg |
This machine is mainly supporting semi-automatic paper bag machines. It can produce the round rope handle on line ,and stick the handle on the bag on line too, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks paper belts and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.
product picture
Product detail pictures:
