ASZ540A 4-Side Folding Machine

Short Description:

Application:

The principle of 4-Side Folding Machine is feeding surface paper and board which has been positioned through Pre-pressing, Folding left and right sides, Pressing corner, Folding front and rear sides, Pressing evenly process, which all automatically realizes four sides folding.

This machine combined with features in high-precision, fast speed, prefect corner folding and durable side folding. And the product is widely applied in making Hardcover, Notebook, Document folder, Calendar, Wall calendar, Casing, Gifting box and so on.


Product Detail

Product Video

Functional Feature

♦Left and Right sides adopt PA folding belt for folding.
♦Folding part adopts front and rear separate twin-drive servo motor for synchronous transportation without displacement and scratch.
♦Adopt new-type corner trimming device to make side folding more prefect.

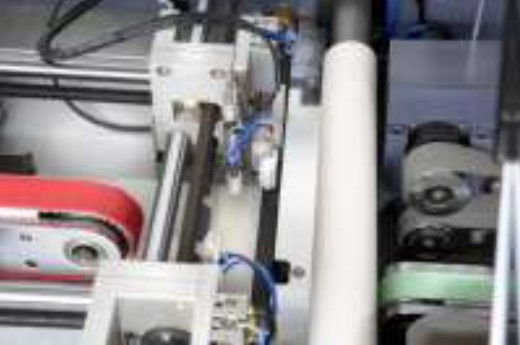

ASZ540A 4-Side Folding Machine (3)

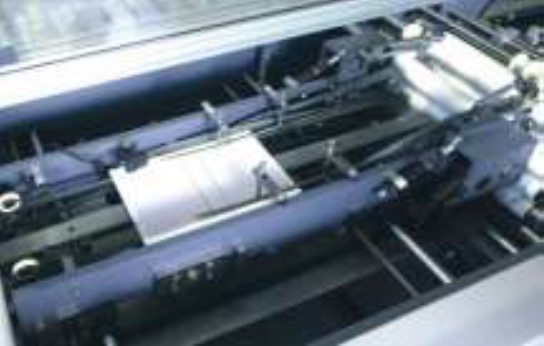

ASZ540A 4-Side Folding Machine (2)

♦Adopt pneumatic structure folding for making special shaped cover
♦It’s more convenient and faster to adjust folding pressure pneumatically
♦Adopt non-adhesive Teflon roller to press multi layers evenly

Production Flow

sadsada

Technical Parameters



4-Side Folding Machine

ASZ540A

1

Paper Size (A*B)

Min:150×250mm Max:570×1030mm

2

Paper Thickness

100~300g/m2

3

Cardboard Thickness

1~3mm

4

Case Size (W*L)

Min:100×200mm Max:540×1000mm

5

Min. Spine Width(S)

10mm

6

Folding Size (R)

10~18mm

7

Cardboard Qty.

6 pieces

8

Precision

±0.30mm

9

Speed

≦35 sheets/min

10

Motor Power

3.5kw/380v 3phase

11

Air Supply

10L/min 0.6Mpa

12

Machine Weight

1200kg

13

Machine Dimension (L*W*H)

L3000×W1100×H1500mm
