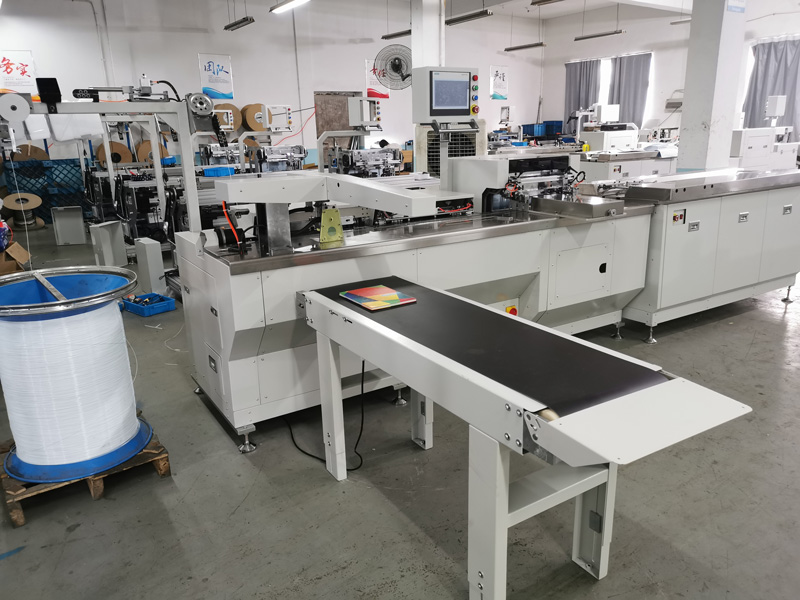

Automatic spiral binding machine PBS 420
1. For large-scale productions of spiral book
2. With G type back hook coil lock and L type common lock choice

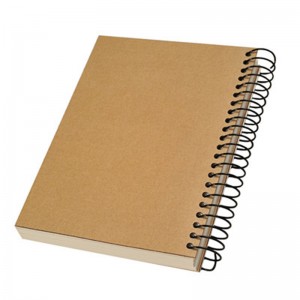

3. Suitable some notebook (cover binding size bigger than inner paper )
4. Max could be used for 20mm thickness notebook
1) Hole Punching part

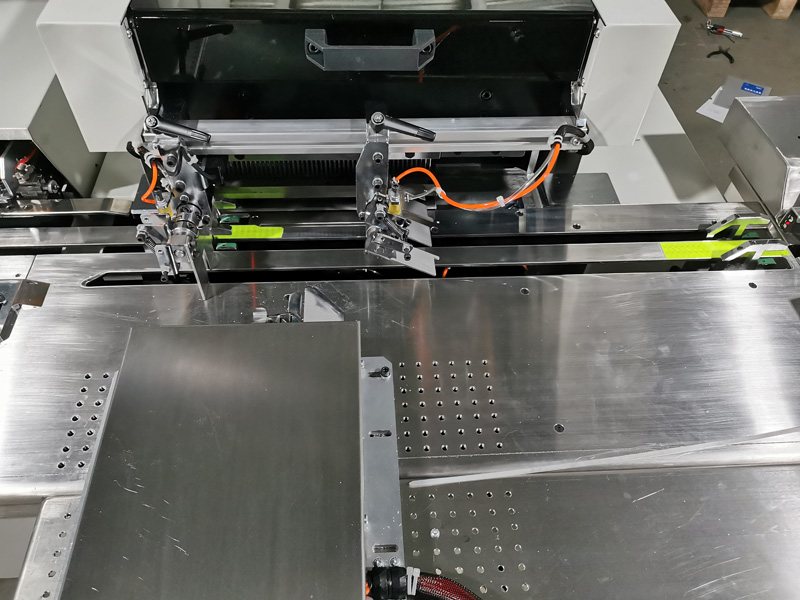

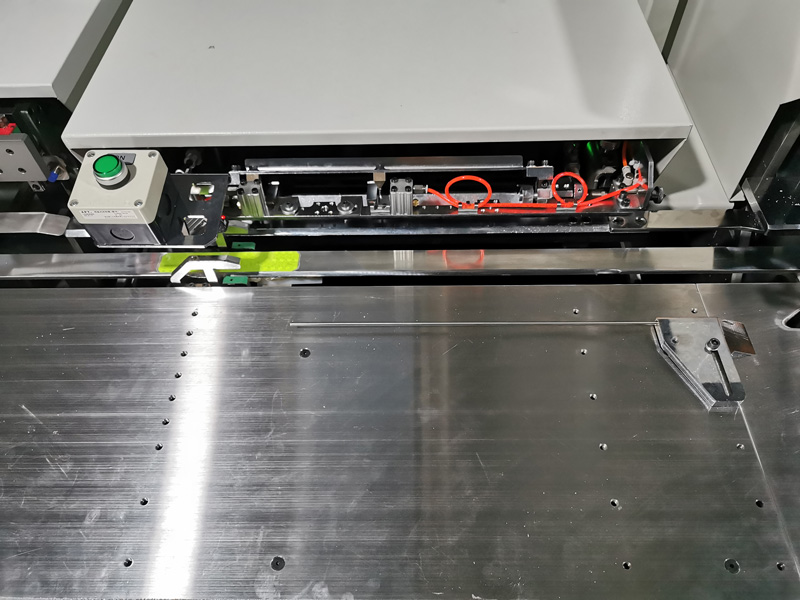

2) Hole Alignment part

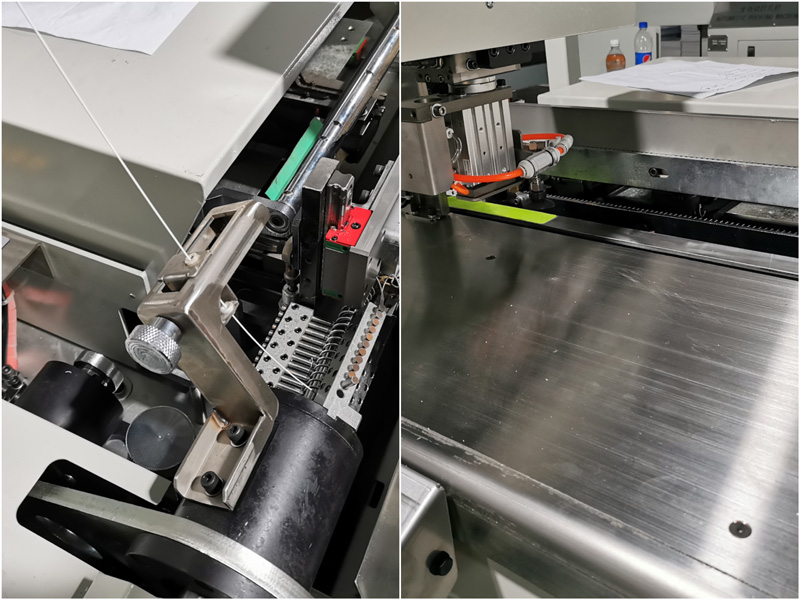

3) Spiral forming ,binding and Scissor lock cutting part

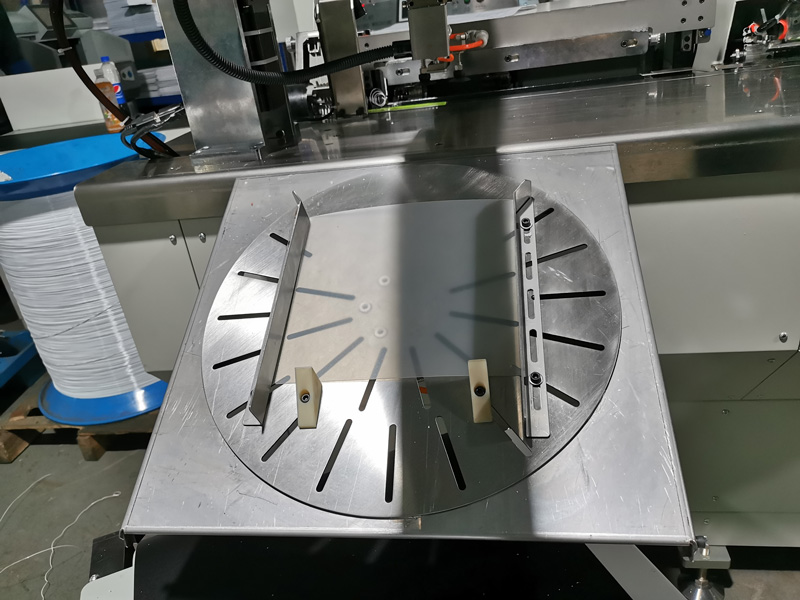

4) finished books collect part

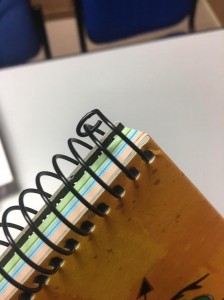

G type (spiral diameter 14mm -25mm ), spiral 14mm -25mm ,it can choose G type lock ,but which model G type depend on hole pitch ,spiral diameter and wire diameter.
L type (spiral diameter 8mm – 25mm )
|
Spiral Diameter(mm) |
Wire Diameter(mm) |
Aperture(mm) |
Book thickness(mm) |
|
8 |
0.7-0.8 |
Φ3.0 |
5 |
|
10 |
0.7-0.8 |
Φ3.0 |
7 |
|
12 |
0.8-0.9 |
Φ3.5 |
9 |
|
14 |
1.0-1.1 |
Φ4.0 |
11 |
|
16 |
1.0-1.1 |
Φ4.0 |
12 |
|
18 |
1.0-1.1 |
Φ4.0 |
14 |
|
20 |
1.1-1.2 |
Φ4.0 |
15 |
|
22 |
1.1-1.2 |
Φ5.0 |
17 |
|
25 |
1.1-1.2 |
Φ5.0 |
20 |
|
speed |
Up to1300 books per hour |
|
Air pressure |
5-8 kgf |
|
Spiral diameter |
8mm – 25mm |
|
Max binding width |
420mm |
|
Min binding width |
70mm |
|
G type back hook scissors range |
14mm – 25mm |
|
L type common hook scissors range |
8mm - 25mm |
|
Spiral hole pitch optional range |
5,6,6.35,8,8.47 (mm) |
