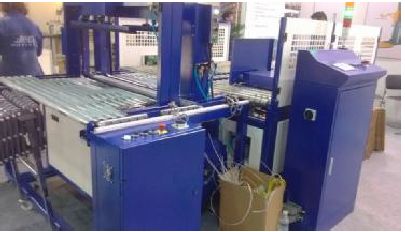

Automatic PP Strapping Machine for Corrugated YS-LX-500D (in line,double strap heads,5mm width tape)
|
Technical parameter |
YS-LX-500D with 90 degree turning device (CE) Automatic position: it can strap 1 or 2 cycles |
|
Goods size |
L(250-1300)xW(320-1300)x(0-450)mm |
|
Power Supply |
AC380V±10% 50Hz,4KW |
|
Length of line |
3700mm |
|
Height of line |
>760mm, can adjust |
|
Width of line |
2000mm |
|
Output |
15pcs/min for 1 strap, 10pcs/min for double straps |
|
Work environment |
humidity≤98%, temperature 0-40℃ |
|
Noise |
≤75DB |
|
Electrical configuration: |
"OMRON" PLC controller, "Schneider" contactor, "P+F" proximity switch, Taiwan "Airtac" cylinder,”ZIK) motors |
|
Packaging size |
L1950 * W2200 * H1500, 1 pallet L2250 * W2200 * H1300, 1 pallet L1300*1850*H1500, 1 pallet |

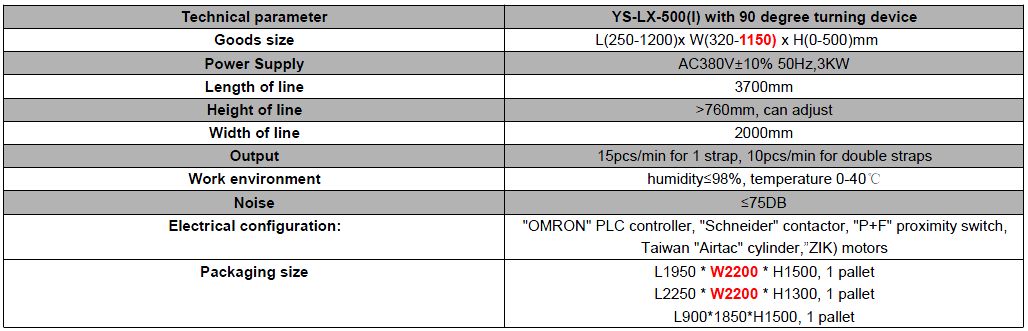

| Technical parameter | YS-LX-500(1) with 90 degree turning device |
When the board is transported in and induces the starting photoelectric of pushing plate, the two cylinders on the pushing plate frame starts to close
up pushing plate. Then the pushing plate motor starts to push the plate forward to the position where the board is strapped.
