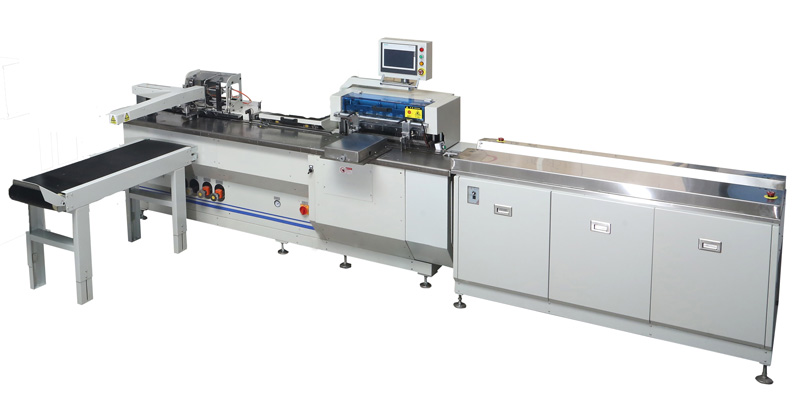

Automatic wire o binding machine PBW580S

Short Description:

PBW580s type machine include paper feeding part ,hole punching part ,second cover feeding part and wire o binding part . Increased your efficiency to produce wire notebook and wire calendar ,is perfect machine do wire product automation .


Product Detail

Automatic-wire-o-binding-machine-PBW580S

Technical data

Technical data

Wire size range of application

3:1 pitch (1/4,5/16,3/8,7/16,1/2,9/16 )  2:1 pitch (5/8 , 3/4)

Binding   (punching)    width

Max 580mm

Max size of paper

580mm x 720mm (Wall calendar)

Min size of paper

Standard for 105mm x105 mm ,Special could do 65mm x  85mm (only for A7 pocket book)

Speed

1500 books per hour

Air pressure

5-8 kgf

Electric power

3Ph 380

Application

Notebook

1.Cover binding length same with inner paper binding length
Automatic-wire-o-binding-machine-PBW580S-10
2.Cover binding length bigger than inner paper binding length
Automatic-wire-o-binding-machine-PBW580S-2
3.Wall Calendar
Automatic-wire-o-binding-machine-PBW580S-5
4.Desk calendar
Automatic-wire-o-binding-machine-PBW580S-6

Additional Machine picture

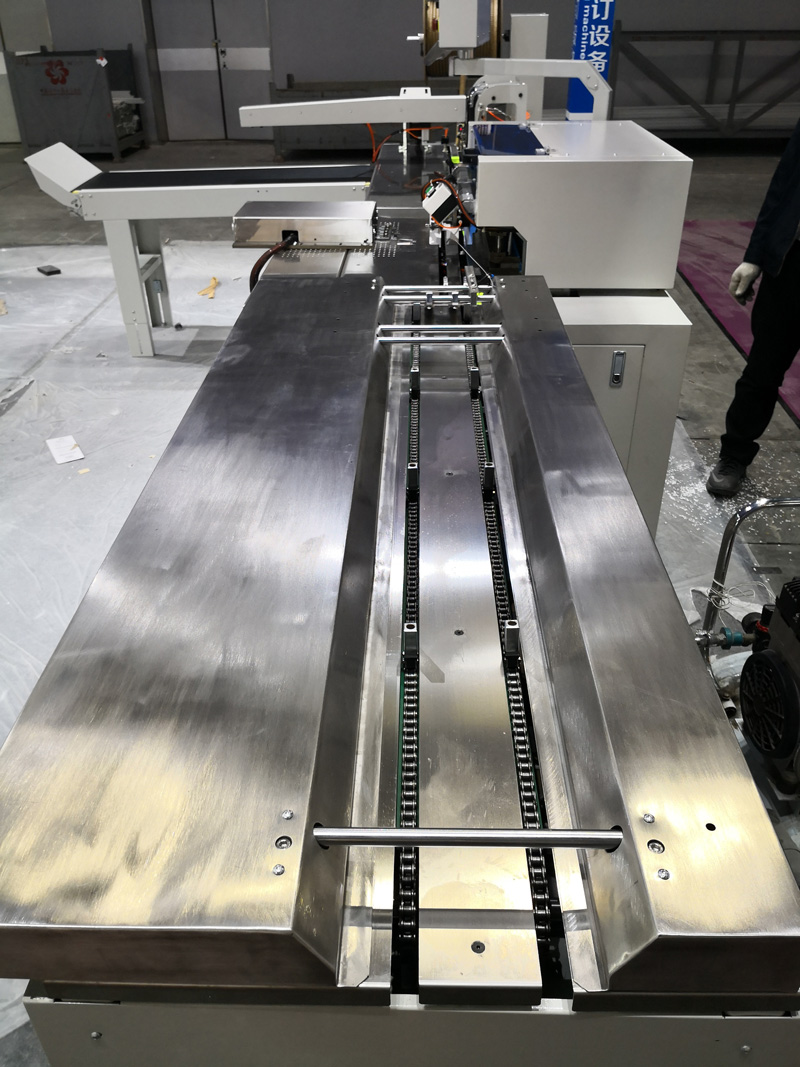

1. book feeding part

Automatic-wire-o-binding-machine-PBW580S-8

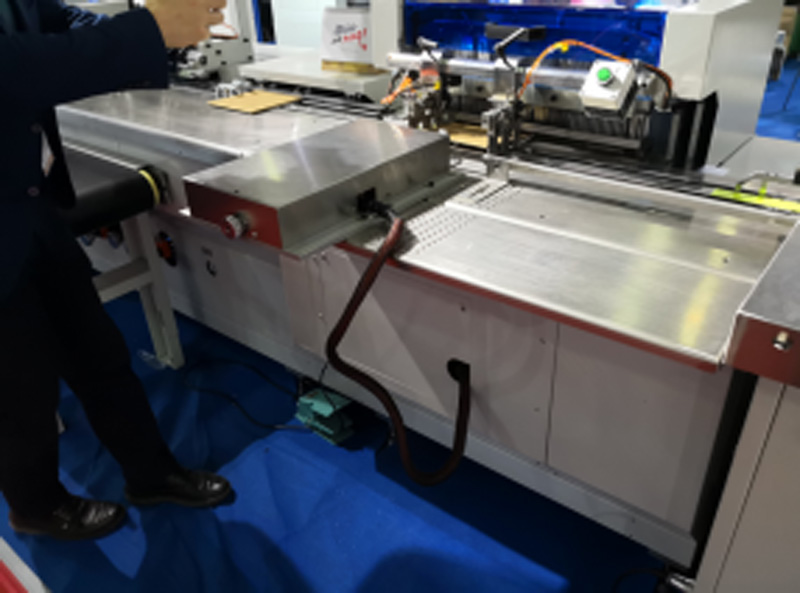

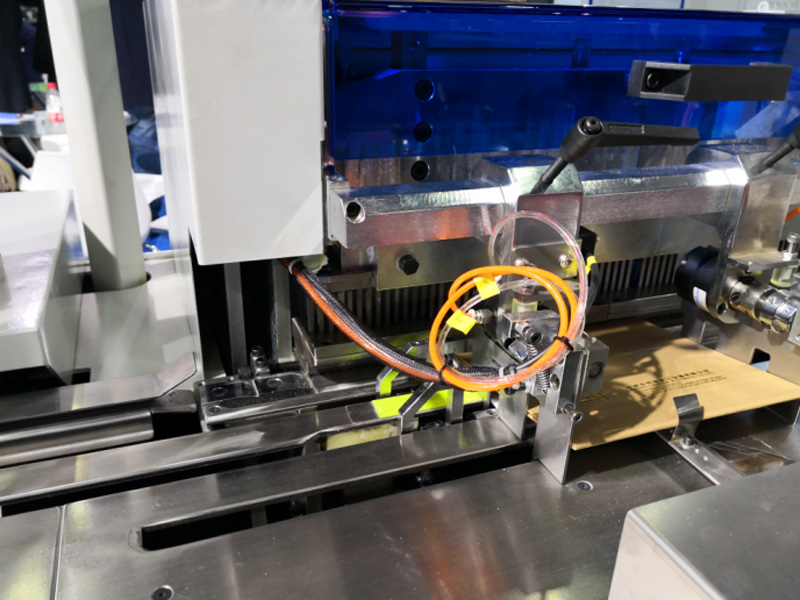

2. Hole Punching part

Automatic-wire-o-binding-machine-PBW580S-7
Hole-Punching

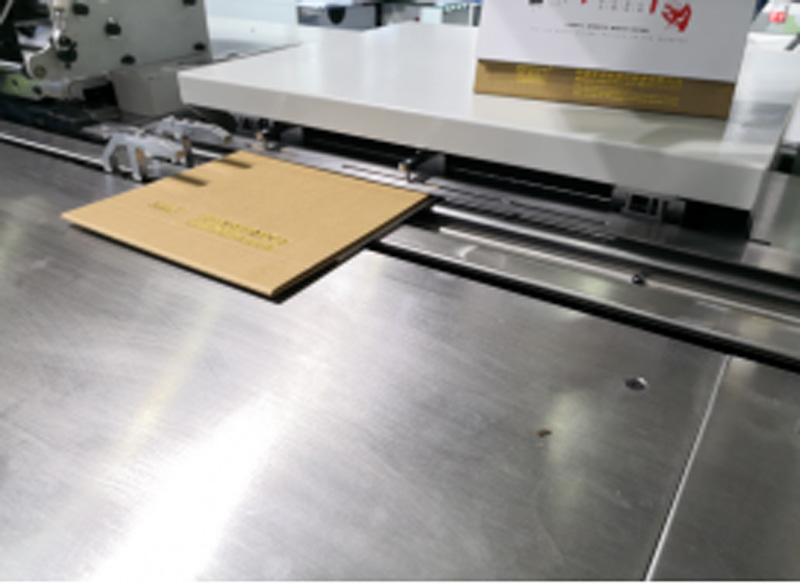

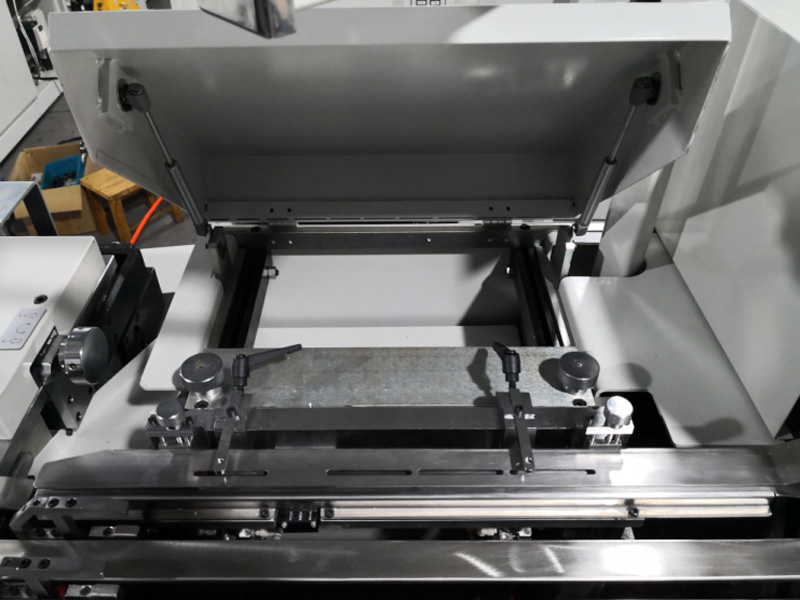

3. hole match part after punching(Cover feeding part and)

Automatic-wire-o-binding-machine-PBW580S-9
hole-match

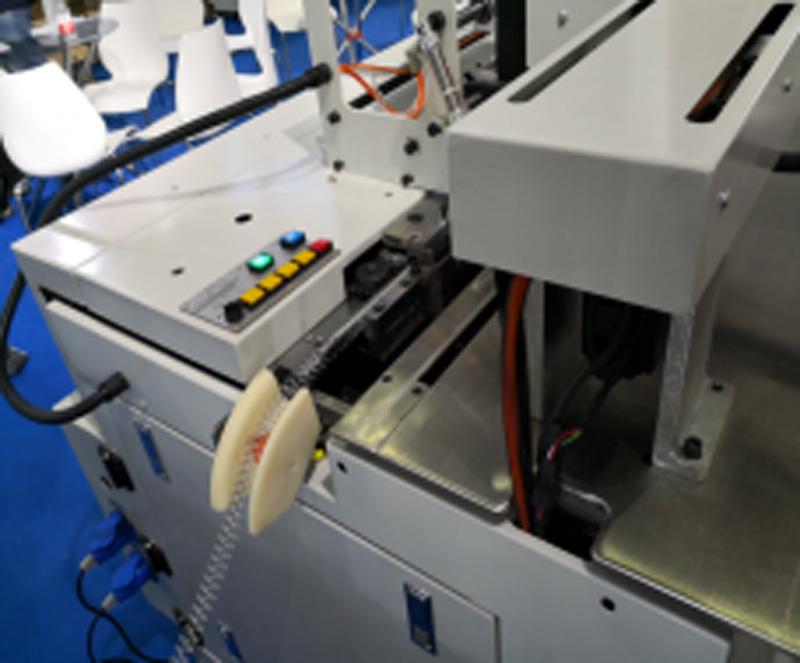

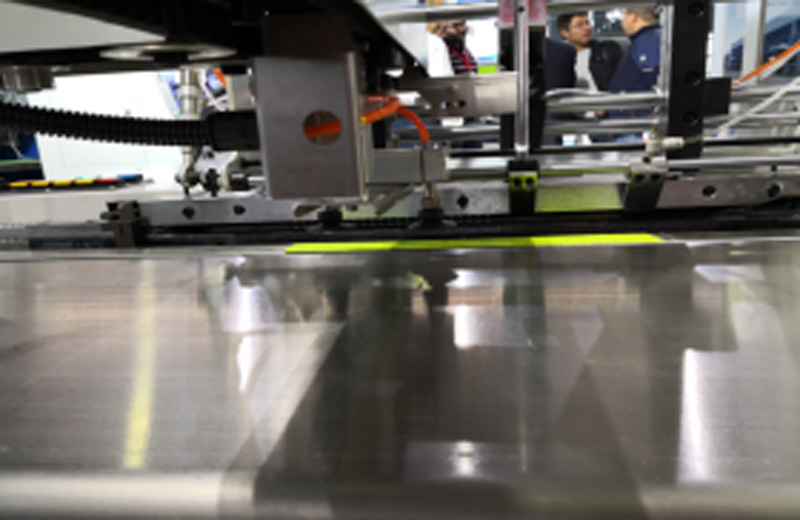

4. Wire o binding part

Wire-o-binding
Wire-o-binding2

Customer factory
