Best quality Carton Gluing Machine - EFOLD-1500 PCW High Speed Automatic Folder Gluer – Eureka

Modulation structure design can upgrade machine function according to customer’s requirement.

●The whole machine drive way adopts independent synchronized motor drive.

●Special equipped with paper regulator device.

●Strengthen the broadening upper and lower belt drive, suitable for corrugated cartons.

●The whole machine guide board adjust is electric mobile system, easy commissioning.

●Upper and lower board movement adopts straight line rail system, to ensure the mechanical accuracy of movement.

●Humanized design attachment installation, easy operation.

●A hexagon spanner can adjust the whole set of machine, easy operation.

●Pressing unit has regulator, and collecting unit has patting device, can effectively avoid the “scissors mouth” phenomenon of corrugated products. Collecting paper unit adopts cylinder type pressing system, easy for adjust pressure, and   make the products can pasted effectively.

●Touch screen control plane.

●Remote control convenience for operators to remote control the start and stop of machine

The machine is divided into six units, they are feeding, paper regulation, Crash lock, folding, pressing and conveyor.

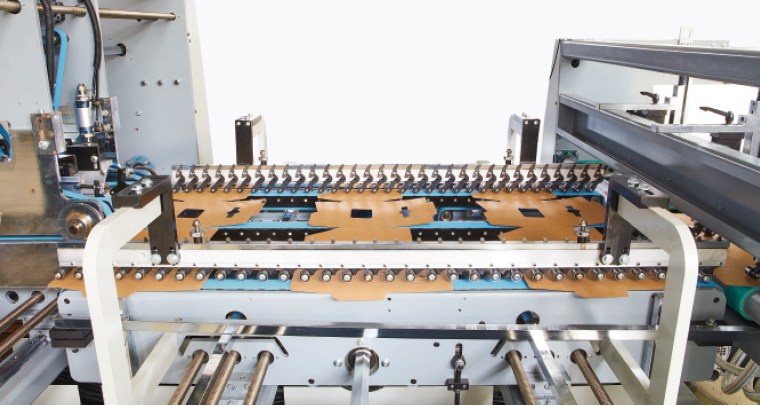

(1) Feeding

     Feeding section is driven by12 60mm-width vacuum belts. And 10mm-thickness metal platen to set carton width, embossing wheels to drive the paper belts. The left and right platen can easily move according to the box design. The feeding unit is equipped with three box-feeding knife can adjust the length according to the box shape and size. The vacuum suction device can cooperate quickly and easily with the motor, feeding continuously and automatically. The feeding stacker can hold cartons up to 400MM height in total. And the upper feeding pressure is pneumatic, ensuring stable and smooth paper feeding, the operator can control the feeding unit by remoter in any position of the machine.

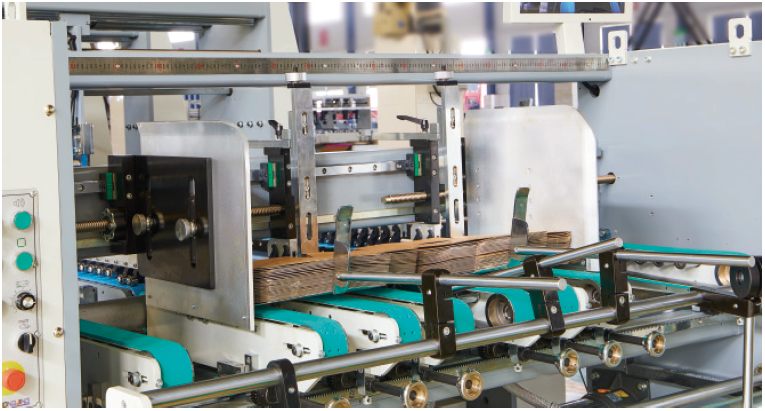

(2) Paper regulation：

Three-plate structure, using push-side regulation, can correct paper to ensure feeding stably and smoothly.

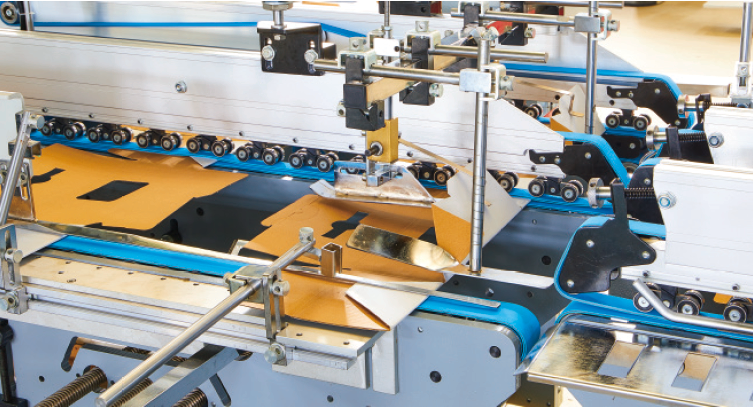

3）Crash lock：

Three-plate structure, based on the upper belt is drive type, to ensure stable and smooth paper transport all detachable paste tube; Equipped with lower paste around each cylinder, they have a large capacity. the amount of paste tube can be adjusted, stable, maintenance is simple; provided paste wheel thickness is 10mm-25mm, customers can choose by special requirements; paste tube made of sturdy, durable material; bottom posted by four bottom hook device, cooperated with the completion device. Bottom lower band is 50MM, the upper band is 30MM, the pneumatic pinch plate moves up or down to accommodate different thickness cardboard.

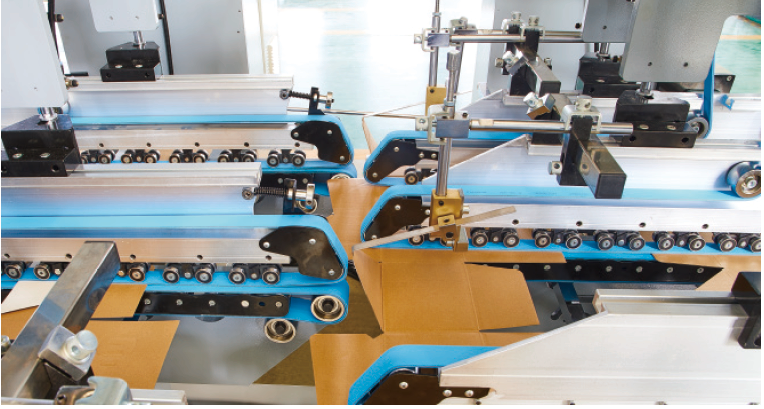

4) folding

The machine takes three board structure, based on the belt drive type, to ensure stable and smooth paper transport choice and 75 mm wide with a 80mm bottom abduction combination. left and right sides of the completion of the second fold 180 degrees, 180 degrees fully integrated fourth fold line. around guide wheel Depending on the position adjusted to fit more smoothly folding box; the bottom bearing support the correct operation of the belt guide. Stealing is independently driven, speed can be adjusted independently abduction. The product does not appear trumpet mark.

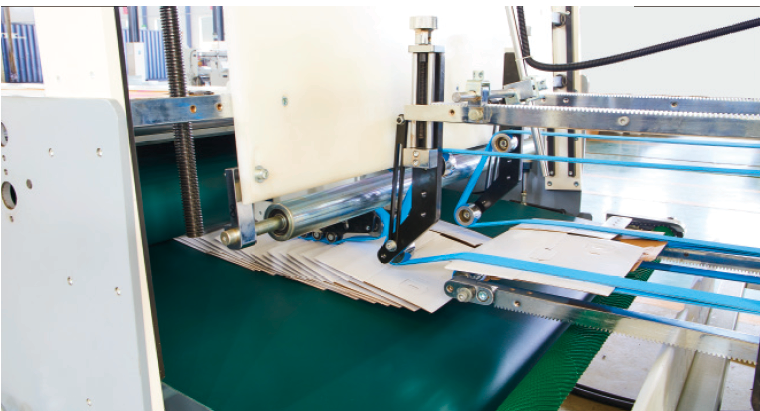

5）pressing

Upper and lower drive can adjust the length; equipped with belt straightforward to correct paper at folding progress. Production end affixed to a pneumatic gear box with front flush device box approach ensures continuous automatic product box neatly into the delivery unit. The machine is adopted by electric counter automatic devices; with a compressed air system and pressing road transport system. According to different cartridge type, adjust the paper pressure roller, so that the box is pressed against a more perfect.

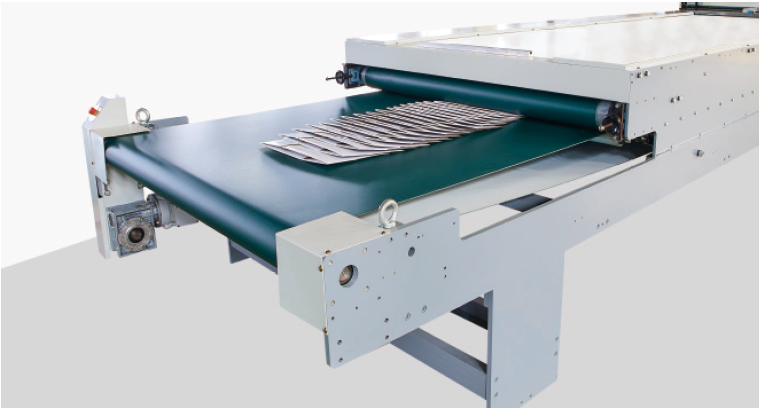

6）Conveyor

The machine is with upper and lower independent drive structure. The upper belt may move back and forth the length according to the production of cardboard boxes. The import belt is soft and smooth, will not scratch the final boxes’ surface; The press pressure is well balanced and smoothly transport, to ensure perfect quality. The conveyor unit speed is synchronized with the main machine, will automatically follow up by optical sensor. It can also be adjusted by manual. The front part of the conveyor is with two set of press units. Simple and easy to operate and adjust.
