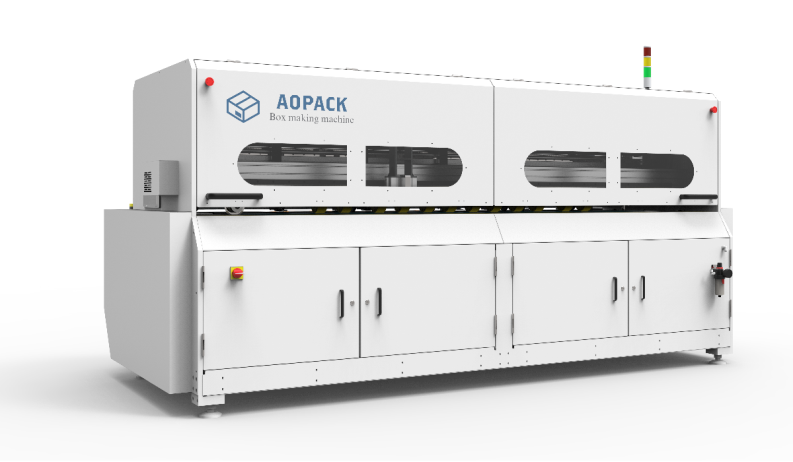

BM2508-Plus Box Making Machine
|
BM2508-Plus Technical Specification |
|
| Corrugated board type | Sheets (Single , Double wall) |
| Cardboard thickness | 2-10mm |
| Cardboard density range | Up to 1200g/m² |
BM2508-Plus is a multifunctional machine with horizontal slotting and scoring, vertical slitting and creasing, horizontal cutting. It has the function of die-cutting handle holes on both sides of the carton box. It is now the most advanced and multifunctional box making machine, providing all kinds of customized packaging solutions for end users as well as box plants. BM2508-Plus is available for a wide range of many areas, such as furniture, hardware accessories, e-commerce logistics, many other industries, and so on.
1. One operator is enough
2. Competitive price
3. Multifunctional machine
4. Change the order in 2~50 seconds
5. Order records can be stored more than 6000.
6. Local installation and commissioning
7. Operation training to customers
| Max.board size | 2500mm width x unlimited length |
| Min.board size | 200mm width x 650mm length |
| Production Capacity | Appr.400Pcs/H Up to 600Pcs/HDepends on size and box style. |
| Slotting Knife | 2 pcs *500mm Length |
| Vertical Cutting knife | 4 |
| Scoring/Creasing wheel | 4 |
| Horizontal Cutting knife | 1 |
| Power supply | BM2508-Plus 380V±10%，Max. 7.5kW, 50/60 Hz |
| Air Pressure | 0.6-0.7MPa |
| Dimension | 3500(W) * 1900（L）* 2030mm(H) |
| Gross Weight | Appr.3500Kg |
| Automatic paper feeding | Available |
| Hand hole on box sides | Available |
| Air Consumption | 75L/Min |
| All the above specifications are for reference only. | |
 |
 |
 |

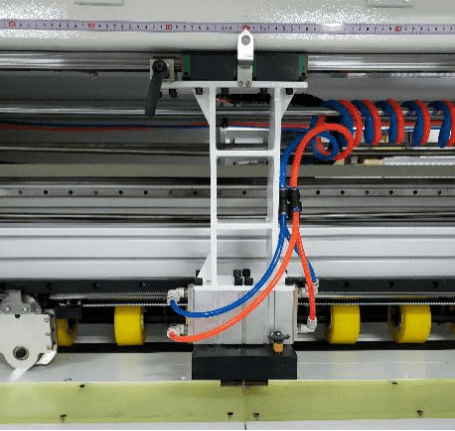

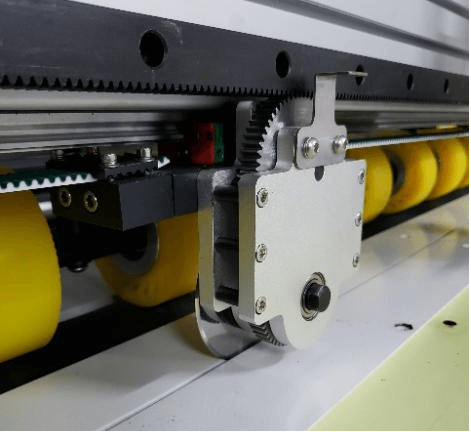

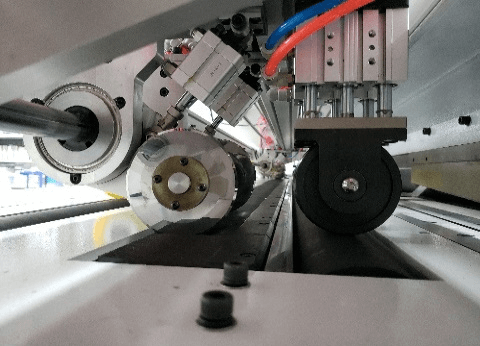

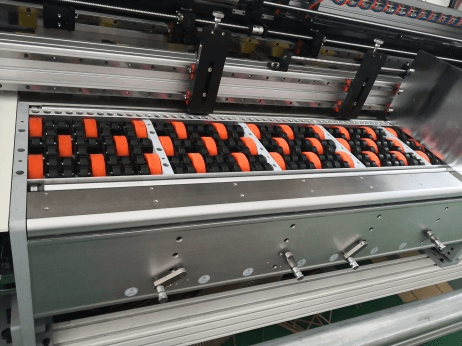

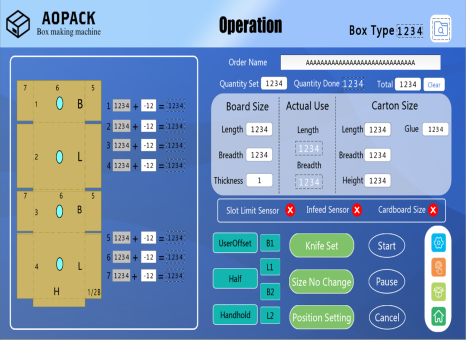

| Control PanelInteractive 15.6” touch screen control panel with stylus , start & stop button . | Cardboard Feeding20-50 sheets can be loaded, thickness ranging from 2 to 10 mm . | Vertical Scoring & Slitting4 rotated cutting knives, to make the edges of the carton box more beautiful and flat . |
 |
 |
 |

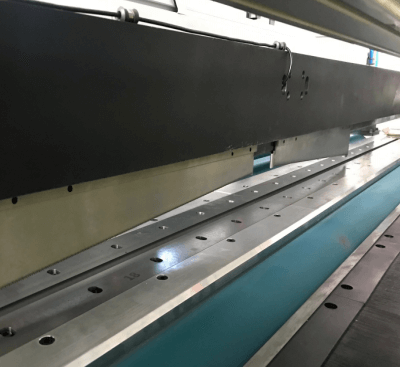

| Horizontal Slotting & ScoringTwo 500mm symmetrical slotting knives .Slotting knives and creasing beam integrated design | Horizontal CuttingCut off excess cardboard without an additional paper separator | Die-Cuting Hand holesDie cut hand holes on the both sides of the box, including full and half cutting module. |
