CB540 Automatic Positioning Machine

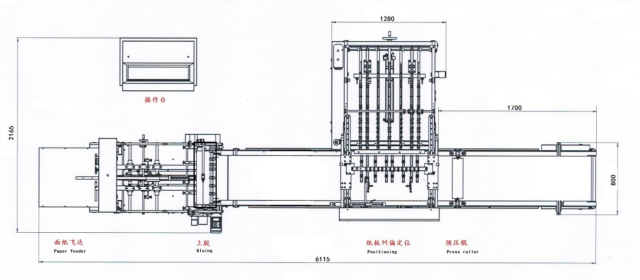

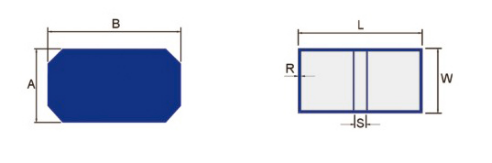

| 1 | Paper size(A×B) | MIN: 100×200mmMAX: 540×1030mm |
| 2 | Case size | Min. 100×200mmMax. 540×600mm |
| 3 | Box size | Min. 50×100×10mmMax. 320×420×120mm |
| 4 | Paper thickness | 100~200g/m2 |
| 5 | Cardboard thickness(T) | 1~3mm |
| 6 | Precision | +/-0.1mm |
| 7 | Production speed | ≦35pcs/min |
| 8 | Motor power | 9kw/380v 3phase |
| 9 | Machine Weight | 2200KG |
| 10 | Machine dimension (L×W×H) | L6520×W3520×H1900mm |
Remark:
1. The Max. and Min. sizes of cases are subjected to the size and the quality of the paper.
2. The speed depends on the size of cases
(1)Paper Gluing Unit：

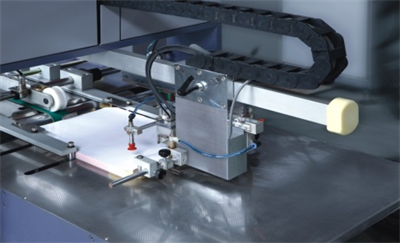

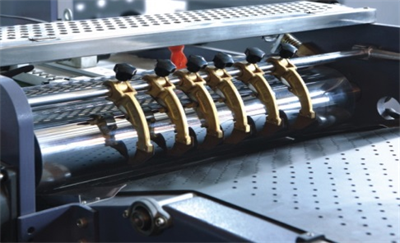

● Full-pneumatic feeder: novel design, simple construction, convenient operation. (This is the first innovation at home and it is our patented product.)

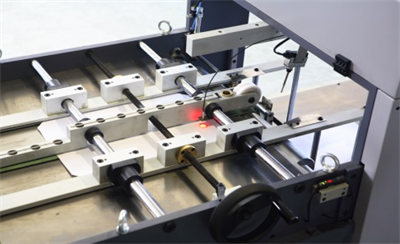

● It adopts ultrasonic double-paper detector device for the paper conveyor.

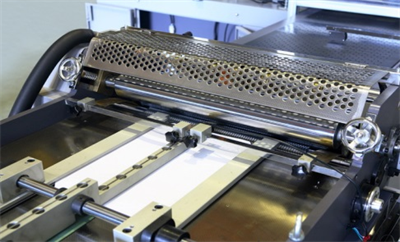

● Paper rectifier ensures that the paper won’t deviate Glue roller is made of finely-grinded and chromium-plated stainless steel. It is equipped with line-touched type copper doctors, more durable.

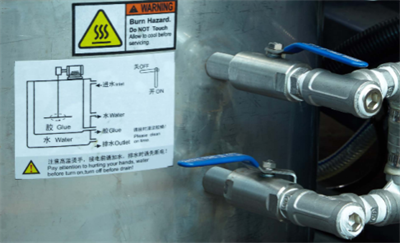

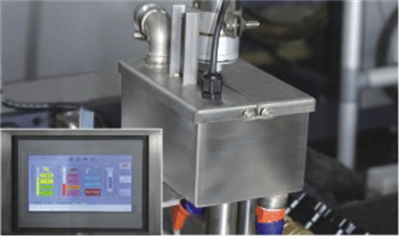

● Glue tank can automatically glue in circulation, mix and constantly heat and filter. With fast-shift valve, it will take only 3-5 minutes for the user to clean the glue roller.
● Glue viscosity meter (Optional)
● after being glued.
(2) Cardboard Conveying Unit

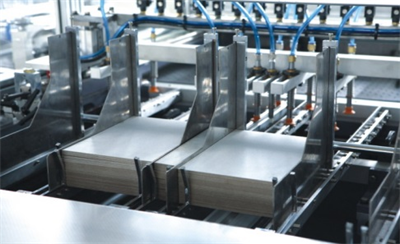

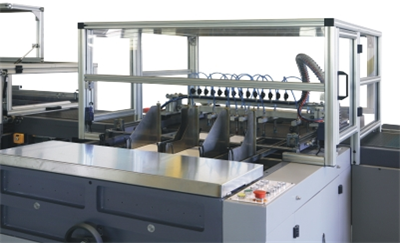

● It adopts per-stacking non-stop bottom-drawn cardboard feeder, which improves the production speed
● Cardboard auto detector: the machine will stop and alarm while lacking one or several pieces of cardboards in conveying.
● Automatic feeding the cardboard box by conveyor belt.

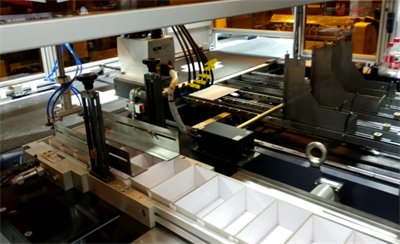

(3) Positioning-spotting unit
● The vacuum suction fan under the conveyer belt can have the paper sucked stably.
● Cardboard conveying employs servo motor.

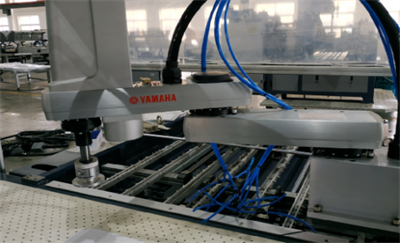

● Upgrading: YAMAHA Mechanical arm with HD Camera positioning system.

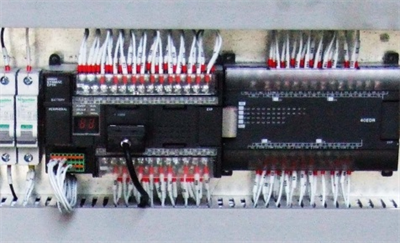

● The PLC control on-line motion.
● The pre-press cylinder on the conveyer belt can ensure that the cardboard and paper are stuck tightly.

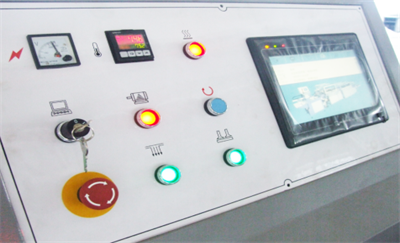

● All icons control panel is easy to understand and operate.

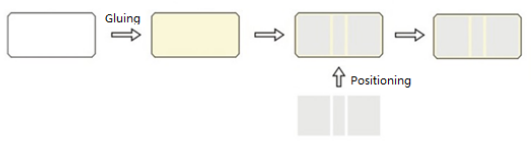

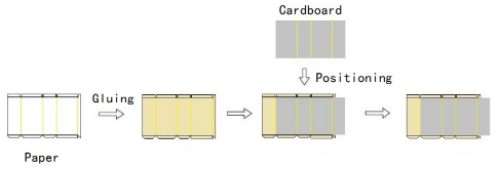

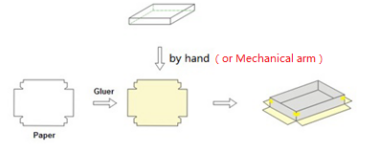

For book cover:

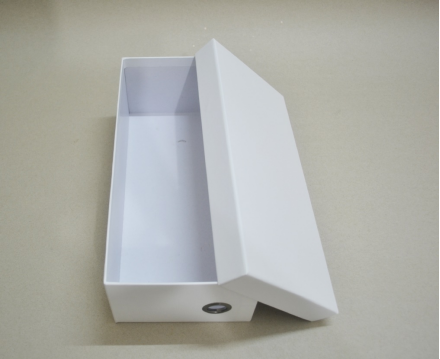

For rigid box:
[Accessory Equipment 1]

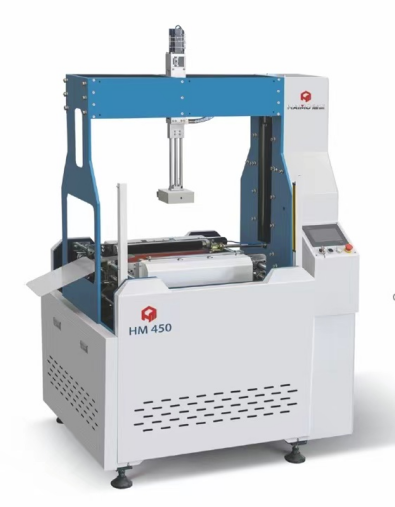

HM-450A/B Intelligent Gift Box Forming Machine
HM-450 intelligent gift box molding machine is the latest generation of products. This machine and the common model has not change-folded blade, pressure foam board, automatic adjustment of the size of the specification greatly reducing the adjustment time.
| Model | HM-450A | HM-450B |
| Max. box size | 450*450*100mm | 450*450*120mm |
| Min. box size | 50*70*10mm | 60*80*10mm |
| Motor power voltage | 2.5kw/220V | 2.5kw/220V |
| Air pressure | 0.8mpa | 0.8mpa |
| Machine dimension | 1400*1200*1900mm | 1400*1200*2100mm |
| Weight of machine | 1000kg | 1000kg |
[Accessory Equipment 2]

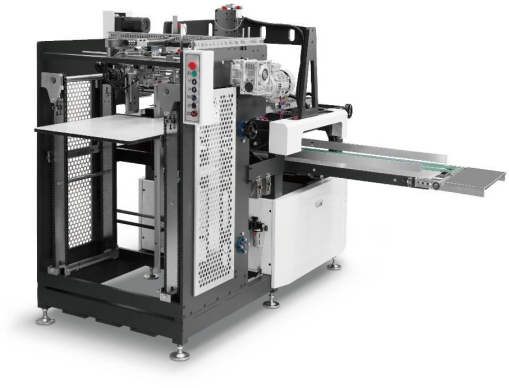

ATJ540 Automatic box former/corner pasting machine

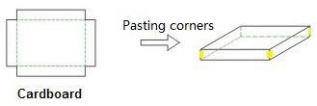

It’s a fully automatic rigid box corner pasting machine which is used to pasting the corners of cardboard box. It’s necessary equipment for making rigid boxes.
1.PLC control, humanized operation interface;
2.Automatic cardboard feeder, can be stacked up to 1000mm height of cardboard;
3.The cardboard fast stacked conversion device;
4.Replacement of mold is fast and simple, suitable for different specifications of products;
5.Hoe melt tape automatic feeding, cutting, corner pasting in one time;
6.Automatic alarm when hot melt tapes is running out.
| Model | ATJ540 |
| Box Size(L×W×H) | Max. 500*400*130mm |
| Min. 80*80*10mm | |
| Speed | 30-40pcs/min |
| Voltage | 380V/50HZ |
| Power | 3KW |
| Machinery weight | 1500kg |
| Dimension (LxWxH) | L1930xW940xH1890mm |
