Chinese wholesale Paper Bag Printing Machine - FY-20K Twisted rope machine ( double stations) – Eureka Detail:

ZB460RS Fully automatic Roll feeding square bottom paper bag machine .Is designed for the production of paper bags with twisted handles. It is suitable for mass production of shopping bags in industries such as food and clothing. The one-line process consists of twisted handles making from paper rolls and twisted rope, delivery of handles to paste unit, pre-cutting of paper on position of rope, patch position gluing, handle pasting, and paper bag making. The paper bag making process consists of side gluing, tube forming, cutting, creasing, bottom gluing, bottom forming and bag delivery.

The speed of the machine is fast and the output is high. Greatly saves the labor cost. Humanized intelligent operation interface, Mitsubishi PLC、 motion controller and servo transmission system not only ensure the high speed operation of the machine, but also ensure the high precision of paper bag size.

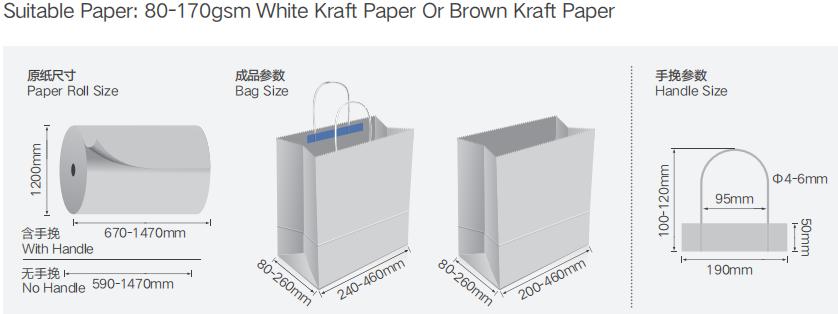

asdadadad

Model: ZB460RS

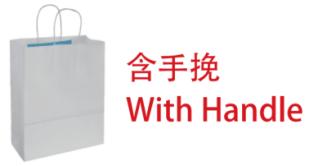

 sadad

sadadsad

Paper Roll Width

670–1470mm

590–1470mm

Max.Paper Roll Diameter

φ1200mm

φ1200mm

Core Diameter

φ76mm（3″)

φ76mm（3″)

Paper Thickness

90–170g/㎡

80-170g/㎡

Bag Body Width

240-460mm

200-460mm

Paper Tube Length(cutt off length)

260-710mm

260-810mm

Bag Bottom Size

80-260mm

80–260mm

Handle Rope Height

10mm-120mm

——

Handle Rope Diameter

φ4–6mm

——

Handle Patch Length

190mm

——

Paper Rope Center Distance

95mm

——

Handle Patch Width

50mm

——

Handle Patch Roll Diameter

φ1200mm

——

Handle Patch Roll Width

100mm

——

Handle Patch Thickness

100–180g/㎡

——

Max Production Speed

120bags/min

150bags/min

Total Power

42KW

Overall Diamension

14500x6000x3100mm

Total weight

18000Kg

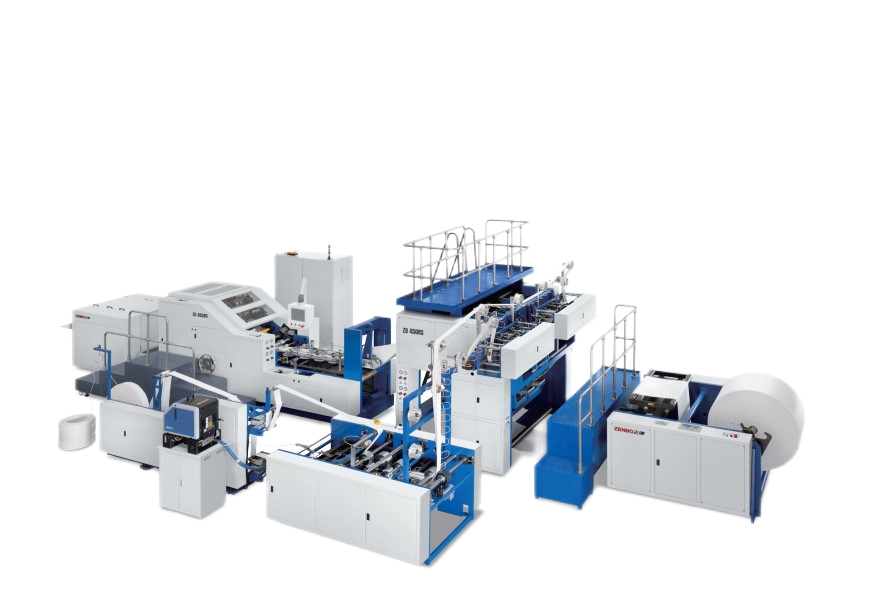

Fully Automatic Roll Feeding Paper Bag Making Machine ZB460RS 1

1.Adjustable roll to square bottom bag making machine

2.Introduce In-touch screen human-machine interface, easy for correction and fine adjustment. Alarm and working status can be displayed in screen on-line, easy for operation and maintenance.

3.Equipped with Mitsubishi PLC and motion controller system and SICK photocell for correction, tracking the printed material accurately, minimize the adjustment and preset time, increase the production efficiency.

4.Human oriented security protection, whole housing design, ensure the safety of operator

5.hydraulic material loading system.

6.Automatic constant tension control for unwinding, web guider system, motor for material feeding with inverter, minimize the adjustment time for web alignment.

7.High speed oriented design ensure successful of production: within the suitable paper range, production capacity can reach 90~150pics/min, . Increased the unit production capacity and higher profit.

8. SCHNEIDER electric system, ensure better stability and reliability; perfect after sale service, trouble free for customer.

No.

Name

Origin

Brand

No.

Name

Origin

Brand

1

Servo motor

 Japan

Mitsubishi

8

Photoelectric sensor

Germany

SICK

2

Frequency converter

France

Schneider

9

Metal proximity switch

Korea

Autonics

3

Button

France

Schneider

10

Bearing

Germany

BEM

4

Electric relay

France

Schneider

11

Hot melt glue system

USA

Nordson

5

Air switch

France

Schneider

12

synchronized belt

Germany

Contitech

6

Frequency converter

France

Schneider

13

Remote Controller

China Taiwan

Yuding

7

Power switch

France

Schneider









Product detail pictures:

Chinese wholesale Paper Bag Printing Machine - FY-20K Twisted rope machine ( double stations) – Eureka detail pictures

Chinese wholesale Paper Bag Printing Machine - FY-20K Twisted rope machine ( double stations) – Eureka detail pictures
