CHM-SGT 1400/1700 SYNCHRO-FLY SHEETER
CHM-SGT series synchro-fly sheeter adopts advanced design of twin helical knife cylinders which are driven directly by high power AC servo motor with high accuracy and clean cut. CHM-SGT was widely used for cutting board, kraft paper, AI laminating paper, metalized paper, art paper, duplex and so on.

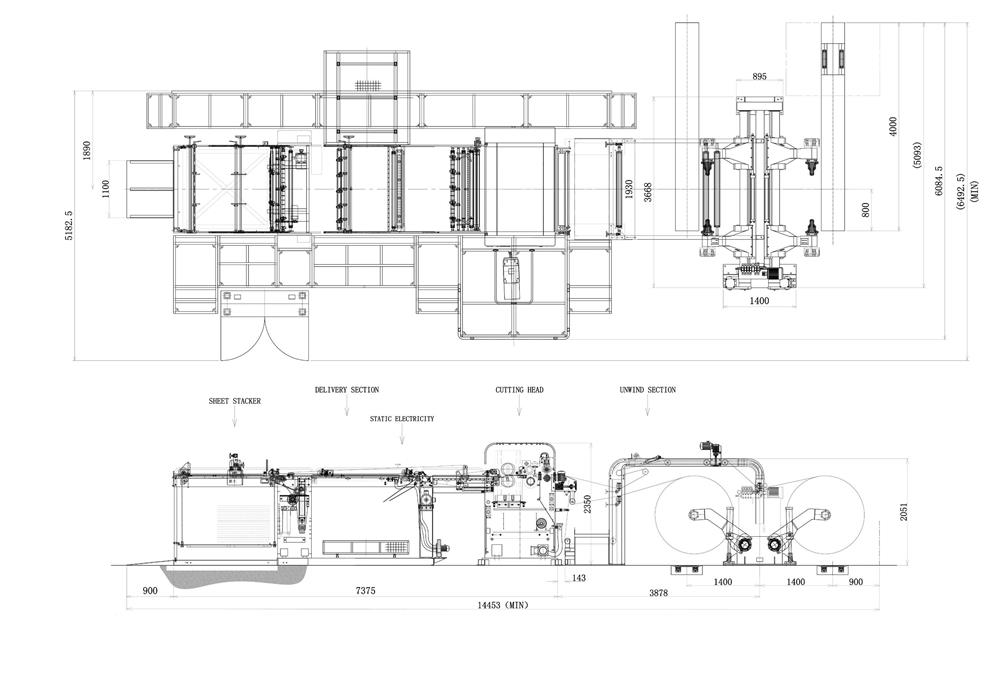

| Model | CHM-SGT 1400/1700 Synchro-fly Sheeter |
| Cutting type | Synchro knife |
| Knife loading | 100-1000 GSM |
| Reel width | 1400mm,1700mm |
| Gross weight | 13000kg,15000kg |
| Max. Cutting speed | 300m/min |
| Cut-off length range | 450-1450mm |
| Cut-off accuracy | ±0.5mm |
| Paper-pilling height | 1300mm |
| Standard Configuration | |
| 1 | Dual position shaftless pivoting arm unwind stand |
| 2 | Air cooling pneumatical disc brake |
| 3 | Auto tension based on reel diameter |
| 4 | Motorized decurler |
| 5 | EPC web guiding |
| 6 | Twin helical knife cylinders |
| 7 | Three sets of pneumatic slitters |
| 8 | Anti-static bar |
| 9 | Out feed and overlapping section |
| 10 | Hydraulic delivery unit |
| 11 | Auto counting and tap inserter |
| 12 | Siemens touch screen |
| 13 | Siemens PLC, Siemens servo driver, Yaskawa inverter, imported electrical components |
| Option | |
| 1 | Maxcess pneumatic slitters |
| 2 | Montalvo Auto tension with Load cell |
| 3 | Mechanical-expanding chuck |
| 4 | Ejecting gate |
| 5 | Delivery top belt |
| 6 | Dust removal |
| 7 | Exit roller with air jet |
| 8 | High pile delivery unit |
| 9 | Non-stop stacker |
| 10 | Redundant safety control and interlock safety system |
| 11 | Auto splicer |

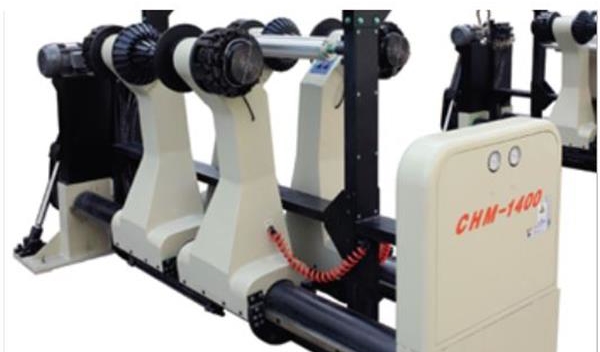

Dual position shaftless pivoting arm unwind stand
Dual position shaftless pivoting arm unwind stand with in-floor track and trolley system.

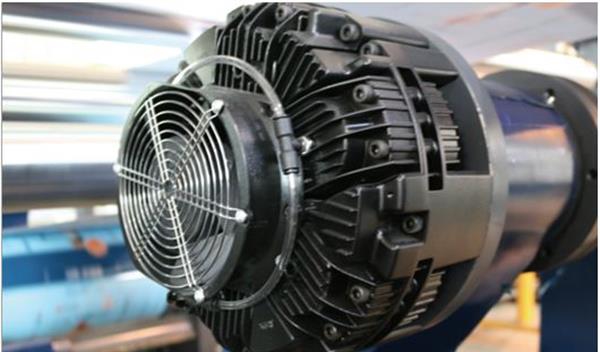

Air cooling disc brake
Air cooled pneumatical controlled disc brakes on each arm.

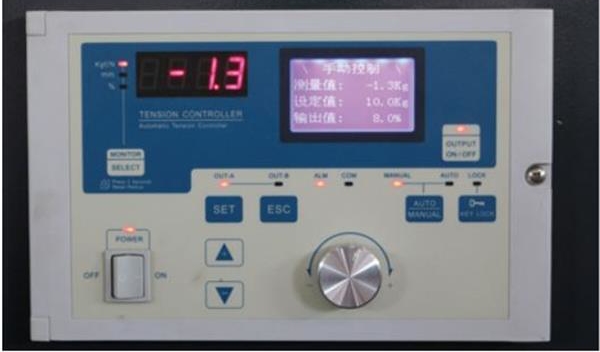

Auto tension based on reel diameter
EPC web guiding

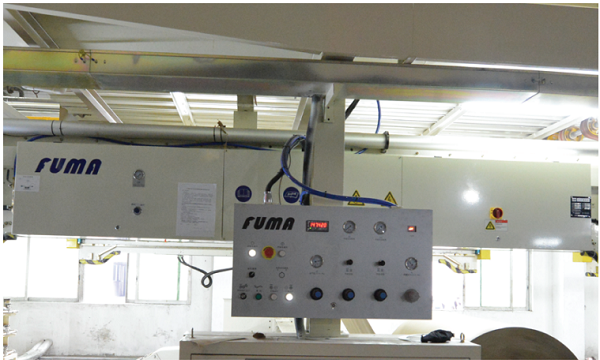

EPC sensor coupled with an independent swing frame allows for minimum edge trim of the web, and strict control of the web edge throughout the reel from start to finish.

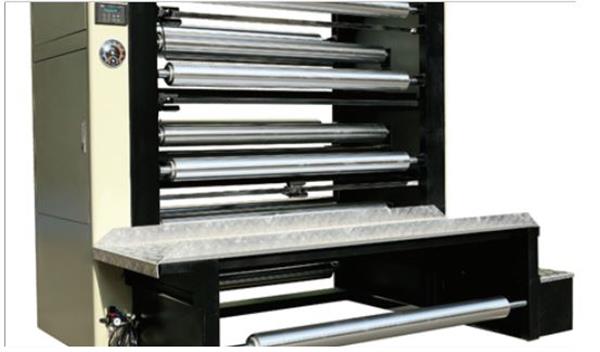

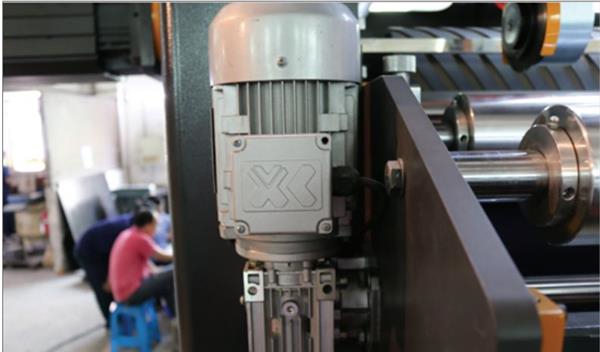

Motorized decurler
Motor driven decurler with remote push button control.

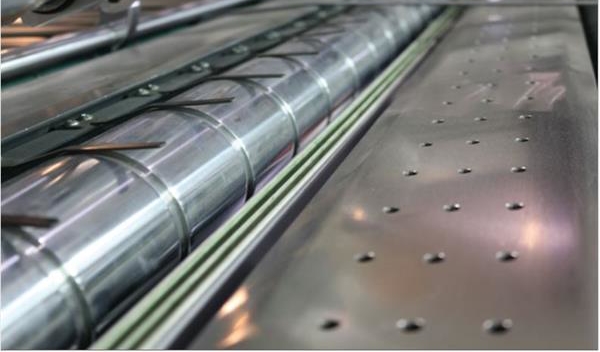

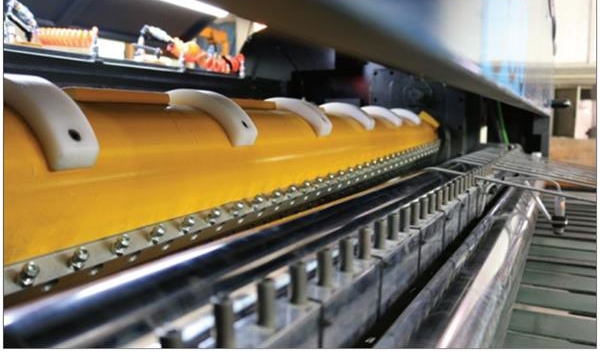

Helical Knife driven by servo motor
Synchro-fly sheeter adopts advanced design of twin helical knife cylinders which are driven directly by high power AC servo motor with high accuracy and clean cut.
The blade is made of specially alloy steel SKH.9 with long life and easy maintenance.

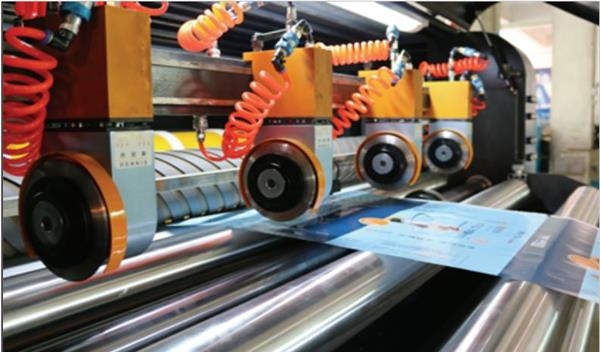

Three sets of pneumatic Slitters
Heavy duty pneumatic slitters ensure stable and clean slitting.
Anti-Static bar

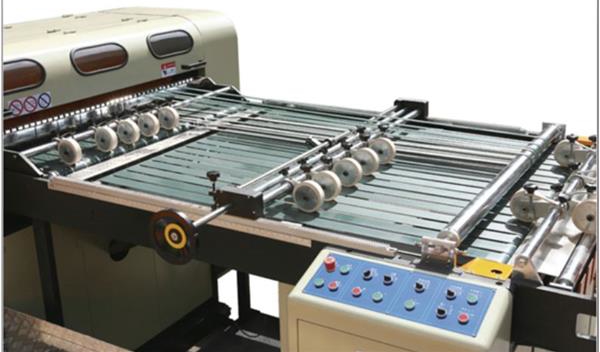

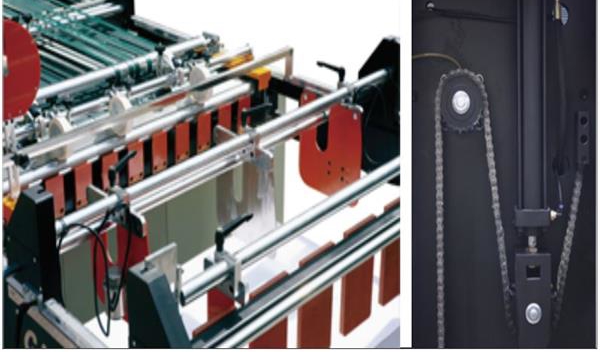

Out feed and overlapping section bar
Fully synchronized speed between high speed out-feeding and overlap tape section to maintain a proper shingle.
Overlapping unit with adjustable overlapping value and jam-stop sensor. Single sheet can be set.
Hydraulic delivery unit
Siemens touch screen

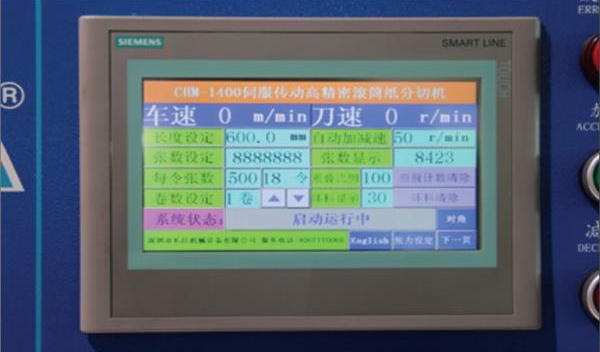

Length of cut, quantity, machine speed, cut speed can be displayed and set via touch screen.

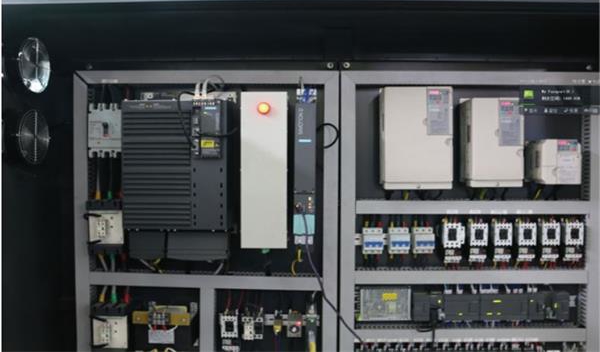

Siemens PLC, Yasakawa inverter, imported electrical components

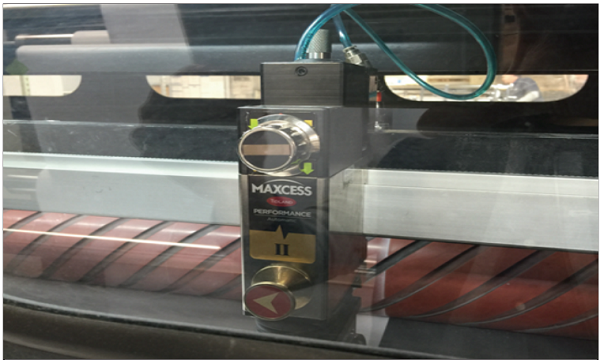

Maxcess Pneumatic Slitters

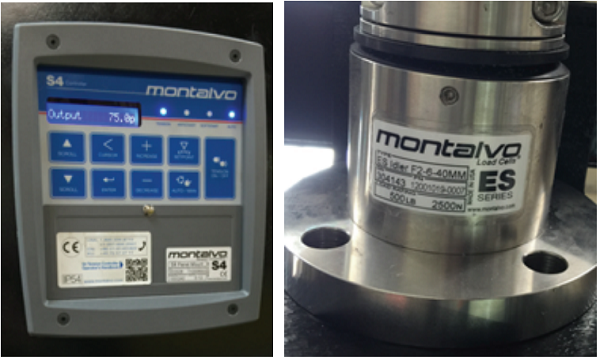

Montalvo Auto tension with Load cell
Auto tension control with load cell gives constant full tension control from the start to the end of the reel

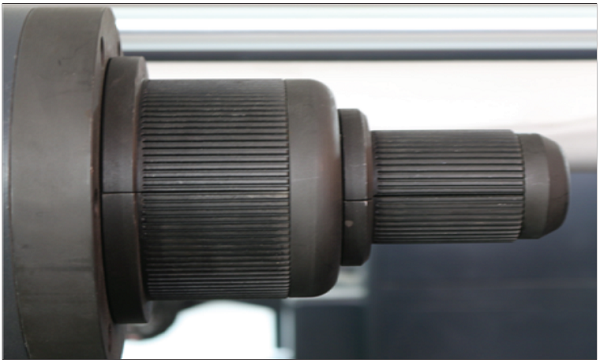

Mechanical-expanding chuck

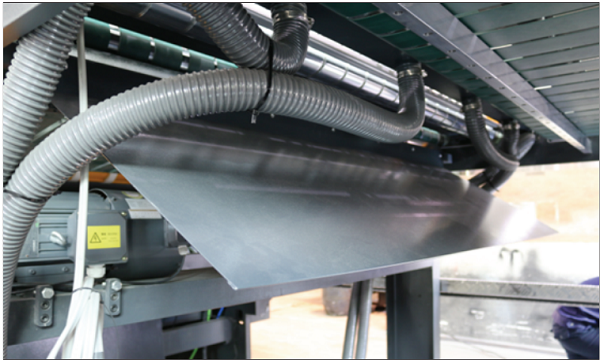

Ejecting gate
Splicer
