CMD540 Fully Automatic Case Maker Line (Book Cover Machine or Automatic Covering Machine)

Short Description:

Automatic case maker adopts automatic paper feeding system and automatic cardboard positioning device; there are features of accurate and quick positioning, and beautiful finished products etc. It is used to make perfect book covers, notebook covers, calendars, hanging calendars, files and irregular cases etc.


Product Detail

Product Video

Technical Parameters

  Automatic case maker CM540A

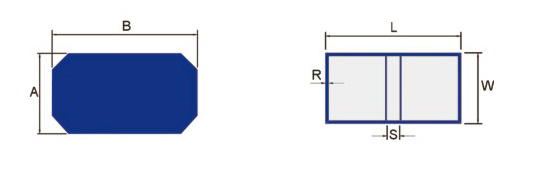

1 Paper size(A×B) MIN: 130×230mm

MAX: 570×1030mm

2 Inner paper size(WxL) MIN:90x190mm
3 Paper thickness 100~200g/m2
4 Cardboard thickness(T) 1~3mm
5 Finished product size(W×L) MIN: 100×200mm

MAX: 540×1000mm

6 Spine width(S) 10mm
7 Spine thickness 1-3mm
8 Folded paper size 10~18mm
9 Max quantity of cardboard 6pieces
10 Precision ±0.3mm
11 Production speed ≦30pcs/min
12 Motor power 5kw/380v 3phase
13 Heater power 6kw
14 Air Supply 35L/min 0.6Mpa
15 Machine weight 3500kg
16 Machine Dimension L8500×W2300×H1700mm

Note

The max and mini sizes of the covers are subjected to the paper size and quality

The production capacity is 30 covers per minute. But the speed of the machine depends on the sizes of the covers

Cardboard stacking height: 220mm

Paper stacking height: 280mm

Gel tank volume:60L

Main Accessories

PLC System: Japanese OMRON PLC
Transmission System: imported guide transmission
Electric Components: French Schneider
Pneumatic Components: Japanese SMC
Photoelectric Components: Japanese SUNX
Ultrasonic double paper checker: Japanese KATO
Conveyer Belt: Swiss Habasit
Servo Motor: Japanese YASKAWA
Synchronous belt: Germany CONTIECH
Reducing Motor: Taiwan Chengbang
Bearing: imported NSK
Gluing cylinder: chromed Stainless steel (New processes)
Other parts: ORION vacuum pump

Basic Functions

(1) Automatically delivery and gluing for paper

(2) Automatically delivering, positioning and spotting for cardboards.

(3) Four-side folding and forming in one time (Irregular shape cases)

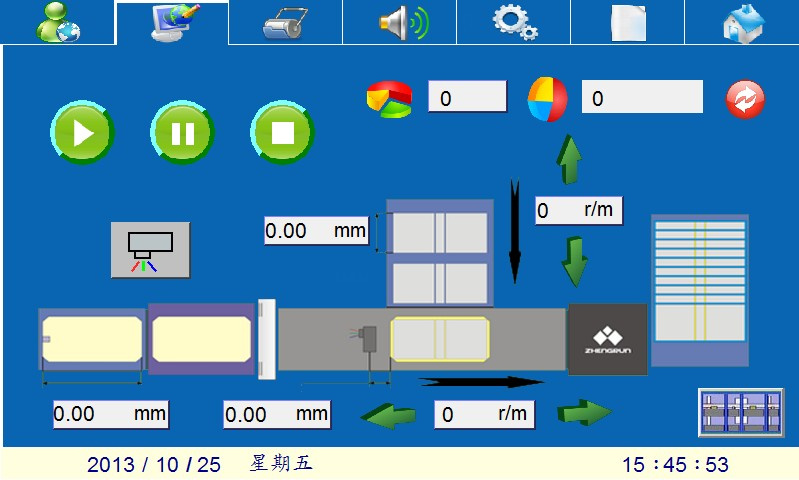

(4) With friendly Human-Machine operation interface, all troubles will be displayed on the computer.

(5) Integrated cover is designed according to the European CE Standards, featuring in safety and humanity.

asdada (10)

Parts Details

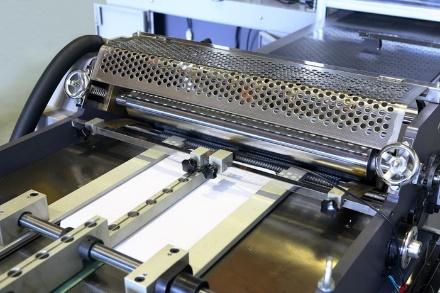

(1) Paper Gluing Unit:

Full-pneumatic feeder: simple construction, convenient operation, novel design, controlled by PLC, motion correctly. (This is the first innovation at home and it is our patented product.)
It adopts ultrasonic double-paper detector device for the paper conveyor
Paper rectifier ensures that the paper won’t deviate after being glued

asdada (1) asdada (2)

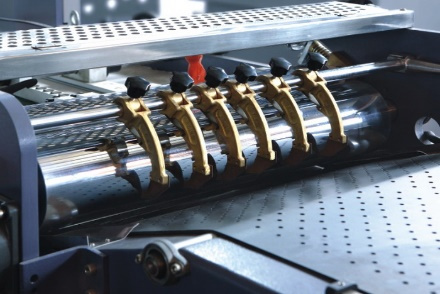

Gluing cylinder is made of finely-grinded and chromium-plated stainless steel. It is equipped with line-touched type copper doctors, more durable.

asdada (3)

Gel tank can automatically glue in circulation, mix and constantly heat and filter.
With fast-shift valve, it will take only 3-5 minutes for the user to clean the gluing cylinder.

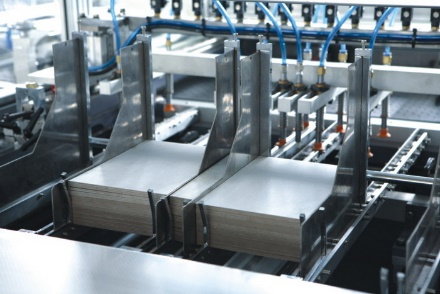

(2) Cardboard Conveying Unit:

It adopts a bottom drawing unit for the cardboard conveyer, which can add cardboard at any time without stopping machine.

asdada (4)

While it lacks cardboard during conveying, there is an auto detector. (The machine will stop can alarm while lacking one or several pieces of cardboards in conveying)

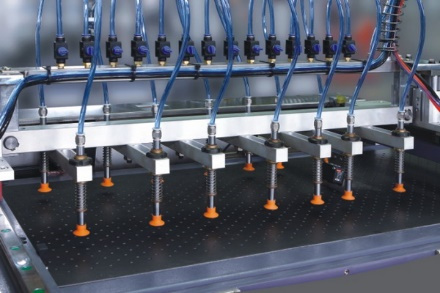

(3) Positioning-Spotting Unit

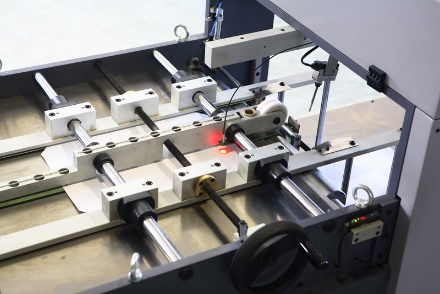

It adopts servo motor to drive the cardboard conveyer and high-precision photoelectric cells to position the cardboards.

The power-full vacuum suction fan under the conveyer belt can have the paper sucked stably onto the conveyer belt.

Cardboard conveying employs servo motor to transmission

asdada (5)

The PLC control on-line motion

The pre-press cylinder on the conveyer belt can ensure that the cardboard and paper are spotted before their sides are folded.

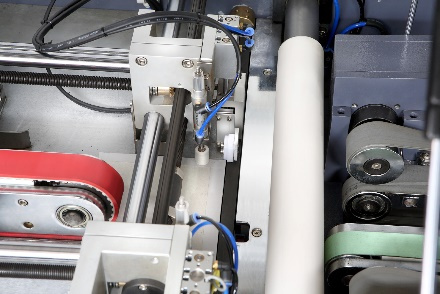

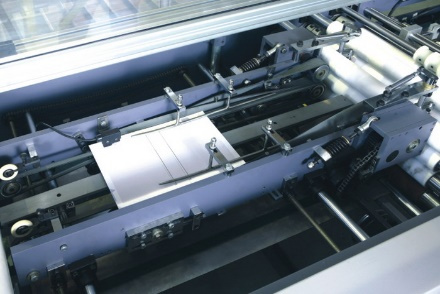

(4) Four-Side Folding Unit:

It adopts a film base belt to fold the lift and right sides.

It adopts servo motor, no displacement and no scratches.

New technology on the folding way which makes the folding perfect.

asdada (6) asdada (7)

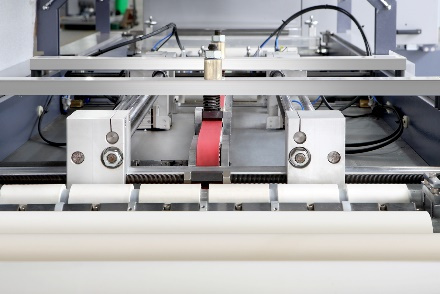

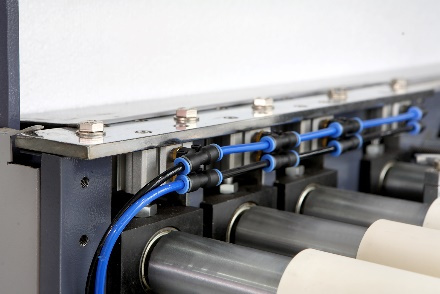

Pneumatic pressure control, easy adjustment.

It adopts a non-glue Teflon cylinder for press multi-layers.

asdada (8) asdada (9)

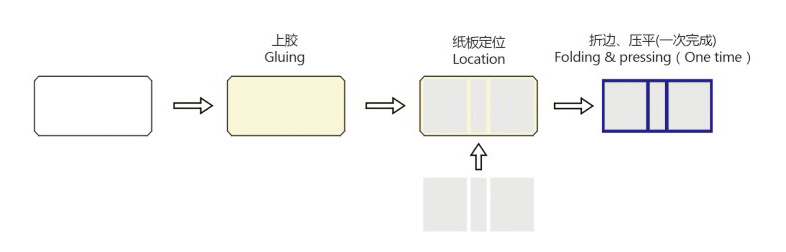

Production Flow

asdada (11)
asdada (12)

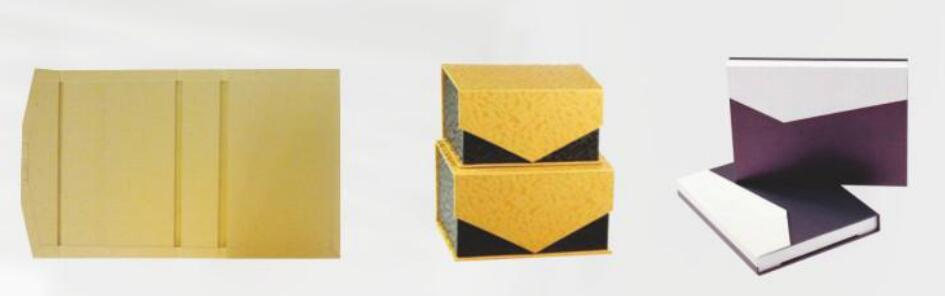

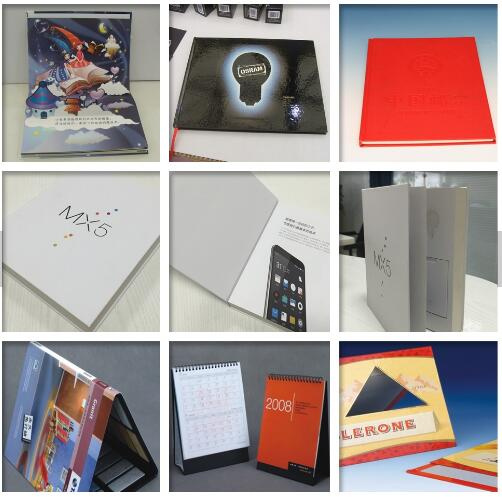

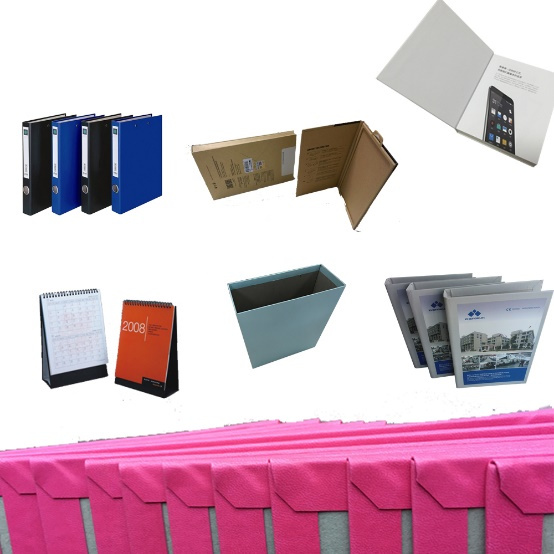

Samples

asdada (13)
asdada (15)
asdada (14)
asdada (16)
asdada (17)
