Conventional Oven

Short Description:



Conventional Oven is the indispensable in the coating line to work with a coating machine for base coating preprint and varnish postprint. It is also an alternative in the printing line with conventional inks.




Product Detail

1. Brief Introduction

Conventional Oven is the indispensable in the coating line to work with a coating machine for base coating preprint and varnish postprint. It is also an alternative in the printing line with conventional inks.

‘Conventional Oven is widely applied in coating and printing for most catogroies of three-piece cans but also the most econmoic solution for fish cans, caps, ends. .

More energy saving of our conventional oven is developped by patent technology, committed to the emerging global demands under current energy crisisand eco-friendly movement at peace .

To define your favorite models, please click SOLUTION to find your target applications. Dont hesitate to pop your inquires by mail: vente@eureka-machinery.com

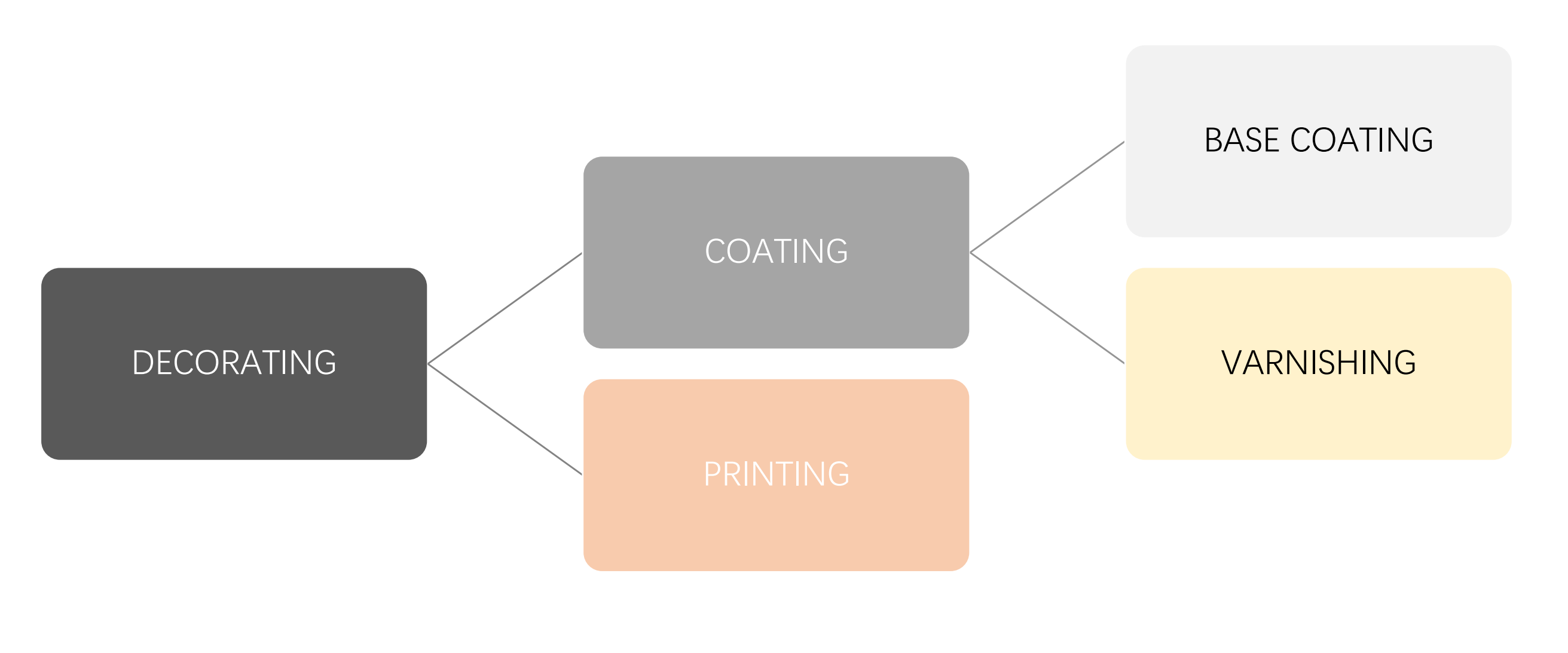

2. Work flow

7

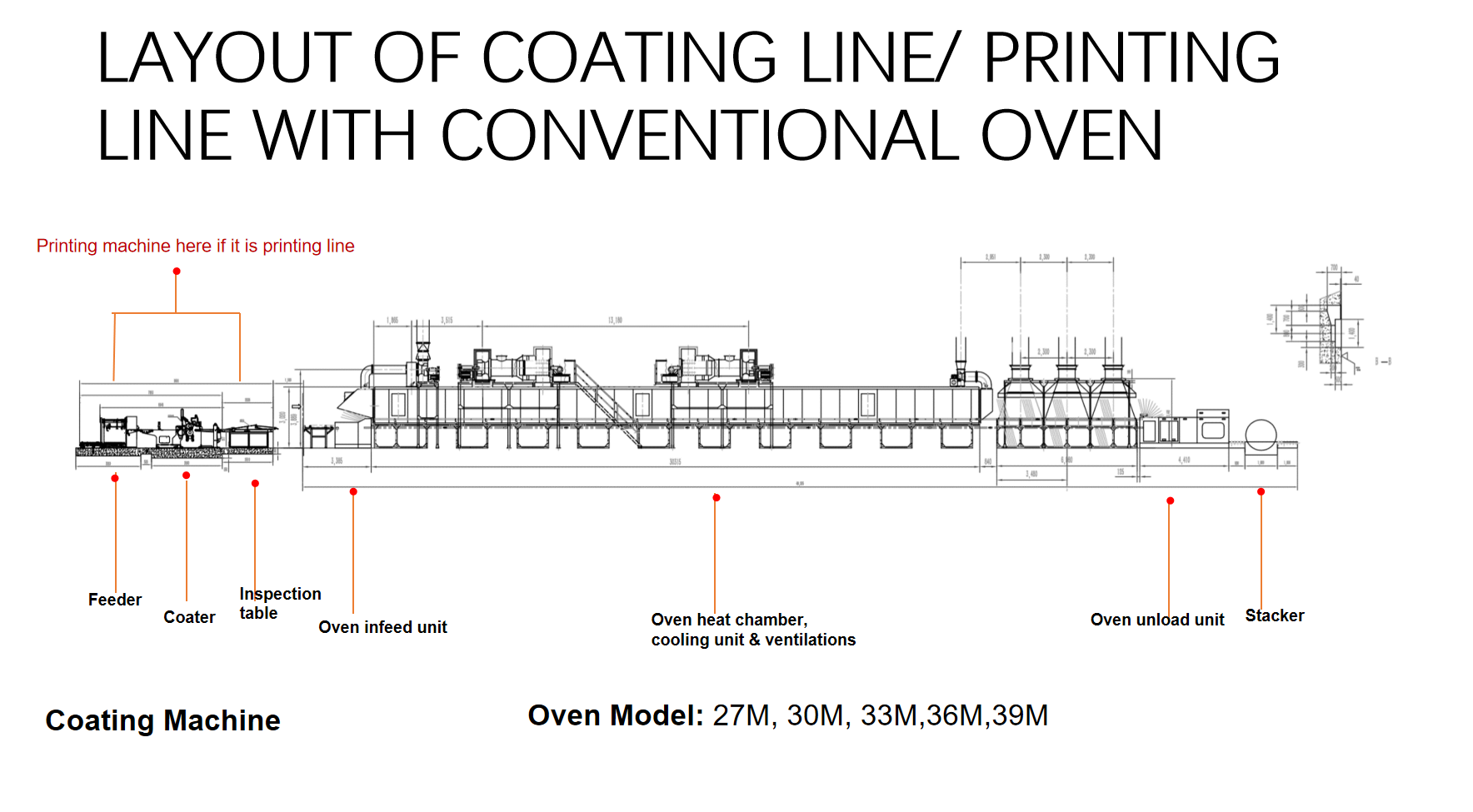

3. Layout

8

4. Advantages

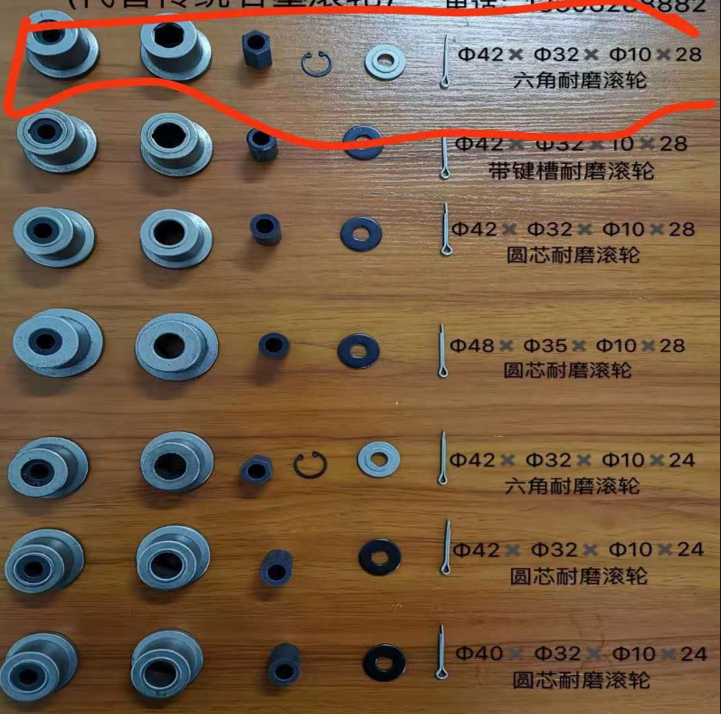

Worn-resistant, Dust-free wheel

9
10
11
12

5. Outsource Components List

Part Name Brand Country of Origin Remark
Servo control SCHEINDER Germany
Servo motor SCHNEIDER Germany
Relay SCHNEIDER Germany
Main PLC SCHEIDER Germany
Limit Switch Omron Japan
Encoder Omron Japan
Burner RIELLO Italy Proportional control
Thermo Meter Honeywell USA

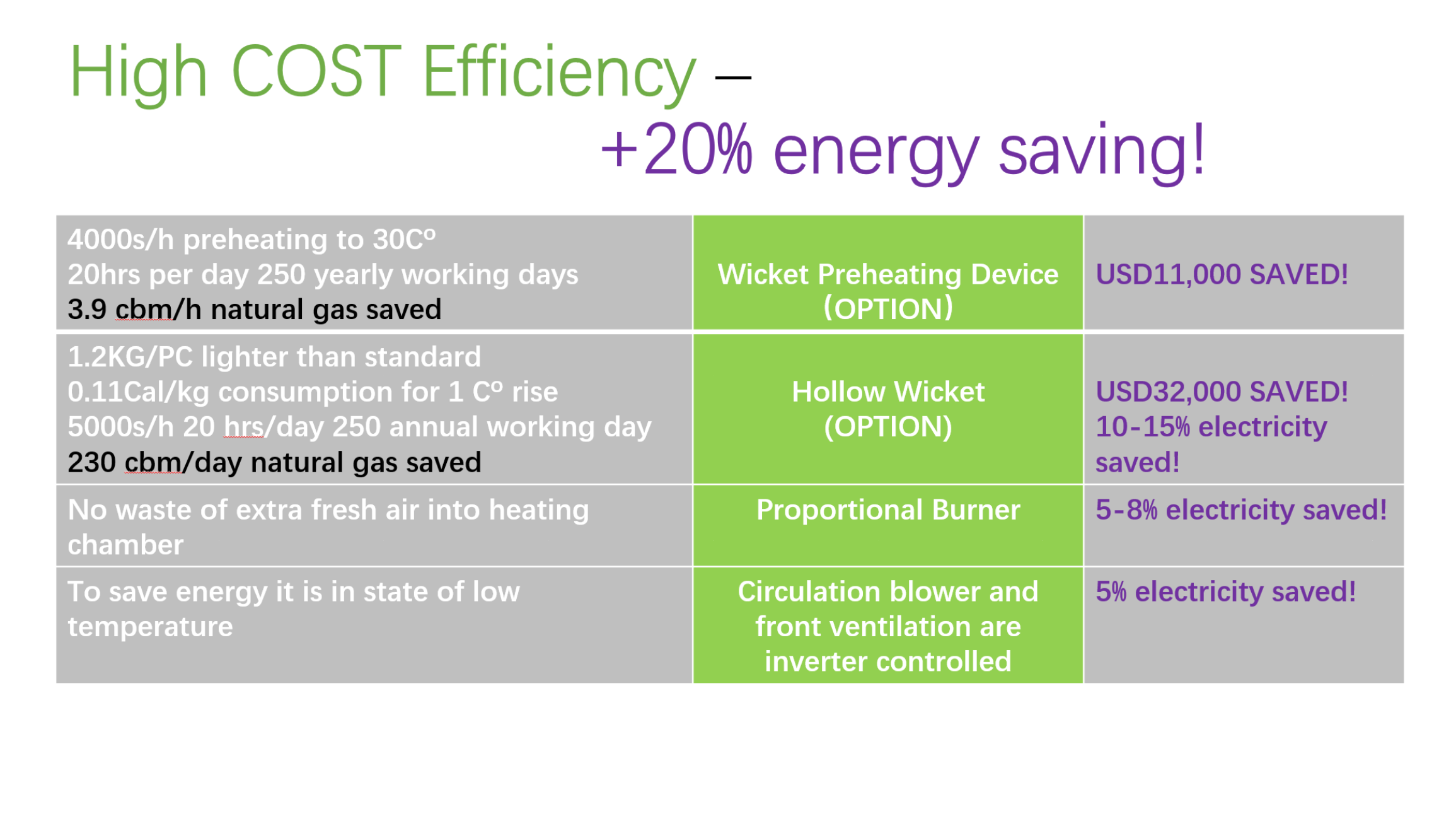

6. Energy Saving Recommends

13

7. Main Technical Specifications

30 Meters OVEN
Max.speed 6000(sheets/hr)
Max. oven working temp. 230 ℃
length of oven 30 m
total length of equipment 47.81 m
Time for sheets baking in baking zone
1. Speed of 4800 sheets/hr, 10 minutes
2. Speed of 5100 sheets/hr, 9.4minutes
3. Speed of 5400 sheets/hr, 8.9 minutes
4. Speed of 6000 sheets/hr, 8 minutes
Max. size of metal sheet 1145×950mm
Min. size of metal sheet 710×510mm
Thickness of metal sheet 0.15-0.5mm
Fuel LPG,NG,ELECTRICITY
Cooling zone 6.96 m
Quantities of heating chamber 2
Cooling zone air intake volume 50000 m3/hr
Cooling zone air outlet volume 55000 m3/hr
Air supply: not exceed 4500 m3/hr
Front exhaust air volume about 10000 m3/hr
Rear exhaust air volume about 4000 m3/hr
Total power consumption About 63.1kw
33 Meters OVEN
Max.speed 6000(sheets/hr)
Max. oven working temp. 230 ℃
length of oven 33 m
total length of equipment 50.81 m
Time for sheets baking in baking zone
1. Speed of 4800 sheets/hr, 11 minute
2. Speed of 5100 sheets/hr, 10.3minute
3. Speed of 5400 sheets/hr, 9.8 minute
4. Speed of 6000 sheets/hr, 8.8 minute
Max. size of metal sheet 1145×950mm
Min. size of metal sheet 710×510mm
Thickness of metal sheet 0.15-0.5mm
Fuel LPG,NG,ELECTRICITY
Cooling zone 6.96 m
Quantities of heating chamber 2
Cooling zone air intake volume 50000 m3/hr
Cooling zone air outlet volume 55000 m3/hr
Air supply: not exceed 4500 m3/hr
Front exhaust air volume about 10000 m3/hr
Rear exhaust air volume about 4000 m3/hr
Total power consumption About 63.1kw
