DCZ 70 Series High Speed Flatbed Digital Cutter
| Model | DCZ702516 | DCZ701713 | DCZ701310 | |
| Effective cutting area | 2500*1600mm | 1700*1300mm | 1300*1000mm | |
| Configuration | Oscillating knife / pen / creasing tool / drag knife | |||
| Max. speed | 1400mm/s | |||
| Smallest cutting diameter | 6mm | |||
| Maximum cutting thickness | 30mm | |||
| Driver | Servo | |||
| Precision | ≤0.1mm | |||
| Data form | HPGL、DXF、PDF | |||
| Voltage | 220v±10% 50Hz | |||
| Data port | parallel port / serial port / USB port | |||
| Option | Video registration system / V cut tool / Foam tool | |||
| Occupy dimension (L*W*H) | 3400*2460*1180mm | 2600*2160*1180mm | 2200*1860*1180mm | |
| Note | Other size can be customized | |||
|
No. |
Photo |
name |
application |
Note |
|
1 |
|

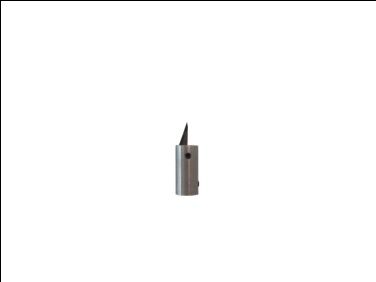

16 degree knife (used on oscillating knife) |
Between 10mm and 15mm. cutting materials：corrugated board, paperboard, Kraft paper, gray board、offset board, self-adhesive paper and PP corrugated sheet,etc |
|
|
2 |
|

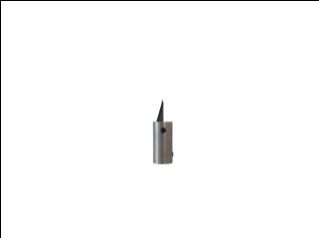

20 degree knife (used on oscillating knife) |
Between 7mm and 10 mm. cutting materials：corrugated board, paperboard, Kraft paper, gray board、offset board, self-adhesive paper and compound materials, etc. |
|
|
3 |
|

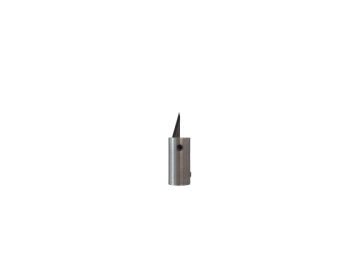

26 degree knife (used on oscillating knife) |
Between 5mm and 7 mm. cutting materials：corrugated board, paperboard, Kraft paper, gray board、offset board, self-adhesive paper and compound materials ,etc. |
|
|
4 |
|

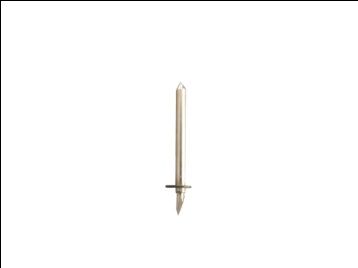

Drag knife
|
Within 3mm. cutting materials：paperboard, Kraft paper, gray board、offset board, self-adhesive paper and compound materials, E corrugated etc. |
|
|
5 |
|
Kiss cut knife |
within 2mm. cutting materials：paperboard, Kraft paper, gray board、offset board and self-adhesive paper,etc. |
|
No. |
Photo |
name |
application |
Note |
|
1 |
|

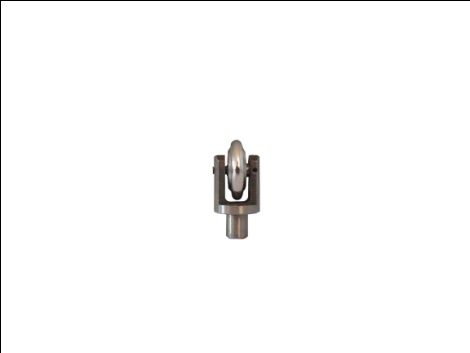

3mm creasing wheel |
creasing thickness: between 3mm and 5mm corrugated board. |
|
|
2 |
|

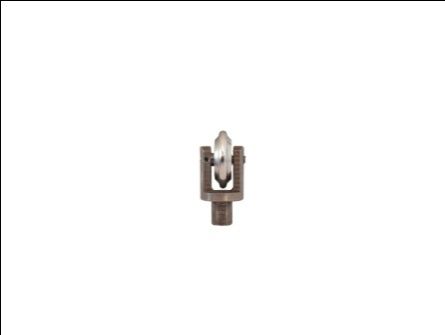

5mm creasing wheel |
creasing thickness: between 5mm and 7mm corrugated board. |
|
|
3 |
|

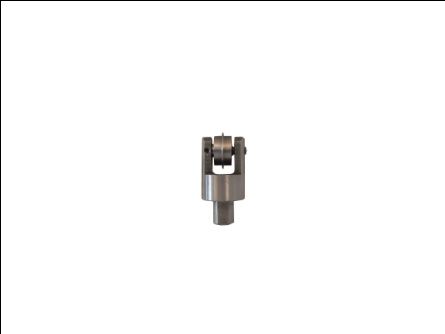

7mm creasing wheel |
creasing thickness: between 7mm and 10mm corrugated board. |
|
|
4 |
|
2mm creasing wheel |
creasing thickness: within 2mm，such as corrugated board, paperboard, Kraft paper, gray board、offset board, self-adhesive paper and compound materials etc. |
|
No. |
Photo |
name |
application |
Note |
|
1 |
|
Pen |
Drawing |
