Double Side One/Two Color Offset Press for Commercial Printing ZM2P2104-AL/ ZM2P104-AL

Short Description:

One/two color offset press is suitable for all kinds of manuals, catalogues, books. It can significantly help reducing the user’s production cost and certainly make sure it’s value. It is considered as a double-sided monochrome printing machine with novel design and high technology.


Product Detail

Product Video

Machine Profile

1.Equipment introduction

One/two color offset press is suitable for all kinds of manuals, catalogues, books. It can significantly help reducing the user's production cost and certainly make sure it’s value. It is considered as a double-sided monochrome printing machine with novel design and high technology.

The paper passes through the paper collecting part (also known as Feida or paper separator) to separate the paper piles on the stack of paper into a single sheet and then continuously feed the paper in a stacking manner. The paper reaches the front gauge one by one, and is longitudinally positioned by the front gauge, and then It is laterally positioned by the side gauge and conveyed to the paper feed roller by the hem pendulum transfer mechanism. The paper is sequentially transferred from the paper feed roller to the upper impression cylinder and the lower impression cylinder, and the upper and lower impression cylinders are pressed against the upper and lower blanket cylinders, and the upper and lower blanket cylinders are pressed and pressed. The imprint is transferred to the front and back sides of the printed paper, and then the paper is transferred to the delivery system by the paper discharge roller. The delivery mechanism grips the delivery mechanism to the delivery paper, and the paper is smashed by the cam, and finally the paper falls on the cardboard. The paper-making system stacks the sheets to complete the double-sided printing.

The maximum speed of the machine can reach 13000 sheets/hour. The maximum printing size is 1040mm*720mm, when thickness is 0.04~0.2mm, which can meet wide range of uses.

This model is an inheritance to company's decades of experience in printing machine manufacturing, while the company also learned from the advanced technology of Japan and Germany. Large number of the spare parts and components were made by well-known companies at home and abroad, e.g. inverter by Mitsubishi (Japan), bearing by IKO (Japan), gas pump by Beck (Germany), circuit breaker by Siemens (Germany)

3. Main Features



Machine Model

ZM2P2104-AL

ZM2P104-AL

Paper Feeder

The frame is formed by two casting wallboards

The frame is formed by two casting wallboards

Negative pressure feeding(optional)

Negative pressure feeding(optional)

Mechanical double side control

Mechanical double side control

Integrated gas control

Integrated gas control

Micro tuning feeding guide

Micro tuning feeding guide

Four in four out feeder head

Four in four out feeder head

Non-stopping paper feeding (optional)

Non-stopping paper feeding (optional)

Anti static device(optional)

Anti static device(optional)

Delivery Structure

Photoelectric detection

Photoelectric detection

Ultrasonic Testing(optional)

Ultrasonic Testing(optional

Pulling guide, transfer mechanism

Pulling guide, transfer mechanism

Conjugate CAM paper teeth swing

Conjugate CAM paper teeth swing

Color Set 1



Dual stroke cylinder controls clutch pressure

Dual stroke cylinder controls clutch pressure

Plate cylinder rapid loading

Plate cylinder rapid loading

Rubber tightening in both directions

Rubber tightening in both directions

Porcelain lining to prevent the smear

Porcelain lining to prevent the smear

Level 5 Precision gear drive

Level 5 Precision gear drive

Precision taper roller bearing

Precision taper roller bearing

Steel structure clutch roller

Steel structure clutch roller

Metering roll control

Metering roll control

Bucket roller speed regulation

Bucket roller speed regulation

Color Set 2

Same as above

/

4. Technical Parameters

Model

ZM2P2104-AL

ZM2P104-AL

Parameters

Maximum speed

13000 paper/Hr

13000 paper/Hr

Maximum paper size

720×1040mm

720×1040mm

Minimum paper size

360×520mm

360×520mm

Maximum printing size

710×1030mm

710×1030mm

Paper thickness

0.04~0.2mm(40-200g/m2)

0.04~0.2mm(40-200g/m2)

Feeder pile height

1100mm

1100mm

Delivery pile height

1200mm

1200mm

Overall Power

45kw

25kw

Overall Dimensions    (L×W×H)

7590×3380×2750mm

5720×3380×2750mm

Weight

~ 25 Tone

~16Tone



5. Equipment advantages

Details

Configuration Image and Advantages

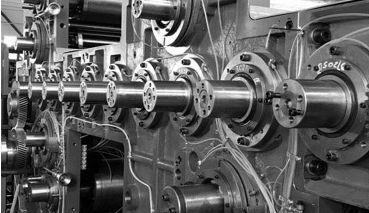

Roller array



 Commercial3Front printing then reverses side printing, reduce the paper deformation, ensure the smooth transmission of paper.

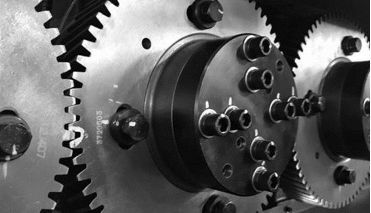

 Roller gear and ink road gear



 Commercial4All level 5 roller, ensure more durable and reduce noise making to ensure constant transmission ratio, stable handover, accurate overprint etc.

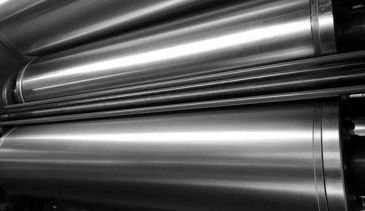

 Printing plate, rubber, impression cylinder



 Commercial5All made of ductile iron, and surgace with stainless steel. Each cylinder adopts dynamic balance adjust to ensure accurate overprinting.

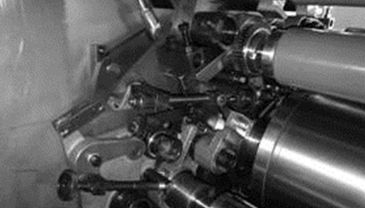

Ink path structure



 Commercial6

Heidelberg style structure adopts 2 to 1 ink string to reduce emulsification of ink in high speed printing. Four relief roller make the ink evenly printed.

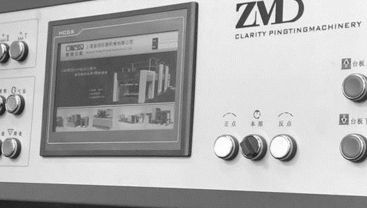

Touch screen on paper collection



 Commercial7

HD touch screen is equipped to realize real-time monitoring, simultaneous operation on dual screen backward and forward and prevent mis operation, the operation schedule is therefore simplified.

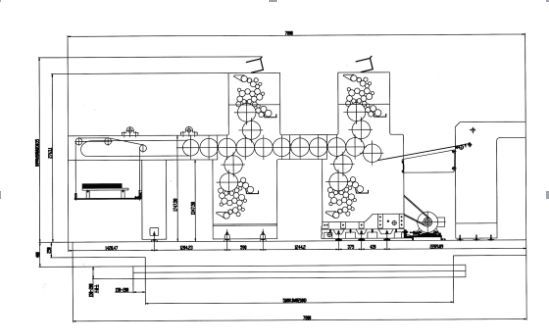

8.Installation requirements

Commercial8

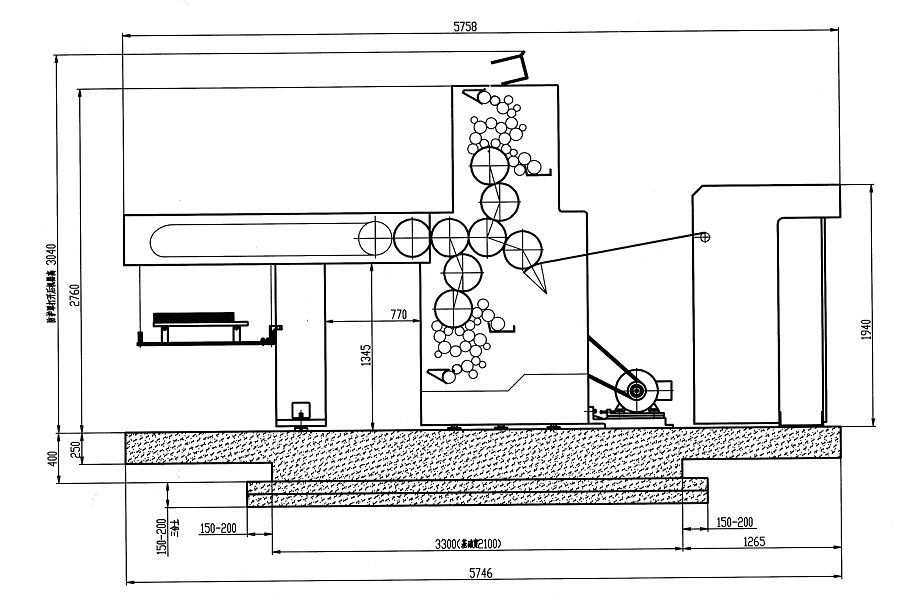

ZM2P2104-AL Layout

Commercial9

ZM2P104-AL Layout

  • When unloading the truck, first use a crane or forklift to unload the equipment from the truck, and then open the wooden packing box, take care not to damage the cover.
  • Please follow the assembler's instructions for the placement of the machine
  • 500mm access area should be reserved for the equipment。
  • Please follow the professional guidance when using the new machine. The initial start-up speed should be adjusted to medium speed, which is more conducive to the long-term optimal use of the machine.

Major research and production capacity

Commercial10

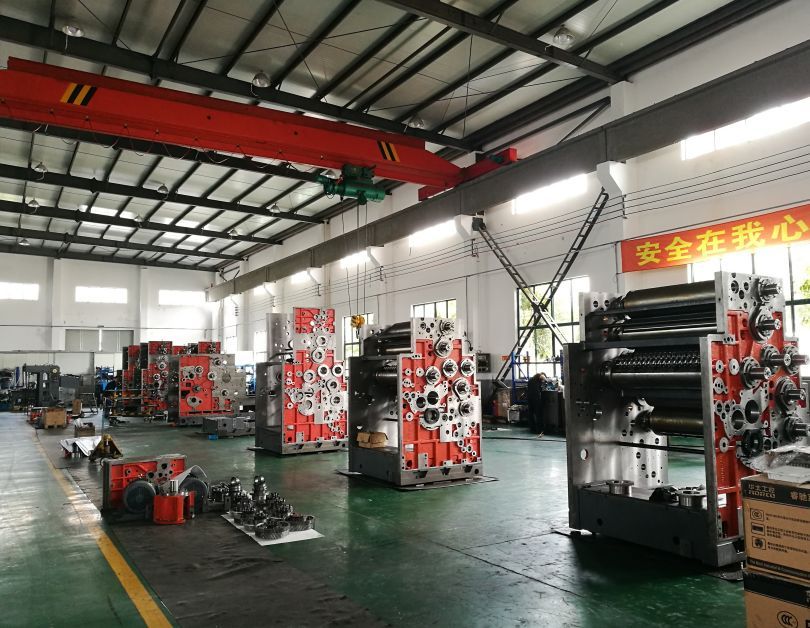

Company Image

Commercial11

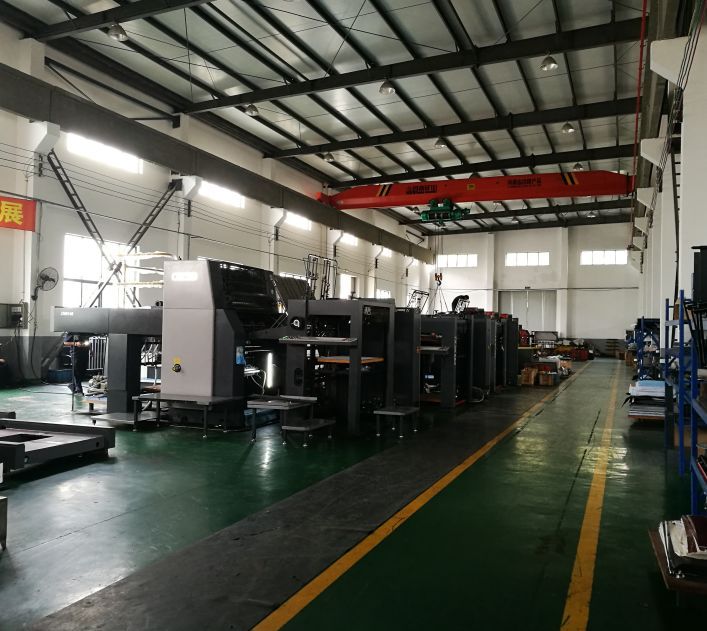

Equipment Assembly Area

Commercial12

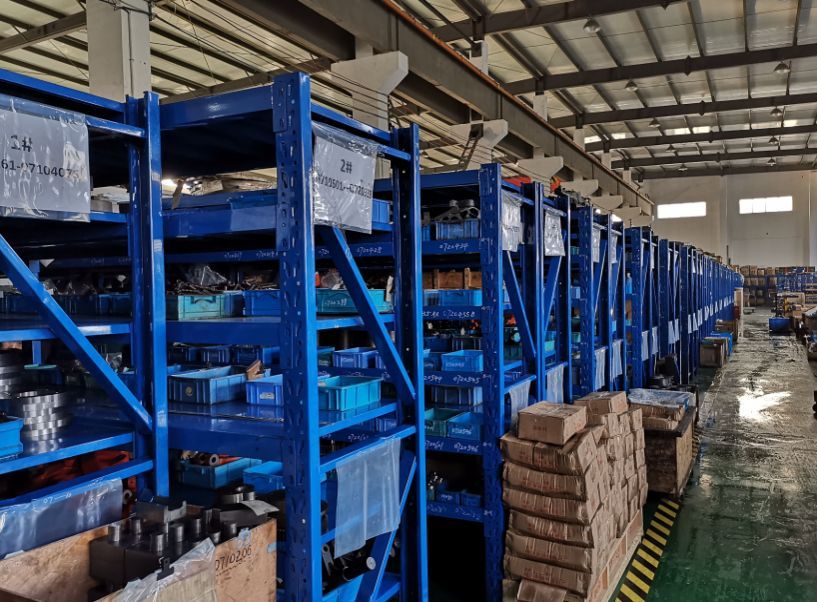

Equipment Assembly Area 2

Commercial13

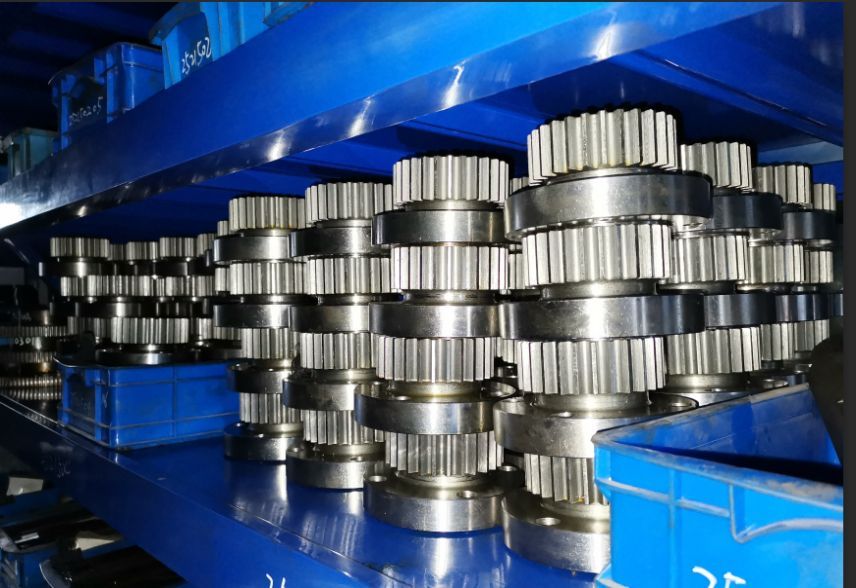

Storage Area
