EUD-450 Paper bag rope insertion machine

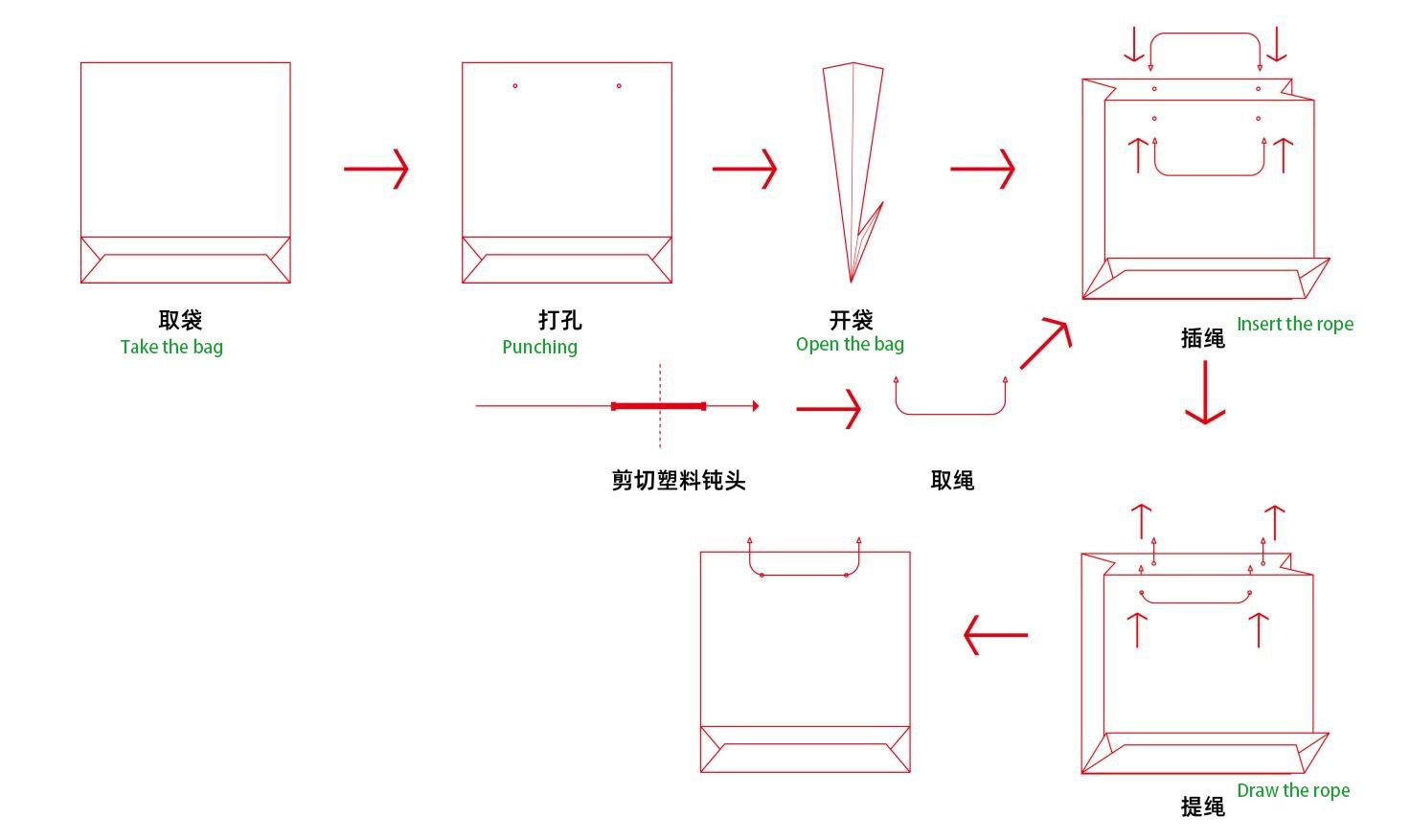

Handbag rope insertion machine: automatic bag feeding, non-stop bag reloading, rope wrapping plastic sheet, automatic rope insertion, counting and receiving bags, automatic alarm and other functions.
The punching position can be adjusted according to the bag, and the rope is suitable for three-strand rope, cotton rope, elastic rope, ribbon rope, etc. After inserting into the bag, the length of the rope can be adjusted.
The equipment perfectly combines the traditional rope-wrapped plastic sheet and rope threading, which reduces production costs and improves production efficiency.
| Model | EUD-450 |
| Bag surface width | 180-450mm |
| Bag surface height | 180-450mm |
| Paper weight | 160-300 gsm |
| Paper bag hole distance | 75-150mm |
| Rope length | 320-450mm |
| Bag pull cord | The length of the rope can be adjusted according to the match between the bag and the rope
|
| Production speed | 35-45 pcs/min |
| Machine Size | 2800*1350*2200MM |
| Machine Weight | 2700KG |
| Total power | 12KW |

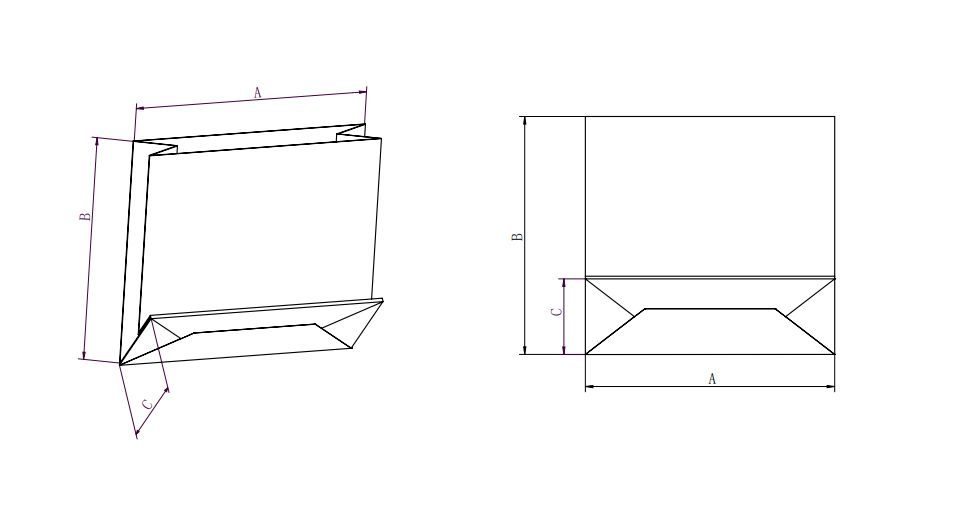

A: bag width B: bag height
C: The width of the bottom of the bag
1

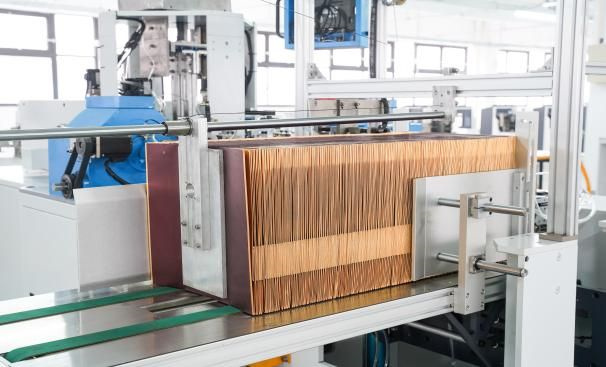

Rope threading machine product paper bag feeding system.
In the case that the machine does not stop, it can realize uninterrupted feeding and improve the production efficiency of the machine.
2

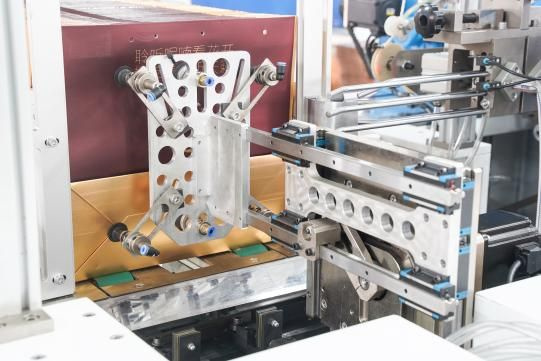

Vacuum Bag take system
Using the vacuum principle, the suction nozzle is attached to the paper bag to absorb the paper bag. And put the paper bag into the transfer station.
Put its paper bag into the punching station.
3

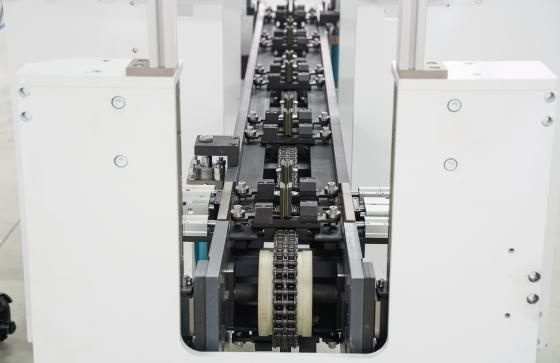

chain transfer station
The rotation of the gear is controlled by the motor to drive the chain, so that the station rotates.
4
Paper bag punching system.
It is conveyed by the chain to the punching station, and the inductive switch detects the position of the bag.cylinder drives the needle rod to punch the bag.
5

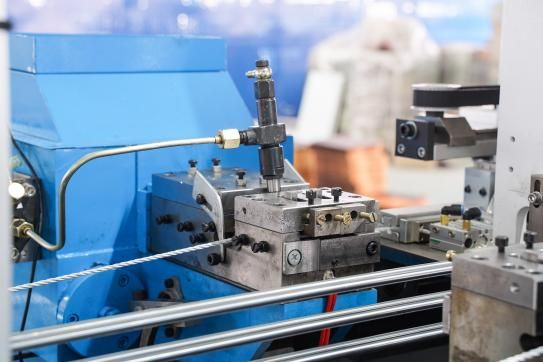

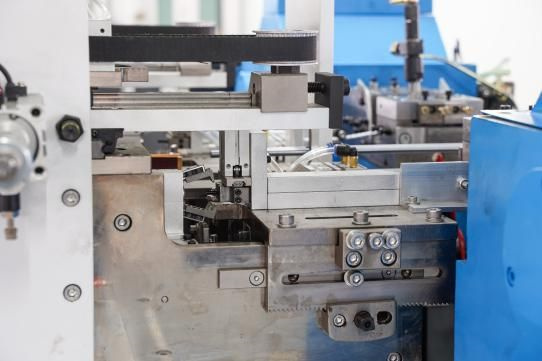

Wrist plastic buckle hemming
The cam is driven by the private server motor to drive the mold, and the paper bag is punched and the wrist plastic sheet is rolled at the same time.
6

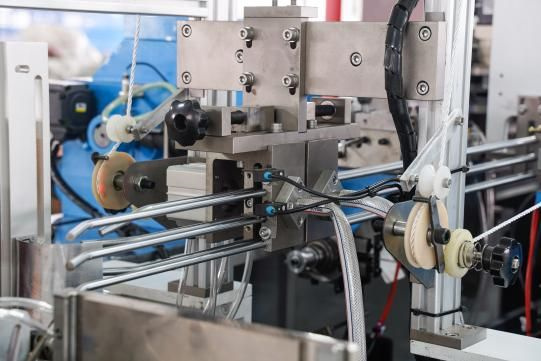

Rope take and cut module
The wrist rope wrapped with plastic sheet will be clamped by the rope clamping cylinder and pulled to the required length. And push the scissors to cut.
7

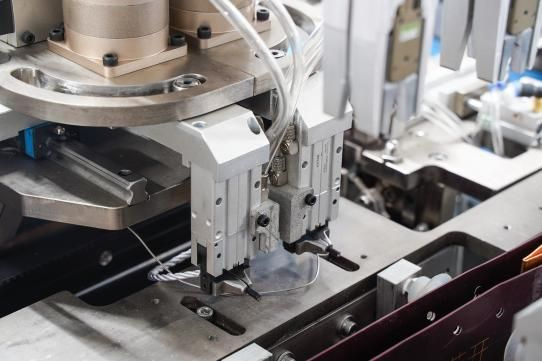

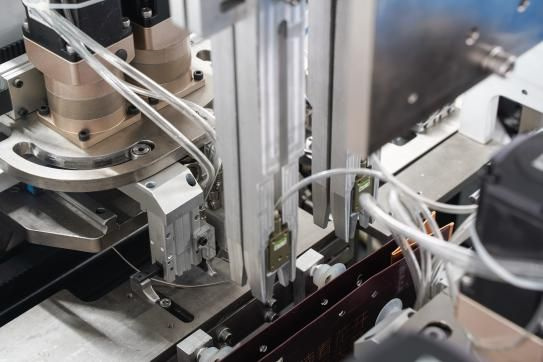

Rope insertion module
Hand the trimmed rope to the Insert Rope module. The cord clip will pick up the plastic pieces at both ends. Insert the punched position of the paper bag.
8
extract rope clip
increase the rope insertion depth.Re-insertion of the rope is to move the rope up and down through the private server motor to extract the rope into the bag.
9

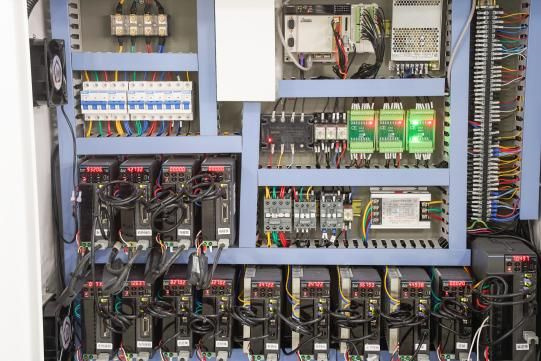

Private server control driver, and circuit control
| Accessory name | Brand | Origin |
| Bearing | Iko | Japan |
| Bearing | Harbin Bearings | China |
| Cylinder | AirTAC | Taiwan, China |
| Guide | SLM | Germany |
| Timing belt | Jaguar | China |
| servo motor | Delta | Taiwan, China |
| Servo motion control system | Delta | Taiwan, China |
| Stepper motor | leisai | China |
| Touch screen | Delta | Taiwan, China |
| Switching power supply | Schneider | France |
| AC contactor | Schneider | France |
| Photoelectric switch | Omron | Japan |
| Breaker | Chint | China |
| Relay | Omron | Japan |
| Name | Quantity |
| Inner hex spanner | 1 pcs |
| 8-10mmExternal hexagon wrench | 1 pcs |
| 10-12mmExternal hexagon wrench | 1 pcs |
| 12-14mmExternal hexagon wrench | 1 pcs |
| 14-17mmExternal hexagon wrench | 1 pcs |
| 17-19mmExternal hexagon wrench | 1 pcs |
| 22-24mmExternal hexagon wrench | 1 pcs |
| 12寸Adjustable wrench 12 inch | 1 pcs |
| 15cmsteel tape | 1 pcs |
| oil gun | 1 pcs |
| Milky Maintenance Lubricant | 1 bucket |
| Flat-blade screwdriver | 2 pcs |
| Phillips screwdriver | 2 pcs |
| custom wrench | 1 cps |
| Sucker head | 5 pcs |
| Heater | 2 pcs |
| thermocouple | 1 pcs |
| Various types of trachea joints | 5 pcs |
| Name | Brand |
| Suckerhead | China |
| Blade | Our custom |
| Heater | China |
| Micro oil pump | Jiangxi Huier |
