EUFMPro Automatic High Speed Flute Laminating Machine

Function:

The paper can be laminated with paperboard to increase the strength and thickness of the material or special effects. After the die-cutting, it can be used for packaging boxes, billboards and other purposes.

Structure:

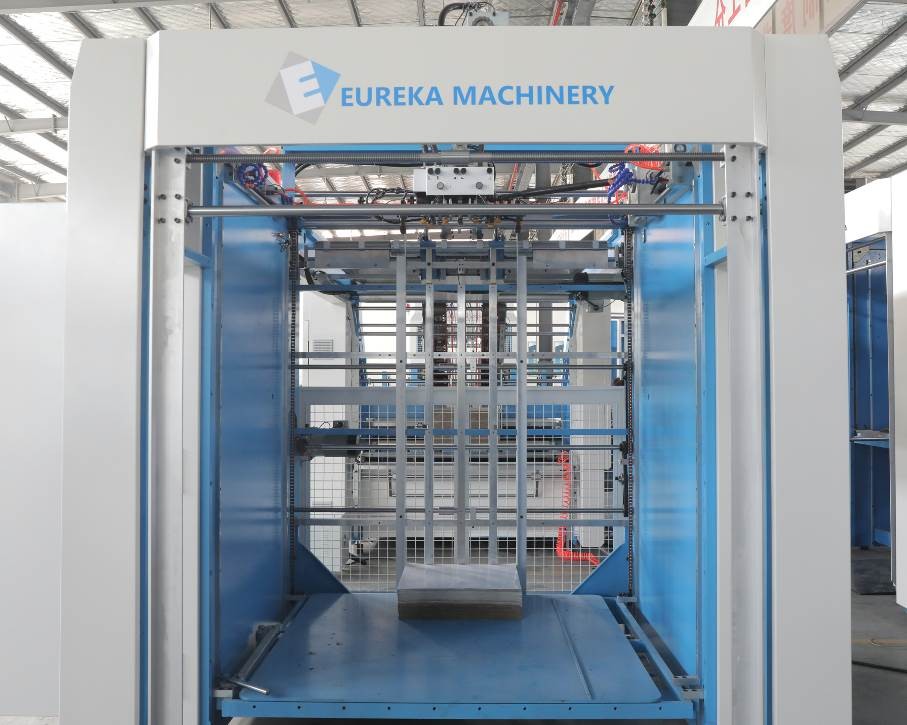

Top sheet Feeder: It can send stacks of 120-800gsm paper from above.

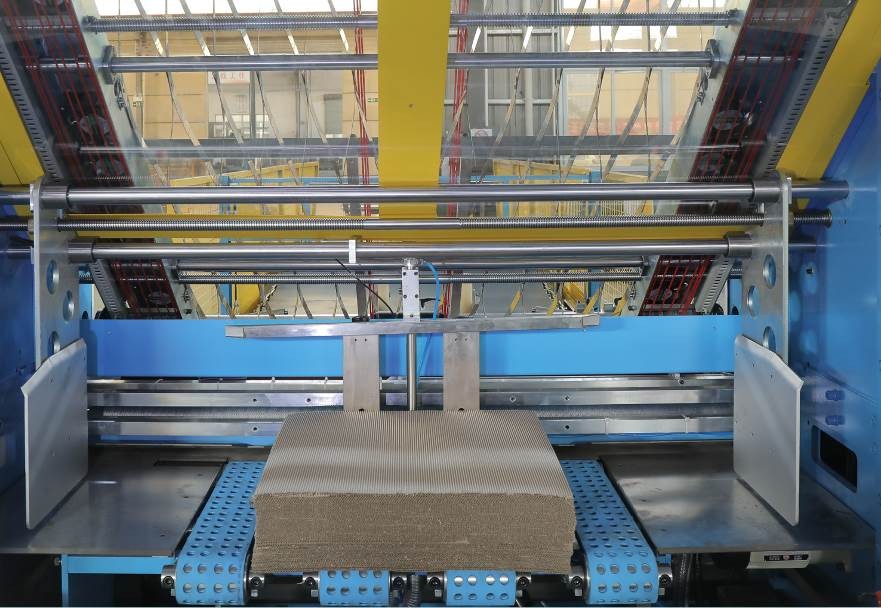

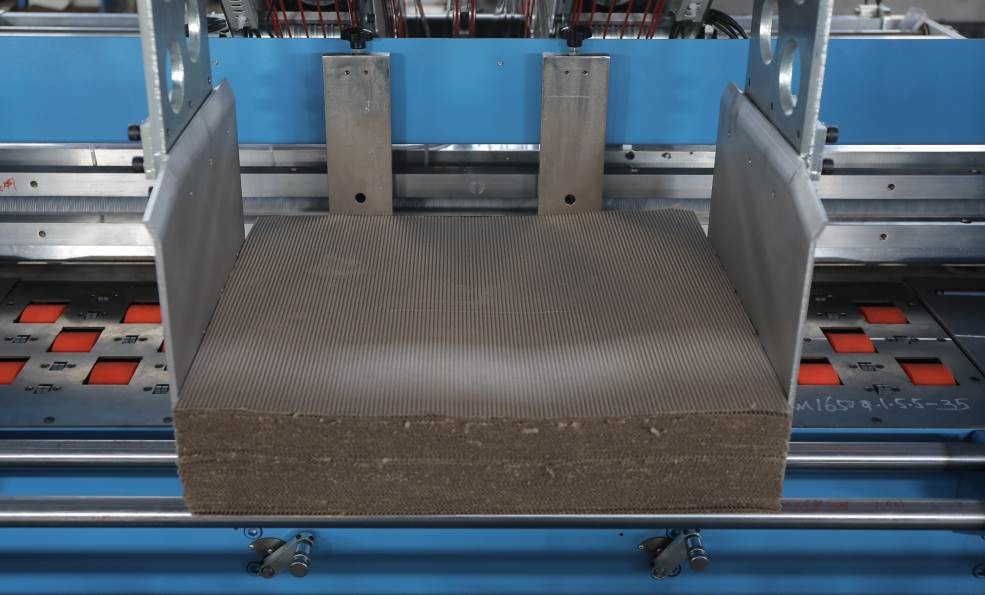

Bottom sheet feeder: It can send 0.5~10mm Corrugated/paperboard from below.

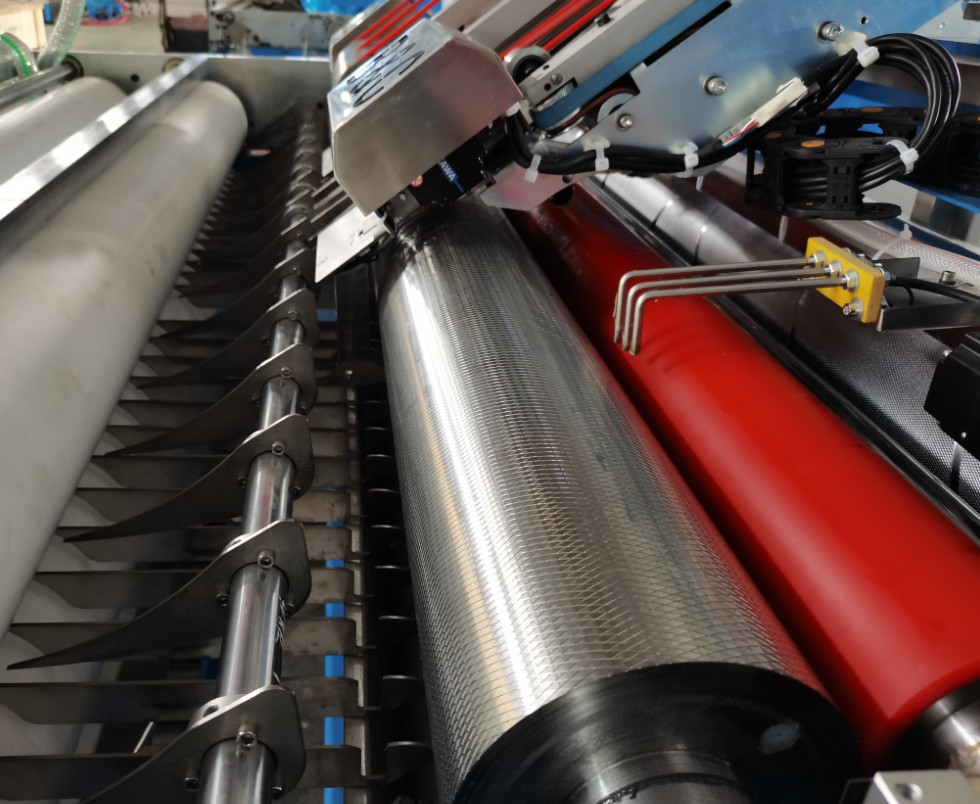

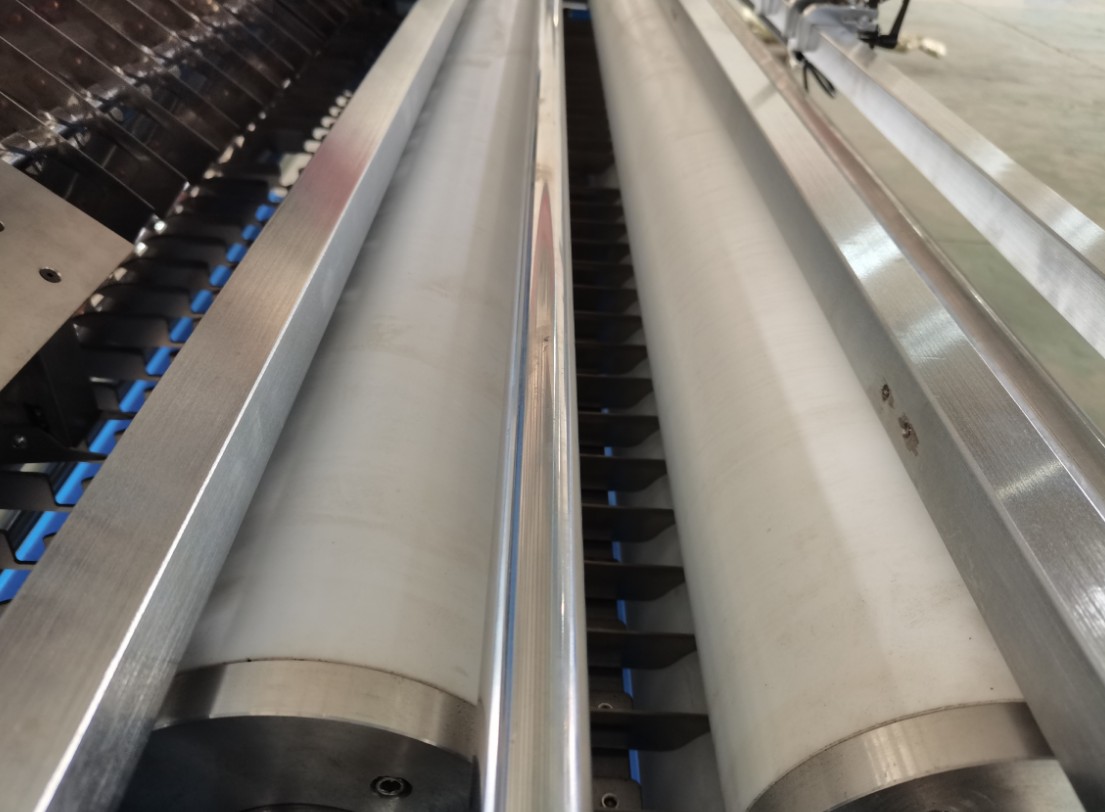

Gluing mechanism: The glued water can be applied to the fed paper. Glue roller is stainless steel.
Calibration structure-Fits the two papers according to the set tolerances.

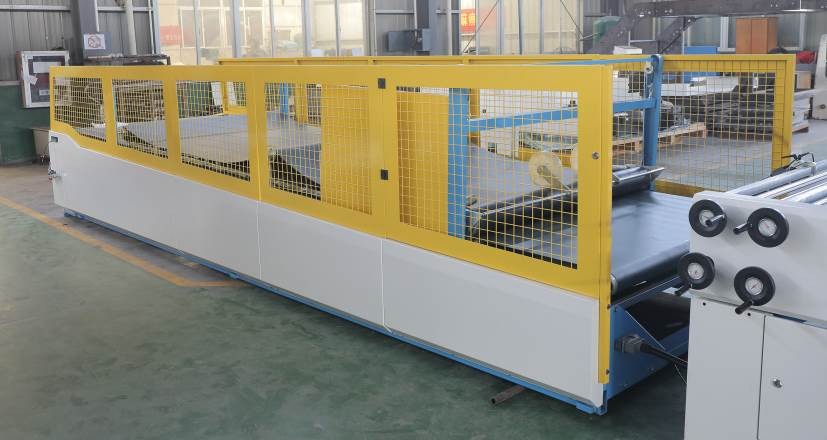

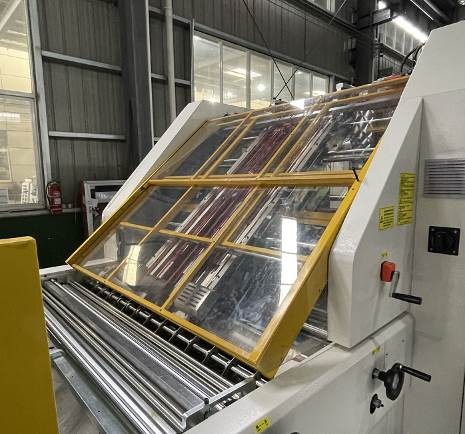

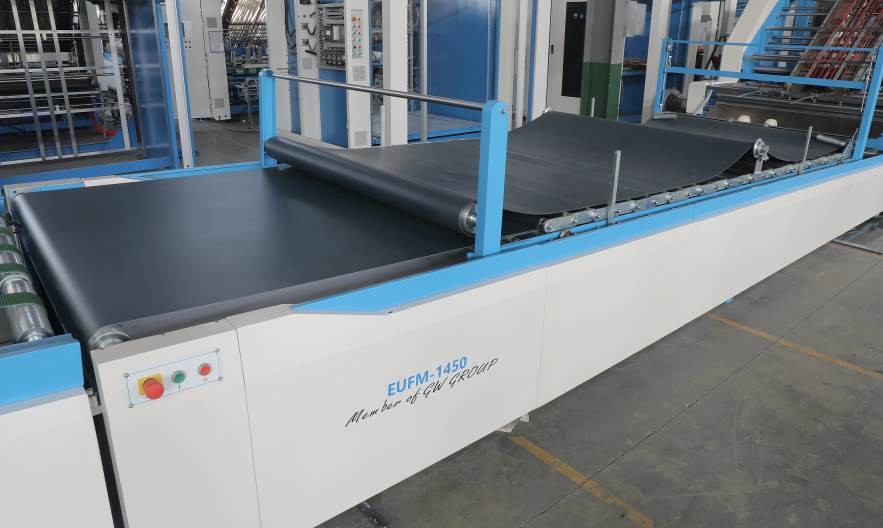

Pressurizing Conveyor: Presses the attached paper and conveys it to the delivery section.

The frames of this series of products are all processed at one time by a large-scale machining center, which ensures the accuracy of each station and ensures more stable operation of the equipment

Principles:

The top sheet is sent out by the upper feeder and sent to the start detector of the positioning device. Then the bottom sheet is sent out; after the bottom paper is coated with glue, the top paper and the bottom paper are respectively conveyed to the paper Synchronous detectors on both sides, after the detection, the controller calculates the error value of the top and bottom sheet, servo compensation device on both sides of the paper adjusts the paper to a predetermined position for splicing, and then pressurizes the conveying. The machine presses the paper and conveys it to the delivery machine to collect the finished product.

Applicable materials for laminating:

Paste paper --- 120 ~ 800g/m thin paper, cardboard.
Bottom paper---≤10mm corrugated ≥300gsmpaperboard, single-sided cardboard, multi-layer corrugated paper, pearl board, honeycomb board, styrofoam board.
Glue - resin, etc., PH value between 6 ~ 8, can be applied to the glue.

Structural features:

Adopting the world's leading transmission control system, input paper size and system will auto-tuning.
Computerized high-speed laminating, up to 20,000 pieces per hour.

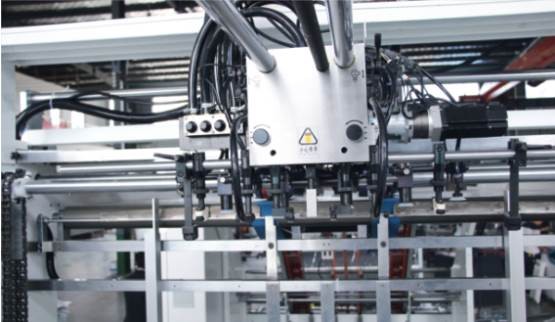

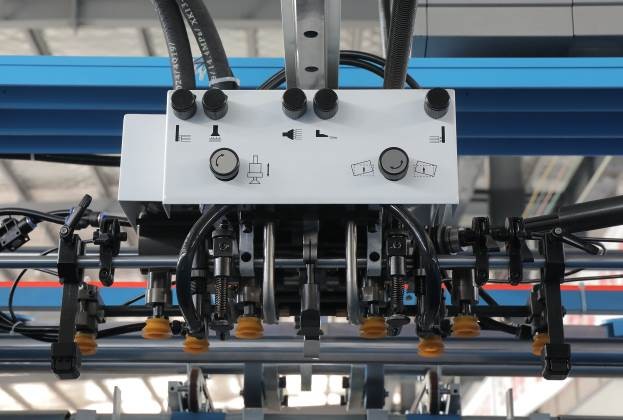

Stream-type air supply head, with four sets of forward nozzles and four sets of suction nozzles.

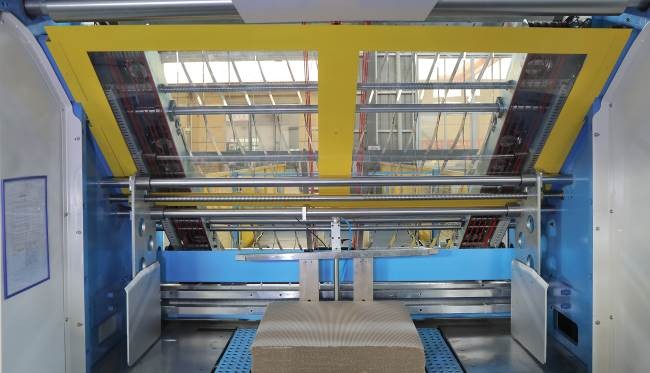

Feed Block adopts low stack cardboard, which can fit the paper to the pallet, and can install track-assisted pre-stacker.

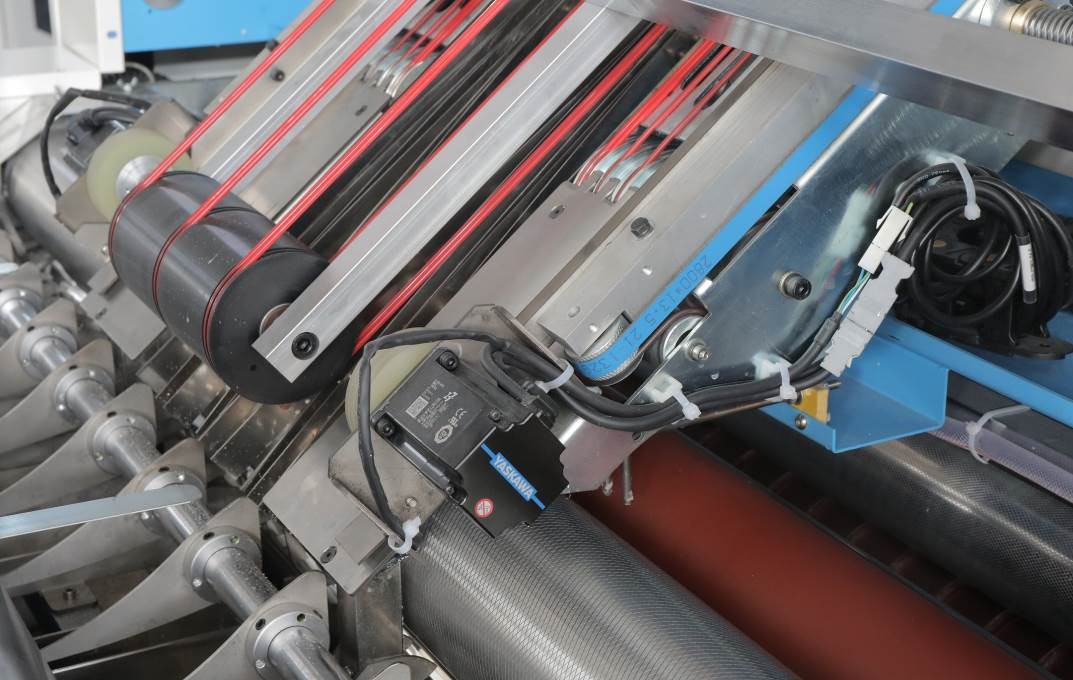

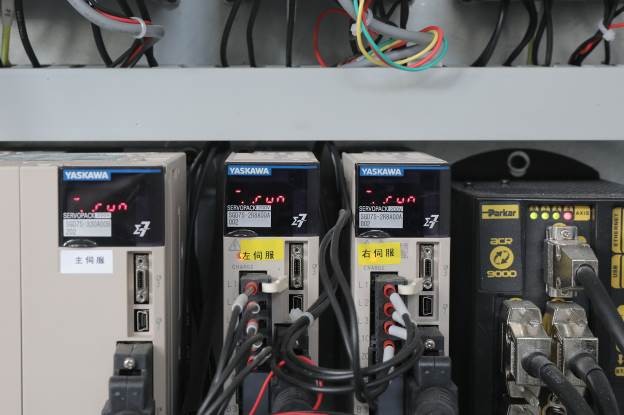

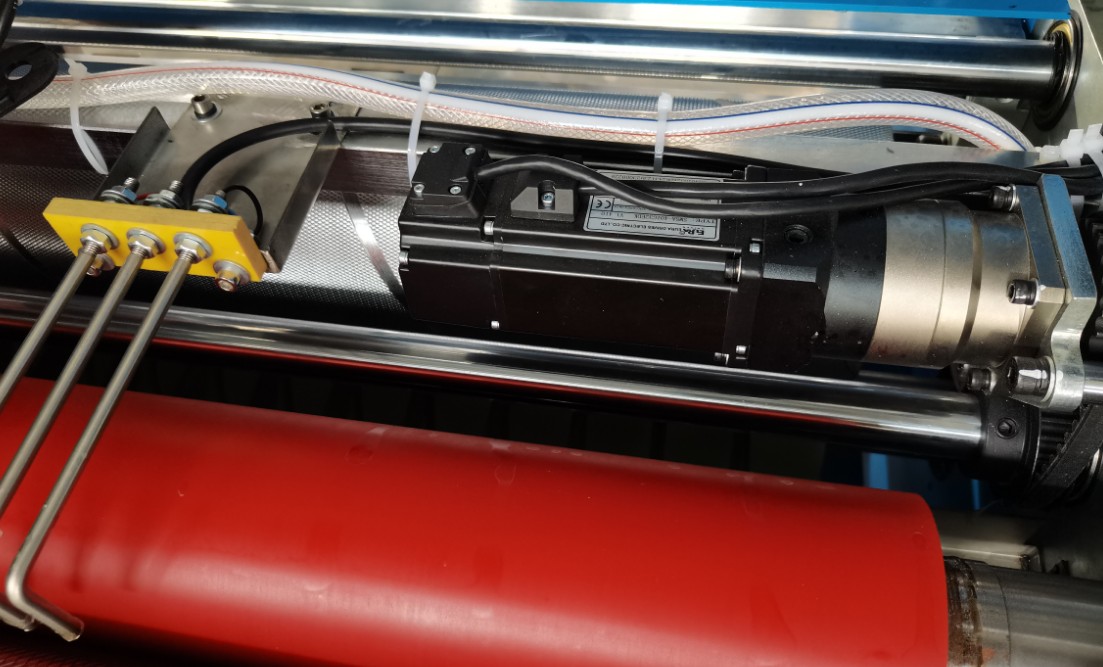

Use multiple sets of electric eyes to detect the advance position of the bottom line, and make the servo motor on both sides of the face paper to independently rotate to compensate the upper and lower paper alignment, which is accurate and smooth.

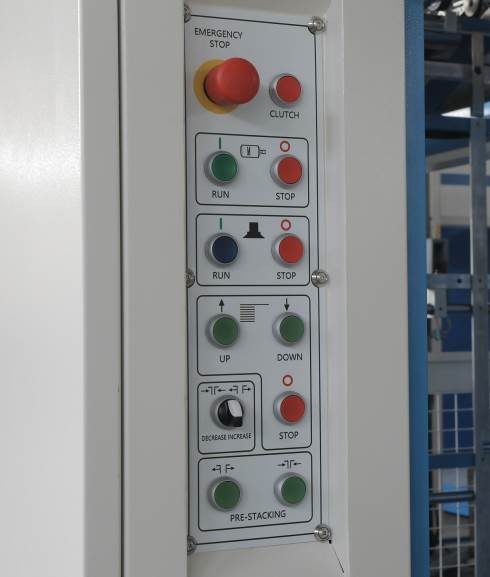

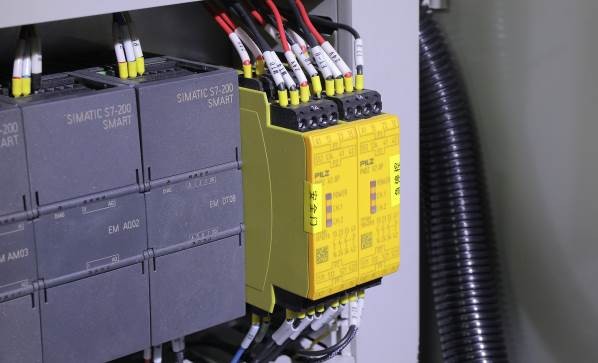

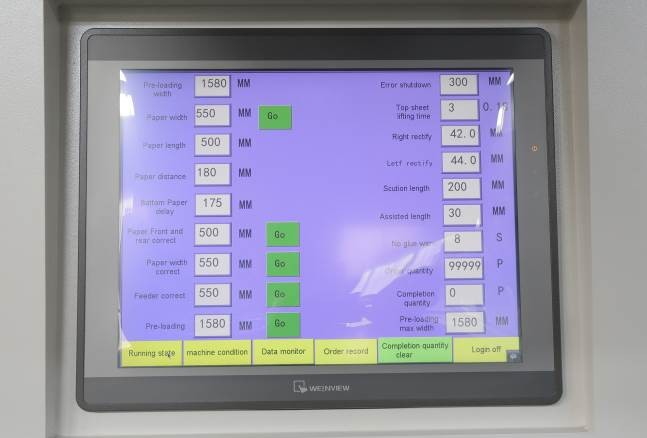

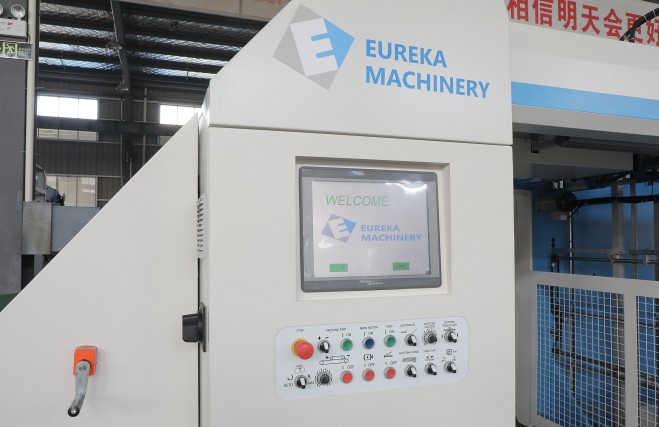

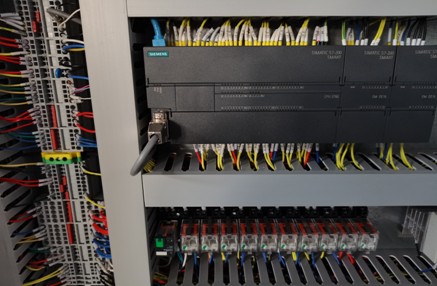

Full-function electronic control system, using human-machine interface and PLC program model display, can automatically detect operating conditions and work records.
Automatic glue replenishment system can automatically compensate for lost glue and cooperate with glue recycling.
EUFM high speed laminating machine can be connected with automatic flip flop stacker to save labor.
