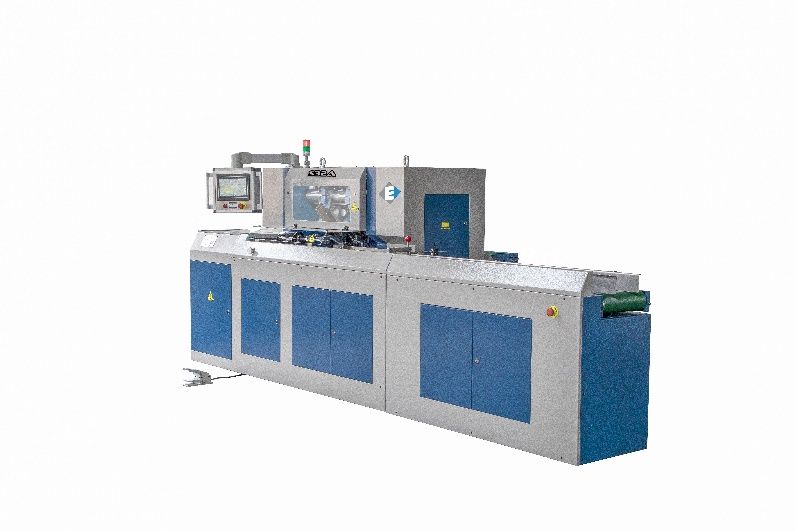

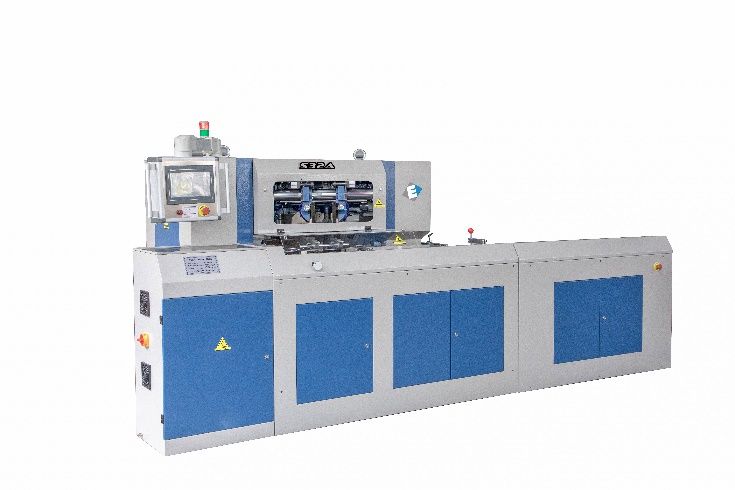

S32A automatic in-line three knife trimmer is a new generation of automatic three knife

trimmer manufactured by our company. It is the result of a lot of efforts and research and development costs. It aims to improve the accuracy, reliability and efficiency of the machine. The machine has high automation, flexible version changes and convenient debugging. It can be connected with various types of binders.

Specification

   Model



Specification

S32A

Max. Trim Size(mm)

380*330

Min. Trim Size(mm)

140*100

Max. Trim Height(mm)

100

Min. Stock Height(mm)

8

Max. Cutting speed (times/min)

32

Main Power(kW)

9

Overall Dimension (L×W×H)(mm)

3900x2800x1700

Machine weight(kg)

3800

Specification

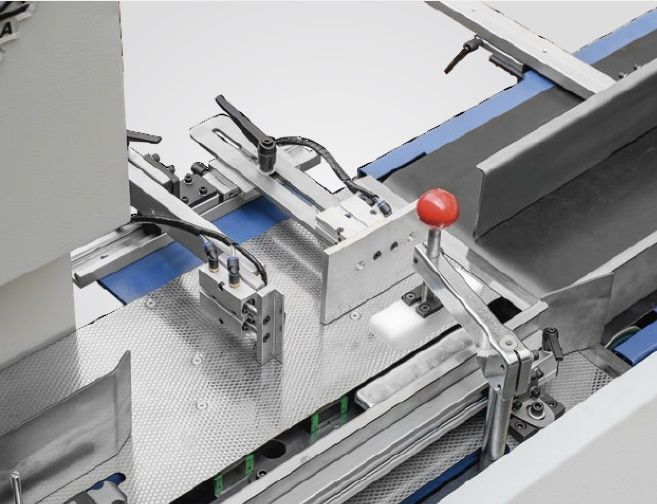

1.Automatic in-feed system with channel snap device

EUREKA S-32A AUTOMATIC IN-LINE9

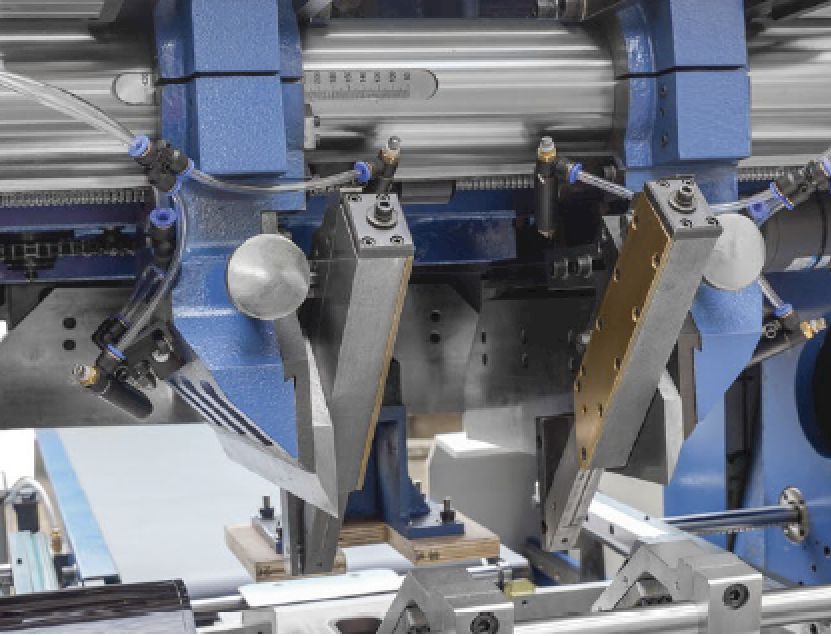

2.Device to prevent book back cracking
Festo cylinder side knife lock device
Side blade silicone oil spraying device
EUREKA S-32A AUTOMATIC IN-LINE10

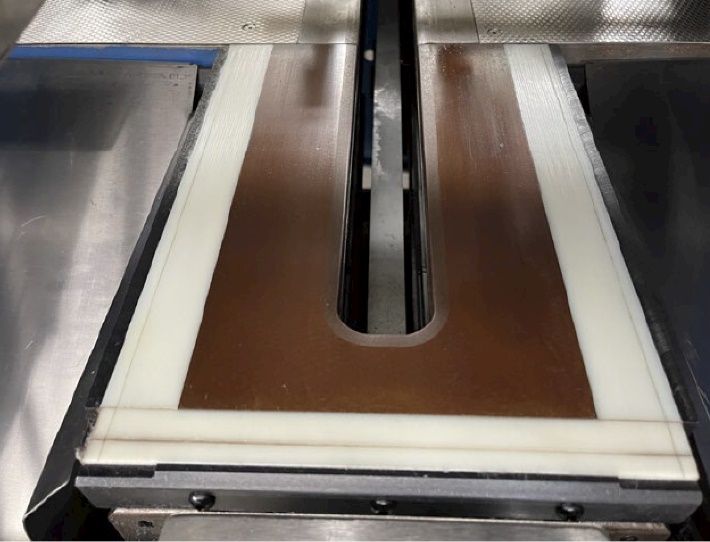

3.Drawer type working table for quick job changing
EUREKA S-32A AUTOMATIC IN-LINE11

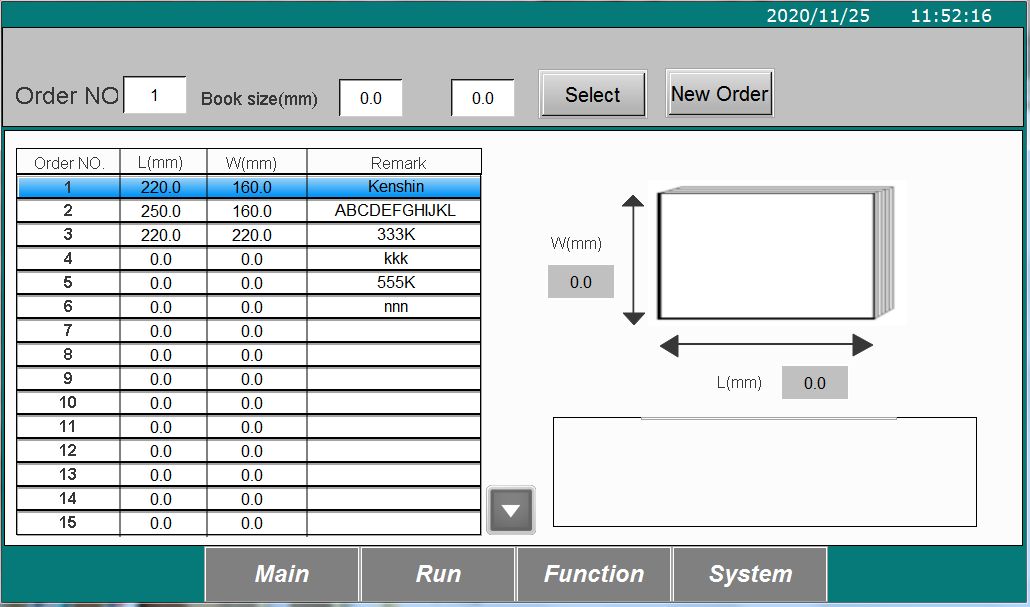

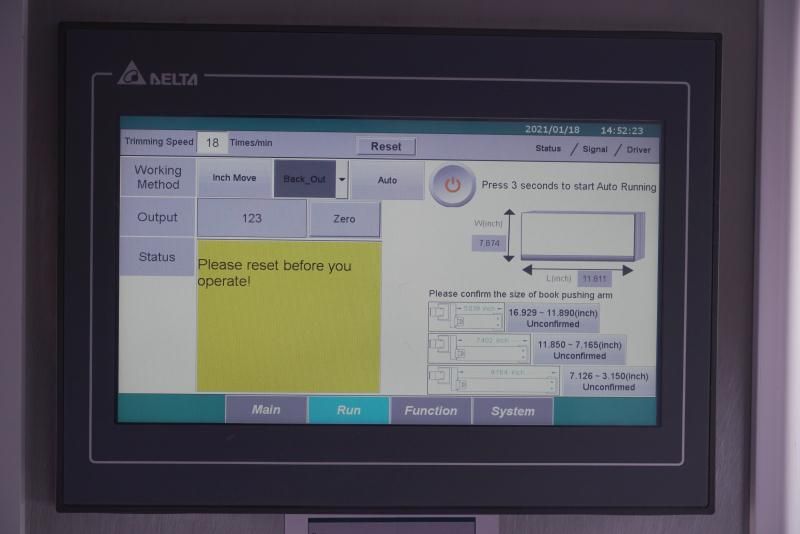

4.10.4 high resolution monitor with touch screen for machine operation, order memorization and various error diagnosis. Automatic cutting size adjustment, book pressor adjustment, protection when cutting size is inconsistent with table.

EUREKA S-32A AUTOMATIC IN-LINE12
EUREKA S-32A AUTOMATIC IN-LINE13

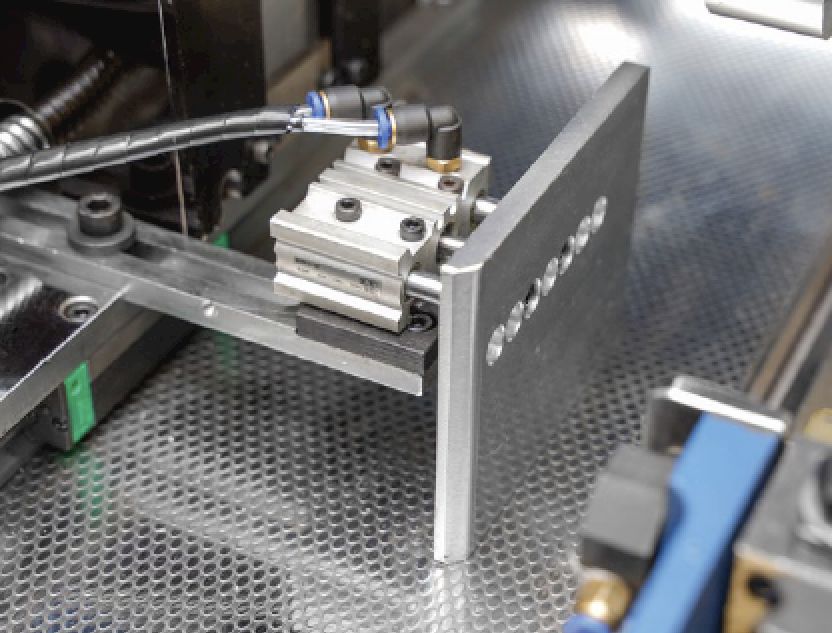

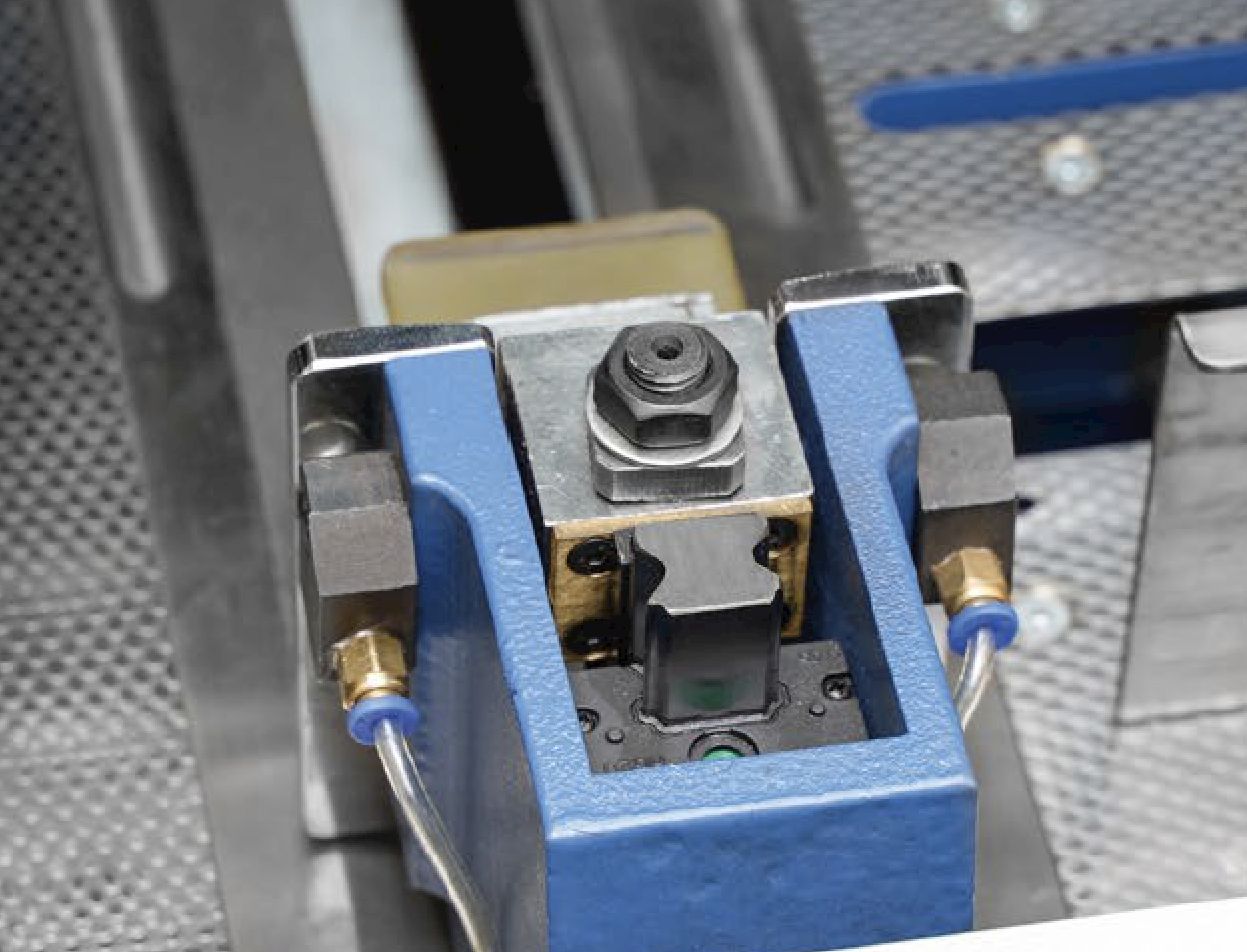

5.Gripper is driven by servo motor and pneumatic clamp. The book width can be set through touch screen. High precision linear guide ensures precise orientation and long working life. Photocell sensor is equipped to achieve book auto-feeding by induction.
Movable side gauge.

EUREKA S-32A AUTOMATIC IN-LINE15
EUREKA S-32A AUTOMATIC IN-LINE14

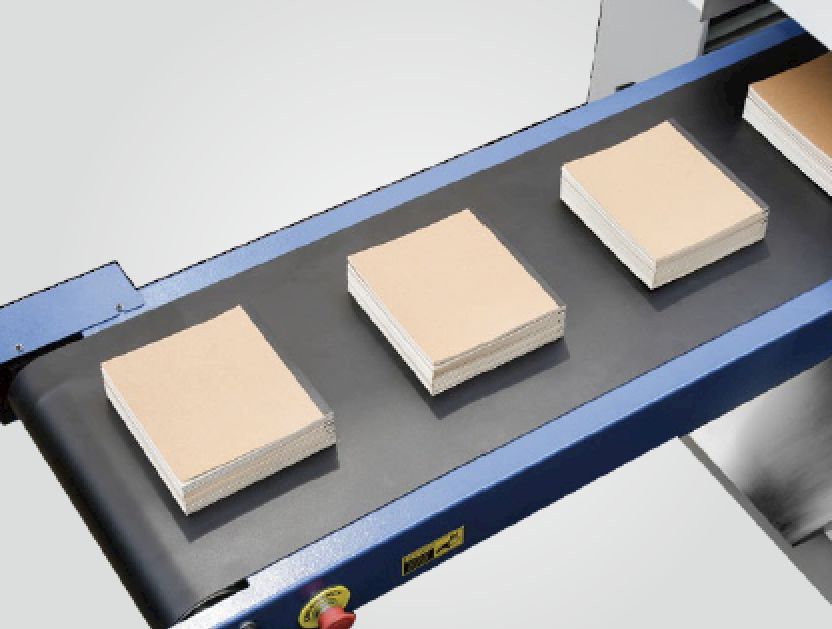

6.Servo delivery system

EUREKA S-32A AUTOMATIC IN-LINE16

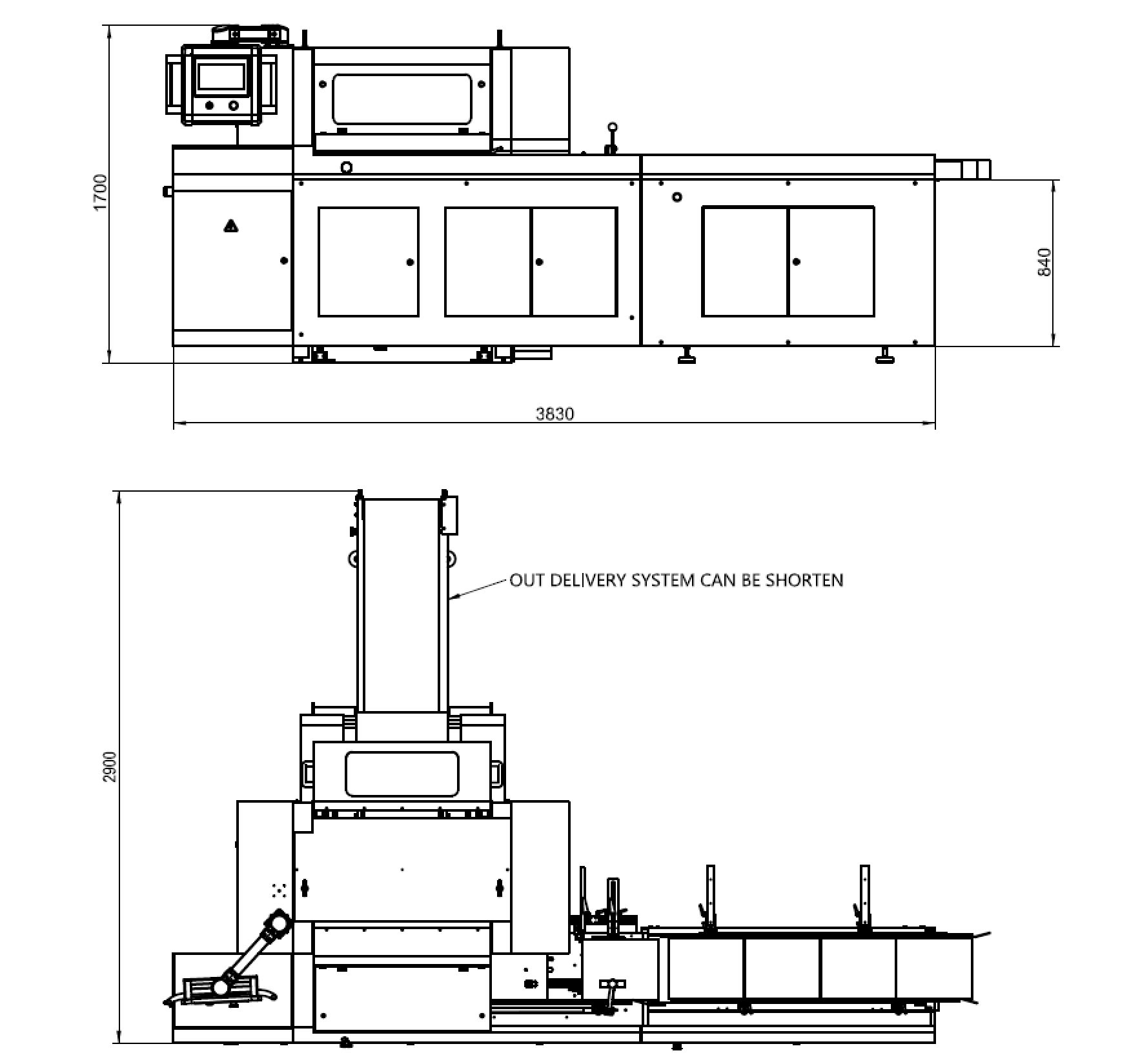

Machine Layout

EUREKA S-32A AUTOMATIC IN-LINE17

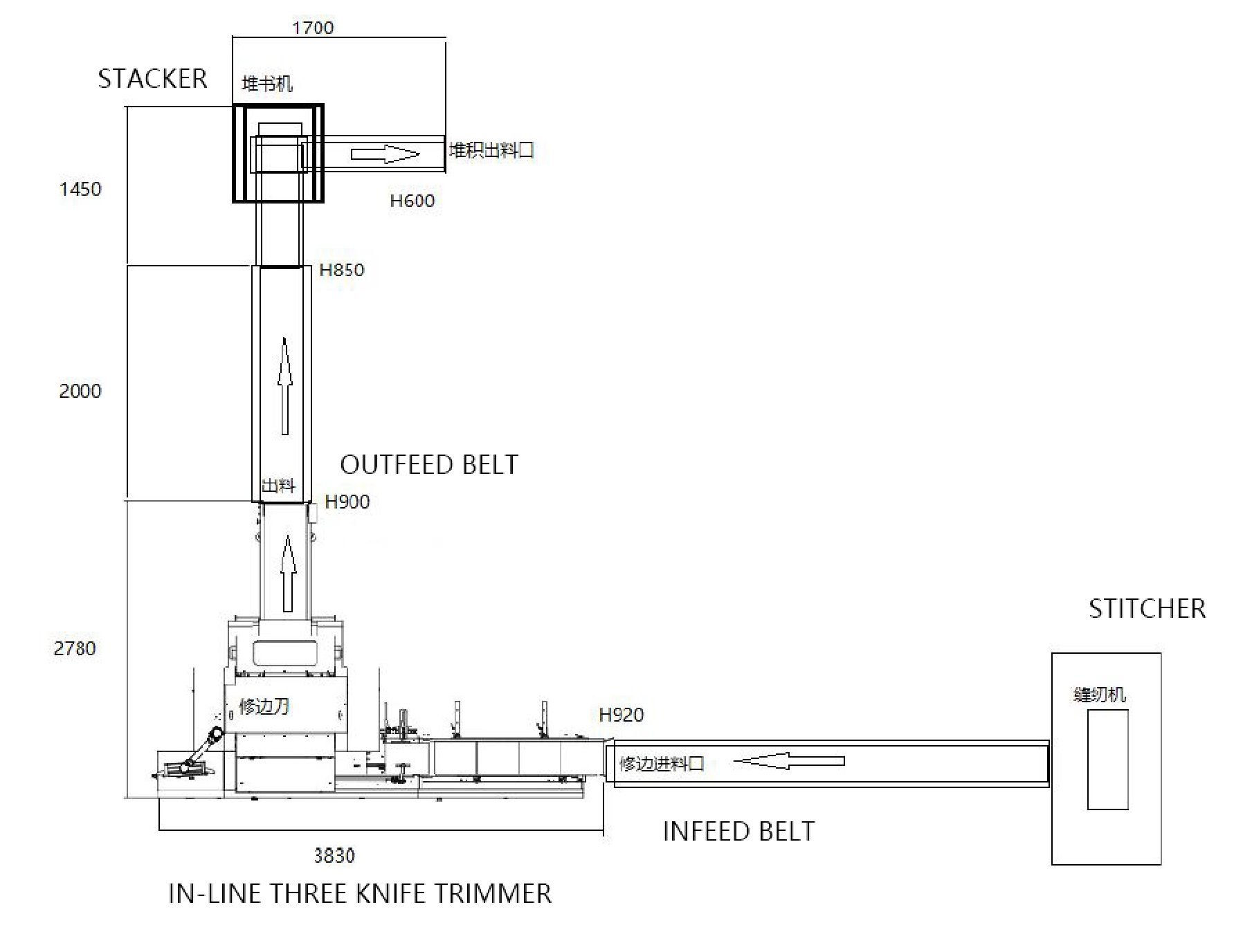

Application

We can offer stacker with transfer system to make a production line.

EUREKA S-32A AUTOMATIC IN-LINE18
