EUV-1450/1450 pro High Speed UV Spot And Overall Coating Machine
| MODEL | EUV-1450 | EUV-1450 PRO |
| Max. Sheet Size | 1100mm×1450mm | 1100mm×1450mm |
| Min. Sheet Size | 350mm×460mm | 350mm×460mm |
| Max. Coating Area | 1090mm×1440mm | 1090mm×1440mm |
| Sheet Thickness | 128~600gsm | 128~600gsm |
| Max. Coating Speed | 6000 sheets/hour | 8000 sheets/hour |
| Power Required | 57Kw (UV)/47Kw(Water base) | 67Kw (UV)/59Kw(Water base) |

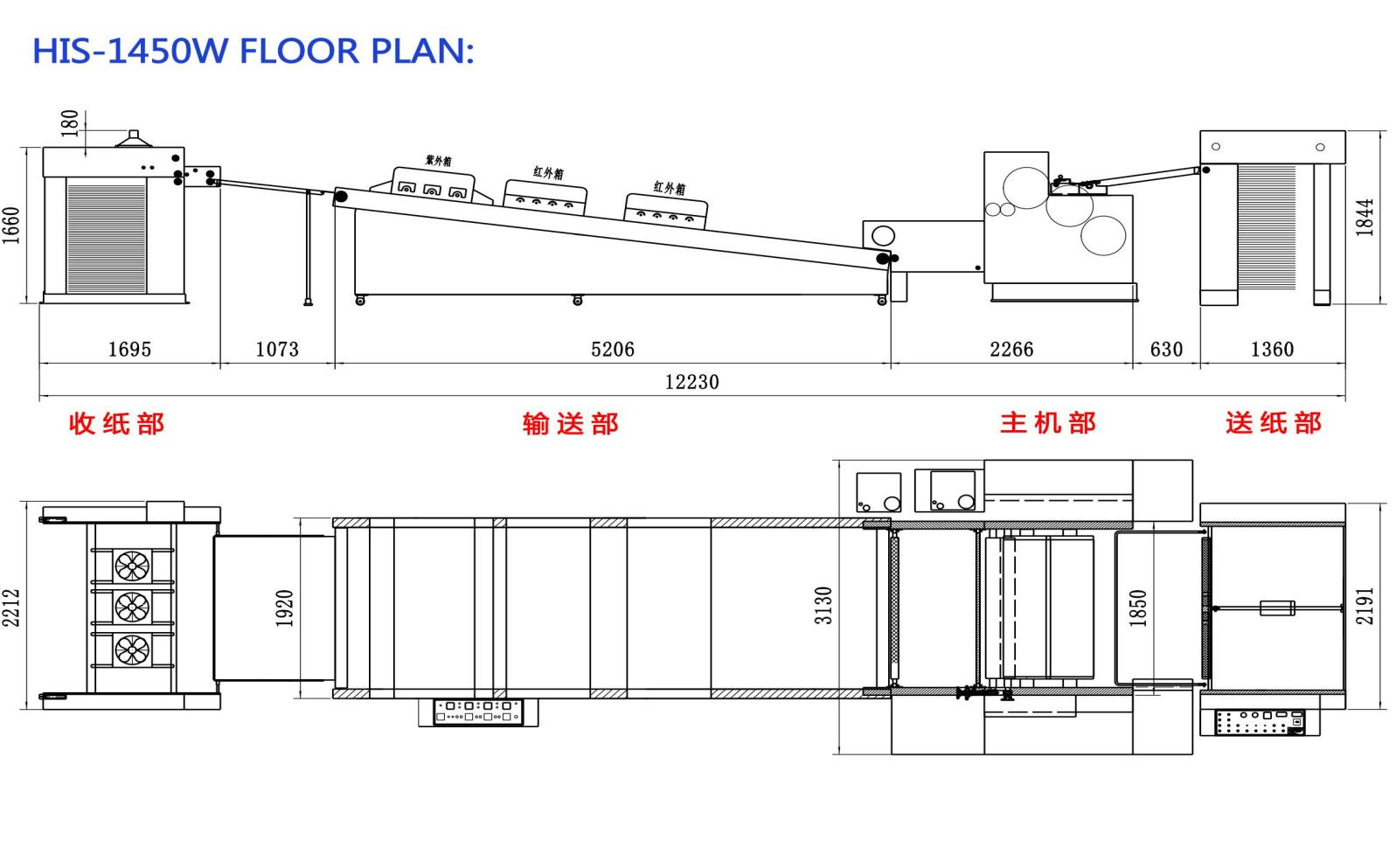

| Dimension (L×W×H) | 12230×3060×1860mm | 14250*3750*1957mm |
| Weight | 9500Kgs | 12000kg |

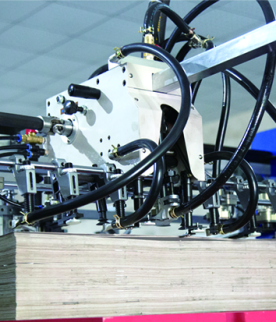

Automatic Feeder:
Enlarged feeder with four sucking and six forwarding suckers and air blowing for spool can feed sheet easily and smoothly.

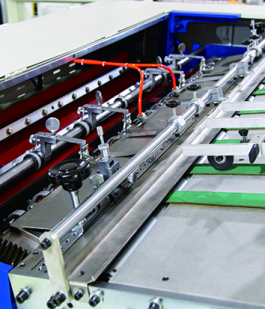

Front Side Lay Gauge:
When sheet reaches front lay gauge, left and right pulling lay gauge can be used. The machine can stop feeding immediately by sensor without sheet and release pressure to keep bottom roller under no varnish condition.

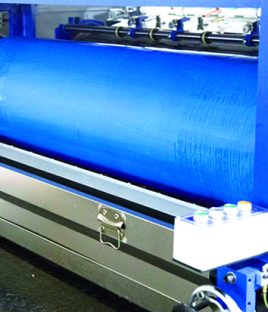

Varnish Supply:

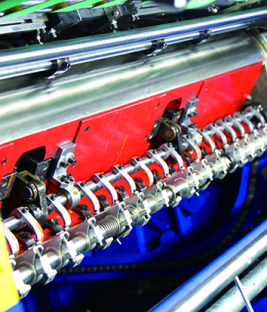

Steel roller and rubber roller with metering roller reversing and doctor blade design control varnish consumption and volume to meet the demand of products and operate easily. (Varnish consumption and volume are determined by LPI of ceramic anilox roller)
Transferring Unit:
After sheet is transferred from pressure cylinder to gripper, air volume blowing for paper can support and reverse sheet smoothly, which can prevent sheet surface from being scratched.

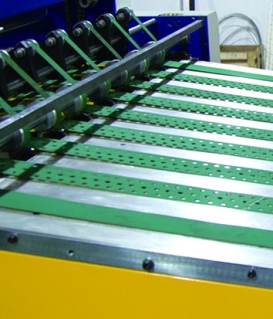

Conveying Unit:
Upper and lower conveying belt can form thin sheet to be curved for smoothly delivery.

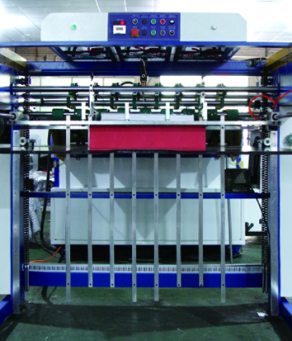

Sheet Delivery:
Automatic pneumatic patting sheet controlled by photoelectric detecting sensor make sheet pile fall automatically and collect sheet neatly. Electronic control can take out sheet sample safely and quickly for inspecting.
|
No. |
Description |
Specification |
Qty |
Remark |
|
1. |
Rubber Roller | Φ137.6*1473 |
1PCS |
The ceramic roller is not equipped. |
|
2. |
Doctor Blade | 0.15*50*1490 |
1PC |
|
|
3. |
Foot Pedal |
20PCS |
|
|
|
4. |
Spring | (DX) Q1D10L50 |
2PCS |
|
|
5. |
Blanket Clamp | (DZL) |
1PCS |
|
|
6. |
Rubber Sucker |
10PCS |
|
|
|
7. |
Wooden Piece |
4PCS |
|
|
|
8. |
Lubrication Jointer | M6*φ4 |
5PCS |
|
|
9. |
Lubrication Jointer | M6*φ4 |
5PCS |
|
|
10. |
Lubrication Port | M6*1 |
5PCS |
|
|
11. |
Jointer | (Sang-A) 1/4"*Ф8 |
1PCS |
|
|
12. |
Jointer | (Sang-A) 1/8"*Ф6 |
1PCS |
|
|
13. |
Jointer | (Sang-A) 1/4"*Ф8 |
1PCS |
|
|
14. |
Jointer | (Sang-A) 1/4"*Ф10 |
1PCS |
|
|
15. |
Screw | M10*80 |
2PCS |
|
|
16. |
Inner Hexagon Spanner | 1.5,2,2.5,3,4,5,6,8,10 |
1 SET |
|
|
17. |
“一”Screw Driver |
1PCS |
|
|
|
18. |
“十”Screw Driver |
1PCS |
|
|
|
19. |
Tool Box |
1PC |
|
|
|
20. |
Spanner | 5.5-24 |
1SET |
|
|
21. |
Spanner | 12"(300MM) |
1PCS |
|
|
22. |
Spanner | DSA000002012 |
1PCS |
|
|
23. |
Spanner | DSA000003047-2 |
1PCS |
|
|
24. |
Operation Manual |
1SET |
|
|
|
25. |
User Manual to Inverter |
1SET |
|
|
|
26. |
Pump Instruction Manual | As per supplier |
1SET |
