EWS Swing cylinder Screen Printing Machine
| Model | EWS780 | EWS1060 | EWS1650 |
| Max. paper size (mm) | 780*540 | 1060*740 | 1700*1350 |
| Min. paper size (mm) | 350*270 | 500*350 | 750*500 |
| Max. printing area (mm) | 780*520 | 1020*720 | 1650*1200 |
| Paper thickness (g/㎡) | 90-350 | 120-350 | 160-320 |
| Printing speed (p/h) | 500-3300 | 500-3000 | 600-2000 |
| Screen frame size (mm) | 940*940 | 1280*1140 | 1920*1630 |
| Total power (kw) | 7.8 | 8.2 | 18 |
| Total weight (kg) | 3800 | 4500 | 5800 |
| Exterior Dimension (mm) | 3100*2020*1270 | 3600*2350*1320 | 7250*2650*1700 |

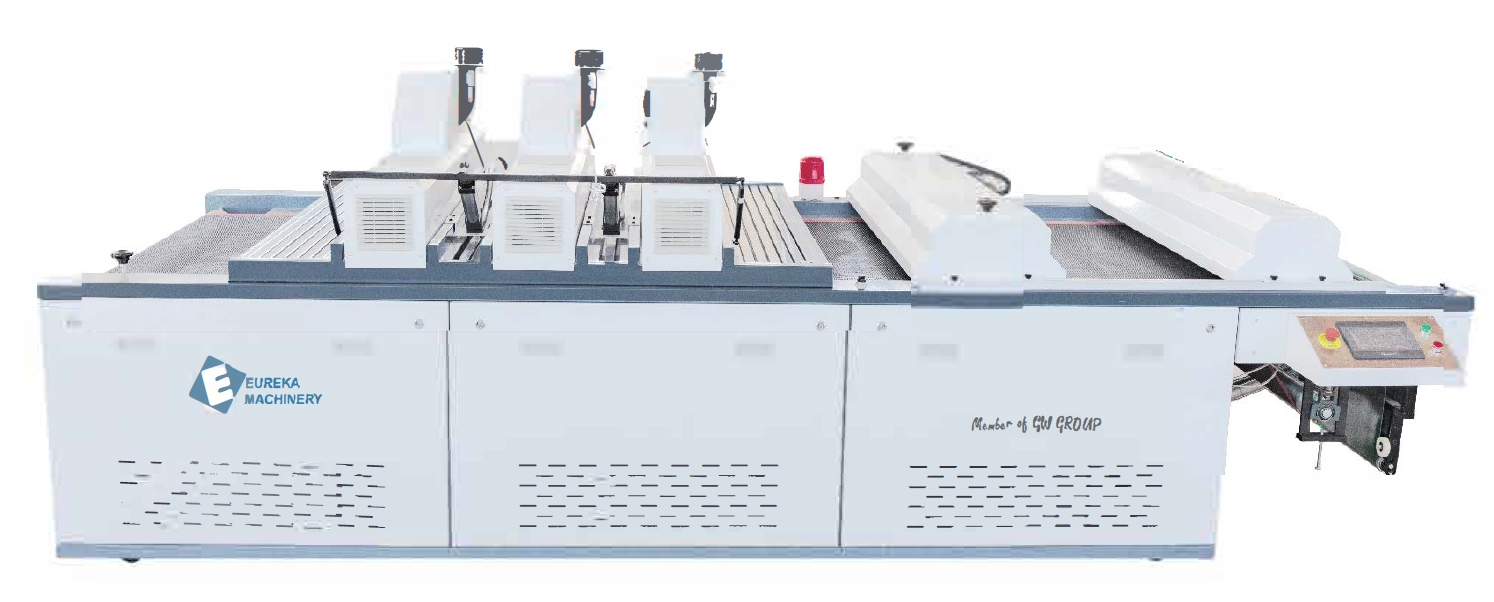

♦ This dryer is widely used of drying UV ink printed on paper, PCB, PEG and nameplate for instruments
♦ It uses a special wavelength to solidify the UV ink, Through this reaction, it can give the printing surface increased hardness,
♦ brightness and anti-attrition and anti-solvent features
♦ The conveyor belt is made of TEFLON imported from America; it can endure high temperatures, attrition and radiation.
♦ The stepless speed-adjusting device makes for easy and steady operation, It is available in many printing modes: handwork,
♦ semi-automatic and high-speed automatic printing.
♦ Through the two sets of the air-blower system, the paper will adhere to the belt firmly
♦ The machine can work in many modes: single-lamp, multi-lamp or eps stepless adjustment from 109.-100%, which can save electric power and extend the lamp life.
♦ The machine has a stretching device and an automatic rectifying device. They can be adjusted easily.

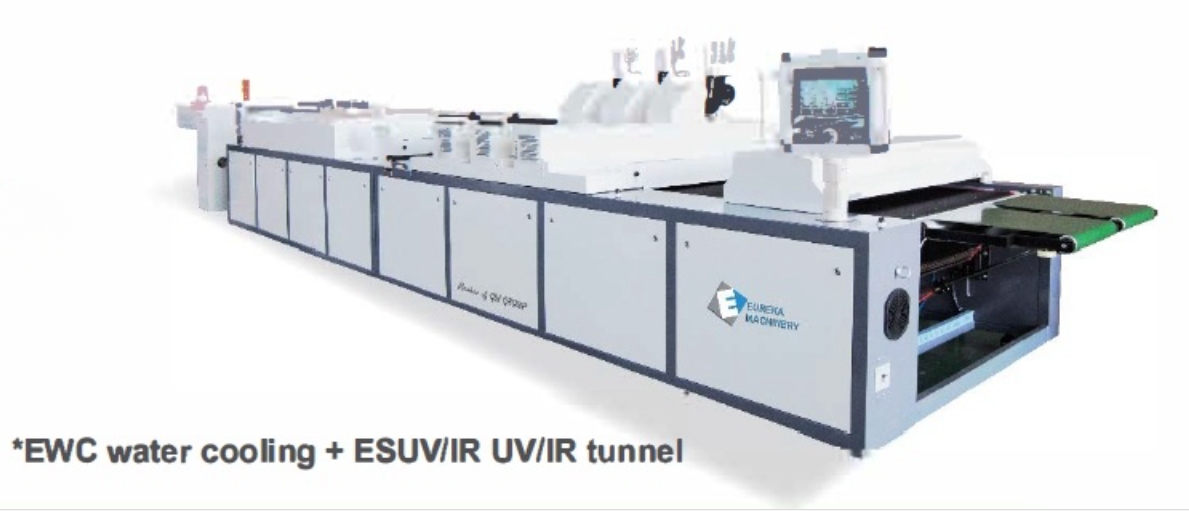

| Model | ESUV/IR900 | ESUV/IR1060 | ESUV/IR1300 | ESUV/IR1450 | ESUV/IR1650 |
| Max. conveying width (mm) | 900 | 1100 | 1400 | 1500 | 1700 |
| Conveyor Belt speed (m/min) | 0-65 | 0-65 | 0-65 | 0-65 | 0-65 |
| IR Lamp QTY (kw*pcs) | 2.5*2 | 2.5*2 | 2.5*2 | 2.5*2 | 2.5*2 |
| UV lamp QTY (kw*pcs) | 8*3 | 10*3 | 13*3 | 13*3 | 15*3 |
| Total power (kw) | 33 | 39 | 49 | 49 | 53 |
| Total weight (kg) | 800 | 1000 | 1100 | 1300 | 800 |
| Exterior Dimension (mm) | 4500*1665*1220 | 4500*1815*1220 | 4500*2000*1220 | 4500*2115*1220 | 4500*2315*1220 |

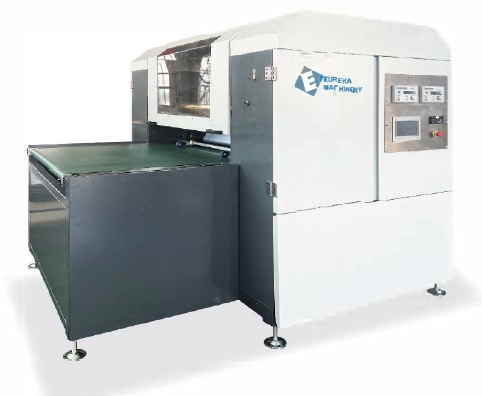

The equipment is connected with semi-automatic screen printing machine/full-automatic screen printing machine to complete the cold stamping process.
The printing process has a wide range of applications, which is suitable for tobacco and alcohol packaging, cosmetics, medicine poxes, gift boxes, and has great potential in improving the quality and effect of printing and becoming more and more popular in
the market.
| Model | ELC1060 | ELC1300 | ELC1450 |
| Max. working width (mm) | 1100 | 1400 | 1500 |
| Min. working size (mm) | 350mm | 350mm | 350mm |
| Weight of paper (gsm) | 157-450 | 157-450 | 157-450 |
| Max. diameter of film material (mm) | Φ200 | Φ200 | Φ200 |
| Max. delivery speed (pcs/h) | 4000pcs/g (cold foil Stamping working speed 500-1200pcs/h) | ||
| Total power (kw) | 14.5 | 16.5 | 16 |
| Total weight (kg) | ≈700 | ≈1000 | ≈1100 |
| Exterior Dimension (mm) | 2000*2100*1460 | 2450*2300*1460 | 2620*2300*1460 |
| Model | EWC900 | EWC1060 | EWC1300 | EWC1450 | EWC1650 |
| Max. conveying width (mm) | 900 | 1100 | 1400 | 1500 | 1700 |
| Conveyor belt speed (m/min) | 0-65 | 0-65 | 0-65 | 0-65 | 0-65 |
| Refrigerating medium | R22 | R22 | R22 | R22 | R22 |
| Total power (kw) | 5.5 | 6 | 7 | 7.5 | 8 |
| Total weight (kg) | 500 | 600 | 700 | 800 | 900 |
| Exterior Dimension (mm) | 3000*1665*1220 | 3000*1815*1220 | 3000*2000*1220 | 3000*2115*1220 | 3000*2315*1220 |

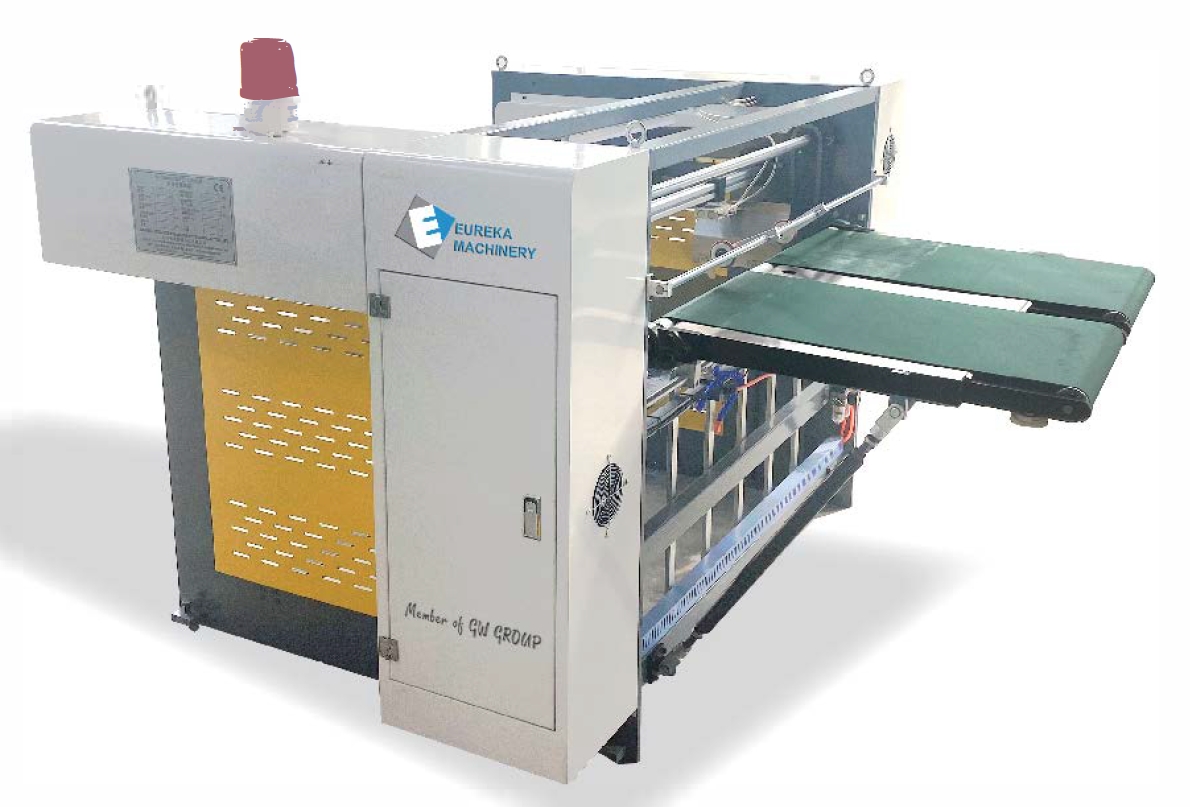

| Model | ESS900 | ESS1060 | ESS1300 | ESS1450 | ESS1650 |
| Max. piling paper size (mm) | 900*600 | 1100*900 | 1400*900 | 1500*1100 | 1700*1350 |
| Min. piling paper size (mm) | 400*300 | 500*350 | 560*350 | 700*500 | 700*500 |
| Max. piling height (mm) | 750 | 750 | 750 | 750 | 750 |
| Total power (kw) | 1.5 | 1.5 | 1.5 | 2.5 | 2.5 |
| Total weight (kg) | 600 | 800 | 900 | 1000 | 1100 |
| Exterior Dimension (mm) | 1800*1900*1200 | 2000*2000*1200 | 2100*2100*1200 | 2300*2300*1200 | 2500*2400*1200 |

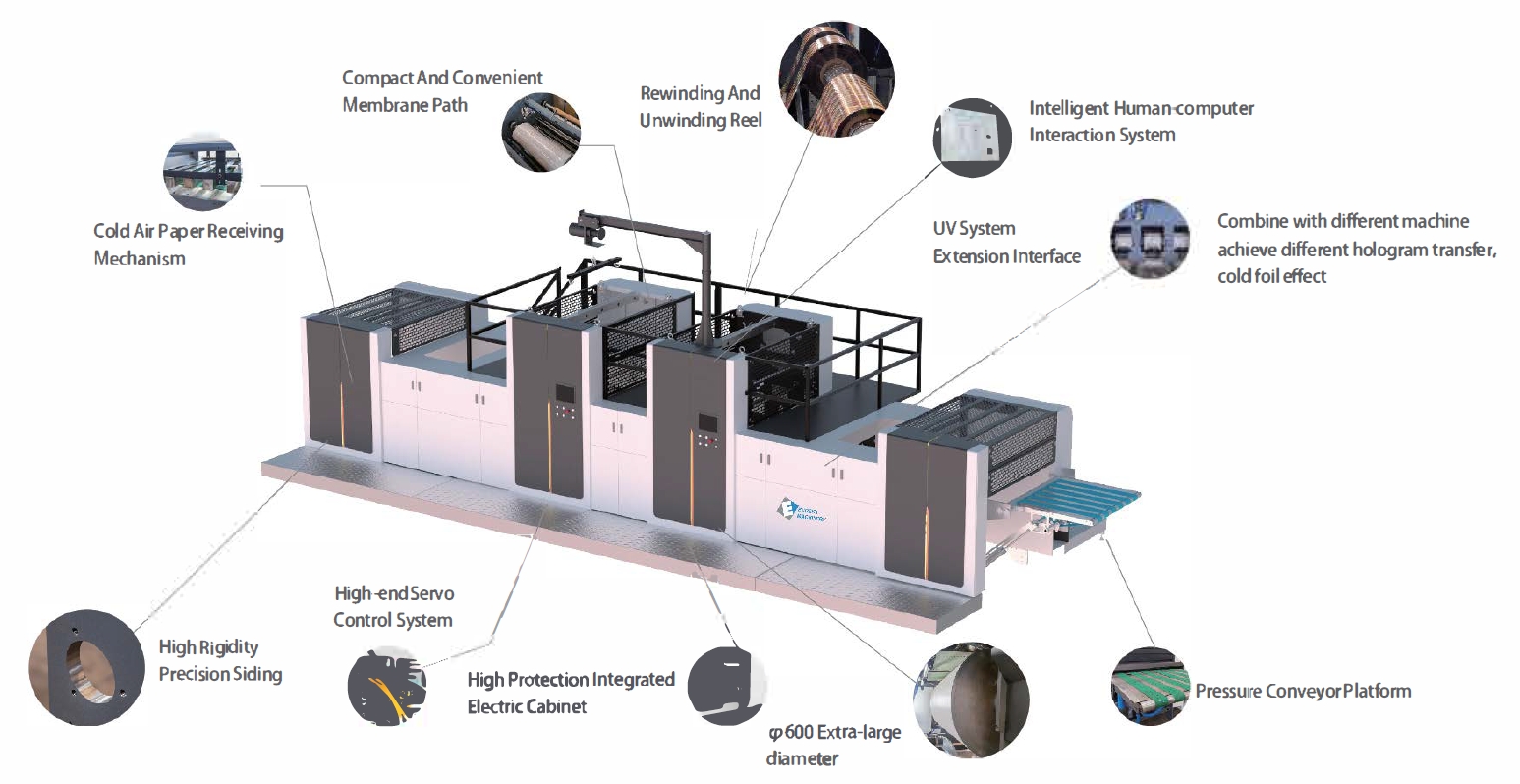

This series attaching unit can be connected with full-automatic screen printing machine, UV spot varnishing machine, Offset printing machine, Single Color Gravure printing machine etc. Aiming to achieve Hologram transferring effect, different type of Cold foil effect. It is widely used in high-grade anticounterfeiting printing substrate such as cigarette, wine, medicine, cosmetic, food, digital product, toys, books etc. different type of paper sheet, plastic sheet packaging.
Both single machine and combination of high performance, to achieve cold foil stamping, cast&cure, UV coating, snowflake and other multi-process combination effect, one-time completion of post-press processing production
The splicing design has the advantages of compact structure and strong compatiblity. It can be used in single machine or multi-module combination, flexible expansion and easy maintenance on demand
The height can be customized according to the supporting equipment and site environment to achieve the effect of supe『position of process, reduce the feeding times and logistics transfer between processes, reduce operators and improve production efficiency. The machine is equipped with safety switch or sensor to ensure production safety.

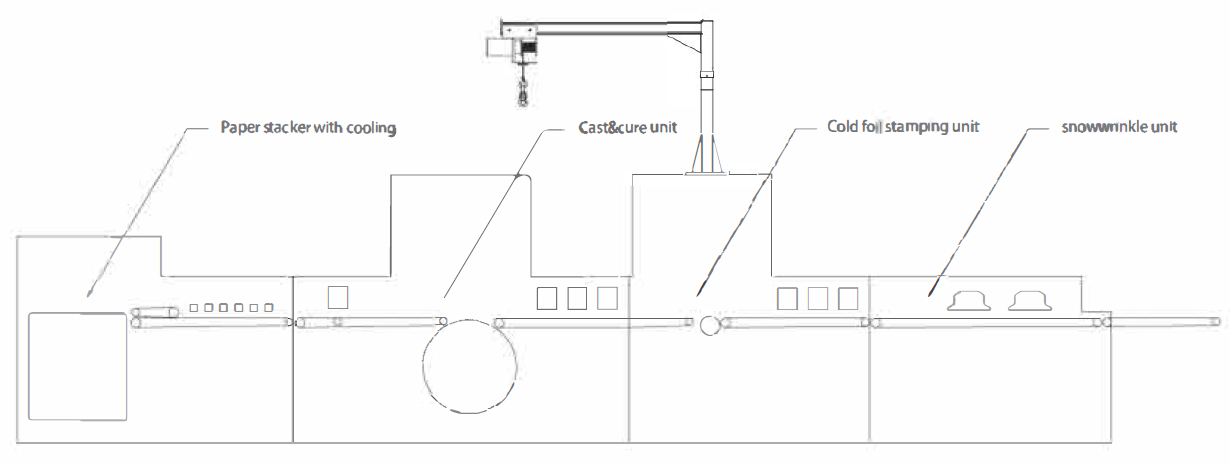

| Model |  |
 |
 |
 |
 |
 |
| 106A | 106AS | 106C | 106CS | 106ACS | 106ACWS | |
| Cast & Cure unit | ● | ● | ○ | ○ | ● | ● |
| Cold foil stamping unit | ○ | ● | ● | ● | ● | |
| Paper stacker with cooling | ○ | ● | ○ | ● | ● | ● |
| Snowflake unit | ○ | ○ | ○ | ○ | ○ | ● |
| Max. working size (mm) | 740*1060 | 740*1060 | 740*1060 | 740*1060 | 740*1060 | 740*1060 |
| Min. working size (mm) | 393*546 | 393*546 | 393*546 | 393*546 | 393*546 | 393*546 |
| Max. printing size (mm) | 730*1030 | 730*1030 | 730*1030 | 730*1030 | 730*1030 | 730*1030 |
| Paper thickness*1 (g) | 90-450 | 90-450 | 128-450 | 128-450 | 90-450 | 90-450 |
| Max. diameter of film (mm) | Φ500 | Φ500 | Φ500 | Φ500 | Φ500 | Φ500 |
| Max. width of film (mm) | 1060 | 1060 | 1060 | 1060 | 1060 | 1060 |
| Name of film | BOPP | BOPP | BOPP/PET | BOPP/PET | BOPP/PET | BOPP/PET |
| Max. speed (sheet/h) | 8000 when paper is 90-150gsm, format is ≤ 600*500mm. speed is ≤ 40003000 when paper is 128-150gsm, format ≤ 600*500mm, speed ≤ 1000s | |||||
| Out dimensions (ax w x h) (m) | 4*4.1*3.8 | 6.2*4.1*3.8 | 4*4.1*3.8 | 6.2*4.1*3.8 | 8.2*4.1*3.8 | 10*4.1*3.8 |
| Total weight (T) | ≈4.6 | ≈6.3 | ≈4.3 | ≈6 | ≈10.4 | ≈11.4 |
1. The highest mechanical speed depends on paper spedifications, UV varnish. cold stamping glue, transfer film. cold stamping film
2. When doing cold stamping function, the gram weight of paper is 150-450g
