Factory wholesale Twisted Paper Rope Handle Making Machine - ZB50S Paper Bag Bottom Gluing Machine – Eureka Detail:

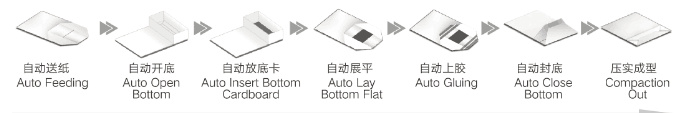

ZB50S bottom gluing machine automatically feeding enclosed paper bag, after open bottom, insert bottom cardboard (not intermittent type), auto spray glue, bottom close and compaction out to realize the bottom close and cardboard insert function. This machine is controlled by touch screen, equipped 4 nozzles hot melt spraying system which can control the spraying length and quantity independently or synchronously. This machine spray glue evenly by high speed and  precision, which can produce various kinds of paper bags.

Suitable Paper: Kraft paper, art paper, white board and ivory paper

ZB50S Paper Bag Bottom Gluing Machine3

ZB50S Paper Bag Bottom Gluing Machine 6

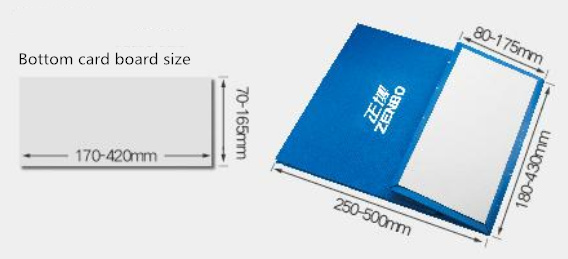

Bottom Width 80-175mm Bottom Card Width 70-165mm
Bag Width 180-430mm Bottom Card Length 170-420mm
Sheet Weight 190-350gsm Bottom Card Weight 250-400gsm
Working Power 8KW Speed 50-80pcs/min
Total Weight 3T Machine Size 11000x1200x1800mm
Glue type Hot melt glue
 ZB50S Paper Bag Bottom Gluing Machine 5

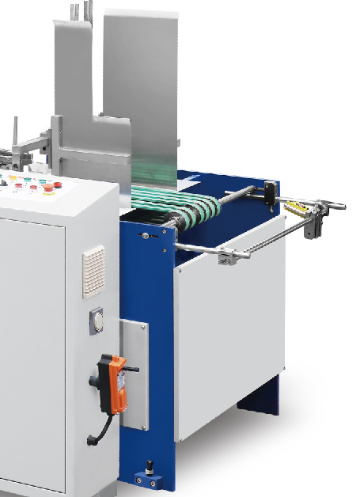

Feeder

Enhanced pre-stack bag feeder to realize non stop paper feeding, greatly save the time to load and adjust raw paper.
 ZB50S Paper Bag Bottom Gluing Machine 6 (2)

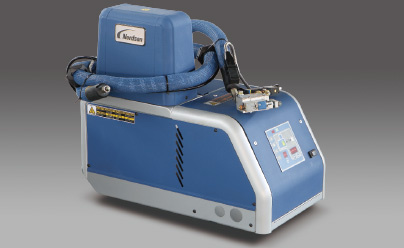

Hot-melt Gluing System

American Nordson brand spray gluing

No.

Name

Origin

Brand

No.

Name

Origin

Brand

1

Controller

Taiwan China

Delta

7

Photoelectric switch

Germany

SICK

2

Servo motor

Taiwan China

Delta

8

Air switch

France

Schneider

3

Motor

China

Xinling

9

Main Bearing

Germany

BEM

4

Frequency converter

France

Schneider

10

Hot melt glue system

America

Nordson

5

Button

France

Schneider

11

Paper delivery belt

China

Tianqi

6

Electric relay

France

Schneider








Product detail pictures:

Factory wholesale Twisted Paper Rope Handle Making Machine - ZB50S Paper Bag Bottom Gluing Machine – Eureka detail pictures

Factory wholesale Twisted Paper Rope Handle Making Machine - ZB50S Paper Bag Bottom Gluing Machine – Eureka detail pictures

Factory wholesale Twisted Paper Rope Handle Making Machine - ZB50S Paper Bag Bottom Gluing Machine – Eureka detail pictures
