FS-GECKO-200 Double side Printing Tag/ Cards Inspection Machine

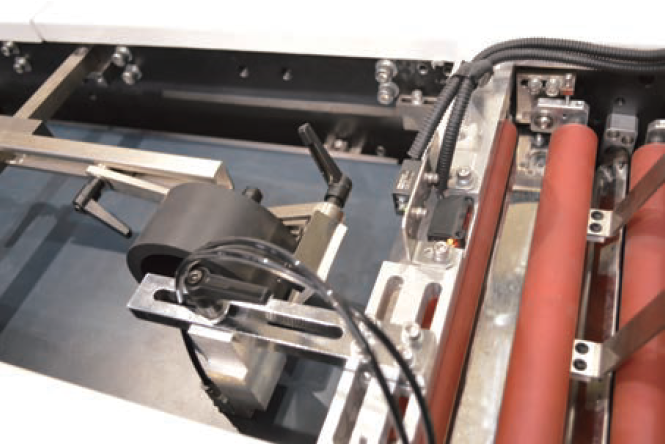

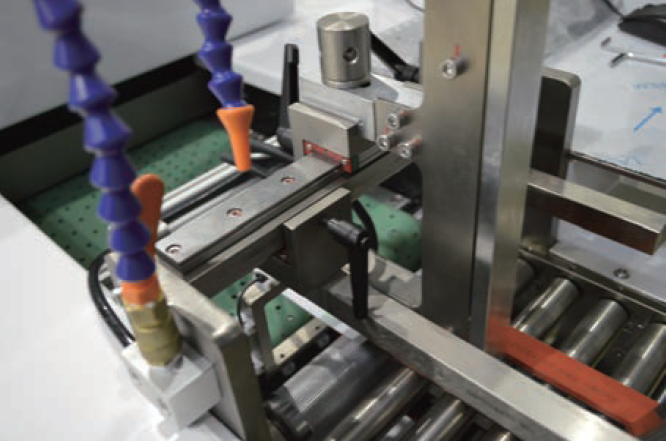

Friction feeder
Fish Scale collection

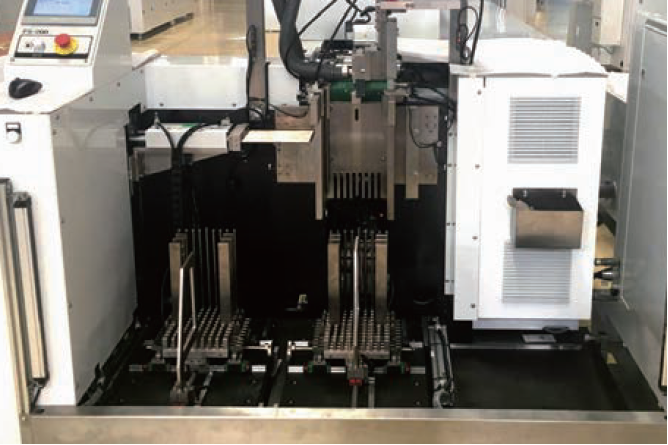

Suction feeder

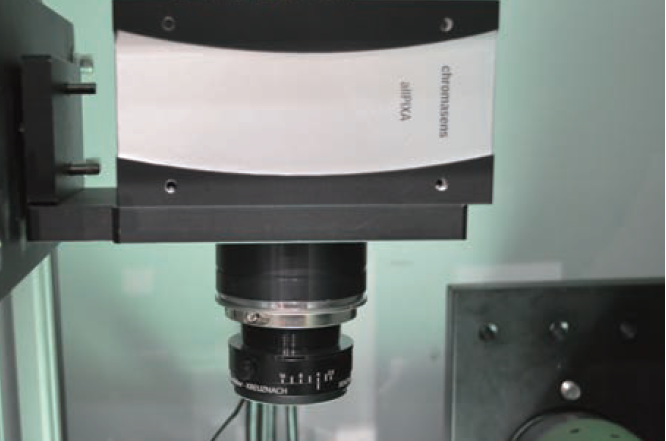

High resolution camera
User friendly interface allows easy configuration of software
Support R,G,B three channel separately checking
Provide different kind products setting templates, include cigarettes, pharmacy, tag and other colour boxes.
System provide group setting, classified and grad default value on basis of different type.
No need frequently setting the parameters.
Have module convert from RGB-LAB support do color difference inspection
Easy model turning during inspection
Different tolerance level can be set in different regions to select critical/non-critical areas
Reject image viewer for defect visualization
Special scratch cluster detection
Archive all defective print images into the database
Powerful software algorithm permit sensitive defect detection while maintaining high yield
Region wise online defect statistical report generation for corrective actions
Create template by layer, can add different layers match the different image processing algorithm.
Complete integration with the mechanicals of the machine (full proof inspection)
Fail proof carton tracking systemso that a reject should never goes to the accepted bin
Automatic alignment of image with respect to key register points to adjust for small tilt
Powerful Industrial computer processor & software with high storage capacity to handle huge volume of images and database, backed by best inindustry after sales support
Troubleshooting by remote access through Team viewer for both machine and software
All cameras images can be viewed simultaneously on the run
Quick job changeover–make ready of master within 15 min
Images and defects can be learned if required on the run.
Special Algorithm allow low contrast detection in large arealess than 20DN.
Detailed Defect report including images.

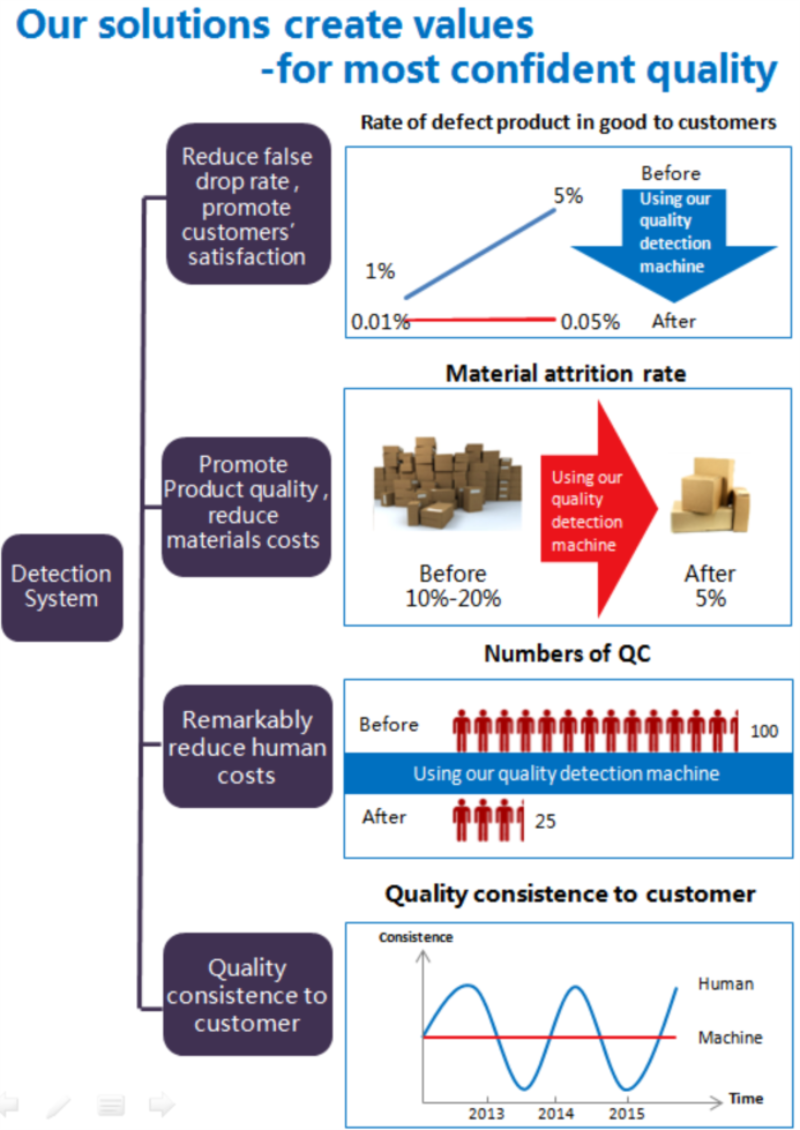

What does this machine do?
The FS SHARK 500 Inspection Machine will precisely find out the defects of printing on cartons and reject the bad ones from the good ones automatically at high speed.
How does this machine work?
The FS SHARK 500 cameras scan some good cartons as “STANDARD” and then while the rest of the printed jobs are inspected be scanned one by one and compared with the “STANDARD”, any mal-printed or defective ones will be rejected automatically by the system. It detects every type of printing or finishing Defects like Color Mis-registration, Color variations, Hazing, Misprints, Defect in the text, spots, splashes, varnishing missing & Mis-registration, embossing missing & Mis-registration, Laminating problems, Die-cut problems, Barcode problems, Holographic foil, cure& cast and many other printing problems.
| FS-GECKO-200-A（friction feeder） | FS-GECKO-200-B（suction feeder） | |
| Maximum Inspection speed |
200m/min | 200m/min |
| Inspection size | 40mm╳70mm~200mm╳300mm | 30mm╳50mm~200mm╳200mm |
| Two-side inspection |
2 CCD cameras can be installed on both side (front and back) of machine, which can inspect mixed goods, color deviation, punching deviation and edge defect, normal printing defect, character defects, bar code defects and other defects. |
|
| Special configurations of mechanical platform |
Friction feeder: Smooth vibration with alloy feeder knife design | Suction feeder: Non-stop suction feeder design |
| Fully vacuum based transmission: No adjustment is required for transmission | ||
| Good Collection: accurate photo-electronic counting with high sensitivity with tidiness collection | ||
| Waste collection: Tidiness collection | ||
| Defect statistics and management |
defect classification and statistics, printing statistical statement, efficient technique management | |
| Mechanical appearance size |
3650mm(L)x2000mm(W)x1800m(H) | |

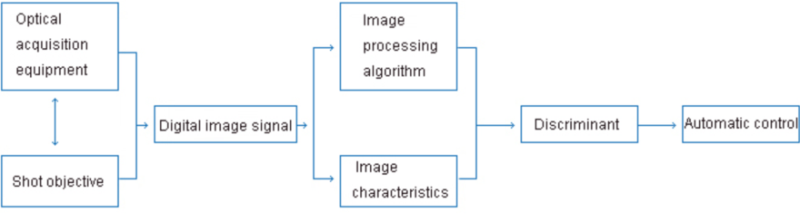

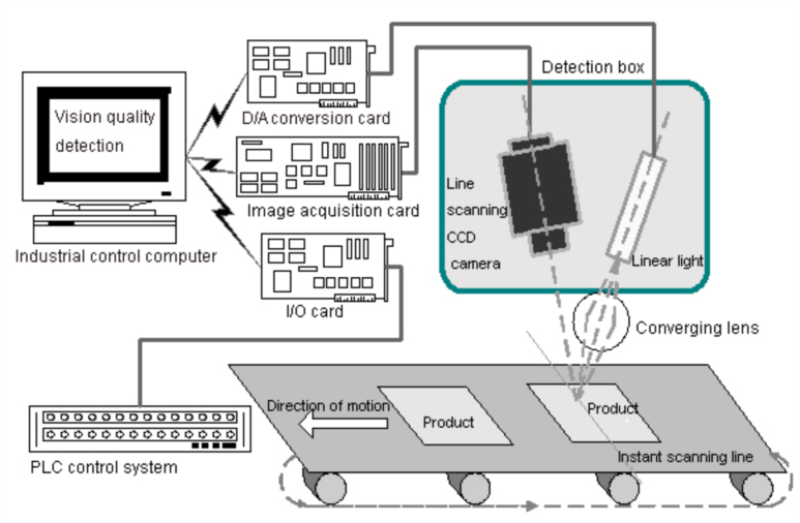

Schematic Diagram of Machine Vision System

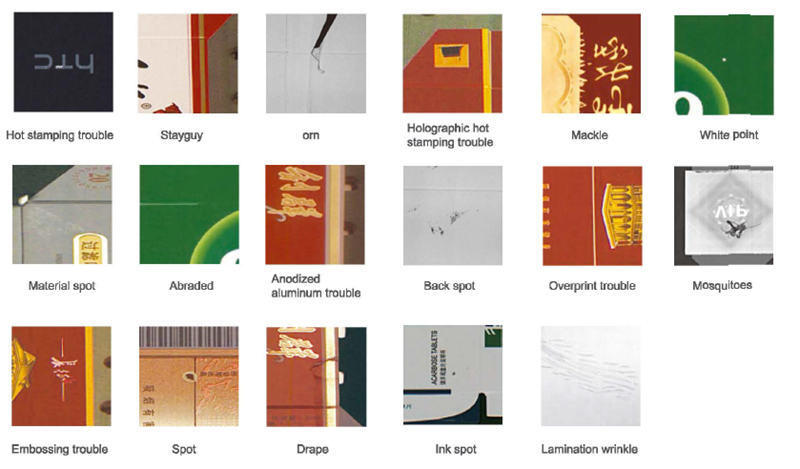

Samples for defects

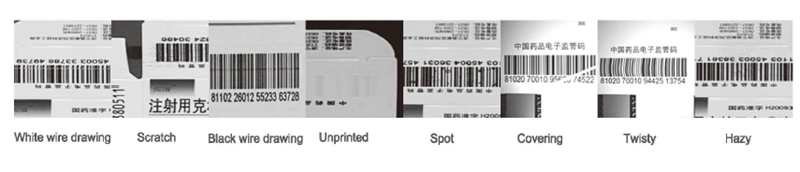

Samples for QR code
