Fully Automatic Laminating Machine Model: SW-560
| Model No. | SW-560 |
| Max Paper Size | 560×820mm |
| Min Paper Size | 210×300mm |
| Laminating Speed | 0-60m/min |
| Paper Thickness | 100-500gsm |
| Gross Power | 20kw |
| Overall Dimensions | 4600×1350×1600mm |
| Weight | 2600kgs |
1.Paper loading plate of feeder can land to ground to load paper pile easily.
2.Suction device guarantees stablity and smooth of paper sending.
3.Bigger heating roller with electromagnetism technology ensures high quality lamination.
4.Seperation structure design makes operation and maintaince easly.
5.New design of double layer patting plate of auto stacker makes operation easily.
Suction Device
Suction device guarantees stablity and smooth of paper sending.

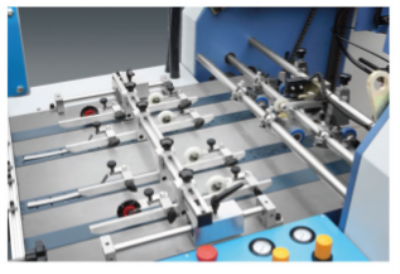

Front Lay
Servo controller and front lay guarantees precision of paper overlap.

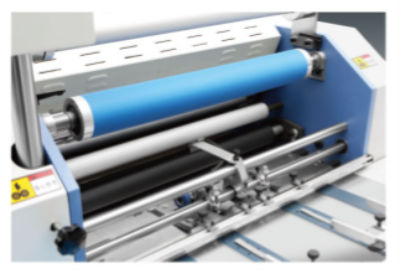

Electromagnetic Heater
Equipped with advanced electromagnetic heater.
Fast pre-heating. Energy saving. Environmental protection.

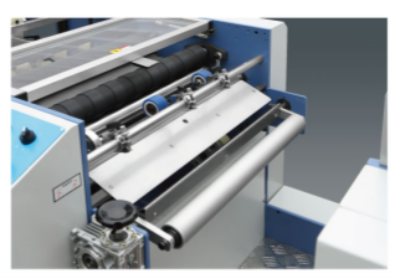

Anti-curvature Device
The machine is equipped with an anti-curl device, which ensures that paper remains flat and smooth during the lamination process.

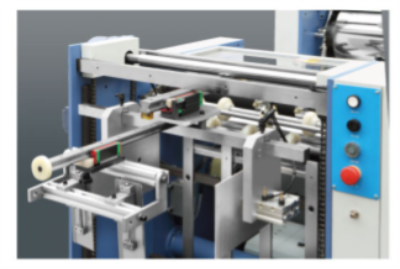

Automatic Stacker
Automatic stacker collects laminated paper sheet high efficiently and pat paper in good order as well as counter.
