Fully Automatic Laminating Machine Model: SW-820
| Model No. | SW-820 |
| Max Paper Size | 820×1050mm |
| Min Paper Size | 300×300mm |
| Laminating Speed | 0-65m/min |
| Paper Thickness | 100-500gsm |
| Gross Power | 21kw |
| Overall Dimensions | 5400*2000*1900mm |
| Pre-Stacker | 1850mm |
| Weight | 3550kgs |
Auto Feeder
This machine is equipped with a paper pre-stacker，Servo controlled feeder and a photoecectric sensor to
ensure that paper is continuously fed into the machine
Electrimagnetic Heater
Equipped with advanced electromagnetic heater.
Fast pre-heating.Engergy saving. Environmental prtection.
Side Lay Regulator
The Servo controller and Side Lay Mechanism guarantees precise paper alignment at all times.
Human-computer interface
A user-friendly interface system with a colour touch-screen simplifiles the operation process.
The operator can easily and automatically control paper sizes, overlapping and machine speeds.
Anti-curvature Device
The machine is equipped with an anti-curl device,which ensures that paper remains flat and smooth during the lamination process.
Separation system
Pneumatic separation system to separate the paper stably and quickly.
Corrugrated Delivery
A corrugatted delivery system collects paper easily.
Automatic Stacker
Automatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets

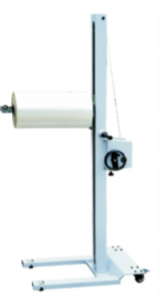

Film Loader
Operating the film loader is easy and efficient to use.
