Horizontal Semi-automatic baler(JPW60BL )

Short Description:

Hydraulic power 60Tons

Bale size(W*H*L)    750*850*(300-1100)mm

Feed opening size 1200*750mm

Capability 3-5bales/hour

Bale weight 200-500kg/baler


Product Detail

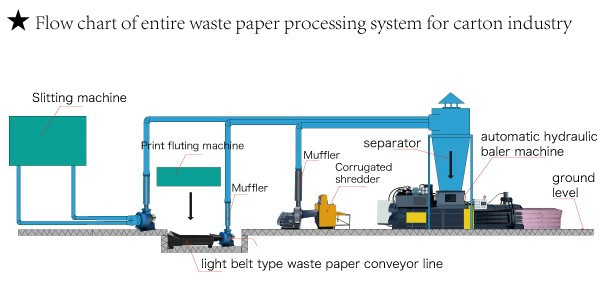

JPW60BL Horizontal semi-automatic baler+Weighing system 第一张图

Description

*  It is closed type hydraulic baler with lifting open-end door, no need to shift balers timely after package, it can push bags continuously.

*  It has high strength output door, hydraulic automatic open-end door, convenient operation and safety.

*  It configures with PLC program and electric button control, operated simply and equipped with automatic feeding detection, can compress bale automatically.

*  The baling length can be set at random, and provides bundling reminder device.

*  Artificial packing, pre-install strapping design, it only thread each wire or bundling rope around bale one time to complete skein, save labor.

*  Block size and voltage can be customized according to customers' reasonable requirements. Bales weight depends on different materials.

*  It has three phase voltage and safety interlock device, simple operation, can connect with pipeline or conveyor line to feed material directly, improve working efficiency.

*  The British imported seals, improve the service life of the cylinder.

*  Oil pipe joint uses cone links without gasket, has no phenomenon of oil leak.

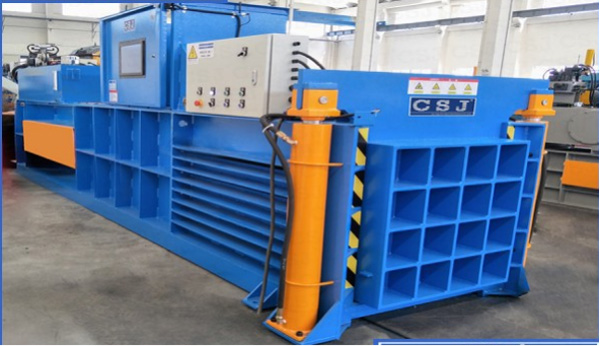

Appearance

JPW60BL-Horizontal-semi-automatic-baler+Weighing-system-1 Model

JPW60BL

Hydraulic power

60Tons

Bale size(W*H*L) 750*850*(300-1100)mm
Feed opening size

1200*750mm

Capability

3-5bales/hour

Bale weight 200-500kg/baler
Voltage 380V/50HZ three phase Can be customized
Power

18.5kw/25hp

Machine size about 6000*1200*1950mm
Machine weight

about 6.2Tons

Chain conveyor

Model

JP-C2

Length

11M

Width

1000MM

*  The conveyor is made of all steel construction, durable

* Easy to operate, safety, low failure rate.

*  Set the pre -embedded foundation pit, put the conveyor horizontal part into the pit, during feeding, push the material directly to the pit continuous, high efficiency when transport the materials

* Frequency motor, transmission speed can be adjusted

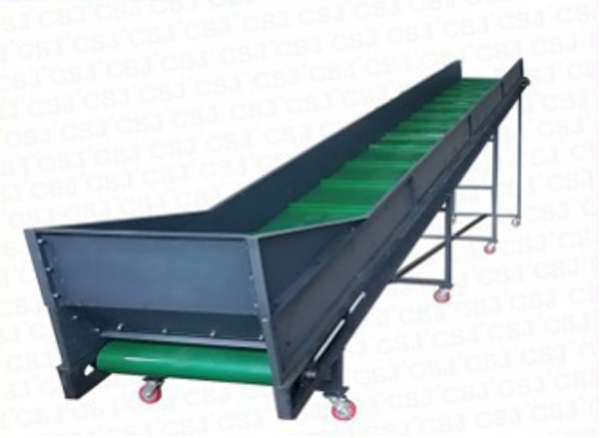

Belt conveyor

JPW60BL-Horizontal-semi-automatic-baler+Weighing-system-2

Model

JP-C1

Length

6M

Width

1000MM

Power

ABOUT 1.5KW

*  The conveyor is made of all steel construction, durable

* Easy to operate, safety, low failure rate.

*  Set the pre -embedded foundation pit, put the conveyor horizontal part into the pit, during feeding, push the material directly to the pit continuous, high efficiency when transport the materials* Frequency motor, transmission speed can be adjusted

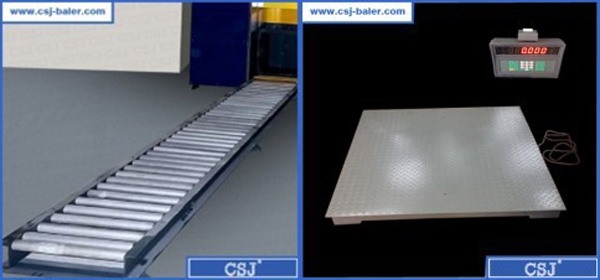

Power drum line and automatic weighing

JPW60BL-Horizontal-semi-automatic-baler+Weighing-system12
Roller conveyor - poweredL1800mm(Weighing)

L1800mm*1 pcs

Roller conveyor - no power

L2000mm

Automatic weighing

Only print paper, not print self-adhesive paper

Size

About1100*1000mm

Weighing range 2000KG~1KG

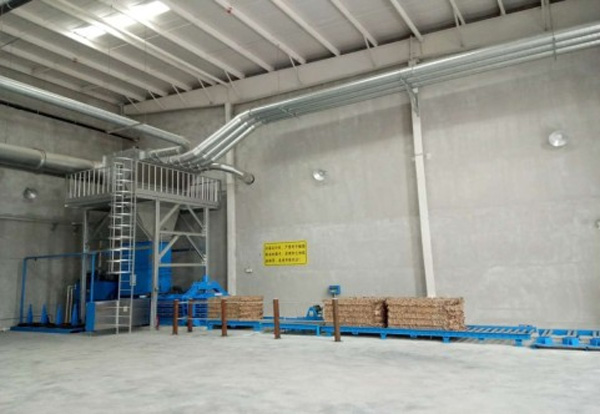

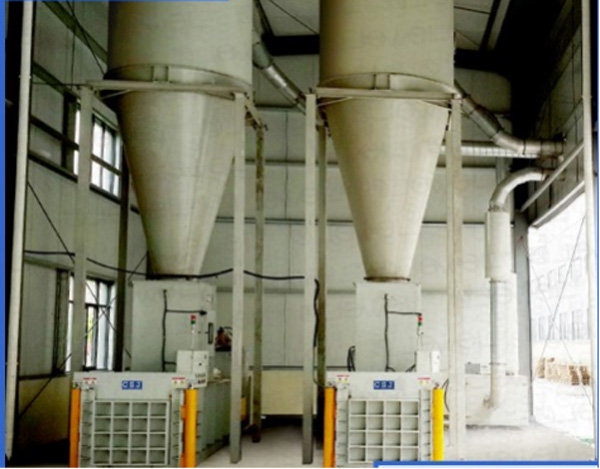

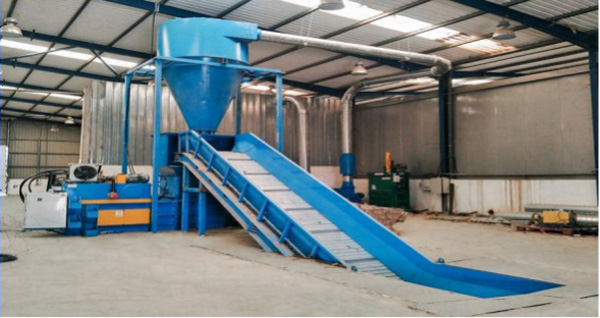

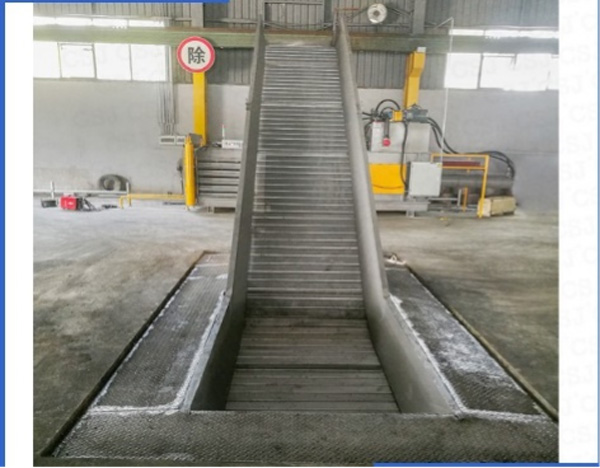

Customer Cases

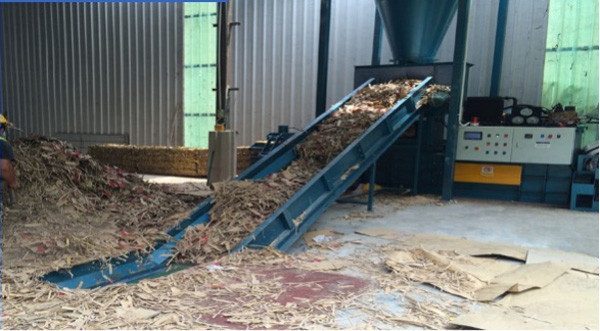

JPW60BL-Horizontal-semi-automatic-baler+Weighing-system-3
JPW60BL-Horizontal-semi-automatic-baler+Weighing-system-6
JPW60BL-Horizontal-semi-automatic-baler+Weighing-system-7
JPW60BL-Horizontal-semi-automatic-baler+Weighing-system8
JPW60BL-Horizontal-semi-automatic-baler+Weighing-system-5
JPW60BL-Horizontal-semi-automatic-baler+Weighing-system9

Machine features

Fully automatic operation system
automatic compressing, strapping, wire cutting and bale ejecting.high efficiency and labour saving.

PLC control system
realize high degree of automation and high accuracy rate

One button operation
making the whole working processes continuously, facilitating operation convenience & effiiency

Adjustable bale length
can meet different bale size/weight requirements

Cooling system
for cooling down the temperature of hydraulic oil, which protects the machine in high ambient temperature.

electric controlled
for easy operation, simply by operating on button and switches to fulfill platen moving and bale ejecting

Horizontal cutter on feeding mouth
for cutting off the excessive material to prevent it from being stuckat the feeding mouth

Touch screen
for conveniently setting and reading parameters

Automatic feeding conveyor (optional)
for continuous feeding material, and with the help of sensors and PLC, conveyor will automatically start or stop when the material below or above certain position on hopper. Thus enhances feeding speed and maximize output.

Machine Configuration Brand
Hydraulic  components YUTIEN (TAIWAN BRAND)
Sealing parts HALLITE (UK BRAND)
PLC control system MITSUBISHI(JAPAN BRAND)
Operation touch screen WEIVIEW(TAIWAN BRAND)
Electrical  components SCHNEIDER (GERMANY BRAND)
Cooling system LIANGYAN(TAIWAN BRAND)
Oil pump JINDA(JOINT VENTURE BRAND)
Oil pipe ZMTE (SINO-AMERICAN JOINT VENTURE)
Hydraulic motor MINGDA

Warranty term

This machine is guaranteed for 12 months. Within the guarantee period, in the event of any malfunction caused by the quality of the commodity, we provide free components for replacement. Wear parts are exclusive from this warranty. We also provide technical support for the whole lifespan of the machine.

Installation

1.The seller shall arrange1-2 personnel to instruct the installation work (travel tickets and hotel charges shall be borne by thebuyer). Engineer charge USD150/ day each person.

2.The baler construction and the construction bury to be responsible in advance by the consumer

3.tie iron wire and lubrication by buyer.

Other Terms

Trade terms: VAT included EXW
Validity time Within 30 days
Delivery time within 90 working days after receiving the deposit
Payment term: T/T(30%T/T as advance ,70% TT will be payment  before delivery)
Package By strapping film
Certification CE, ISO 9001:2008, TUV, SGS
Hydraulic oil #46 anti-wear hydraulic, buyer prepare for it

After Sale Service

1. Service phone line keep 24 hours unblocked

2. All emails will get response within 10 hours

3. Any needed machine parts can be supplied with professional guiding and ordinary price.

4. Engineer can be dispatched abroad for installation and maintenance

5. Collect after-sale-service feedback from customer, keep improving.
