Hot New Products Trimmer Knives - S-28E Three Knife Trimmer Machine For Book Cut – Eureka Detail:

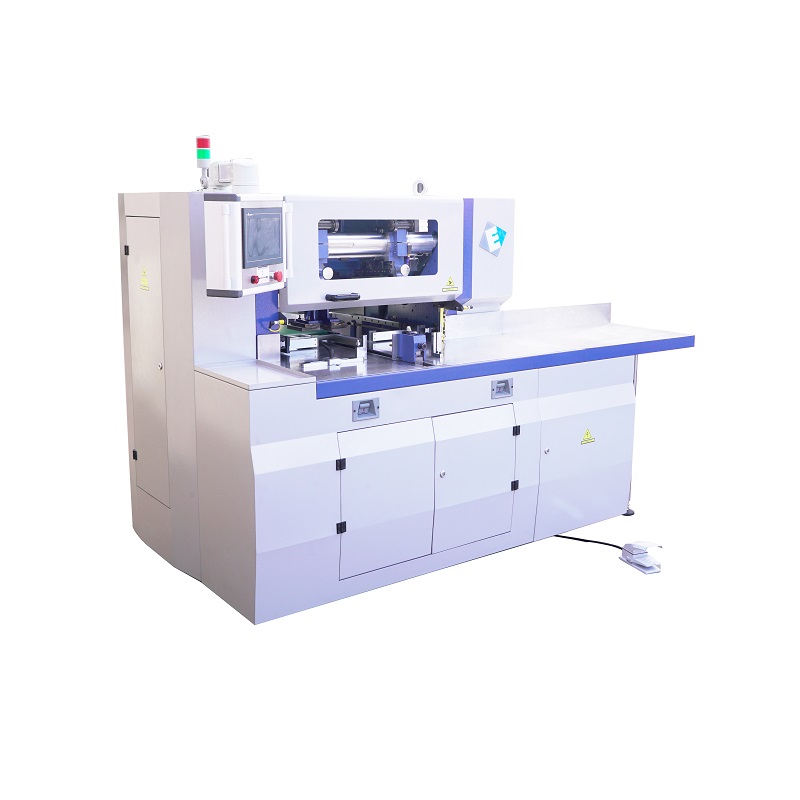

S28E Three knife trimmer machine for book cut 2

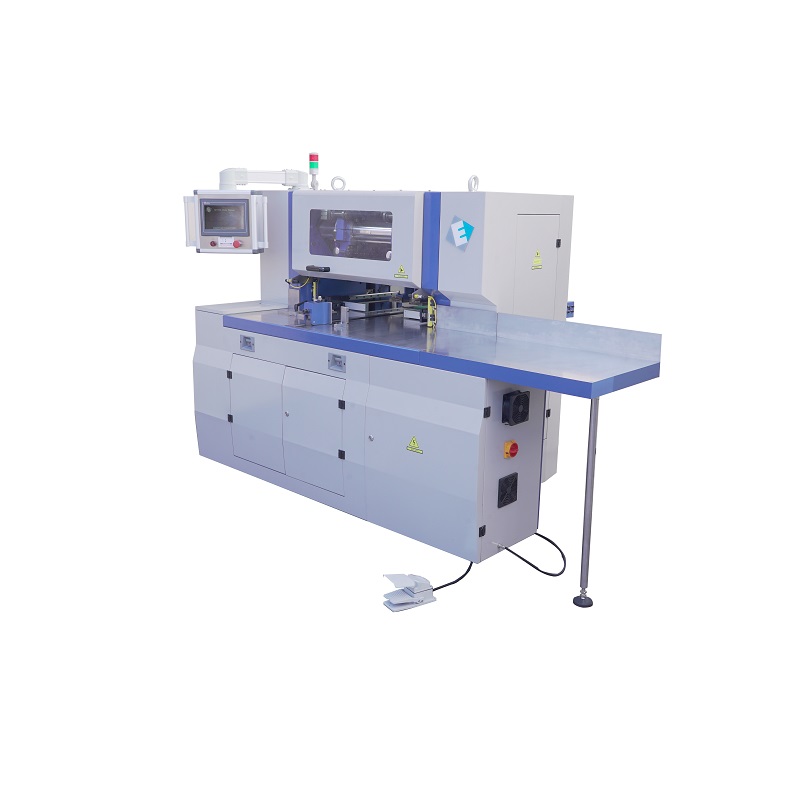

S-28E three knife trimmer is the latest design machine for book cut. It adopts the latest optimum design including programable side knife, servo control gripper and quick-change working table to match the request regarding short run and quick set-up of both digital printing house and conventional printing factory. It can rise efficiency of short-run job highly.

Specification	Model:S28E
Max. Trim Size(mm)	300×420
Min. Trim Size(mm)	80×80
Max. Trim Height(mm)	100
Min. Stock Height(mm)	8
Max. cutting speed (times/min)	28
Main Power(kW)	6.2

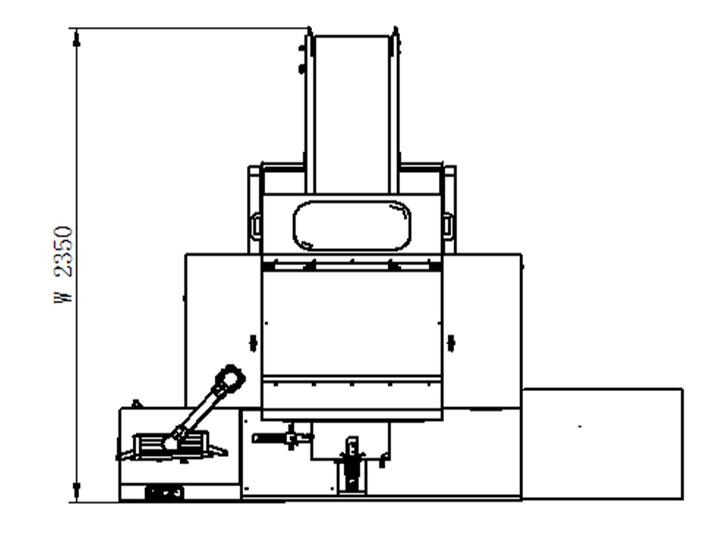

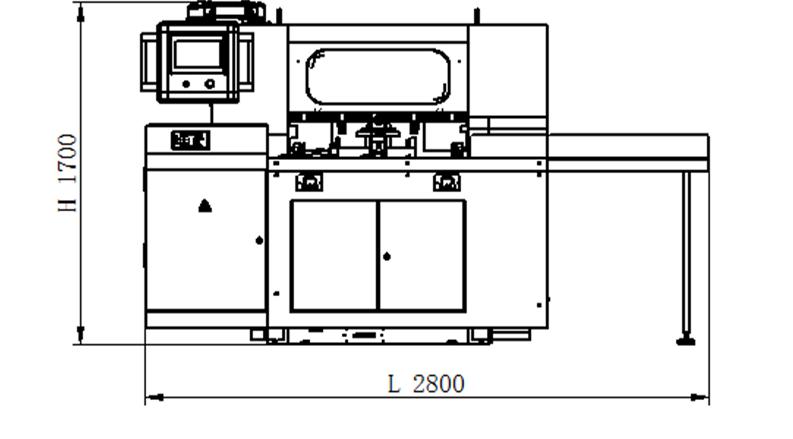

Overall Dimension (L×W×H)(mm)	2800x2350x1700

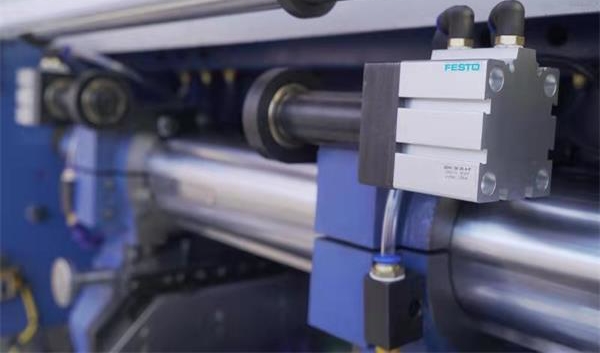

1. Programmable side knife and pneumatic locking

tkt2

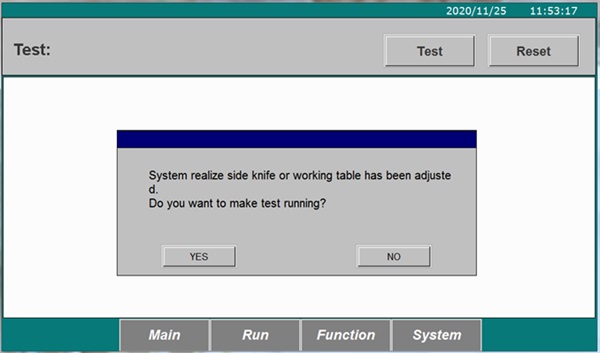

tkt1

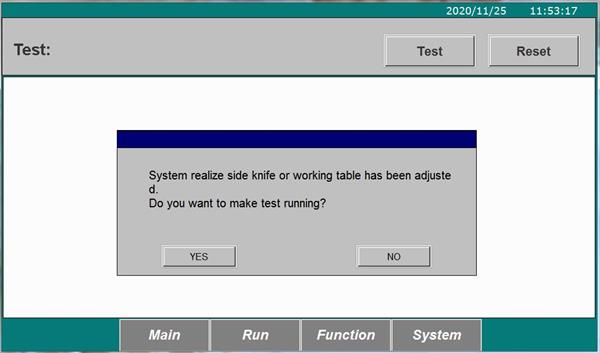

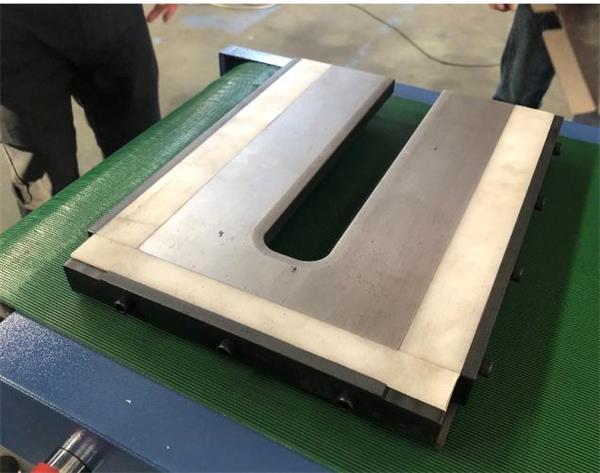

2. 7 pcs of working table can cover full range of cutting size and quick-change design to fulfil rapid set up each new order. Machine computer can automatically realize the size of working table to avoid accident due to wrong size reorganization.

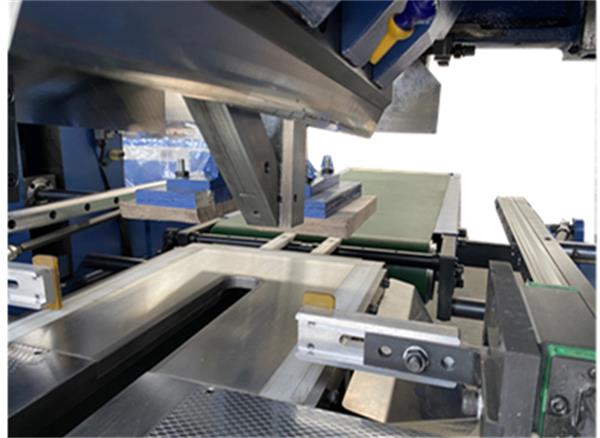

tkt3
tkt4
tkt5

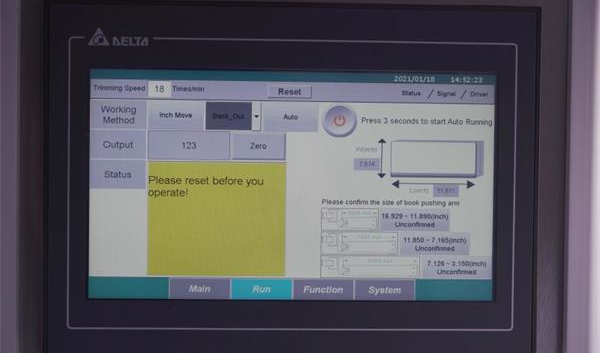

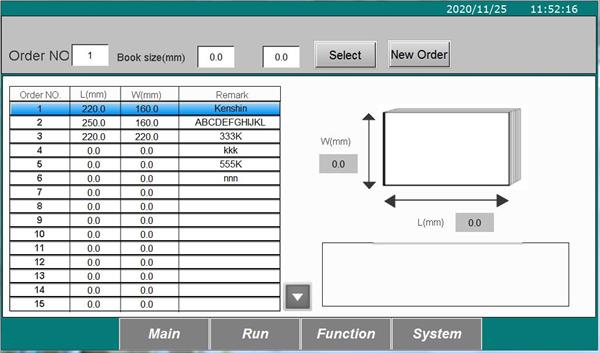

3. 10.4 high resolution monitor with touch screen for machine operation, order memorization and various error diagnosis.

tkt6
tkt7

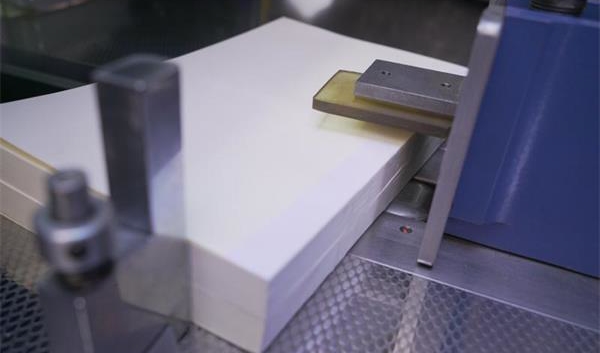

4. Gripper is driven by servo motor and pneumatic clamp. The book width can be set through touch screen. High precision linear guide ensure precise orientation and long working life. Photocell sensor is equipped to achieve book auto-feeding by induction.

S28E Three knife trimmer machine for book cut 7

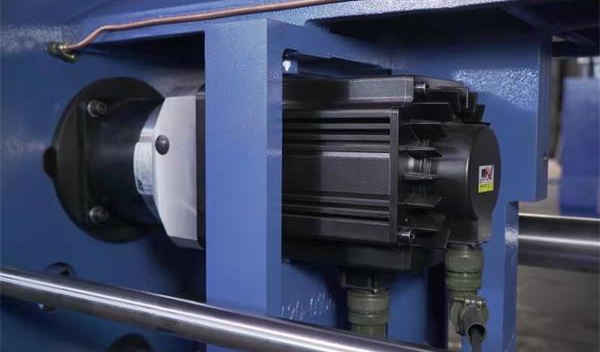

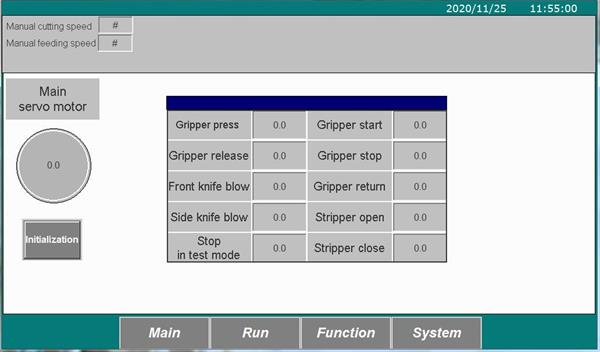

5. Main motor is driven by 4.5 KW servo motor instead of conventional AC motor with elec-magnet clutch, free of maintenance, powerful trimming, long working life and ensure accurate working sequence among different machine units. All units movement of machine can be detected and set through encoder angle which facilitate trouble shooting .

tkt8
tkt9

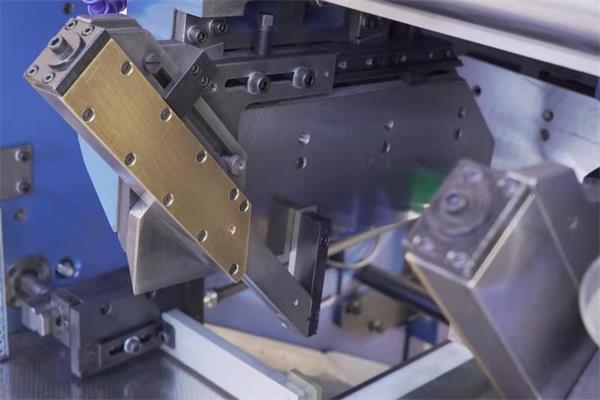

6. Auxiliary side knife ensure to avoid any book edge defect.

S28E Three knife trimmer machine for book cut 10

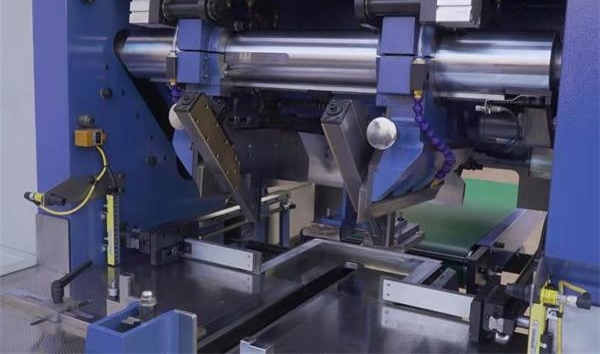

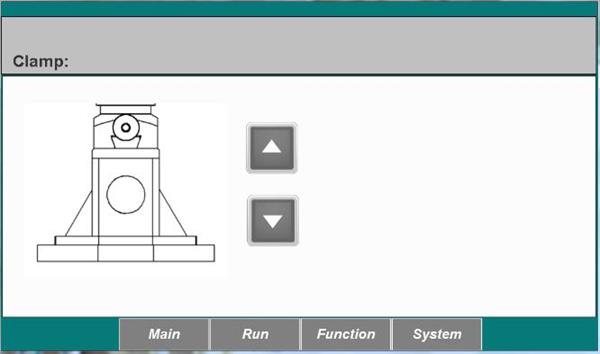

7. Motorized clamp height adjustment which can be operated through touch screen to match different cutting height.

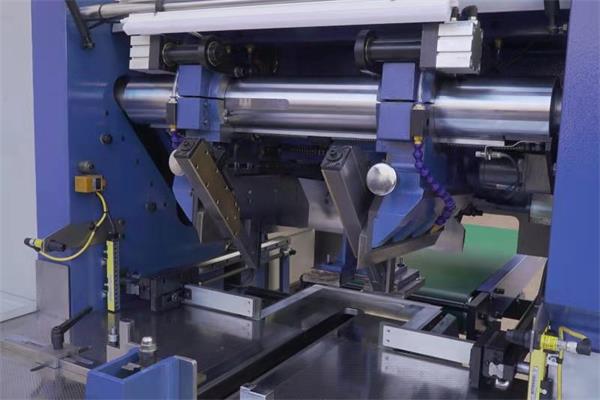

S28E Three knife trimmer machine for book cut 11
tkt10

8. Servo driven manipulator achieve high efficiency book output even in auto continuous mode at high speed.

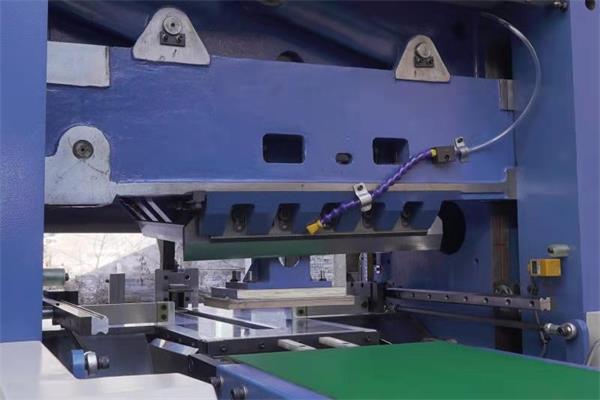

S28E Three knife trimmer machine for book cut 12

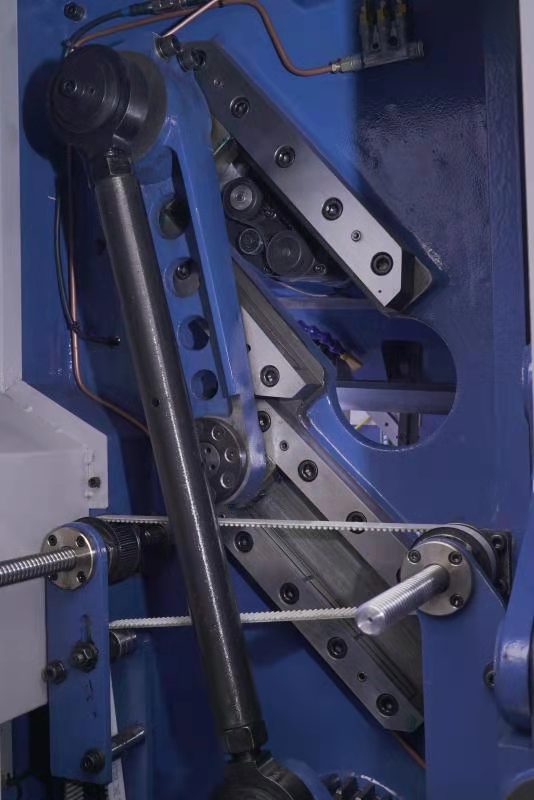

tkt11

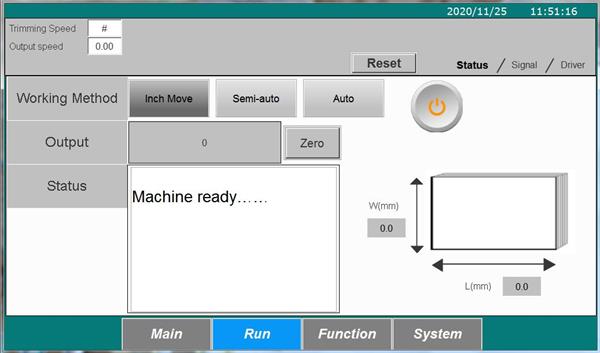

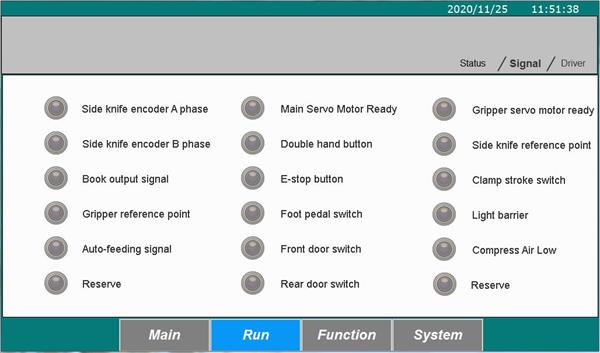

9. Combined with sensor equipped at all over the machine, all kinds of working mode, including inch-move, semi-auto mode, Auto mode, Test mode to facilitate operation and minimize operation fault possibility.

tkt12
tkt13

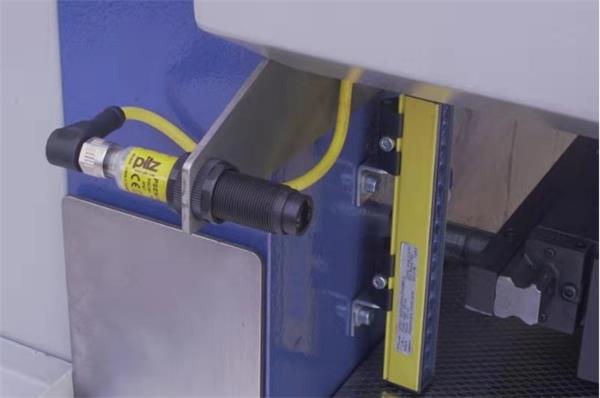

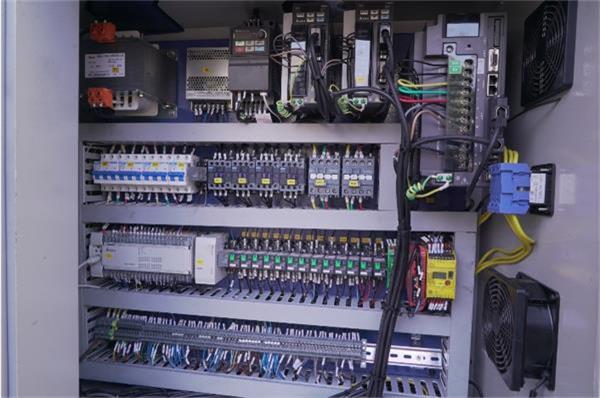

10. Light barrier, door switch and extra photocell combined with PILZ safety module achieve CE safety standard with redundant circuit design. (*Option).

tkt14
tkt15
Characteristic17
Characteristic18
