Hot sale Square Bottom Paper Bag Making Machine - ZB1200C-430 Sheet Feeding Paper bag Making Machine – Eureka

Short Description:

Product Detail

Feedback (2)

We are experienced manufacturer. Wining the majority of the crucial certifications of its market for Pvc Paper Cutting Machine , Paper Pile Lifter , Guillotine Style Paper Cutter , The mission of our company is to provide the highest quality products with best price. We are looking forward to doing business with you!

Hot sale Square Bottom Paper Bag Making Machine - ZB1200C-430 Sheet Feeding Paper bag Making Machine – Eureka Detail:

Automatic sheet-feeding paper bag making machine is suitable for the mass bag production, it is the first choice of medium and top grade handbag device. The product adopts mechanical, electricity, light,gas integration technology, setting a number of its proprietary technology, use sheet paper as raw material , can one-time finish: paper feeding, positioning, die-cutting, tube forming, gusset forming, square bottom folding and gluing automatic, and then compaction output.The variable speed drive technology, combined with the system of vertical and horizontal creasing, bottom folding realize trackless bag molding process. using the PLC programmable control, frequency control technology to realize the integral multi-dimensional control, more centralized control and single point remote control operating system . with characteristics of good quality and high efficiency,its technology ranks leading level in domestic similar products.

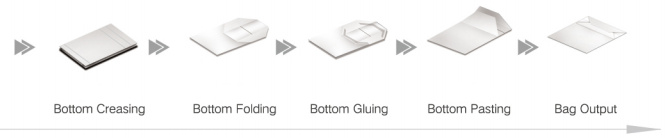

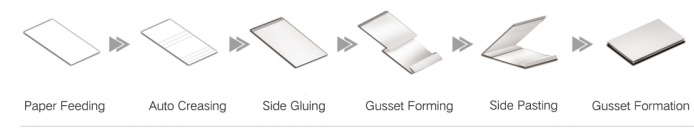

The basic working Flow is: sheet feeding, positioning, top folding(insert pasting),tube forming, gusset forming, bottom open, bottom gluing, compaction and output.

		ZB 1200C-430

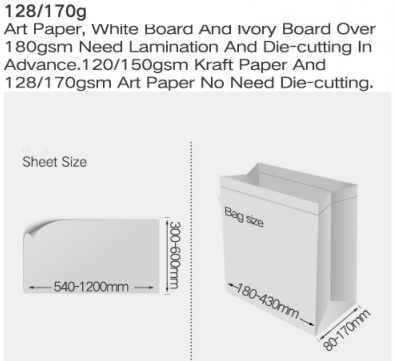

Maximum sheet size	mm	1200 x 600（Length×Height）
Minimum sheet size	mm	540 x 300（Length×Height）
Paper weights	gsm	120 – 300gsm
Bag Tube Length * * *	mm	300 – 600 *
Bag (face) width	mm	180 – 430
Bottom width	mm	80 – 170
Machine speed		Square bottom
Total electrical power	Pcs/min	50 – 70
Total electrical power	KW	10
Machine weight	Tone	12
Glue types		Water soluble cold glue and hot-melt glue
Machine size (L x W x H)	cm	1480 x 240 x 180

1. Feeder: Enhanced prestack paper feeder to realize non stop paper feeding, greatly save the time to load and adjust raw paper.

2. Front And Side Guides Positioning System

3. M Side making gusset system

4. Big and small side glue system

5. Paper jam checking system

6. Bag length inline setting

7. Screw rod adjusting bottom clip system

8. Hand crank creasing system

9. Automatic collection system,Automatic counting,convenient to collect bags

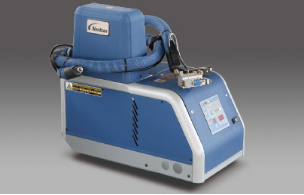

Standard configuration Nordson hot melt adhesive system: fast adhesion product ,quickly enter the next process.

Main spare parts Original

No.	Name	Origin	Brand	No.	Name	Origin	Brand
1	Feeder	China	RUN	8	Touch screen	Taiwan	Weinview
2	Main motor	China	Fangda	9	Bearing	Germany	BEM
3	PLC	Japan	Mitsubishi	10	Belt	Japan	NITTA
4	Frequency converter	France	Schneider	11	Air pump	Germany	Beicker
5	Button	Germany	Eaton Moeller	12	Air cylinder	Taiwan	Airtac
6	Electric relay	Germany	EatonMoeller	13	Photoelectric switch	Korea/Germany	Autonics/sick
7	Air switch	Germany	Eaton Moeller	Option	Hot melt glue system	USA	Nordson

Product detail pictures:
