JB-1020A with JB-1050UVJW Stepless UV Dryer with Cooling Section and JB-1050S
| Model | JB-1020A | JB-720A | JB-800A |
| Max. Printing area | 1020x710mm | 720x500mm | 800x590mm |
| Size of screen frame | 1280x1140mm | 880x880mm | 1070x1070mm |
| Paper thickness | 108~400g/m2 | 108x400g/m2 | 108~400g/m2 |
| Border | ≤10mm | ≤10mm | ≤10mm |
| Printing speed | 1000~3000pcs/h | 1000~3600pcs/h | 1000~3300pcs/h |
| Power | 3P 380V 50Hz 14.64Kw | 3P 380V 50Hz 10.5Kw | 3P 380V 50Hz 10.5Kw |
| Total weight | 5500kg | 3500Kg | 4000kg |
| Overall dimension | 4.65x2.8x1.68m | 4.05x2.24x1.68m | 4.35x2.58x1.68m |
*1 Depends on the material hardness
*2 Depends on the kind of printing substrates and printing conditions, figures may be changed
Rear pick-up feeder
Pull/push convertible side lays (with detecting sensor)
Cylinder built-in front lay sensor
Side lay sensor
Double sheet detector
Screen frame pneumatic lock clamp
Temporary stop quick adjustment device
Suction feed belt
Delivery board lowering system
Squeegee printing pressure kept device
Automatic lubricate device
 |

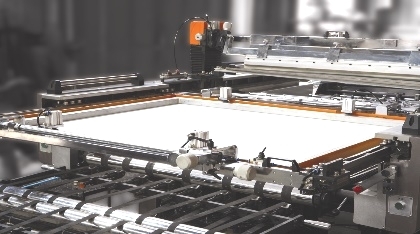

Feeder:The original rear pick-up feeder technology taken from the offset Press, ensures stable and smooth feeding of various types of substrate. Dependant on the substrate, overlapped (stream) or single sheet (universal) fed can be selected easily. A front pick up feeder is also available and can be used for stable feeding of film and other substrates |
 |

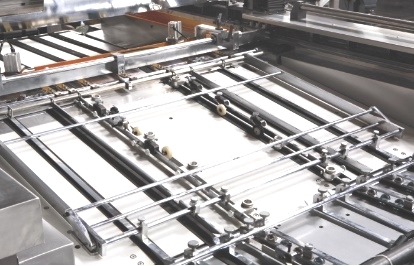

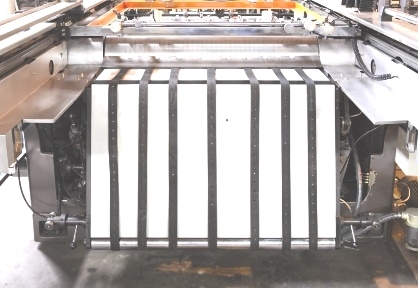

Feed board:The vacuum absorb is assembled in the bottom of the feed board, matching with the push and press paper construction, ensure various materials all can be delivered smoothly. |
 |

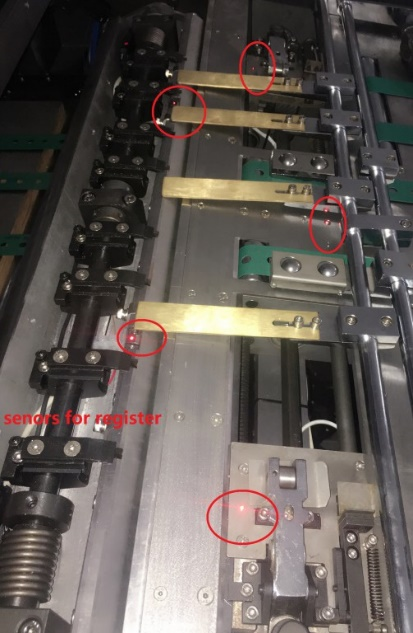

Cylinder and registration system:Cylinder stops step automatically to ensure the forehead of the printing stock can be sent accurately to the gripper of cylinder, which is up to extreme high precision; at the same time, gripper of cylinder and pul/pushl side-lay both have sensors for supervising if the printing stock is in correct place. The vacuum cylinder with +/- 0.01mm accuracy across the cylinder surface, a large cylinder shaft and specially made high precision bearings ensure the highest quality printing at higher speed. |
  |

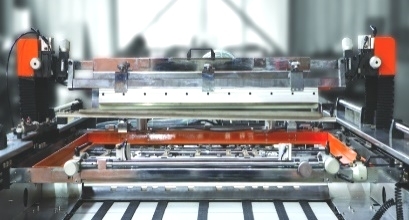

Squeegee system (constant squeegee pressure system):Squeegee and ink return blade are driven by individual cams and a two-step action cam helps reduce the squeegee shock onto the screen mesh; Due to the positive down cam action, the printing pressure is evenly applied to the cylinder continuously, squeegee with the pneumatically pressure kept device, resulting in sharp dot reproduction, the printing graphics is more clearly and the ink layer is more well-proportioned. |
 |

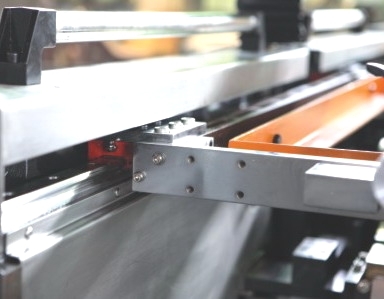

Frame circulate railway:Imported beeline guide and ball bearing, reduce the shake and noisy when the whole machine is working under high speed, insure the stability of printing. |
 |
Delivery board:The delivery board can be overturned up to 90degree to allow easy access to the screen mesh for cleaning and adjusting the frame, installing the blade; along with the vacuum adsorption, insure collection smoothly. |
|
Frame circulate railway:The screen frame rack can be pulled out, which is easy for adjusting the register or feeding, as well as cleaning the cylinder and screen frame; at the same time, it is assembled with device to hold the ink dropped to avoid the ink drops on the cylinder. |

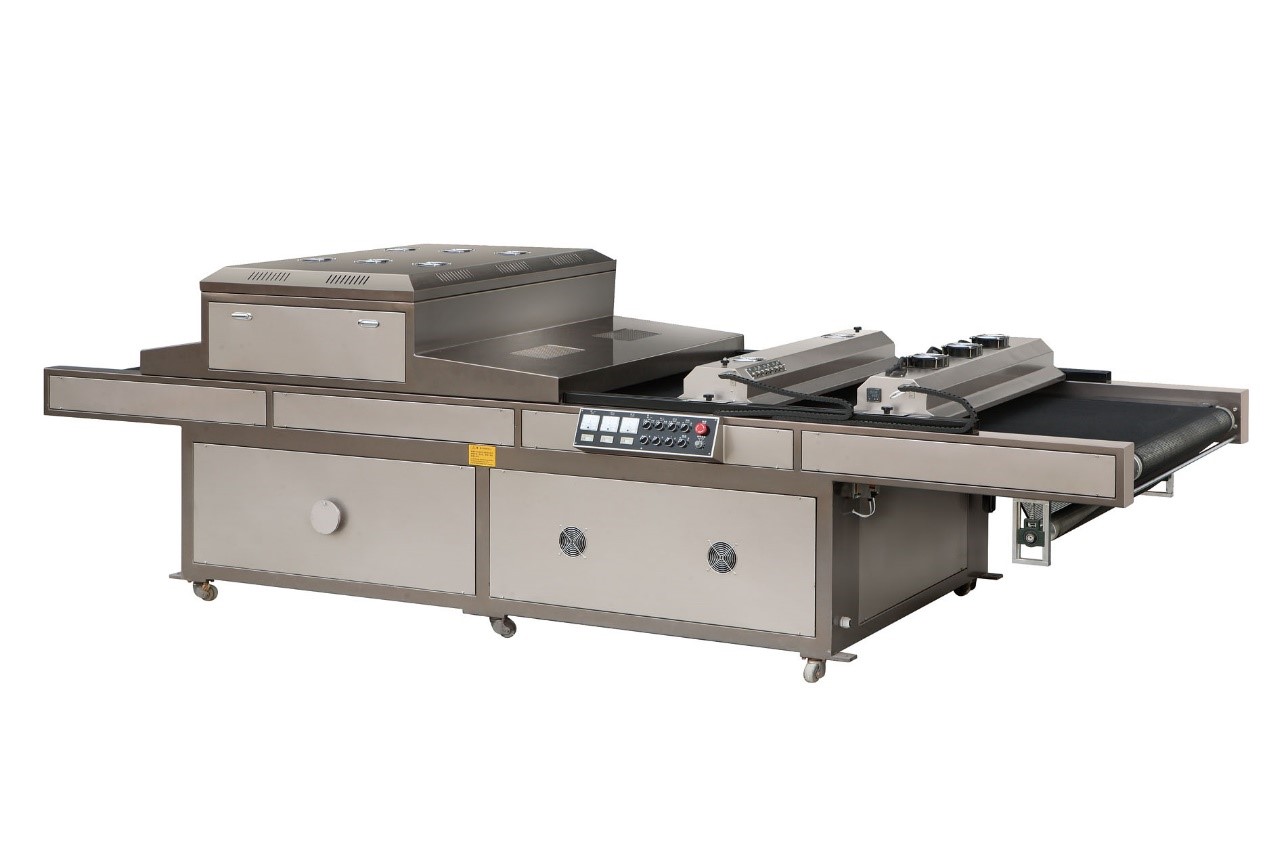

JB-1050UVJW is specially designed for using with automatic screen printing machine, offset machine and other equipments. It's widely used for dying, dehumidifying and UV curing etc in the field of screen printing, printing and dyeing, electroplating, electronic circuit board and so on.

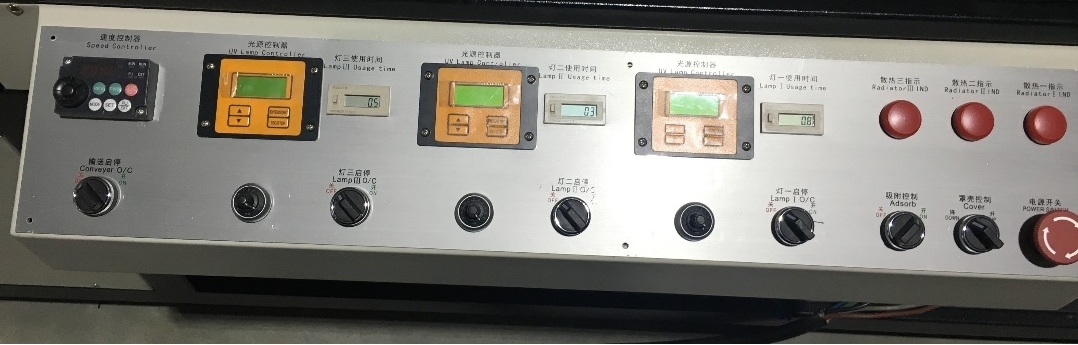

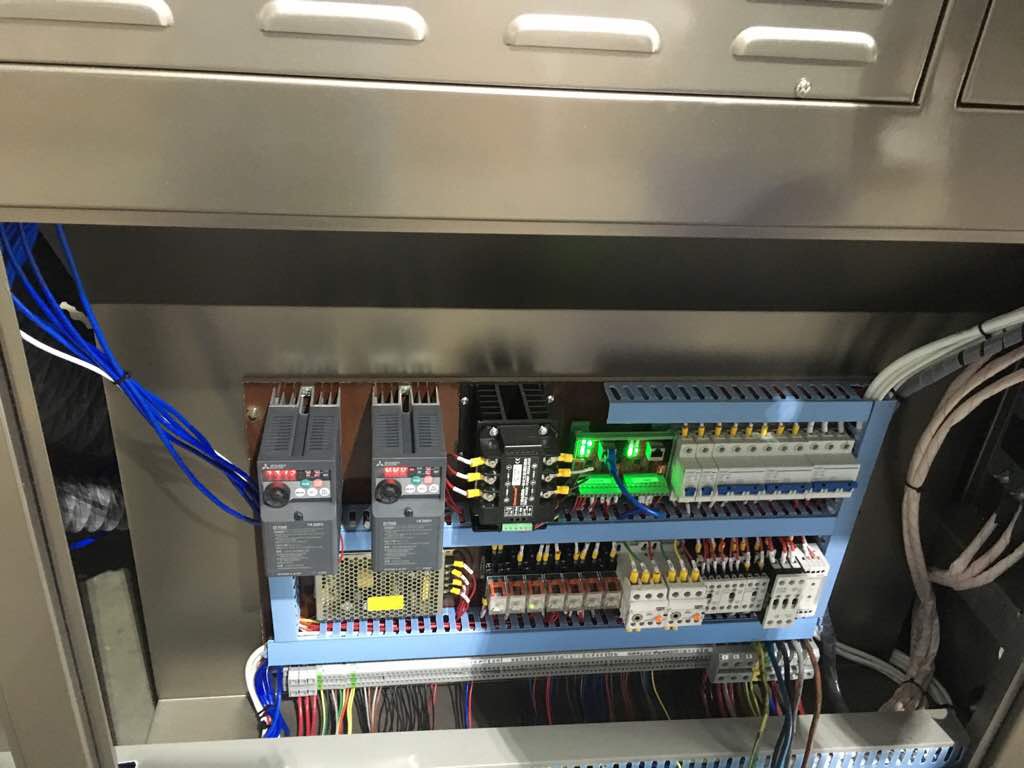

1. Three groups of stepless regulating light source, independent control, digital instrument real-time indication of the working state and service life.
2. Adopt special aluminum magnesium alloy lampshade, focusing design, high production efficiency.

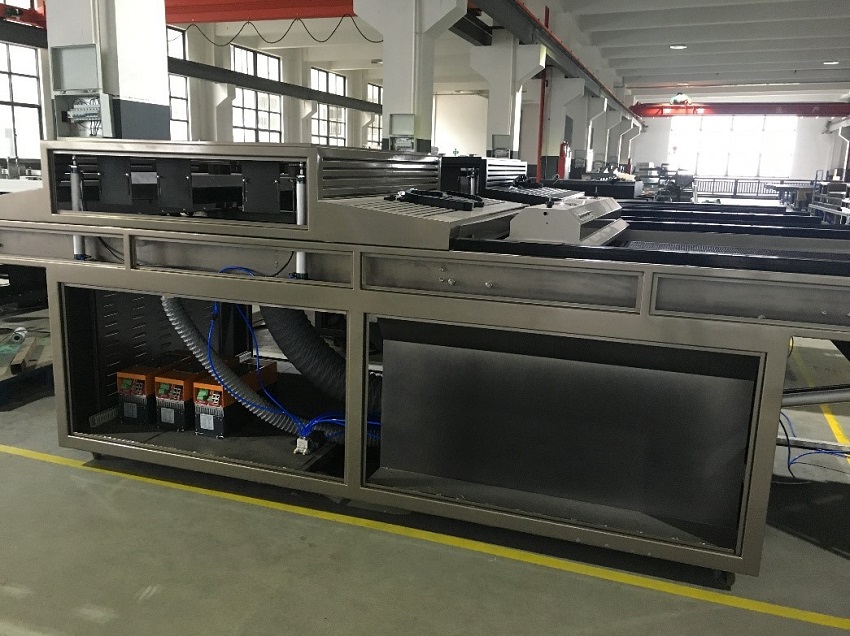

3.Equipped with a reasonable cooling system, two groups of independent lampshade heat dissipation, the lower part of the adsorption system, to prevent the work chamber temperature is too high, resulting in substrate deformation.
4. The conveyor belt automatic correction system with adsorption system, easy to use, more conducive to the paper conveying; imported Teflon (TEFION) mesh belt, high temperature resistance, friction resistance, stable use to ensure long time.
5. Conveyor frequency stepless speed regulation, visual production adjustment, conveying speed, up to 60 meters/min.
The advantages of stepless variable power light source compared with common transformer controlled UV light source:
Wide energy range output: the output power of the lamp tube is 30% to 100%, stepless adjustable;
High power conversion rate: about 20% higher than traditional transformer drive UV energy, and can effectively extend the lamp life;
High efficiency, energy saving and environmental protection: effectively reduce the loss and reactive power of traditional transformers, save about 40% of the power consumption compared to the same year;
Comprehensive intelligent protection: more than 20 professional protection alarm mechanism, such as overheating of tube, parameter error of lamp tube, disconnection of lamp tube, etc.;
high intelligent power adaptation: standby settings, no material input, 30% power standby; the material is in, within 0.5 seconds automatically to set the power;
The perfect use of safety: avoid the traditional transformer heating and wiring complex caused by security risks.
|
JB-1050UVJW |
|
|
Convey speed |
60m/min |
|
UV lamp power |
9.7 KW×3pcsXstepless type |
|
Wrinkle lamp power |
80W×3pcs×2level |
|
IR heating for ink smooth power |
1.5 KW×3pc |
|
Curing width |
1100 mm |
|
Convey motor power |
400 W |
|
Adsorption fan power |
2.2 KW |
|
Exhaust fan power |
0.37 KW ×3 |
|
Small fan |
40 W×13pcs |
|
Total power |
380V 50Hz 95A |
|
Total Weight |
1200 Kg |
|

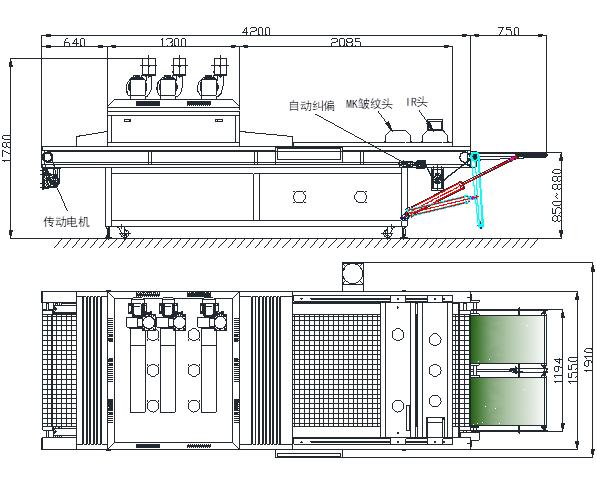

Overall size (L*W*H) |
(4.2+0.75) ×1.91×1.78 m |

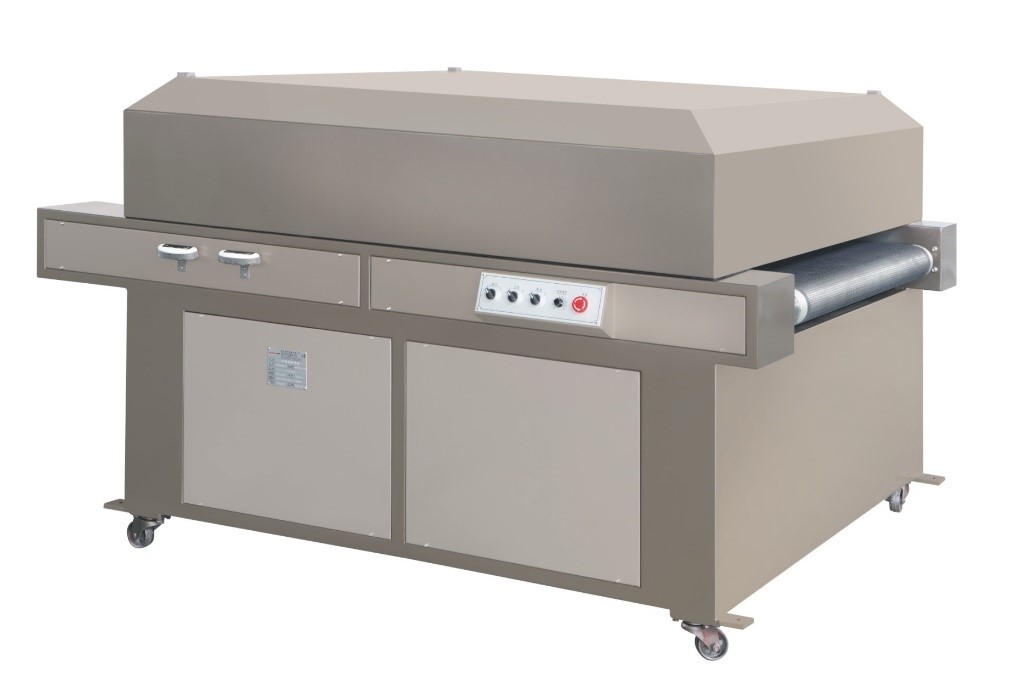

The cooling section is connected with flat conveyor or UV machine, it makes the paper out from dryer or UV machine cooling;
This section need connect power independently, it with frequency conversion convey belt, can be used after other oven or UV dryer, or use independently;
The cooling section keep blowing the cold-air blast through the high pressure blower, cooling the paper fleetly, and ensure the thin paper delivery smooth; whole house design adopt keep certain temperature, decrease the waste of cool air and save energy.
|
Cooling Model |
Water cooling |
|
Max. Convey Speed |
60 m/min |
|
Convey motor power |
400 W |
|
Lowest temperature |
15℃ |
|
Cool Machine power |
5HP 4.0KW |
|
Fan power |
0.85kw |
|
Weight（kg） |
900KG |
|
Overall dimension |
2100×2200×1330mm |

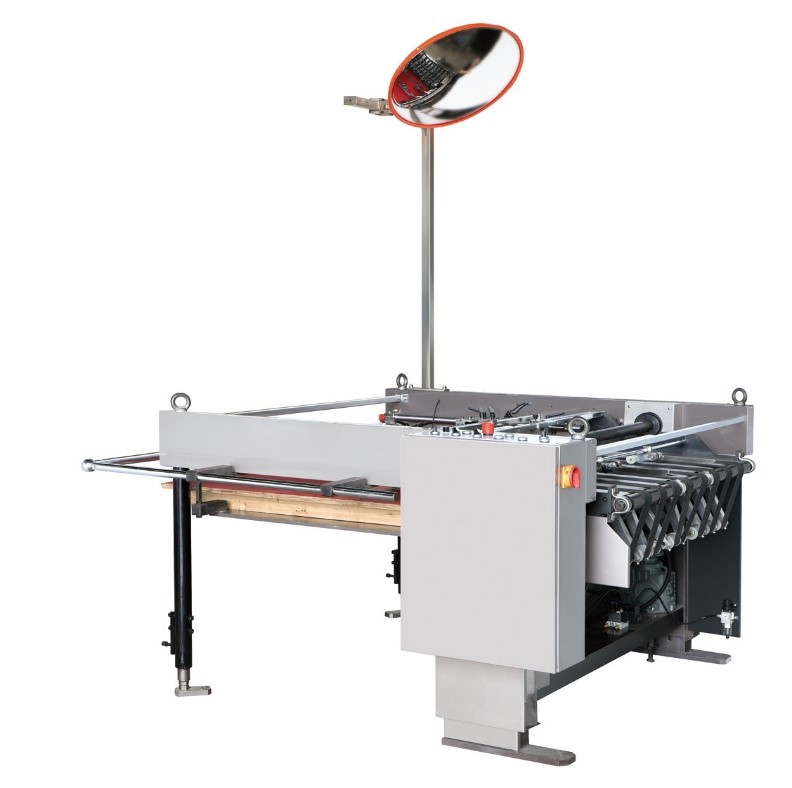

JB-1050S Full Automatic Stacker
JB-800S/1050S Full automatic stacker can combine with full-automatic cylinder type screen press and all kinds of dryer together to collect the paper and make them in order automatically.
|
JB-1050S |
|
|
Max. Paper size |
1100×750㎜² |
|
Min. Paper size |
560×350㎜² |
|
Max. Pile height |
700㎜ |
|
Top speed |
3600sheet/h |
|
Installed power |
3P 380V 50Hz 0.92KW |
|
Total weight |
650㎏ |
|
Overall size |
2000×1600×1050㎜³ |
1.The whole machine is controlled by PLC, collecting printing substrate and making the paper in order automatically.
2. Photoelectricity monitoring, two sides of baffles run when the paper come into the plate.
3.Paper conveying system is controlled by inverter with stepless speed regulation and conveyor belt guide the idler wheel to feed the paper.
4.Pneumatical elements control the jogger action, which avoid paper to be broken or other damage.
5.Following all kinds of paper size, paper jogging device can be adjusted from back, left and right easily and conveniently.
6.Induction sensor make the stacking board down automatically and keep paper collect smoothly.
7.Paper stacker has limitation safety mechanism at up and down position to avoid the machine from damaged.
8.Paper jam and paper pile height supervision and make the printing press stop in-line.
9.Connected with the printing part which can control the printing part's running.
10.Paper counting function.
