JB-1050AG with UV Dryer and Stacker

Short Description:

Appendix 1

JB-1050AG Full Automatic Stop Cylinder Screen Press

Main special features:

High Speed with 4000pcs/h (the first level in world) Sheet pile height is up to 90cm;

Stop cylinder;

High precision;

Offset printing head with two suck and two delivery system Touch Screen;

NON-STOP FEEDING SYSTEM (Standard) which can increase the efficiency up to 30%.

JB-1050A Full Automatic Stop Cylinder Screen Press adopts the classical stop cylinder technology with the advantages such as: paper located exactly and steadily, high precision, high speed, low noise, high degree automatization and so on, it is suitable for printing on ceramic and glass applique, electron industry (film switch, flexible circuitry, meter panel, mobile telephone), advertisement, packing and printing, brand, textile transfer, special technics etc.

Which is the newest product of flat feed cylinder screen press.


Product Detail

Product Video

Technical Parameters:

Model JB-1050AG
Max. paper size 1050 X 750mm
Min. paper size 560 X 350mm
Max. Printing size 1050 X 740mm
Paper thickness*1 90-420gsm
Border ≤10mm
Printing speed*2 500-4000pcs/h
Power 3P 380V 50HZ 10.7KW
Weight 5600KGS
Overall size (standard complete line) 14350x3060x2750mm

*1 Depends on the material hardness

*2 Depends on the kind of printing substrayes and printing conditions, figures may be changed

Remarkable Features

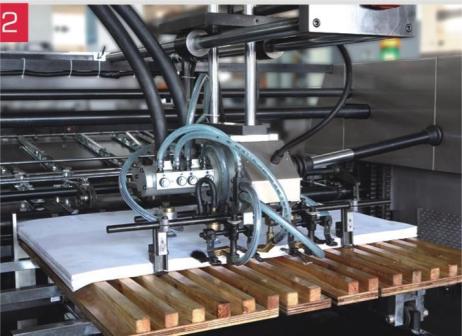

Features1 Feeder:The original rear pick-up feeder technology taken from the offset Press, ensures stable and smooth feeding of various types of substrate. Dependent on the substrate, overlapped (stream) or single sheet (universal) fed can be selected easily. Two suck and two delivery feeding system.

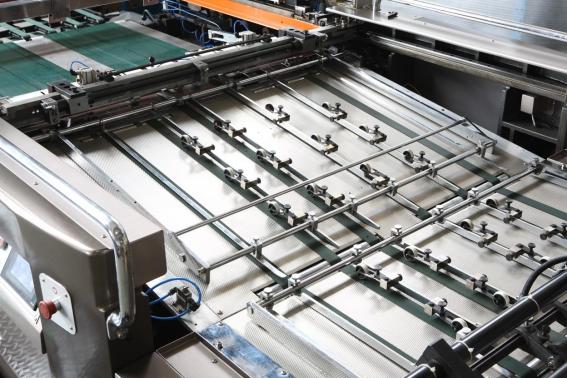

Features2 Feed Board:The vacuum absorb is assembled in the bottom of the feed board, matching with the push and press paper construction, insure various

materials all can be delivered smoothly. Stainless delivery board

Features3 Cylinder and registration system:Cylinder stops step automatically to ensure the forehead of the printing stock can be sent accurately to the gripper of cylinder, which is up to extreme high precision; at the same time, gripper of cylinder and pull/push side-lay both have sensors for supervising if the printing stock is in correct place. The vacuum cylinder with +/- 0.01mm accuracy across the cylinder surface, a large cylinder shaft and specially made high precision bearings
Features4 Squeegee system (constant squeegee pressure system):Squeegee and ink return bladeare driven by individual cams and a two-step action cam helps reduce the squeegee shock onto the screen

mesh; Due to the positive down cam action, the printing pressure is evenly applied to the cylinder continuously, squeegee with the pneumatically pressure kept device, resulting in sharp dot reproduction, the printing graphics is more clearly and the ink layer is more well-proportioned.

Feeder6 Frame circulate railway:Imported beeline guide and ball bearing, reduce the shake and noisy when the whole machine is working under high speed, insure the stability of printing.

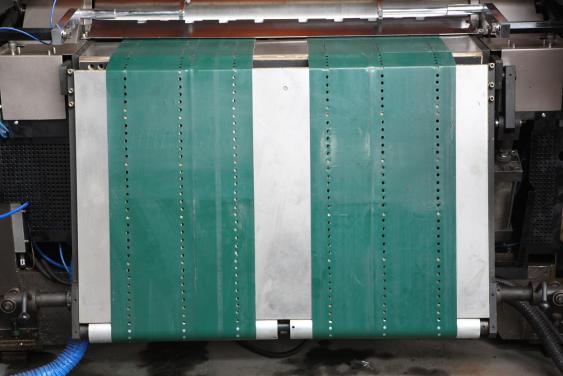

Features6 Delivery board:The delivery board can be overturned up to 90degree to allow easy access to the screen mesh for cleaning and adjusting the frame, installing the blade; along with the vacuum adsorption, insure collection smoothly.

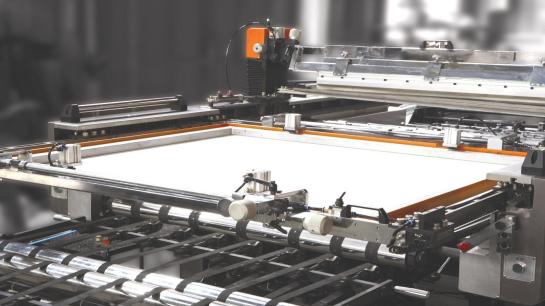

Features7 Screen Frame System:The screen frame rack can be pulled out, which is easy for adjusting the register or feeding, as well as cleaning the cylinder and screen frame; at the same time, it is assembled with device to hold the ink dropped to avoid the ink drops on the cylinder

Appendix 2 JB-1050UVJWG UV Curing Machine (Stepless adjustable)

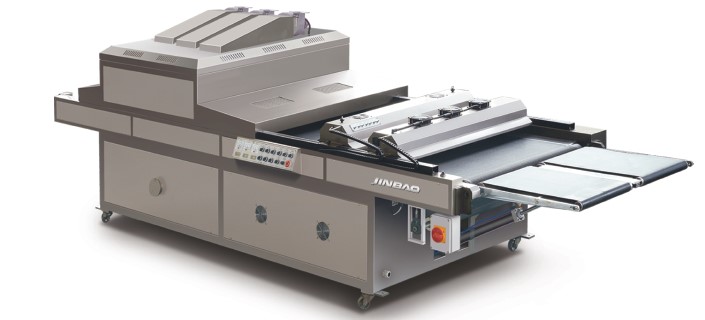

JB-1050AG with UV Dryer and Stacker (2)

Application

JB-1050UVJWG is specially designed for using with automatic screen printing machine, offset machine and other equipment. It's widely used for dying, dehumidifying and UV curing etc in the field of screen printing, printing and dyeing, electroplating, electronic circuit board and so on.

Control Panel

asdadaasda
JB-780 with JB-800UVJ UV Dryer and JB-800S Stacker (3)

Inside electrical control parts

sdadad

Main features:

1. Three groups of stepless regulating light source, independent control, digital instrument real-time indication of the working state and service life.

2. Adopt special aluminum magnesium alloy lampshade, focusing design, high production efficiency.

3.Equipped with a reasonable cooling system, two groups of independent lampshade heat dissipation, the lower part of the adsorption system, to prevent the work chamber temperature is too high, resulting in substrate deformation.

4. The conveyor belt automatic correction system with adsorption system, easy to use, more conducive to the paper conveying; imported Teflon (TEFION) mesh belt, high temperature resistance, friction resistance, stable use to ensure long time.

5. Conveyor frequency stepless speed regulation, visual production adjustment, conveying speed, up to 60 meters/min.

The advantages of stepless variable power light source compared with common transformer controlled UV light source:

Wide energy range output: the output power of the lamp tube is 30% to 100%, stepless adjustable;

High power conversion rate: about 20% higher than traditional transformer drive UV energy, and can effectively extend the lamp life;

High efficiency, energy saving and environmental protection: effectively reduce the loss and reactive power of traditional transformers, save about 40% of the power consumption compared to the same year;

Comprehensive intelligent protection: more than 20 professional protection alarm mechanism, such as overheating of tube, parameter error of lamp tube, disconnection of lamp tube, etc.;

high intelligent power adaptation: standby settings, no material input, 30% power standby; the material is in, within 0.5 seconds automatically to set the power;

The perfect use of safety: avoid the traditional transformer heating and wiring complex caused by security risks.

Technical Parameters

JB-1050UVJW

Convey speed

60m/min

 UV lamp power

9.7 KW×3pcsXstepless type

Wrinkle lamp power

80W×3pcs×2level

IR heating for ink smooth power

1.5 KW×3pc

Curing width

1100 mm

Convey motor power

400 W

Adsorption fan power

2.2 KW

Exhaust fan power

0.37 KW ×3

Small fan

40 W×13pcs

Total power

 380V 50Hz 95A

Total Weight

1200 Kg

Overall size (L*W*H)

(4.2+0.75) ×1.91×1.78 m

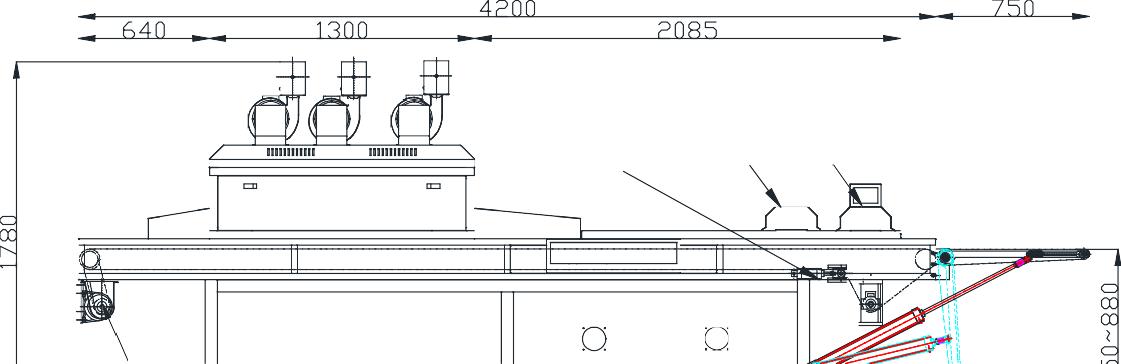

Diagram

field

Appendix 3 JB-1050SG Full Automatic Stacker—Non-Stop Collection

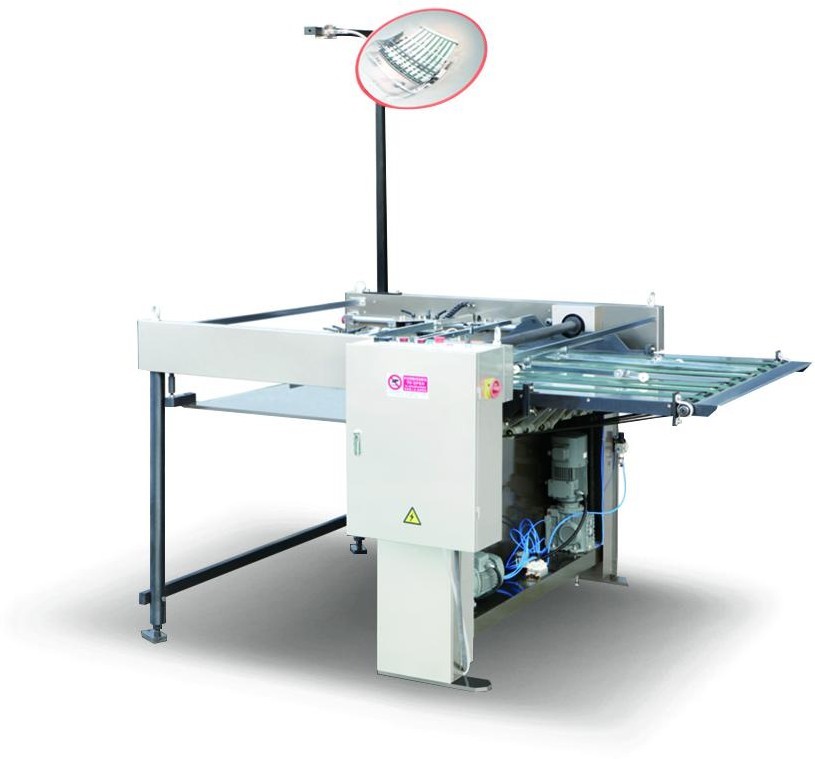

JB-1050AG with UV Dryer and Stacker (4)

JB-1050SG New Designed feeding part of stacker make non-stopped collection job, which achieve the whole production line with non-stopped, save working time, increase working efficiency, also safe and easy operation. The stable collection inspect, height inspect, protect production and machine. Preset counter easy user to add automatic or manual insertion.

Option: the feeding part can be equipped with vacuum adsorption for avoiding the scrapping of the surface of substrate.

Technical Parameters:

JB-1050SG
Max. Paper size 1100×750 ㎜²
Min. Paper size 560×350 ㎜²
Max. Pile height 900 ㎜
Top speed 4200sheet/h
Installed power 3P 380V 50Hz 0.92KW
Total weight 700 ㎏
Overall size 2700×2050×2750 ㎜³

Main feature:

1. The whole machine is controlled by PLC, collecting printing substrate and making the paper in order automatically.

2. Photoelectricity monitoring, two sides of baffles run when the paper come into the plate.

3. Paper conveying system is controlled by inverter with stepless speed regulation and conveyor belt guide the idler wheel to feed the paper.

4. Pneumatical elements control the jogger action, which avoid paper to be broken or other damage.



5. Following all kinds of paper size, paper jogging device can be adjusted from back, left and right easily and conveniently.

6. Induction sensor make the stacking board down automatically and keep paper collect smoothly.

7. Paper stacker has limitation safety mechanism at up and down position to avoid the machine from damaged.

8. Paper jam and paper pile height supervision and make the printing press stop in-line. 9.Connected with the printing part which can control the printing part's running.

10.Paper counting function.
