JB-1500UVJW UV Dryer

Short Description:

JB-1500UVJW is specially designed for using with automatic screen-printing machine, offset machine and other equipment. It’s widely used for dying, dehumidifying and UV curing etc. in the field of screen printing, printing and dyeing, electroplating, electronic circuit board and so on.


Product Detail

Three Main Stations Introduction

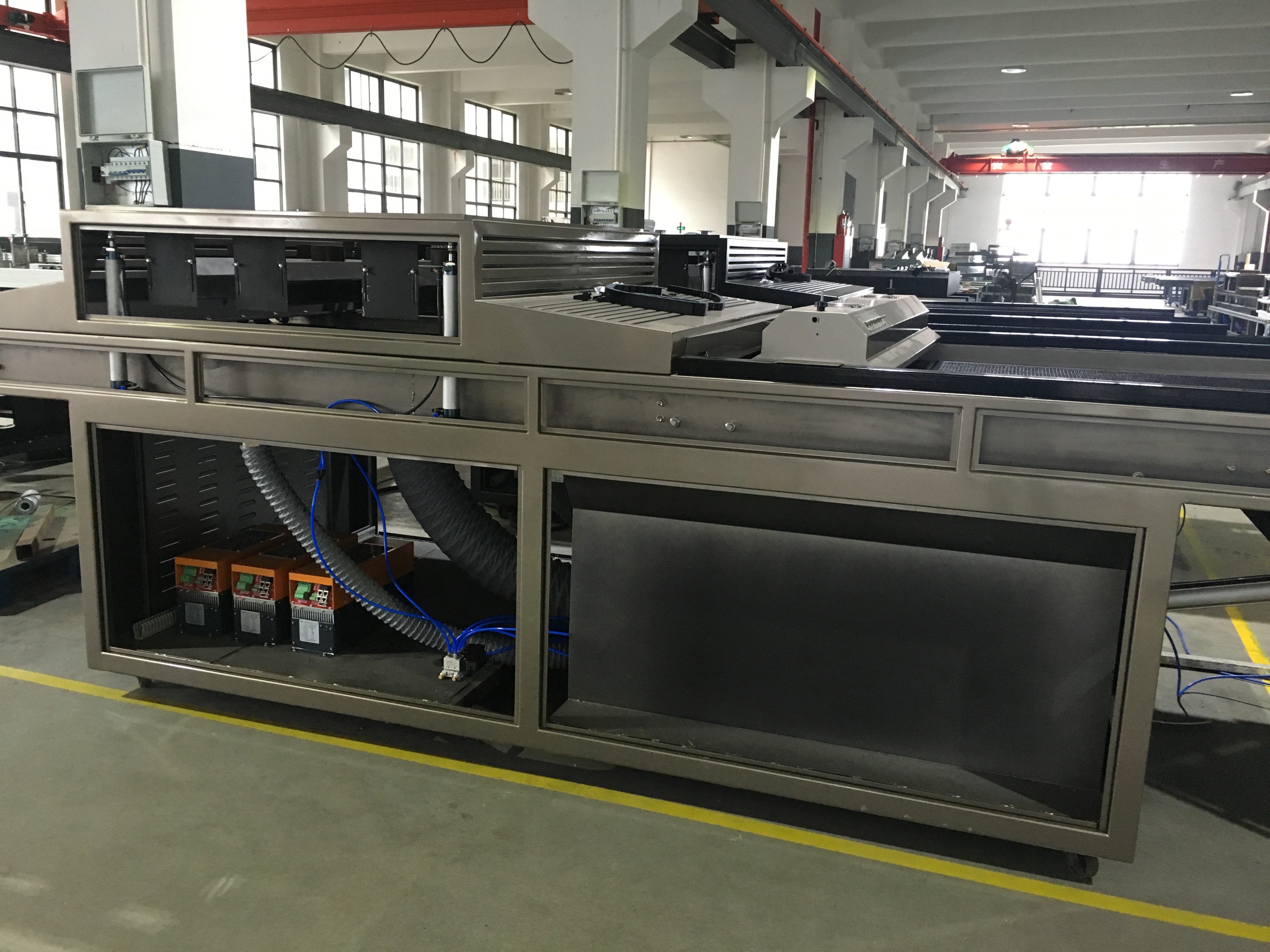

Inside electrical control partsInside electrical control parts

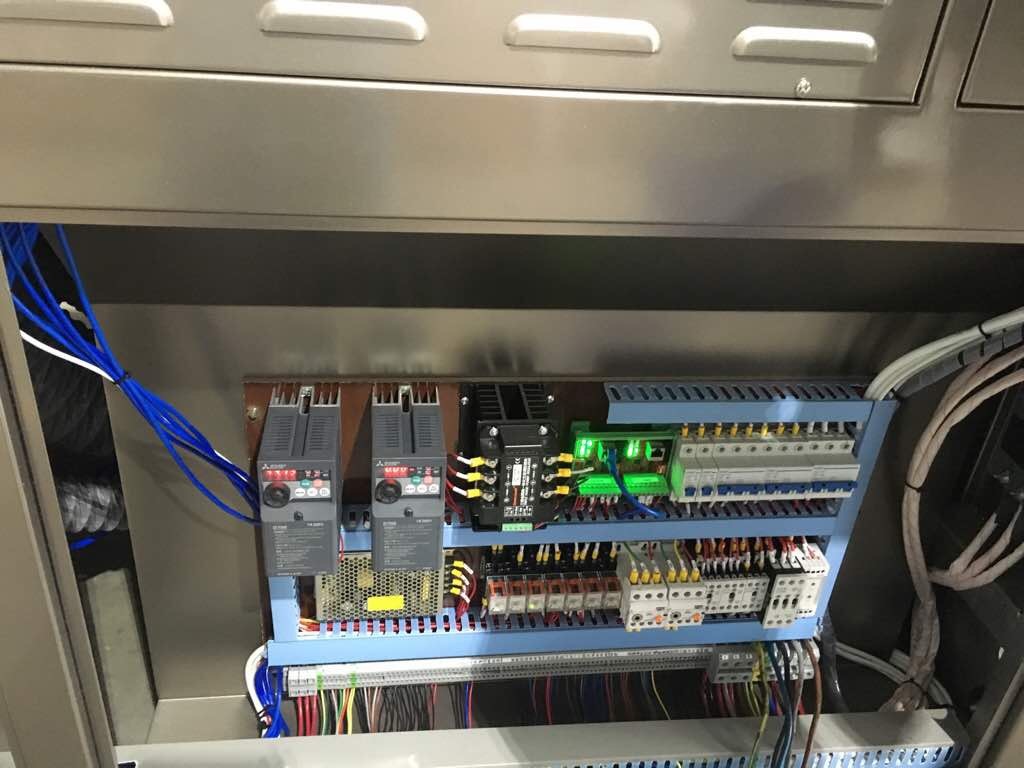

Inside electrical control

Main features:

1. Three groups of stepless regulating light source, independent control, digital instrument real-time indication of the working state and service life.

2. Adopt special aluminum magnesium alloy lampshade, focusing design, high production efficiency.

3.Equipped with a reasonable cooling system, two groups of independent lampshade heat dissipation, the lower part of the adsorption system, to prevent the work chamber temperature is too high, resulting in substrate deformation.

4. The conveyor belt automatic correction system with adsorption system, easy to use, more conducive to the paper conveying; imported Teflon (TEFION) mesh belt, high temperature resistance, friction resistance, stable use to ensure long time.

5. Conveyor frequency stepless speed regulation, visual production adjustment, conveying speed, up to 60 meters / min..

The advantages of stepless variable power light source compared with common transformer controlled UV light source:

Wide energy range output: the output power of the lamp tube is 30% to 100%, stepless adjustable;

High power conversion rate: about 20% higher than traditional transformer drive UV energy, and can effectively extend the lamp life;

High efficiency, energy saving and environmental protection: effectively reduce the loss and reactive power of traditional transformers, save about 40% of the power consumption compared to the same year;

Comprehensive intelligent protection: more than 20 professional protection alarm mechanism, such as overheating of tube, parameter error of lamp tube, disconnection of lamp tube, etc.;

 high intelligent power adaptation: standby settings, no material input, 30% power standby; the material is in, within 0.5 seconds automatically to set the power;

The perfect use of safety: avoid the traditional transformer heating and wiring complex caused by security risks.

Parameter:



JB-1500UVG

Convey speed

60m/minutes

 UV lamp power

13 KW×3pcs

Wrinkle lamp power

80W×5pcs

IR heating for ink smooth power

1.2KW×6pcs

Curing width

1500 mm

Convey motor power

750 W

Adsorption fan power

2.2 KW

Exhuast fan power

0.37 KW ×3

Small fan

40W×6只

Total power

3P 5wires 380V 50Hz 51.49KW

Overall size(LxWxH)

(3.8+0.66)×2.4×1.77 m

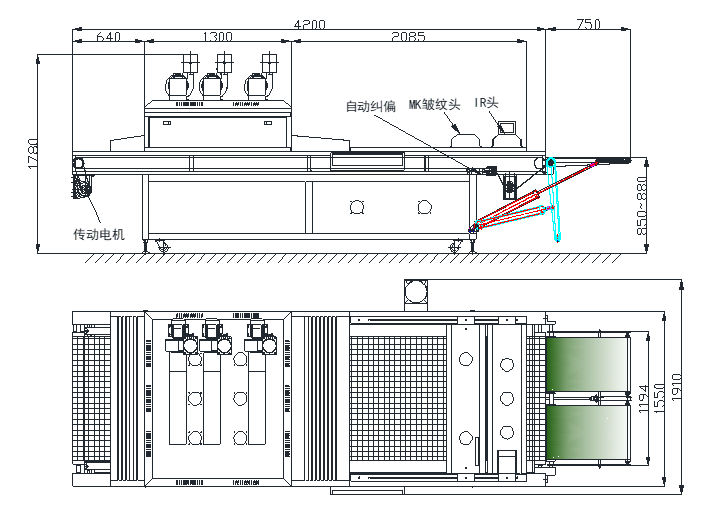

insidemoreandmore
