Low price for Used Automatic Die Cutting Machines - GUOWANG T-106Q AUTOMATIC FLATBED DIE-CUTTER WITH STRIPPING – Eureka Detail:

highlights2

FEEDING UNIT

-Non-stop feeding with automatic pile lift and pre-pile device. Max pile height 1800mm

-High quality feeder head with 4 sucker and 4 forwarder to assure stable and fast feeding for various of materials* Optional Mabeg feeder

-Front control panel for easy operation

-Anti-static device for feeder and transfer table*option

-Photocell anti step in detection

highlights3

TRANSFER UNIT

-Double cam gripper bar structure to make the sheet closer to the working platform and stripping frame, more stable in high-speed operation

-Mechanical double sheet device for cardboard, supersonic double sheet detector for paper *option

-Pull and push side lay suitable for thin paper and thick cardboard, corrugated

-Paper speed reducer to make smooth transfer and precise positioning.

-Side and front lay are with precise photocells, sensitivity adjustable and can be set by monitor

highlights4

DIE-CUTTING UNIT

-Die-cutting pressure controlled by YASAKAWA Servo System Max. 300T

Max. Die-cutting speed 8000s/h

-Pneumatic quick lock upper&lower chase

-Centerline system on die-cutting chase with transversal micro adjustment ensures accurate registration that result in quick job changeover.

highlights5

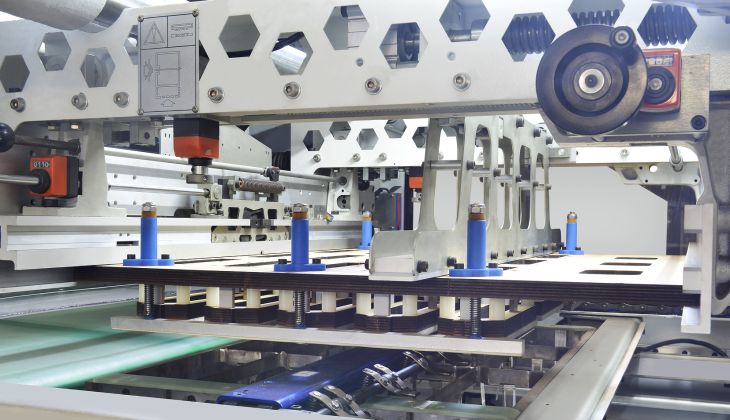

STRIPPING UNIT

-Quick lock and center line system for stripping frame to minimize job changing time

-Pneumatic upper frame lifting

-Stripping make ready table to reduce job setting time*option

highlights8

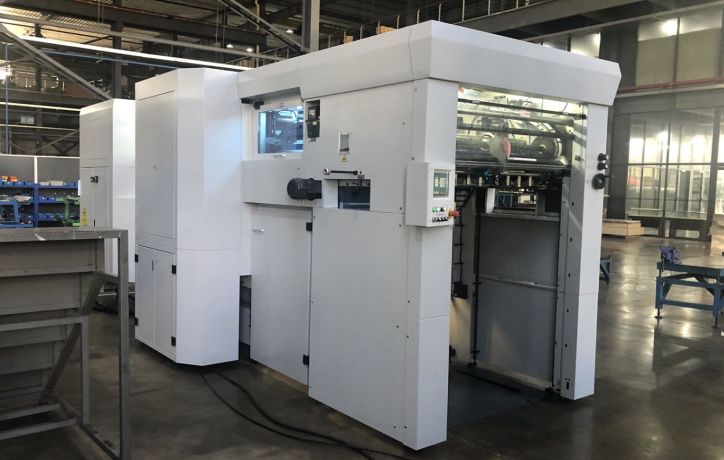

DELIVERY UNIT

- Non-stop delivery with automatic pile lowering

Max. Pile height 1400mm

-Automatic curtain style non-stop delivery rack

- 10.4″ monitor touch monitor

- Anti-static device*option

- Tap inserter*option

–Photocell anti step in detection, dedicated reset button for safety.

GASM8

SMART HUMAN MACHINE INTERFACE (HMI)

-15″ and 10.4″ touch screen with graphical interface at feeder and delivery section for easy control of machine at different position, all settings and function can be easily set through this monitor.

-Self diagnosis system, error code and message

-Full jam detection

Maximum paper size	1060*760	mm
Minimum paper size	400*350	mm
Maximum cutting size	1060*745	mm
Maximum Die-cutting plate size	1075*765	mm
Die-cutting plate thickness	4+1	mm
Cutting rule height	23.8	mm
First die-cutting rule	13	mm
Gripper margin	7-17	mm
Cardboard spec	90-2000	gsm
Cardboard thickness	0.1-3	mm
Corrugated spec	≤4	mm
Maximum working pressure	350	t
Maximum die-cutting speed	8000	S/H
Feeding board height (incl. pallet)	1800	mm
Non-stop feeding height(incl. pallet)	1300	mm
Delivery height(incl. pallet)	1400	mm
Main motor power	11	kw
Whole machine power	17	kw
Voltage	380±5% 50Hz	v
Cable thickness	10	mm²
Air pressure requirement	6-8	bar
Air consumption	200	L/Min

Configurations	Country of origin
Feeding unit
Jet-feeding Mode
Feeder head	China/German MABEG*option
Pre-loading device, Non-stop feeding
Front & side lay photocell induction
Light guard protecting device
Vacuum pump	German Becker
Pull/push switch type side guide
Die-cutting unit
Die chase	Japan SMC
Centre line alignment system
Gripper mode adopt latest double cam tech	Japan
Pre-stretched high quality chain	German
Torque limiter and index gear box drive	Japan Sankyo
Cutting plate pneumatic ejecting system
Automatic lubrication and cooling
Automatic chain lubrication system
Main motor	German SIEMENS
Paper miss detector	German LEUZE
Stripping unit
3-way stripping structure
Centre line alignment system
Pneumatic lock device
Quick lock system
Delivery unit
Non-stop delivery
Delivery motor	German NORD
Secondary delivery motor	German NORD
Electronic parts
High quality electrical components	EATON/OMRON/SCHNEIDER
Safety controller	German PILZ safety module
Main monitor	19 inch AMT
Secondary monitor	19 inch AMT
Inverter	SCHNEIDER/OMRON
Sensor	LEUZE/OMRON/SCHNEIDER
Switch	German MOELLER
Low-voltage distribution	German MOELLER

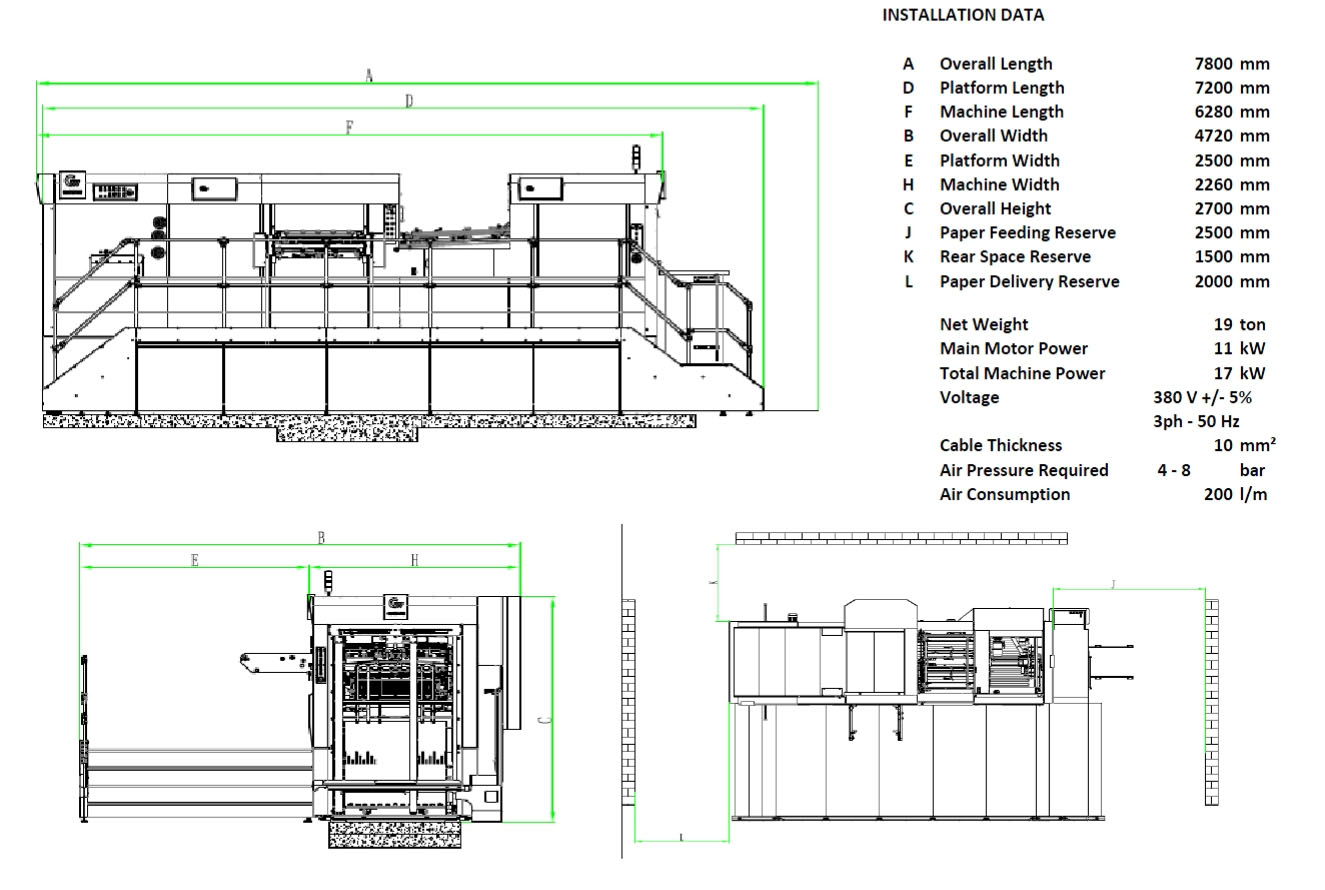

LAYOUT
highlights7

Through the co-operation with top-level partner in the world, Guowang Group (GW) owns Joint venture company with Germany partner and KOMORI global OEM project. Based on the German and Japanese advanced technology and more than 25 years experience, GW continually offer the best and highest efficient post-press solution.

GW adopts the advanced production solution and 5S management standard, from R&D, purchase, machining, assembling and inspection, every process strictly follow the highest standard.

GW invest a lot in the CNC, import DMG, INNSE- BERADI, PAMA, STARRAG, TOSHIBA, OKUMA, MAZAK, MITSUBISHI etc. from all over the world. Only because pursues the high quality. The strong CNC team is the firm guaranty of the quality of your products. In GW, you will feel the “high efficient and high precision”
