LST03-0806-RM

Short Description:

Material art paper, cardboard, sticker, label, plastic film, etc.

Effective working area 800mm X 600mm

Max. cutting speed 1200mm/s

Cutting Accuracy ±0.2mm

Repeat accuracy ±0.1mm


Product Detail

Features

Features1

Features2

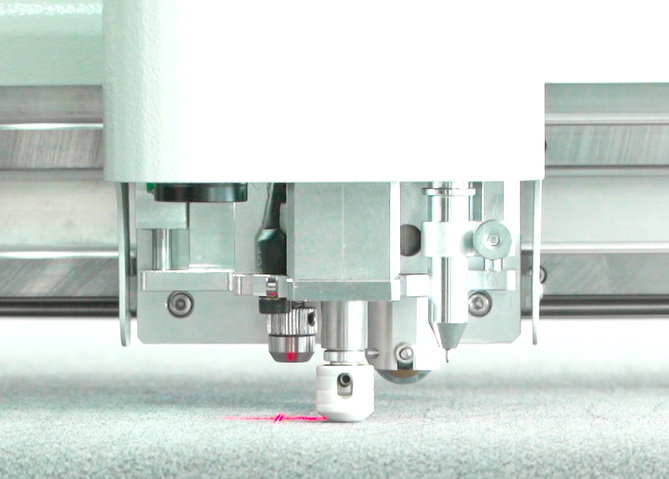

LST03-0806-RM Plotter Digtal die-cutting machine 2

Specifications

Model

LST03-0806-RM

Material

art paper, cardboard, sticker, label, plastic film, etc.

Effective working area

800mm X 600mm

Max. cutting speed

1200mm/s

Cutting Accuracy

±0.2mm

Repeat accuracy

±0.1mm

Rated Voltage

220V

Vacuum pump power

1.5kW

Working surface

Felt mat

Tools and blades

Blades for through cut and Kiss-cut

Tool S/N Blade Model Picture Blade Angle Cutting Capacity Subject
  J383  Features3 26° ≤400gsm Cardboard
  J384  Features4 45° ≤400gsm
  J301  Features5   ≥ 128gsm StickerLabel

Creasing wheel tool

Tool S/N

Blade

Model


Kerf

Note



J380

Features6

0.63 mm

Crease on folding cardboard



J382

 Features7

1 mm





J381

 Features8



3mm interval

Creasing pen tool

Tool S/N BladeModel Picture Kerf Note
03.22.0033 J209  Features9 1 mm A compliment to creasing wheel for laminated sheet or for non-over-creasing

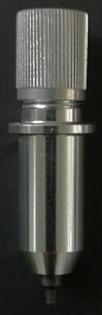

 Features10

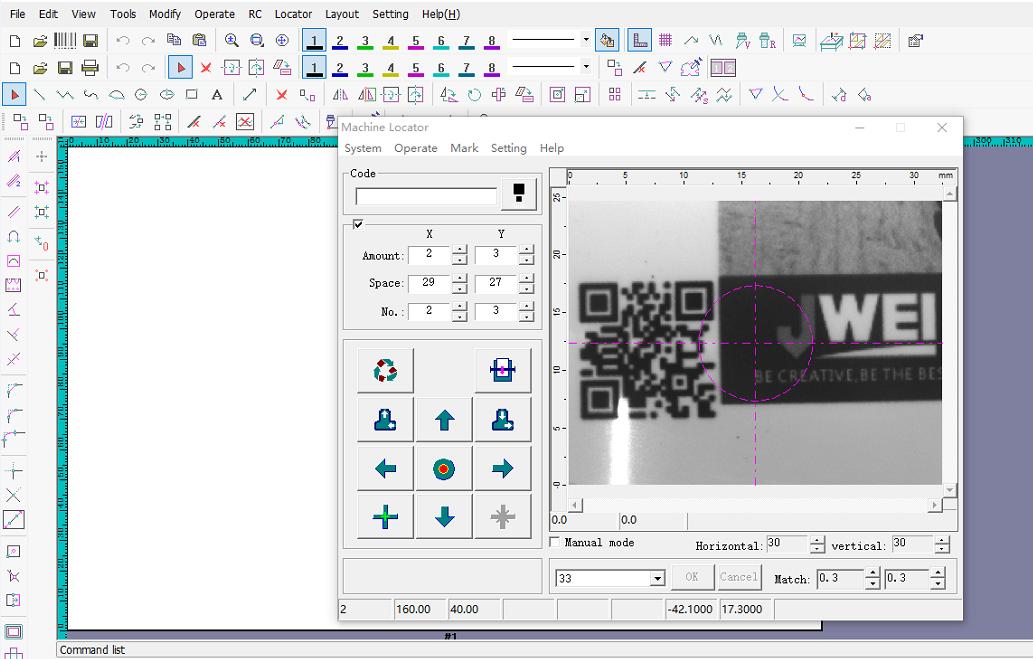

JWCS the control software

JWCS1
JWCS2
