Metal printing machine

Short Description:



Metal printing machines work in line with the drying ovens. Metal printing machine is modular design extending from one color press to six colors enabling multiple colors printing to be realized at high efficiency by CNC full automatic metal print machine. But also fine printing at limit batches at customized demand is our signature model. We offered customers specific solutions with turnkey service.




Product Detail

1. Brief Introduction

In the 3-steps metal decoration metal printing machine steps next to lacquering, finishing sheet printing before varnishing. As the most popular solutions for three-piece can decorating, it is widely applied in food, beverage, chemical, personal care, electronics and other segments.

Metal printing machines work in line with the drying ovens. Metal printing machine is modular design extending from one color press to six colors enabling multiple colors printing to be realized at high efficiency by CNC full automatic metal print machine. But also fine printing at limit batches at customized demand is our signature model. We offered customers specific solutions with turnkey service.

Apart from brand new machines, the enterprising used and refurbishment equipment sector has been the invaluable in our category. Especially when conditions made buying machinery a tough task, we provide our customers versatile choices. Meanwhile our customers are always away from worries of engineering service and spare parts supply no matter from our machine but also we supply parts of all other brands as well as the decorating related consumptions. >Refurbishment Machines

16

To define your favorite models whatever brandnew or refurbishment, please click SOLUTION to find your target applications. Dont hesitate to pop your inquires by mail: vente@eureka-machinery.com

2. Work flow

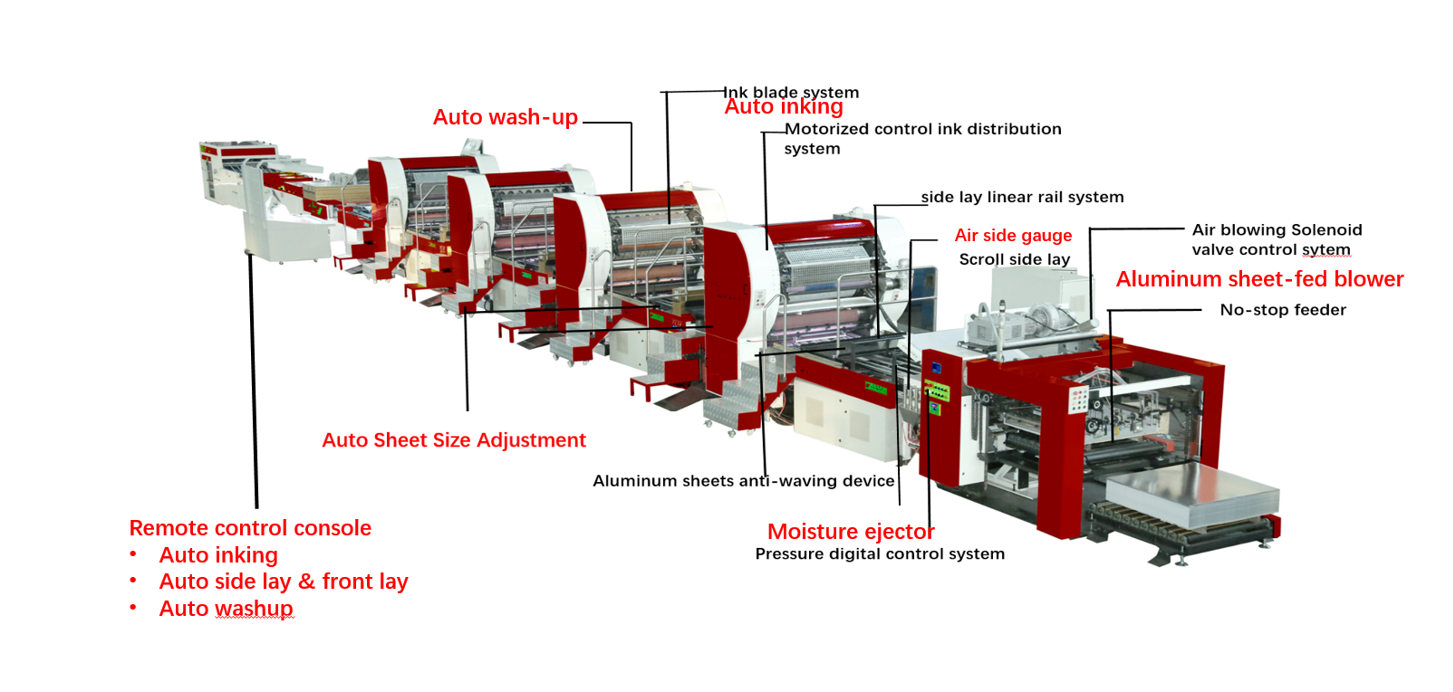

Streamline of a CNC Four-color UV Printing Line

15

3. Video

17

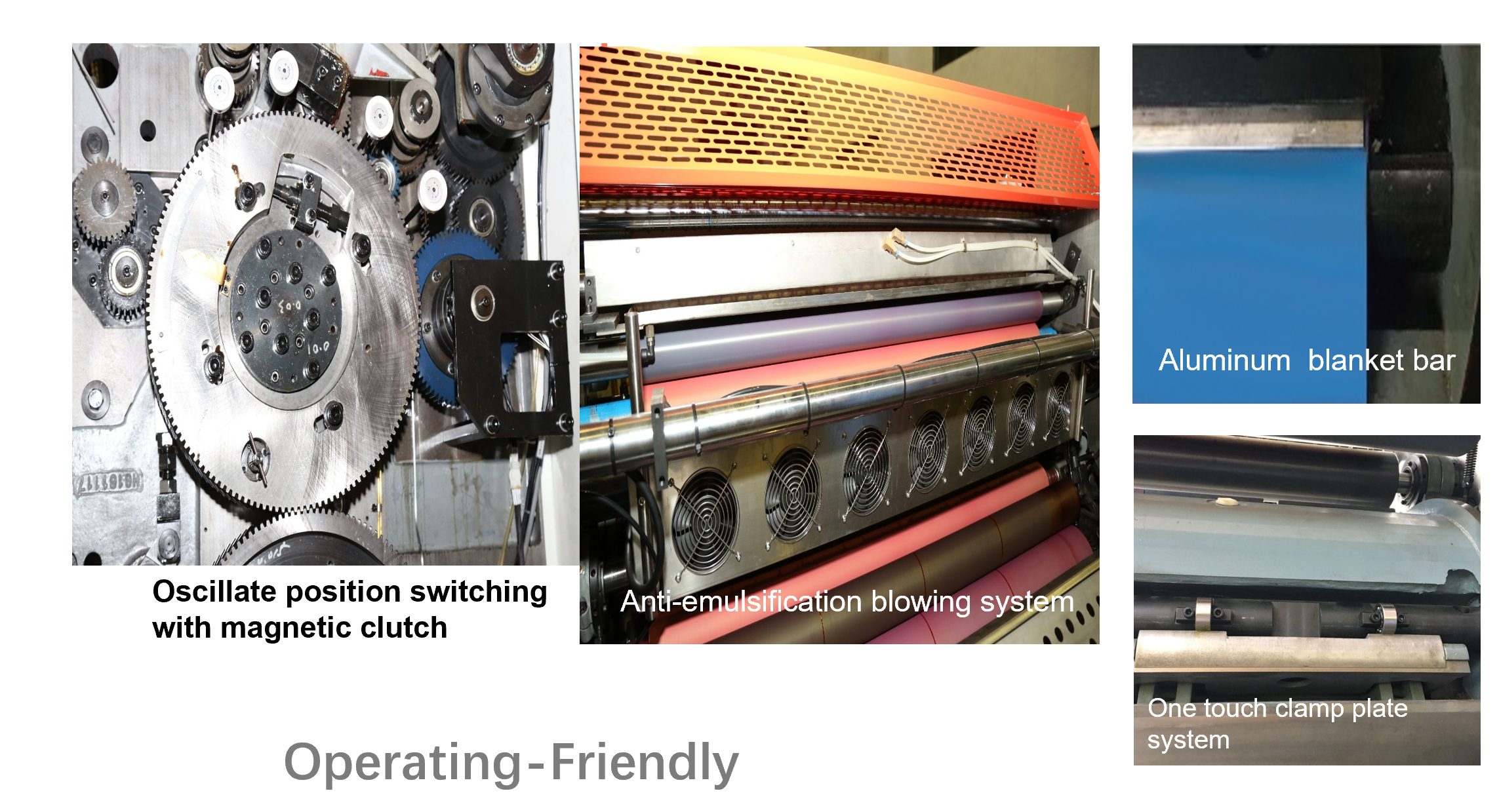

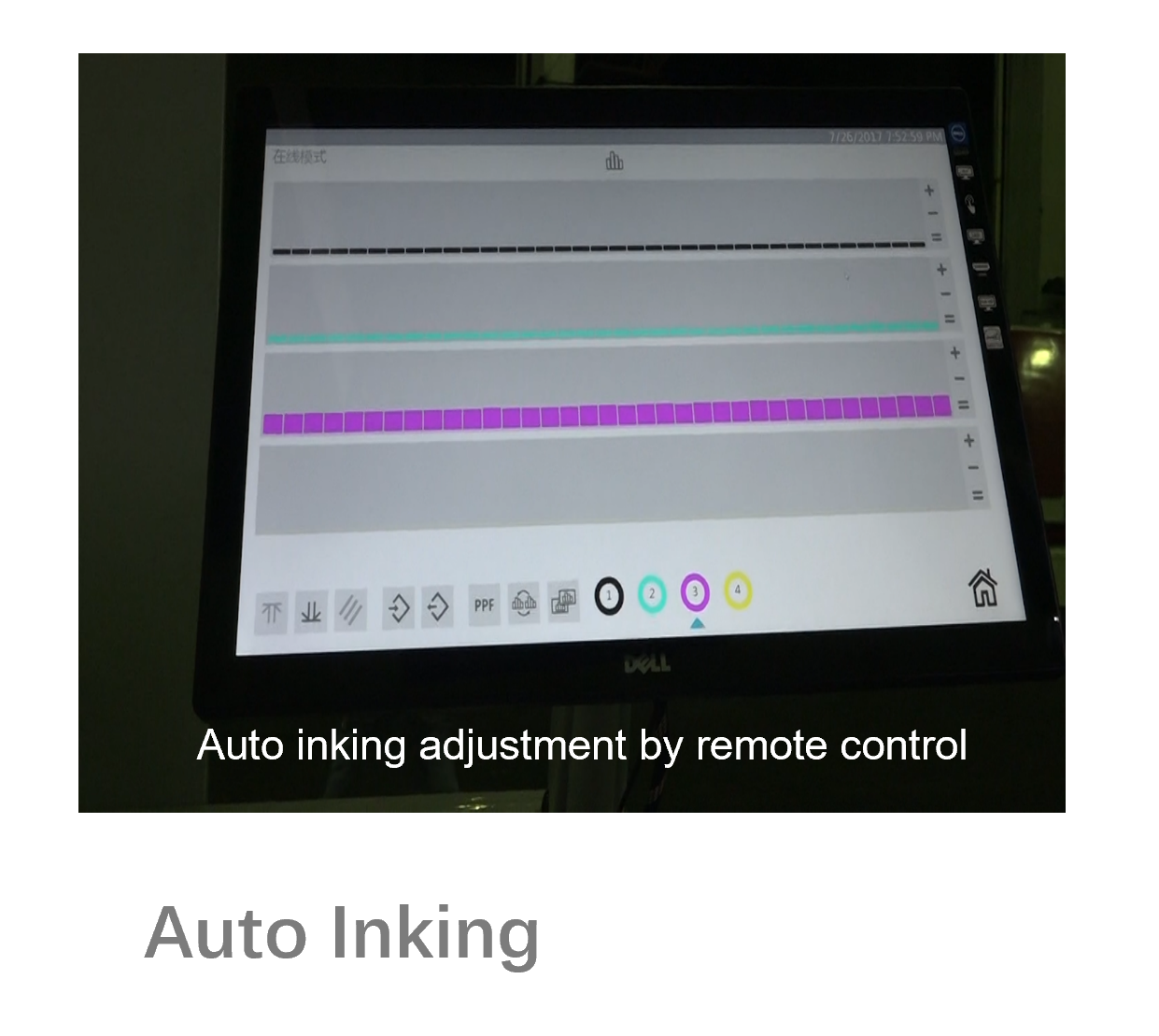

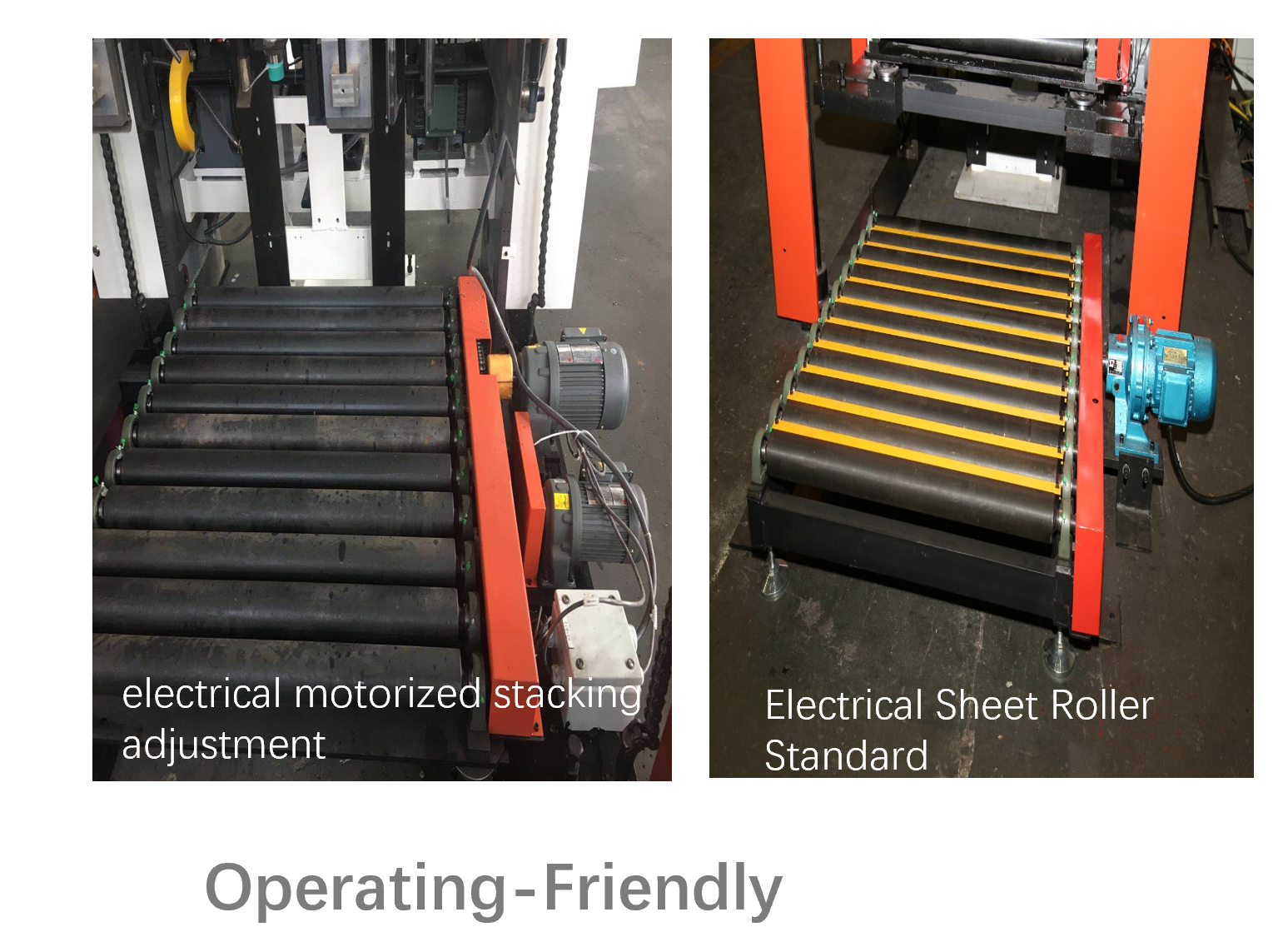

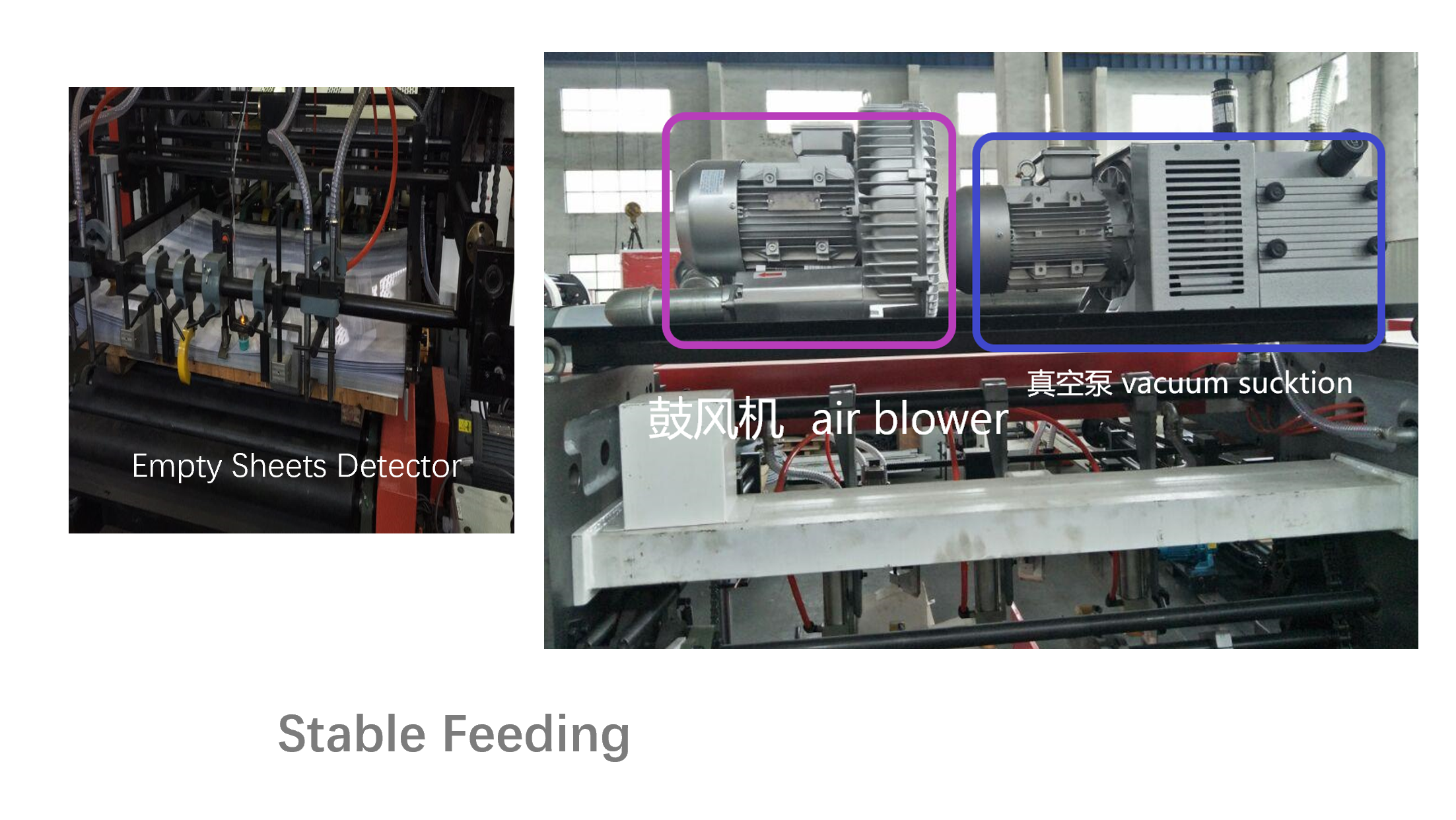

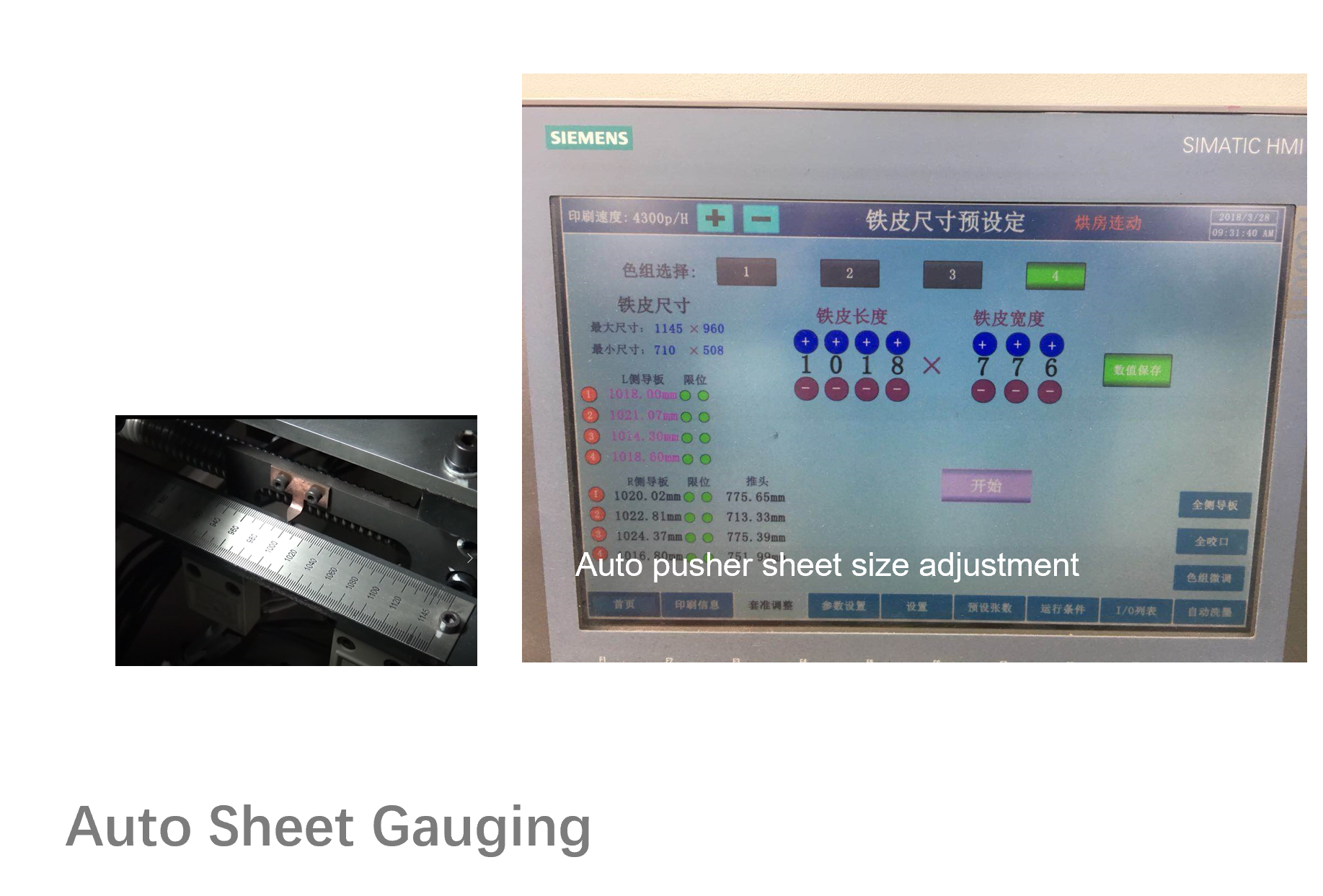

4. Advantages of CNC printing machine

18
19
20
21
22

5. TECHNICAL SPECIFICATIONS OF CNC METAL PRINTING MACHINE

Technical Specification (2-color, 3-color, 4-color, 6-color)

Max. size of metal plate 1145×950mm
Min. size of metal plate 712×510mm
Thickness of metal plate 0.15-0.4mm
Max. space of printing 1135×945mm
Size of printing plate 1160×1040×0.3mm
Size of rubber plate 1175×1120×1.9mm
Blank side width 6mm
Max. speed 5000 (sheets/hr)
Height of feeding line 916mm
Max. Material feeding 2.0(ton)
Capacity of air pump 80+100 (m3/hr)

* Above Specifications of CNC Metal Printng Machine is referable ONLY. Exact data is subjuct to the related case in detail.
