ML400Y Hydraulic Paper Plate Making Machine
| Model | ML400Y |

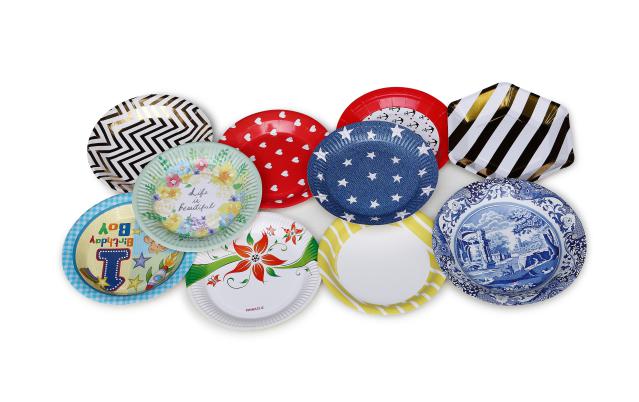

| Paper Plate Size | 4-11inches |
| Paper Bowl Size | depth≤55mm；diameter≤300mm（raw material size unfold） |
| Capacity | 50-75Pcs/min |
| Power Requirements | 380V 50HZ |
| Total Power | 5KW |
| Weight | 800Kg |
| Specifications | 1800×1200×1700mm |
| Raw Material | 160-1000g/m2(original paper, white paperboard, whitecardboard, aluminum foil paper or others) |
| Air Source | Working pressure0.5Mpa Working air volume 0.5m3/min |
Main technical parameters of cylinder:
MPT-63-150-3T
Oil cylinder stroke: 150mm

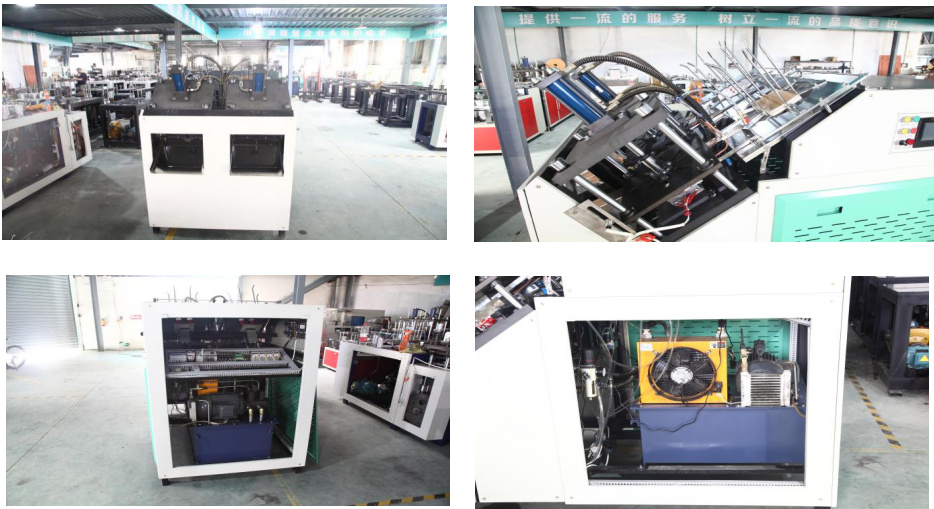

ML400Y is automatic & hydraulic machine,by using our machine can save half of the
manual labor, very stable and easy to operate. Normally this machine do no have collector because its machine structure, but we can design that for our client. This machine can also make paper bow, and the maximum depth is 50mm. Machine uses hydraulic oil recycling, reduce emission pollution, low noise.
| No. | PART NAME | SUPPLIER |
| 1 | Relay | Omron |
| 2 | Hydraulic Motor | Zhejiang Zhonglong |
| 3 | Temperature Controller | Shanghai Qide |
| 4 | Time Relay | Omron |
| 5 | PLC | Taida |
| 6 | Stainless Steel Heating Pipe | Jiangsu Rong Dali |
| 7 | Oil Pump | Taiwan |
| 8 | Counter Switch | Yueqing Tiangao |
| 9 | Normally Open Photoelectric | Shanghai Qide |
| 10 | Solenoid Valve | Taiwan Airtac |
| 11 | Bearing | Harbin |
| 12 | Temperature Sensor | Shanghai Xingyu |
| 13 | Normally Closed Photoelectric | Shanghai Qide |
| 14 | AC Contactor | Yueqing Tiangao |
| 15 | Thermal Relay | Chint |
