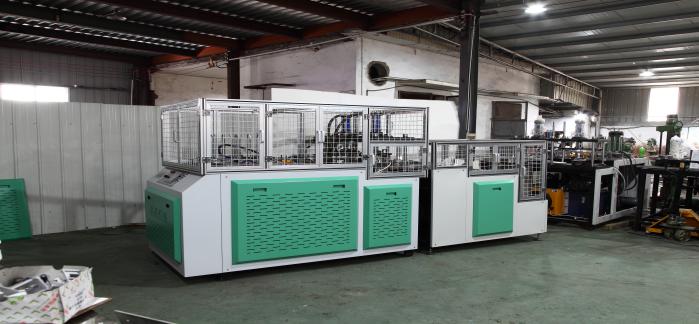

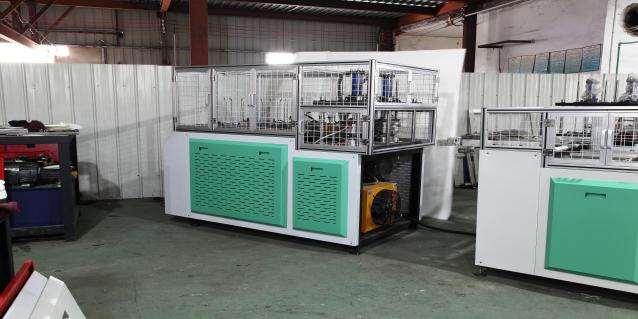

ML600Y-GP Hydraulic Paper Plate Making Machine

Short Description:

Paper Plate Size 4-15”

Paper Grams 100-800g/m2

Paper Materials Base paper, whiteboard paper, white cardboard, aluminum foil paper or others

Capacity Double Stations 80-140pcs/min

Power Requirements 380V 50HZ

Total Power 8KW

Weight 1400kg

Specifications 3700×1200×2000mm

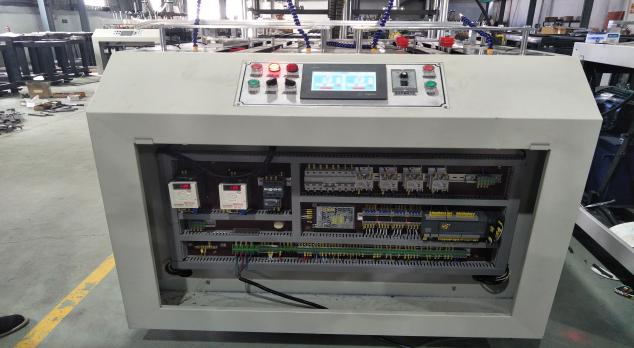

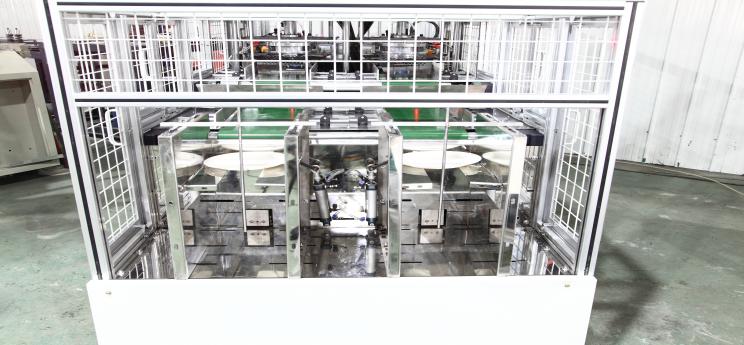

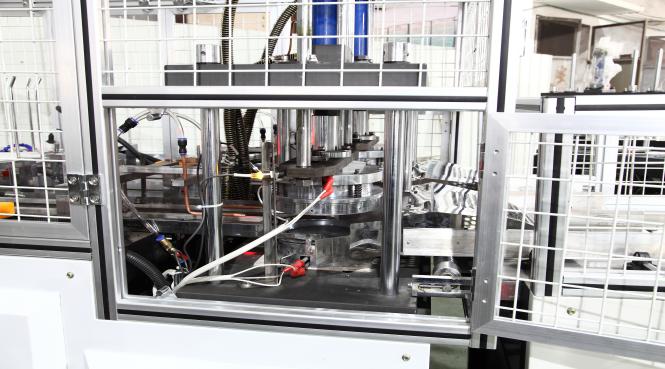

ML600Y-GP type high-speed & intelligent paper plate machine uses desktop layout, which isolates the transmission parts and molds. The transmission parts are under the desk, molds are on the desk, this layout is convenient for cleaning and maintenance. The machine adopts automatic lubrication, mechanical transmission, hydraulic forming and pneumatic blowing paper, which has the advantages of stable performance and easy operation & maintenance. For electrical parts,PLC, photoelectric tracking, all electric are Schneider brand, machine with cover for protection, auto intelligent & safe fabrication, can directly support production line.

Send email to us

Product Detail

Technical Parameter

Main Technical Parameters
Paper Plate Size	4-15”
Paper Grams	100-800g/m²
Paper Materials	Base paper, whiteboard paper, white cardboard, aluminum foil paper or others
Capacity	Double Stations 80-140pcs/min
Power Requirements	380V 50HZ
Total Power	8KW
Weight	1400kg
Specifications	3700×1200×2000mm
Air Supply Requirement	0.4Mpa, 0.3cube/min
Other Notes	Customize
Oil Cylinder	ML-63-150-5T-X
Cylinder Stroke	150mm

ML600Y-GP’S Advantage & Improvement

1. independent research and development, the latest products, using the fast oil pressure system, each station is 15 - 20 minutes faster than ordinary machine

2.send paper using mechanical work, stable performance. Compared to the ordinary type of paper drop technology, the waste rate is greatly reduced to 1/1000

3.can be directly with the packaging machine (paper disc packaging labeling machine (film), good packaging and labeling). Suitable for production. Machine with PLC.

4.can automatically produce all kinds of non-standard products, finished product rate of one hundred percent, solved the problem of ordinary machines can not complete

ML600Y-GP Hydraulic Paper Plate Making Machine2

ML600Y-GP Hydraulic Paper Plate Making Machine3

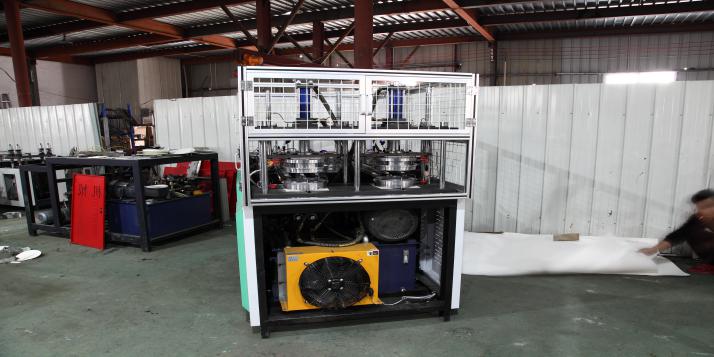

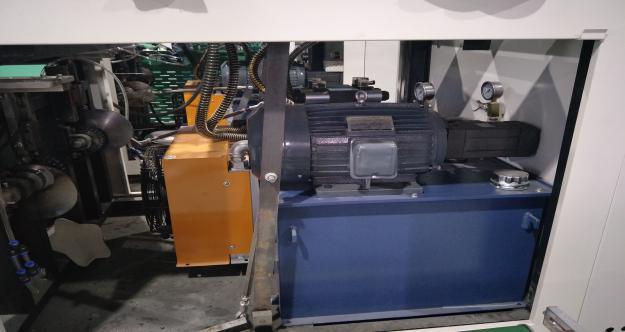

5.hydraulic oil recycling, reduce emission pollution, low noise. All electrical appliances are Schneider or Omron

NO	SPARE PARTS	SUPPLIER
1	Relay	Omron
2	Hydraulic Motor	Zhejiang Zhonglong
3	PLC	Delta
4	Normally Closed Photoelectric	Japan Ormon
5	Stainless Steel Heating Pipe	Jiangsu Rong Dali
6	Oil Pump	Taiwan
7	Counter Switch	Yueqing Tiangao
8	Normally Open Photoelectric	Japan Omron
9	Solenoid Valve	Taiwan Airtac
10	Bearing	Harbin
11	Temperature Sensor	Shanghai Xingyu
12	AC Contactor	Schneider
13	Frequency Transformer	Delta
14	Aluminum Alloy Bodycover
15	Self-lubricating
16	Temperature Part	Delta
