MTW-ZT15 Auto tray former with glue machine
| Description | Auto tray former with glue machine | Remark |
|
Speed： |
10-15tray/min |
|
|
Packing size： |
Customer box：L315W229H60mm |
|
|
Table height： |
730mm |
|
|
Air supply： |
0.6-0.8Mpa |
|
|
Power supply： |
2KW；380V 60Hz |
|
|
Machine dimension： |
L1900*W1500*H1900mm |
|
|
Weight： |
980kg |
1.Lid and base tray formerMTW-ZT15：
● The machine is easy to operate. It is durable,and safe with the low failure rate.
● The machine will work continually for the same tray size.When you change the packing size,it will take 10-15 minutes to do the setting manually.
● With the reasonable design,the machine can take the cardboard,Forming the box,folding the box panels automatically.
● The machine can stand-alone use,also can operate with the other packaging line.
● It is widely applied in the electronics,toy,cosmetic packaging industry and so on.

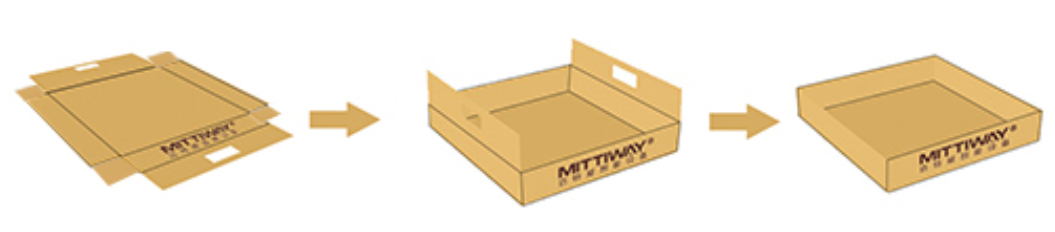

2.Tray former Machine MTW-ZT15 working flow chat
Loading cardboard
Stamping forming the tray
Locking the tray

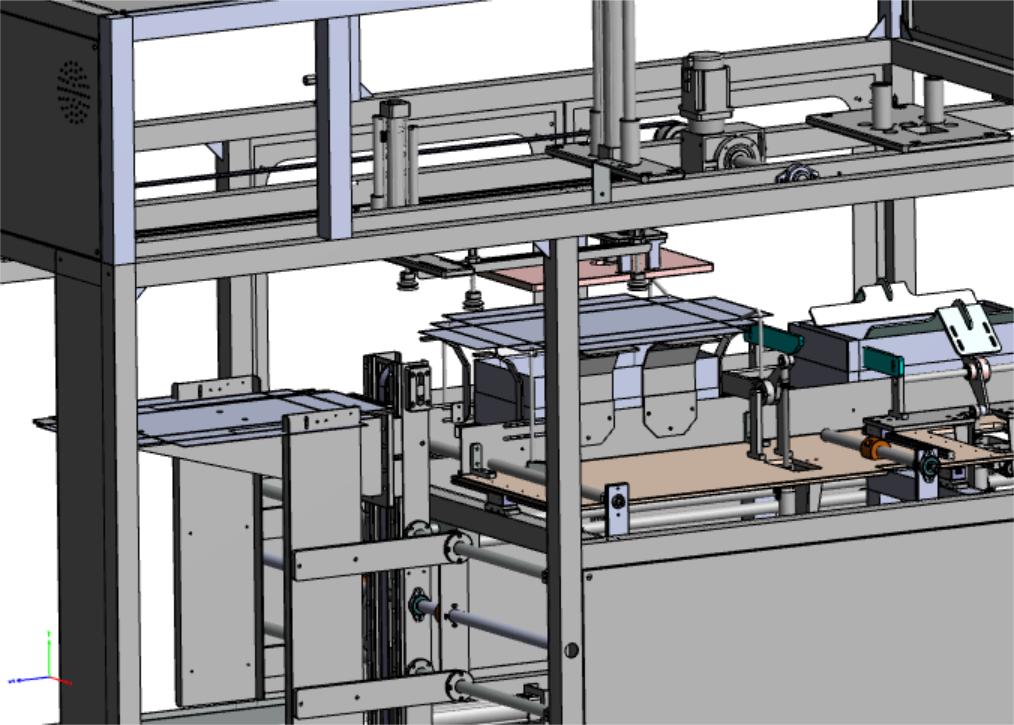

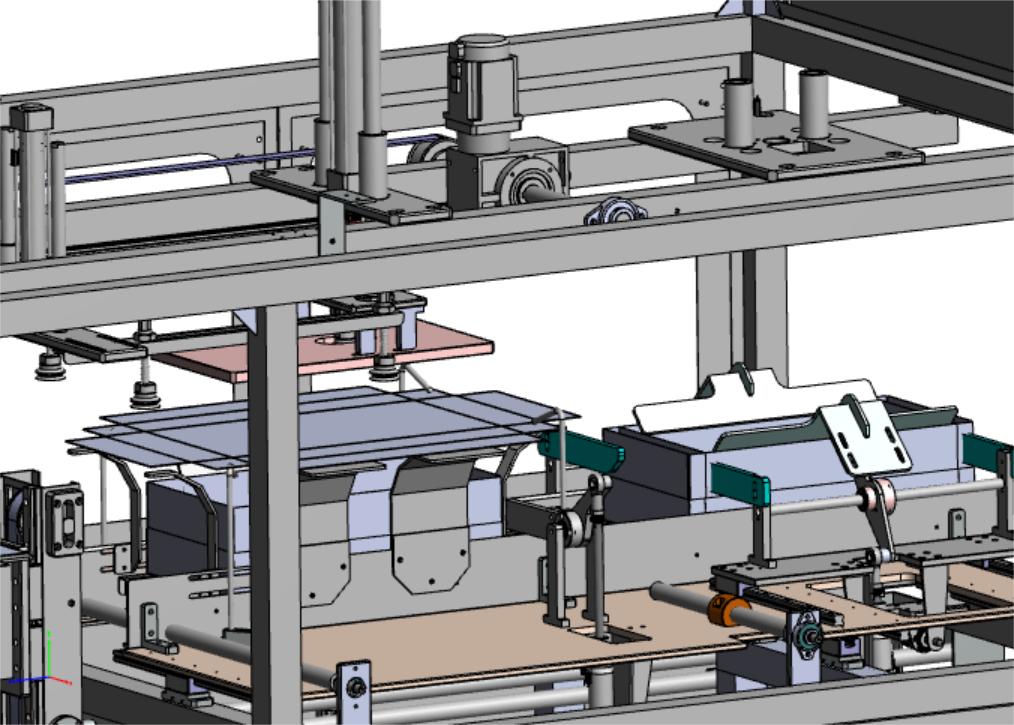

3.Tray foemer machine MTW-ZT15 ,3Ddrawing：
Take/send/discharge device:
It is to transfer the cardboard to the stamping molding to form the tray.
Cardboard magazine:
It is automatic lifting magazine, the storage of cardboard is around 180-200Pcs.
Stamping molding device:
To form and shape the tray, with its 4sides of panels all up.
Tray fold and lock device:
To fold and lock the tray panels automatically.
|
NO |
Name |
Brand |
Function |
|
1 |
HMI |
MCGS |
Control panel |
|
2 |
PLC |
DELTA |
Program control |
|
3 |
Servo motors |
DELTA |
Take/send/transfer cardboard |
|
4 |
Transformer |
DELTA |
Driving |
|
5 |
Braking motor |
CHEEMING |
Drive the cardboard magazine |
|
6 |
Reducer |
CHEEMING |
|
|
7 |
Proximity switch and sensor |
Senview |
Signal transferring |
|
8 |
Fibre Optical Sensors |
Senview |
Signal transferring |
|
10 |
Magnetic valve |
Airtac |
Protection |
|
11 |
Sucking cup |
Airbest |
|
|
12 |
Vacuum generator |
Airbest |
|
|
13 |
Low-voltage apparatus |
Schneider |
Protection |
|
14 |
Switches |
Schneider |
Control |
|
15 |
Timing belt and rollers |
YHD |
transferring |
|
16 |
Gasholder |
Tianzhen |
To keep constant air supply |
|
17 |
Window glass |
Tea color |
Visible window |
4，Tray former MTW-ZT15 Specification(It is according to the customer requirements)：
① Sheet metal material: appearance carbon steel baking varnish, cold rolled plate, 45# steel,Fangtong will use national standard materials.
② Parts material: part is made of carbon steel, 45# steel, aluminum.
③ Surface treatment of machined parts: carbon steel.
