PriceList for Paper Shopping Bag Making Machine - ZB1200CT-430 Handbag bottom gluing machine – Eureka Detail:

ZB1200CT-430 possess a large number of independent patents, create the high-speed automatic paper bag production. This machine adopts servo system for top reinforced card taking, realize the top reinforced card paste position adjustable. New “half-blade” device ensure bag body trackless. Adopts with PLC and Servo control system, reserve of extensible intelligent port for future system upgrades and remote services.

The basic working flow is sheet feeding, creasing, servo top reinforced card taking and pasting, top folding (insert pasting), tube forming, gusset forming, bottom open and gluing, bottom folding and closing, compaction and output.

All these steps increase the bag making efficiency and reduce the setup time, save a lot of labor cost for top reinforced card pasting. Realize automation, intelligent and high efficiency production requirement.

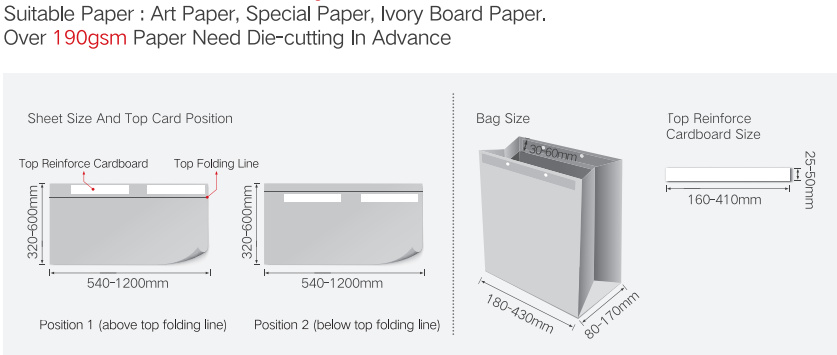

ZB1200CT-430 Handbag bottom gluing machine 2



ZB 1200CT-430

Max.sheet (LX W):   mm 1200 x600mm
Min.sheet (LX W): mm 540 x 320mm
Sheet weight: gsm 120-250gsm
Top folding width mm 30 – 60mm
Bag Width: mm 180- 430mm
Bottom Width(Gusset):   mm 80- 170mm
Paper Tube Length mm 280-570mm
Top Reinforced paper width::   mm 25-50 mm
Top Reinforced paper length: mm 160-410mm
Bottom type   Square bottom
Machine speed  Pcs/min 40 – 70
Total power/Production Power kw 40/20 KW
Total weight tone 16T
Glue type   Water base glue and hot melt glue
Machine size (L x W x H) mm 22000 x 3400x 1800 mm

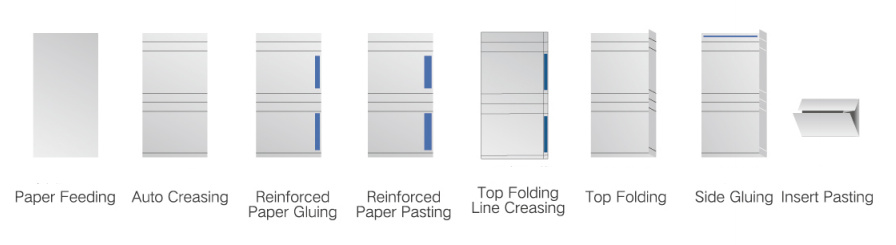

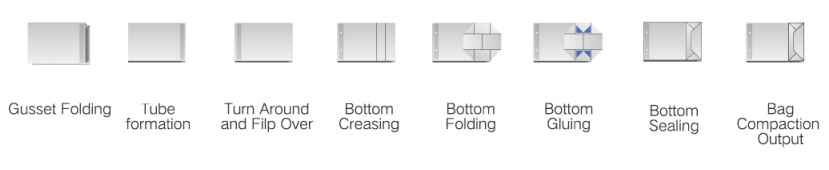

ZB1200CT-430 Handbag bottom gluing machine4 ZB1200CT-430 Handbag bottom gluing machine 5

Top reinforce cardboard Position 1 Top reinforce cardboard Position 2

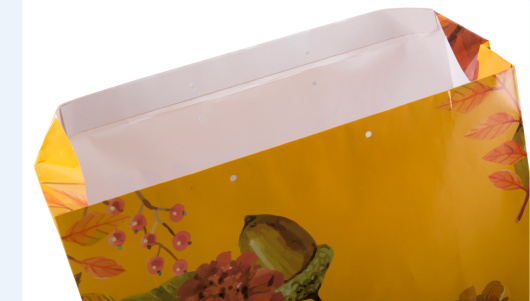

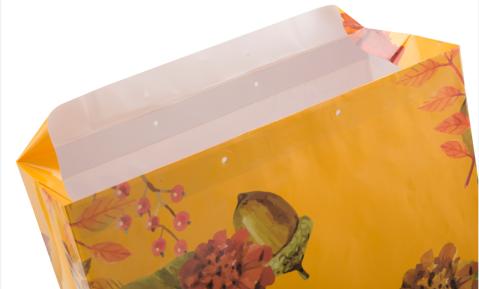

 ZB1200CT-430 Handbag bottom gluing machine 6  asdadad1

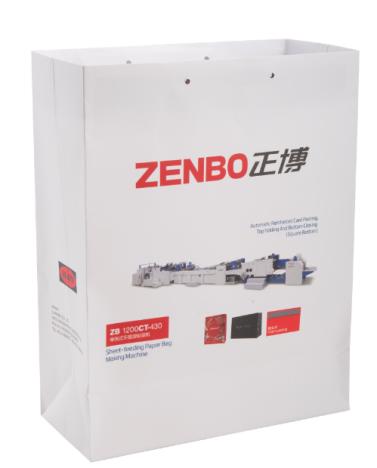

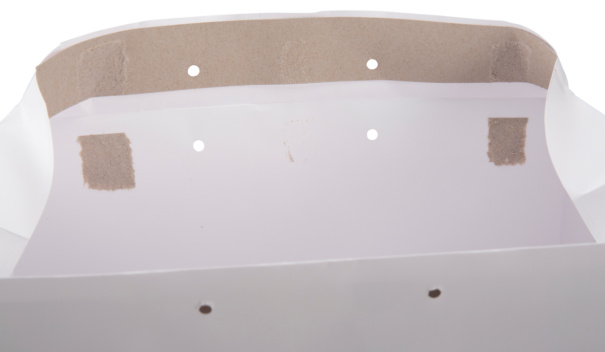

 ZB1200CT-430 Handbag bottom gluing machine 3Hole Punching  asdadad2Top Folding



Main part and origin place

No.

Name

Origin

Brand

No.

Name

Origin

Brand

No.

Name

Origin

Brand

No.

Name

Origin

Brand

1

Feeder China

RUN

12

Bearing

Germany

BEM

2

Main motor China

Fangda

13

Belt

Japan

NITTA

3

PLC Japan

Mitsubishi

14

Synchronize belt

Germany

Continental

4

Frequency converter

France

Schneider

15

Air pump

Germany

Becker

5

Button

Germany

EATON Moeller

16

Pneumatic component

Taiwan/Japan

Airtac/SMC

6

Electric relay

Germany

 Weidmuller

17

Pilot valve

Taiwan/Japan

Airtac/SMC

7

Air switch

Germany

EATON Moeller

18

Photoelectric switch Korea/Germany Autonics/Sick

8

AC contactor

Germany

EATON Moeller

19

Hot melt glue system

America

Nordson

9

Wiring terminal

Germany

Weidmuller

20

Servo motor

Taiwan

Delta

10

Touch screen

Taiwan

Weinview

21

Servo gear box

Japan

Desboer

 11 Switching Power Supply Taiwan

MW



Remarks:The above configuration is ZENBO standard,  the brand is subject to change according to the actual production without prior notice.
Function:   1. Automatic feeder2. Automatic reinforce cardboard gluing

3.Automatic Reinforced cardboard pasting

4.Automatic top folding

5.Automatic side gluing(hot melt+water base glue)

6. Automatic tube forming

7.Automatic square bottom open

8.Automatic bottom Cardboard inserting

9.Automatic square bottom pasting

41
