RB420B Automatic Rigid Box Maker

Short Description:

Automatic Rigid Box maker is widely applicable to make high-grade boxes for phones, shoes, cosmetics, shirts, moon cakes, liquors, cigarettes, tea, etc.
Paper Size: Min. 100*200mm; Max. 580*800mm.
Box Size: Min. 50*100mm; Max. 320*420mm.


Product Detail

Product Video

Technical Parameters



RB420B Automatic rigid box maker

1 Paper size(A×B) Amin 100mm
Amax 580mm
Bmin 200mm
Bmax 800mm
2 Paper thickness 100-200g/m2
3 Cardboard thickness(T) 0.8~3mm
4 Finished product(box) size(L×W×H) L×W Min 100×50mm
L×W Max 420×320mm
H Min. 12
H Max. 120mm
5 Folded paper size (R) Rmin 10mm
Rmax 35mm
6 Precision ±0.50mm
7 Production speed ≦28sheets/min
8 Motor power 8kw/380v 3phase
9 Heater power 6kw
10 Air Supply 10L/min  0.6Mpa
11 Machine weight 2900kg
12 Machine dimension L7000×W4100×H2500mm

Remark

1. The max and mini sizes of the boxes are subjected to those of the paper and the quality of the paper.

2. The production capacity is 28 boxes per minute. But the speed of the machine depends on the sizes of the boxes.

3. We don’t provide air compressor.

The corresponding relationship between the parameters:

W+2H-4T≤C(Max)               L+2H-4T≤D(Max)

A(Min)≤W+2H+2T+2R≤A(Max)   B(Min)≤L+2H+2T+2R≤B(Max)

 RB420B Automatic Rigid Box Maker1353

Parts Details

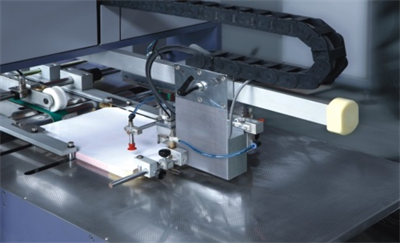

zfdhdf1

1. The feeder in this machine adopts back-push feeding system, which is controlled pneumatically, and its structure is simple and reasonable.

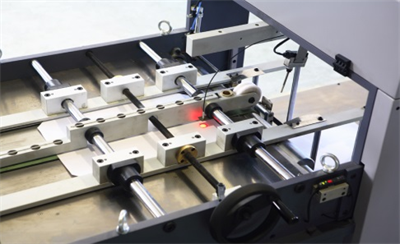

zfdhdf2

2. The width between stacker and feeding table is adjusted concentrically in the center. The operation is very easy without tolerance.

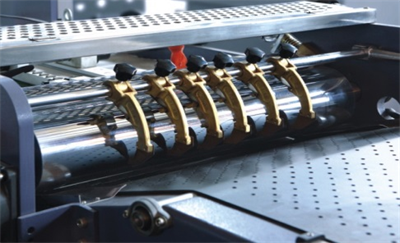

zfdhdf3

3. New designed copper scraper cooperates with the roller more compactly, effectively avoiding paper winding. And the copper scraper is more durable.

zfdhdf4

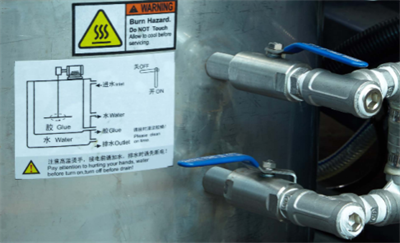

4. Adopt imported ultrasonic double paper tester, featuring in simple operation, which can keep two pieces paper from entering into the machine at the same time.

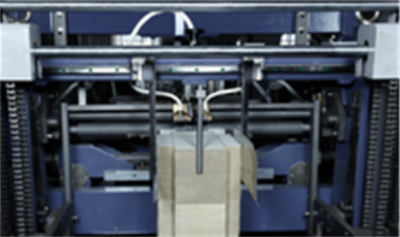

zfdhdf5

5. Automatic circulation, mixing and gluing system for hot-melting glue. (Optional device: glue viscosity meter)

zfdhdf6

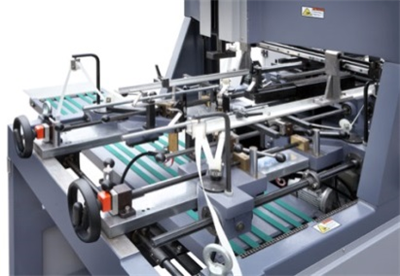

6. Hot-melting paper tape automatic conveying, cutting, and finish pasting the inner box quad stayer (four angles) of cardboard in one process.

zfdhdf7

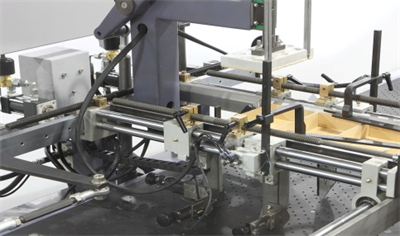

7. The vacuum suction fan under the conveyer belt can keep the paper from deviating.

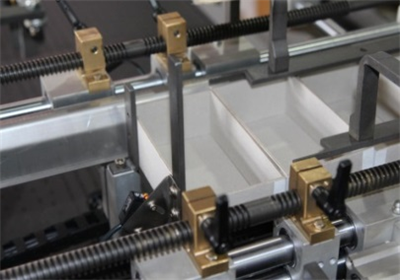

zfdhdf8

8. The paper and cardboard inner box employs hydraulic rectifying device to spot correctly.

zfdhdf9

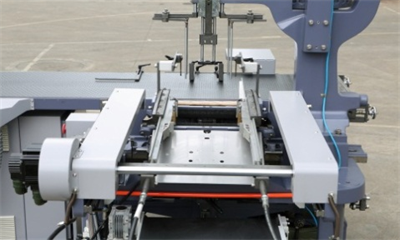

9. The wrapper can continually wrap, fold ears and paper sides and form in one process.

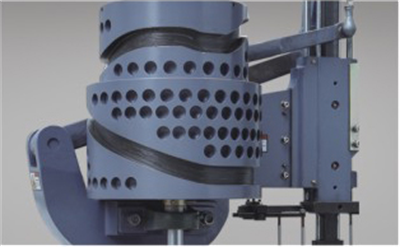

zfdhdf10

10. The whole machine employs PLC, photoelectric tracking system and HMI to automatically forming boxes in one process.

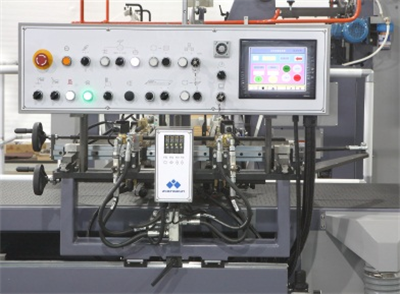

zfdhdf11

11. It can automatically diagnose the troubles and alarm accordingly.

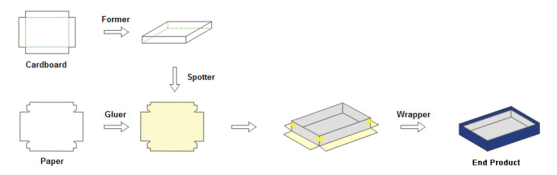

Production Flow

RB420B Automatic Rigid Box Maker1719

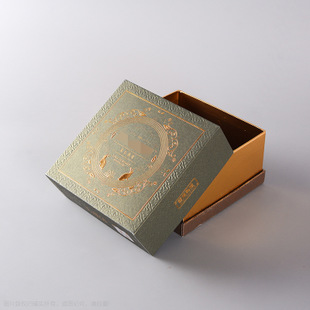

Samples

fgd
RB420B (5)
