RB6040 Automatic Rigid Box Maker
(1) Automatic delivery unit for paper feeder.
(2) Automatic circulation, mixing and gluing system for hot-melting gel. (Optional device: glue viscosity meter)
(3) Hot-melting adhesives paper-gluing automatic conveying, slitter, and finish pasting the inner cardboard box’s four angles in one process.
(4) The vacuum suction fan under the conveyer belt can keep the glued paper from deviating.
(5) The glued paper and cardboard inner box employ hydraulic pneumatic rectifying device to spot correctly. The spotting error is ±0. 5mm.
(6) The box-forming unit can automatically collect boxes and deliver them to the forming unit according to the boxes conveyed on the conveyer belt.
(7) The box-forming unit can continually delivery boxes, wrap sides, fold ears and paper sides and form in one process.
(8) The whole machine employs PLC, photoelectric detector system and touch screen man-machine interface to automatically form boxes in one process.
(9) It can automatically diagnose the troubles and alarm accordingly.

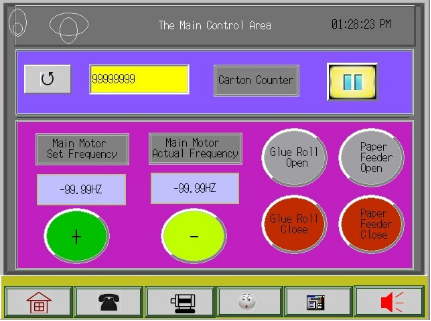

Friendly Operation Interface
|
Automatic rigid box maker |
|||
| 1 | Paper size(A×B) | Amin | 120mm |
| Amax | 610mm | ||
| Bmin | 250mm | ||
| Bmax | 850mm | ||
| 2 | Paper thickness | 100-200g/m2 | |
| 3 | Cardboard thickness(T) | 1~3mm | |
| 4 | Finished product(box) size(W×L×H) | Wmin | 50mm |
| Wmax | 400mm | ||
| Lmin | 100mm | ||
| Lmax | 600mm | ||
| Hmin | 15mm | ||
| Hmax | 150mm | ||
| 5 | Folded paper size (R) | Rmin | 7mm |
| Rmax | 35mm | ||
| 6 | Precision | ±0.50mm | |
| 7 | Production speed | ≦35sheets/min | |
| 8 | Motor power | 10.35kw/380v 3phase | |
| 9 | Heater power | 6kw | |
| 10 | Machine weight | 6800kg | |

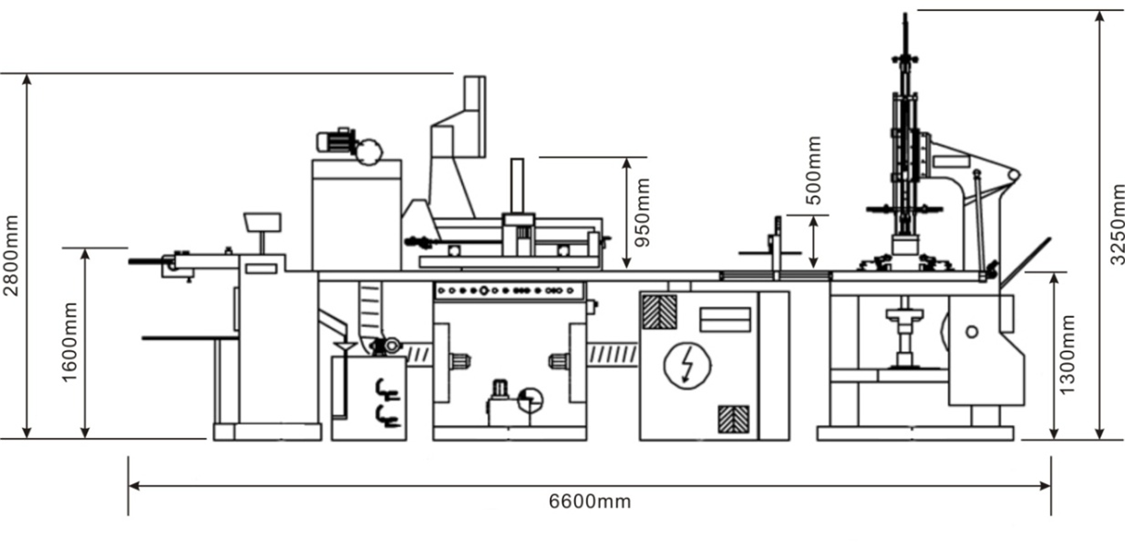

| 11 | Machine dimension | L6600×W4100×H 3250mm | |
● The max and mini sizes of the boxes are subjected to those of the paper and the quality of the paper
● The production capacity is 35 boxes per minute. But the speed of the machine depends on the sizes of the boxes
● Positioning Precision: ±0. 5mm
● Stacking Height for the cardboard: 1000mm (Max)
● Hot melting glue paper tape max. diameter: 350mm, inside diameter: 50mm
● Paper stacking height: 300mm (Max)
● Gel tank volume: 60L
● Work shift time for a skillful operator from one product to another: 45min
● Net weight: 6800kg
● Total Power: 16.35k

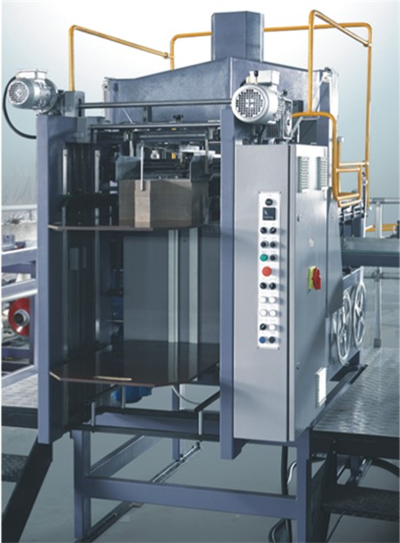

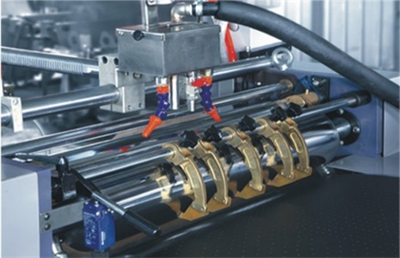

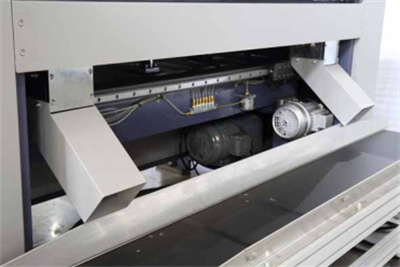

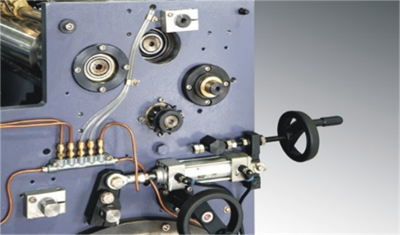

(1) Gluer (the paper gluing unit)
● The feeder and the conveyer belt employ a synchronous feeder with the gluing cylinder. Its speed is adjustable.
● Convenient glue thickness adjustment, evenly gluing the cardboard or paper left and right.
● The gel tank is of consistent temperature, and can automatically mix, filter and glue in a circulation manner.
● The gel tank has a fast shift valve, through which the user can have the gluing cylinder cleaned quickly in 3 to 5 minutes.
● Chromatic-plated stainless steel cylinder, the latest technology, is applicable to different gels, featuring in durability.
(2) Former (the four-angle sticking unit)
● The feeder automatically feeds the cardboards. The cardboards can be stacked in 1000mm high.
● The hot-melting glued tape auto conveyer, cutter and four-angle sticking
● The auto alarm for hot-melting glue tape absence
● Auto conveyer belt connected to quad stayer and the positioning-sticking unit.
● The cardboard feeder can automatically monitor the running according to the machines in linking mode.

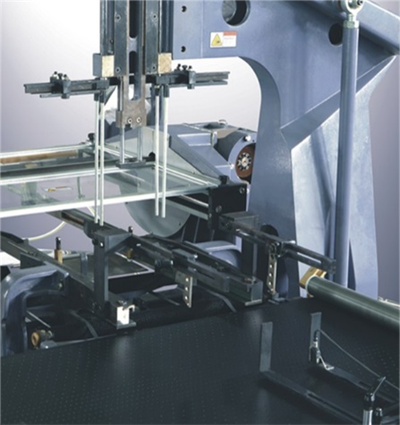

(3) Spotter (the positioning-sticking unit)
● The vacuum suction fan under the conveyer belt can keep the glued paper from deviating.

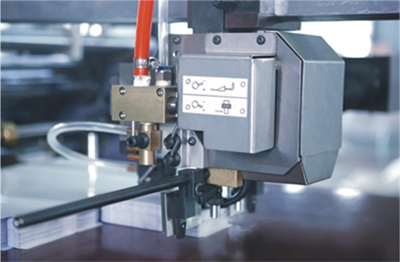

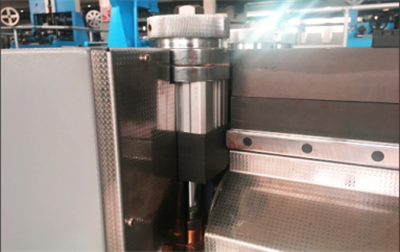

● Imported higher precision photoelectric monitor
● The hydraulic pneumatic rectifier is of faster and more accurate response.

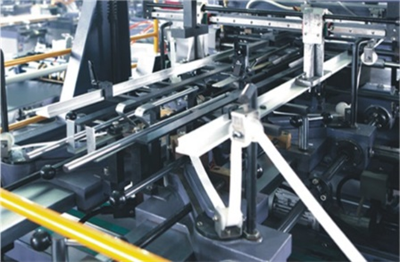

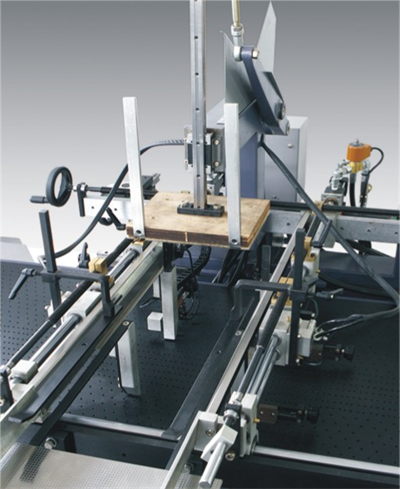

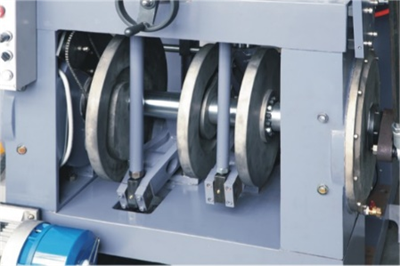

(4) Wrapper (the box forming unit)
● The conveyer belt and the box-forming unit for automatic box drawing device is controlled by a computer.
● Continual feed boxes, wrap sides, fold ears and fold paper side and form boxes in one process.

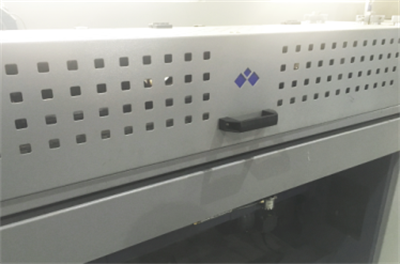

● Safety operation and protector

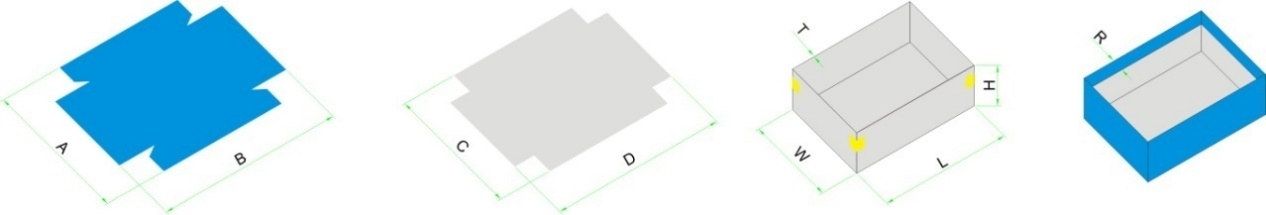

The corresponding relation between the specifications:
W+2H-4T≤C(Max)
L+2H-4T≤D(Max)
A(Min)≤W+2H+2T+2R≤A(Max)
B(Min)≤L+2H+2T+2R≤B(Max)

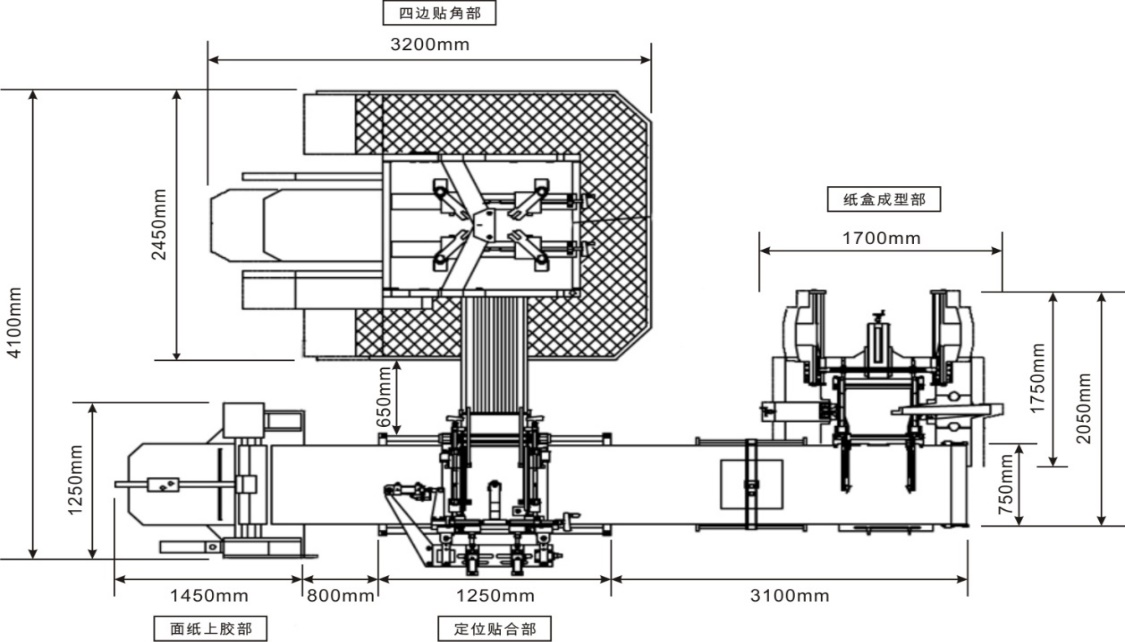

1. Requirements for Ground
The machine should be mounted on the flat and firm ground which can ensure it has enough capacity of load (about 500kg/m2). Around the machine should keep enough space for operation and maintenance.
2.Size
3. Ambient Conditions
● Temperature: the ambient temperature should be kept around 18-24°C (The air-conditioner should be equipped in summer.)
● Humidity: The humidity should be controlled around 50%-60%.
● Lighting: above 300LUX that can ensure the photoelectric components can work regularly.
● To be away from oil gas, chemicals, acidic, alkali, explosive and inflammable substances.
● To keep the machine from vibrating and shaking and being next to the electric apparatus with high-frequency electromagnetic field.
● To keep it from being directly exposed to the sun.
● To keep it from being blown directly by the fan.
4. Requirements for Materials
● Paper and cardboards should be kept flat all the time.
● The paper laminating should be electro-statically processed in double-side.
5. The color of the glued paper is similar to or same to that of the conveyor belt (black), and another color of glued tape should be stuck on the conveyer belt.
6. The power supply: 3 phase 380V/50Hz (sometimes, it can be 220V/50Hz、415V/Hz according to the actual conditions in different countries).

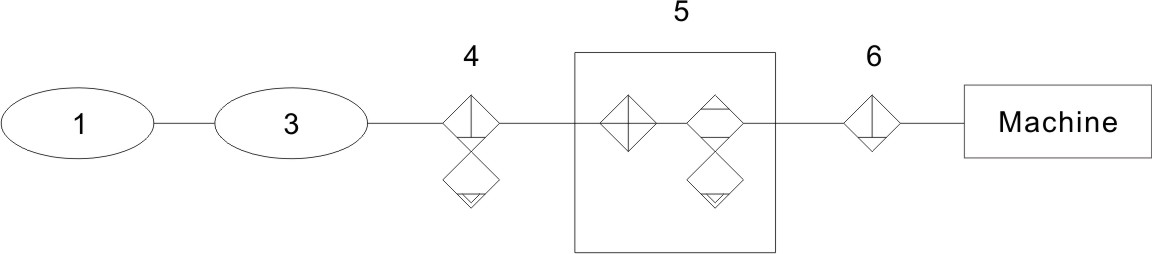

7. The air supply: 5-8 atmospheres (atmosphere pressure), 10L/min. The poor quality of air will mainly resulted in troubles for the machines. It will seriously reduce the reliability and life of the pneumatic system, which will result in lager loss or damage that may terribly exceed the costs and maintenance of such system. Therefore it must be technically allocated with a good quality air supply system and their elements. The followings are the air purifying methods only for reference:
|
1 |
Air compressor |
|
|
|
3 |
Air tank |
4 |
Major pipeline filter |
|
5 |
Coolant style drier |
6 |
Oil mist separator |
● The air compressor is a non-standard component for this machine. This machine is not provided with an air compressor. It is bought by the customers independently.
● The function of the air tank:
a. To partly cool the air with higher temperature coming out from the air compressor through the air tank.
b. To stabilize the pressure that the actuator elements in the back uses for the pneumatic elements.
● The major pipeline filter is to remove the oil distain, water and dust, etc. in the compressed air in order to improve the work efficiency of the drier in the next process and to prolong the life of the precision filter and drier in the back.
● Coolant style drier is to filter and separate the water or moisture in the compressed air processed by the cooler, the oil-water separator, air tank and major pipe filter after the compressed air has been removed.
● The oil mist separator is to filter and separate the water or moisture in the compressed air processed by the drier.
8. Persons: for the sake of the safety of the operator and the machine, and fully taking advantage of the performance of the machine and reducing troubles and prolonging its life, 2-3 persons, skillful technicians capable of operating and maintaining machines should be assigned to operate the machine.
9. Auxiliary materials
● The hot melting glue tape specification: Width 22mm, Thickness 105 g/m2, Outer diameter: 350mm(Max), Inner diameter 50mm, Length 300m/Circle, Melting point: 150-180°C
● Glue: animal glue(jelly gel, Shili gel), specification: high speed fast dry style.

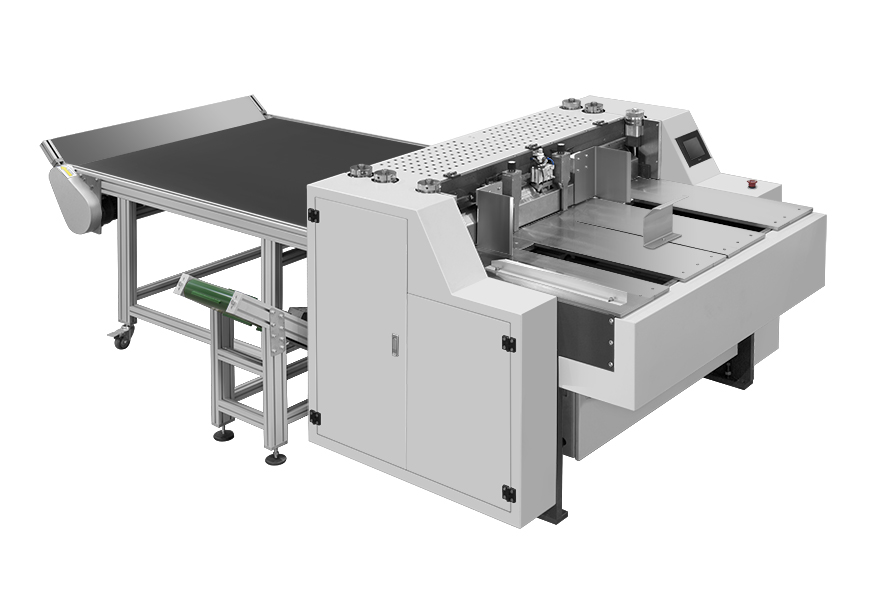

Optional FD-KL1300A Cardboard cutter
(Auxiliary Equipment)
It is mainly used for cutting material like hardboard, industrial cardboard, grey cardboard, etc.
It is necessary for hardcover books, boxes, etc.
1. Feeding large size cardboard by hand and small size cardboard automatically. Servo controlled and setup via touch screen.
2. Pneumatic cylinders control the pressure, easy adjustment of cardboard thickness.
3. The safety cover is designed according to European CE standard.
4. Adopt the concentrated lubrication system, easy to maintain.
5. Main structure is made of casting iron, stable without bending.
6. The crusher cuts the waste into small pieces and discharges them with conveyor belt.
7. Finished production output: with a 2 meter conveyor belt for collecting.

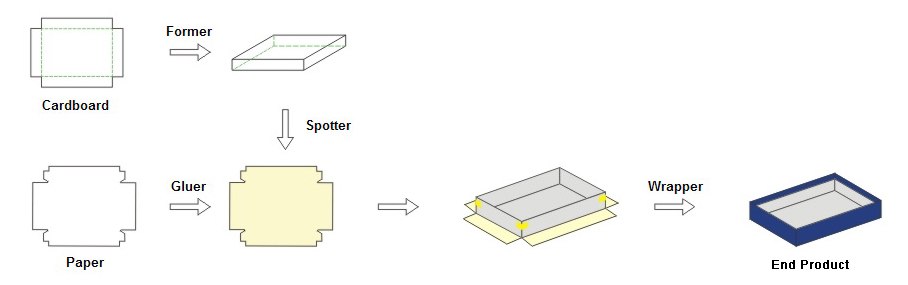

Production Flow:
Main technical parameter:

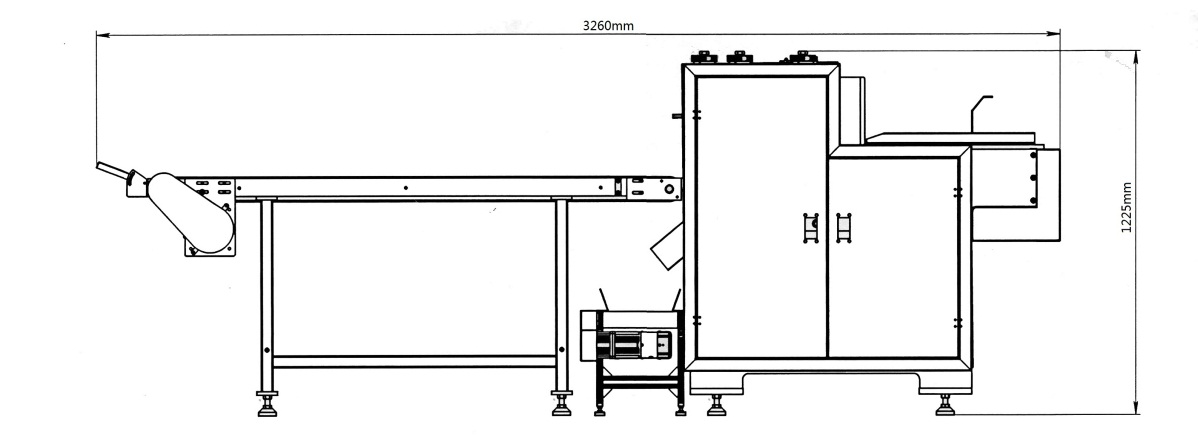

| Model | FD-KL1300A |
| Cardboard width | W≤1300mm, L≤1300mm

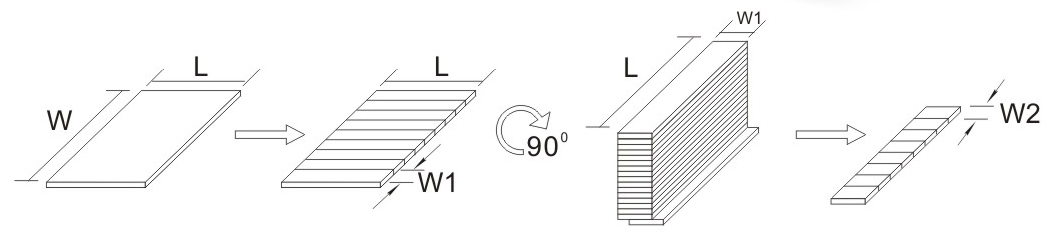

W1=100-800mm, W2≥55mm |
| Cardboard thickness | 1-3mm |
| Production speed | ≤60m/min |
| Precision | +-0.1mm |
| Motor power | 4kw/380v 3phase |
| Air supply | 0.1L/min 0.6Mpa |
| Machine weight | 1300kg |

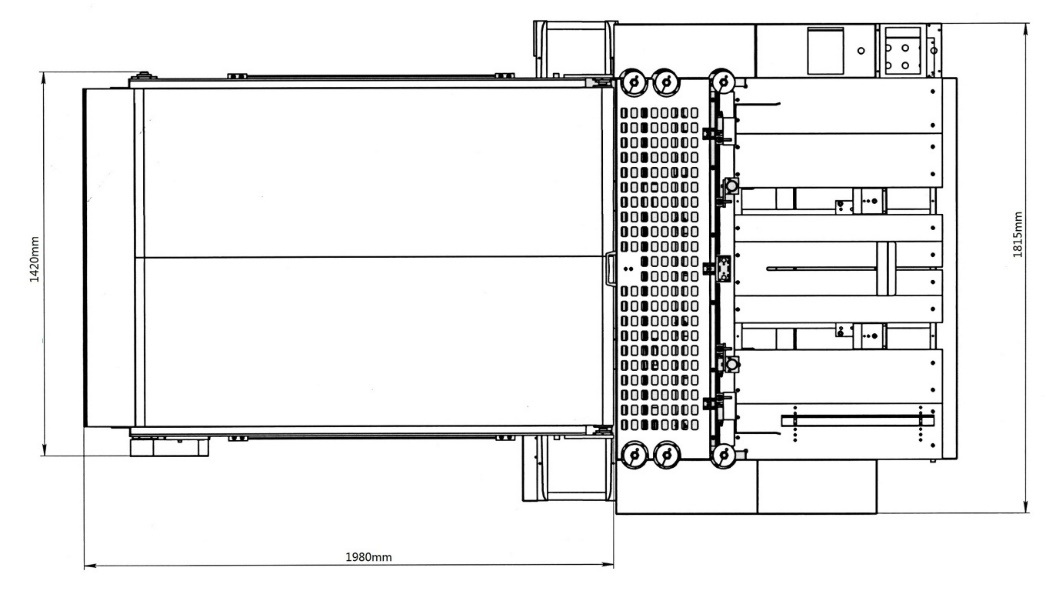

| Machine dimension | L3260×W1815×H1225mm |
Remark: We don’t provide air compressor.

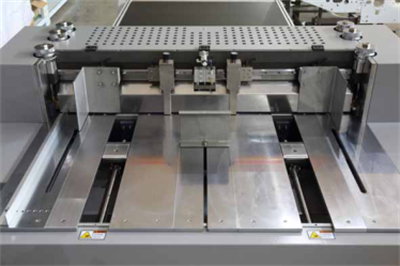

Auto feeder
It adopts bottom-drawn feeder which feeding the material without stopping. It’s available to feed small size of board automatically.

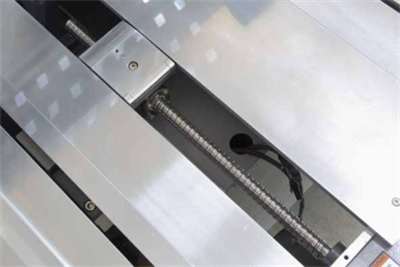

Servo and Ball Screw
The feeders are controlled by the ball screw, driven by the servo motor which efficiently improves the precision and makes adjustment easy.

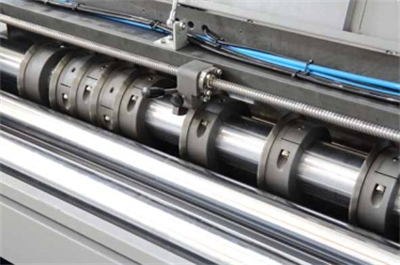

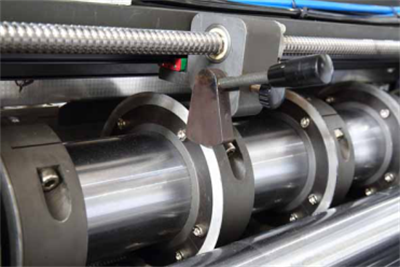

8 sets of High Quality knives
Adopt alloy round knives which reduce the abrasion and improve the cutting efficiency. Durable.
Auto knife distance setting
The distance of cut lines can be set by touch screen. According to the setting, the guide will automatically move to the position. No measurement required.
CE standard safety cover
The safety cover is designed according to the CE standard which efficiently prevents the disoperation and ensures the personal safety.
Waste crusher
The waste will be automatically crushed and collected when cutting the large sheet of cardboard.
Pneumatic pressure control device
Adopt air cylinders for the pressure control which reduce the operational requirement for workers.

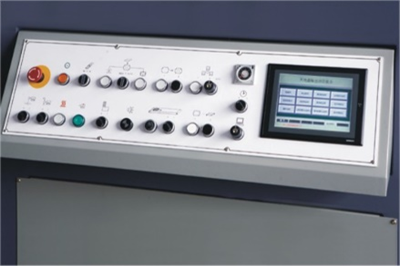

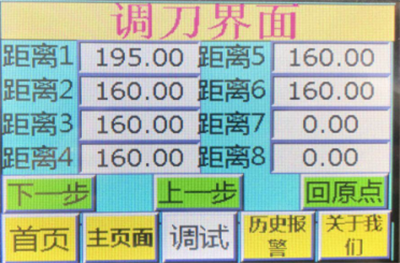

Touch screen
Friendly HMI helps the adjustment easy and fast. With Auto counter, alarm and knife distance setting, language switch.
