SEMI-AUTO HARDCOVER BOOK MACHINES LIST

Short Description:

CM800S is suitable for various hardcover book, photo album, file folder, desk calendar, notebook etc.  By twice , to accomplish gluing and folding for 4 side with automatic board positioning, separate gluing device is simple , space-cost-saving. Optimal choice for short-term job.


Product Detail

Product Video

Technical Data

Model

CM800S

Power supply

380 V / 50 Hz

Power

6.7 KW

Working speed

3-9 pcs / min.

Case size (max.)

760 x 450 mm

Case size (min.)

140 x 140 mm

Machine dimension (L x W x H)

1680 x 1620 x 1600 mm

Paper grammage

80-175 gsm

Machine weight

650 kg

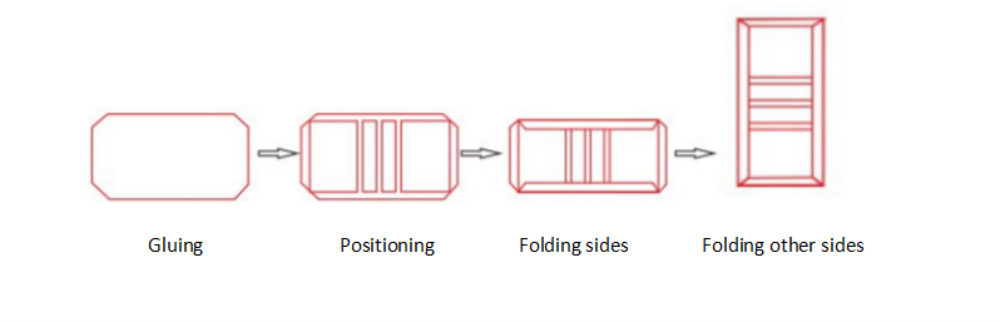

Processing Flow

1632391182(1)

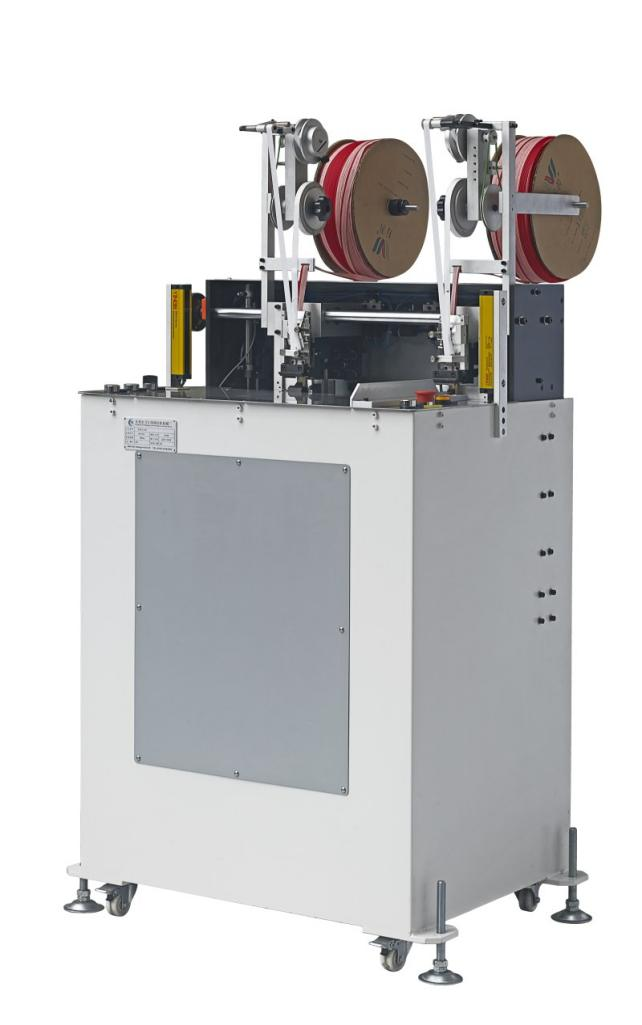

2.HB420 Book block head band machine

51

Short Description

7” touch screen

Technical Data

Work speed 650-750PCS/hour
Ridge direction 120-400(MM)
Page direction 100-285(MM)
Thickness 10-55(MM)
Voltage 220V 50HZ 200W
Air compressor 1.6KW
Pressure 6Bar
Machine Weight 300(KG)
Area covered 1000*1000(MM)
Machine Dimension L700*W850*H1550(MM)

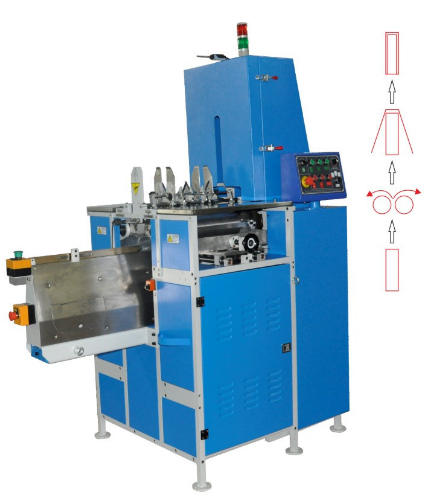

3.CI560 SEMI-AUTOMATIC CASE-IN MAKER

52

Short description

Simplified according to fully automatic case-in machine, CI560 is an economical machine to raise the efficiency of case-in job at higher gluing speed on both sides with even effect; PLC controlling system; Glue type : latex; Faster setup; Manual feeder for positioning

Technical Data

Model

CI560

Power supply

380 V / 50 Hz

Power

1.5 KW

Working speed

7-10 pcs / min.

Case board size (max.)

560 x 380 mm

Case board size (min.)

90 x 60 mm

Machine dimension (L x W x H)

1800 x 960 x 1880 mm

Machine weight

520

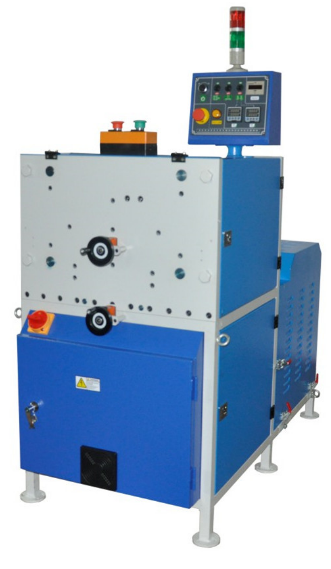

4.PC560 PRESSING AND CREASING MACHINE

53

Short description

Simple and effective equipment to press and crease hardcover books at same time; Easy operation for just one person; Convenient size adjustment; Pneumatic and hydraulic structure; PLC controlling system; Good helper of book binding

Technical Data

Model

PC560

Power supply

380 V / 50 Hz

Power

3 KW

Working speed

7 -10 pcs/ min.

Pressure

2-5 Ton

Book thickness

4 -80 mm

Pressing size (max.)

550 x 450 mm

Machine dimension (L x W x H)

1300 x 900 x 1850 mm

Machine weight

600 kg

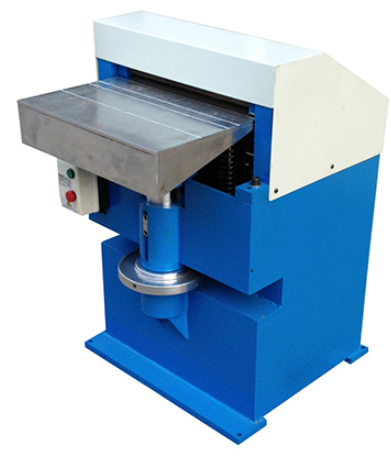

5.R203 Book block rounding machine

54

Short description

The machine is processing the book block into round shape.  The roller’s  reciprocating motion makes the shape by just putting the book block on the working table and turning over the block.

Technical Data

Model

R203

Power supply

380 V / 50 Hz

Power

1.1 KW

Working speed

1-3 pcs/ min.

Max. working size

400 x 300 mm

Min. Working size

90 x 60 mm

Book thickness

20 -80 mm

Machine dimension (L x W x H)

700 x 580 x 840 mm

Machine weight

280 kg

Main parts of all MACHINES LIST

PLC controller

SIEMENS

Inverter

SIEMENS

Main transmission guiding rail

Taiwan HIWIN

Main braking device

Taiwan CHAIN TAIL

Main transmission motor

PHG/THUNIS

Electrical components

LS, OMRON,Schneider, CHNT etc

Main bearing

SKF,NSK

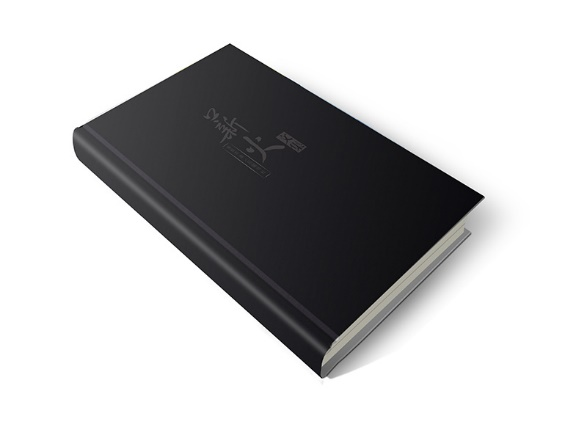

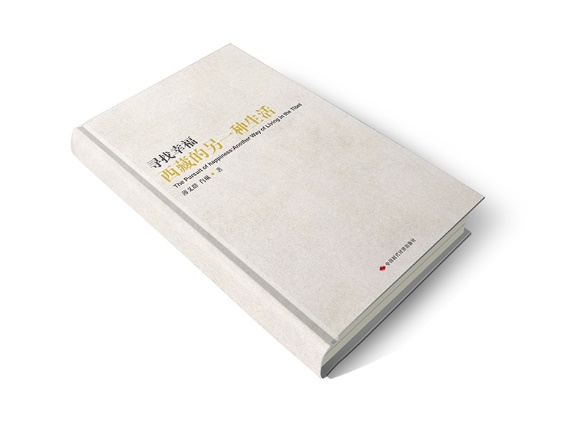

PSamples (Output from All MACHINES above)

djjdg
djft
