Semi-automatic Laminating Machine SF-720C/920/1100c
| Model | SF-720C | SF-920C | SF-1100C |
| Max Laminating Width | 720mm | 920mm | 1100mm |
| Laminating Speed | 0-30 m/min | 0-30 m/min | 0-30 m/min |
| Laminating Temperature | ≤130°C | ≤130°C | ≤130°C |
| Paper Thickness | 100-500g/m² | 100-500g/m² | 100-500g/m² |
| Gross Power | 18kw | 19kw | 20kw |
| Total Weight | 1700kg | 1900kg | 2100kg |
| Overall Dimensions | 4600×1560×1500mm | 4600×1760×1500mm | 4600×1950×1500mm |
1. Delta inverter is equipped for infinitely variable speed, and the operator can change the machine’s speed easily and guarantee the machine’s running stable.
2. Enlarged size of chromed heating roller is mounted with built-in oil heating system which provides balanced laminating temperature and owns excellent temperature persistence.
3. Delta PLC system realizes automatic paper separation, breakdown alert for self-protection etc. functions.
4. Pneumatic film unwinding system positions film roll more accurately, and makes the loading and unloading of film roll and film unwinding tension much more convenient.
5. Double sets of serrated perforating wheels provide different choices for different specifications of sheets and film.
6. Perfect traction adjusting system makes traction adjustment more convenient and efficient.
7. Corrugating delivery system and vibrating receiving system ensure paper collection more regular and convenient.
Paper overlap regulator
The machine is equipped with an paper overlap regulator to feed paper easily.

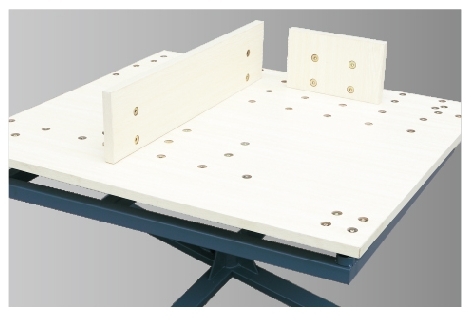

Jogger
The jogger collects paper.

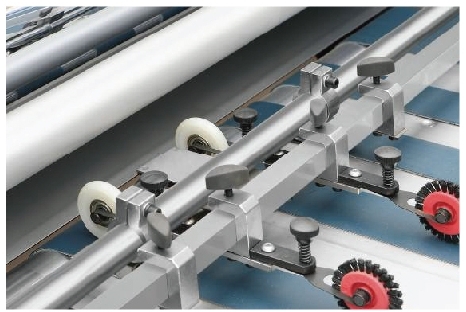

Fying knife and perforating system
