ST036XL Hardcover Machine

Short Description:

This machine can make various cover materials such as special paper, art paper, pu, binding cloth etc for enlarging the product ranges for hardcover, ring binder files, display kits and wire-o binding for straight corner as well as the round corners.

Speed: 1500-1800 pcs/h


Product Detail

Product Video

Technical Parameters

Machine size

4050×3900 ×2180 mm

Max opened size

850 ×450 mm

Min opened size

150 ×110 mm(Special design:100 ×45mm)

Max side wing size

800x180mm

Min side wing size

200x45mm

Center board

6 — 100 mm

Gutter width

3— 14mm

Board thickness

1 —5 mm

Outside board width

18mm

Voltage

380 V/220V

Power

10.4 kw

Weight

4500 Kg

Speed

10—36pcs/min

Parts Details

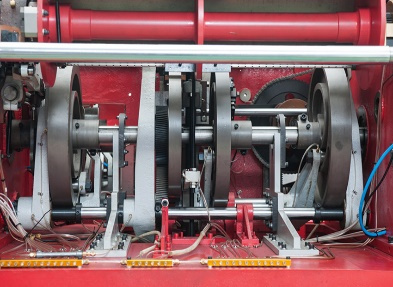

 Machine (1) Cam position device:

Driving by cam can improve machine stability and position precisely to make sure the defective products within 3‰, thus improving product quality and customer satisfaction

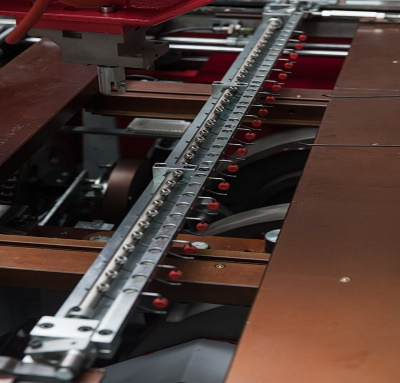

Machine (2) Rod pulling cover:

Can position precisely and improve product quality, thus meet the high requirements of the packaging box and hardcover books for the accuracy within 0.5mm

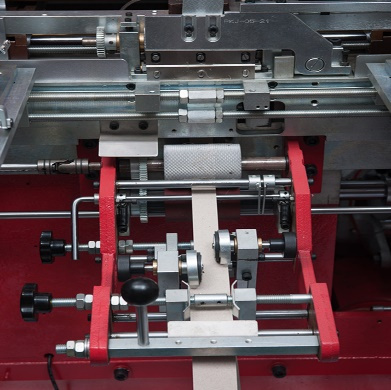

Machine (3)

Soft spine automatic-cutting device:Can make round back hardcover book which is beneficial to enlarge the product range.

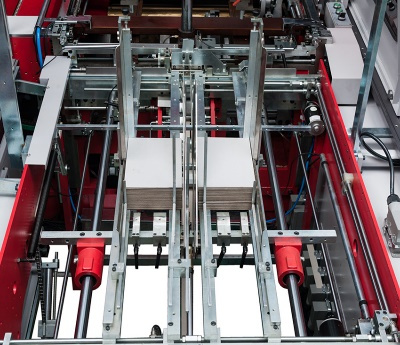

Machine (4) Multi-function board feeder device:

1-7 boards can be made for diversifying the product such as 3 boards for the hardcover book and 4 boards for calendars..etc

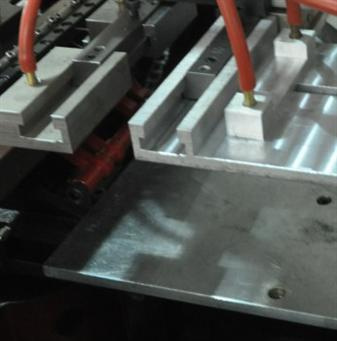

Machine (5) Irregular hardcover production device:

various irregular hardcover can be made such as triangle, arch, trapezium, L shape, S shape…etc

Machine (6)  Steel flaps bending knife device:

more compact hardcover with nice appearance can improve hardcover quality and customer satisfaction, thus stabilizing the production order and enhancing the company profits

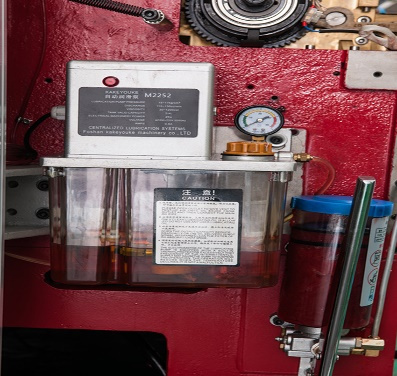

Machine (7)  Automatic lubrication system:
reduce daily maintenance and  improve production efficiency, thus reduce maintenance cost.

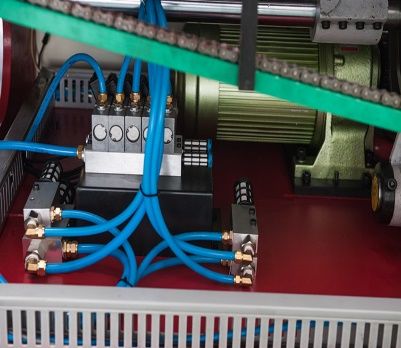

Machine (8)  Vacuum exchange system:

reduce noise pollution, improve factory working environment, thus reducing staff turnover and greatly reducing the management costs.

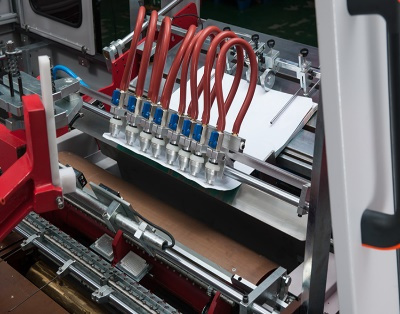

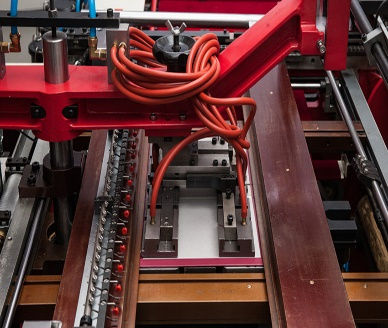

Machine (9)  Multi-function cover device:

various cover materials can be  made such as PU, Leather, Various Paper and Cloth, ..etc to enlarge business scope.

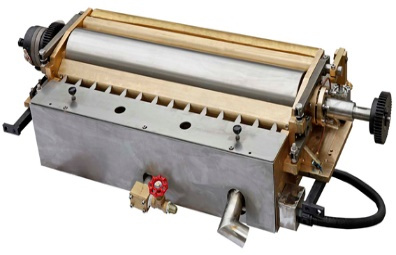

Machine (10)  Adjustable gluing system:

can be applicable for different cover materials with different thickness, glue evenly with least gule which can improve product quality and reduce production costs.

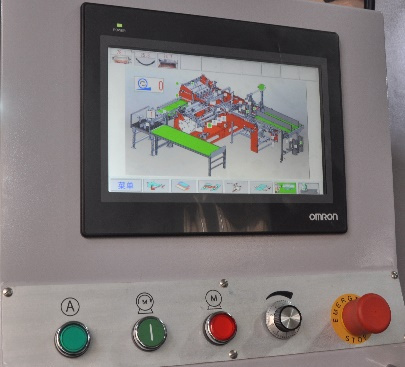

Machine (11)  OMRON touch screen:user-friendly adjustment and convenient for the production.

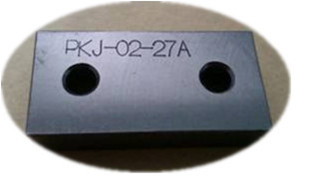

Machine (12) Standard spare parts:

maintain conveniently and improve the maintenance efficiency, thus reducing management costs and increasing company profits.

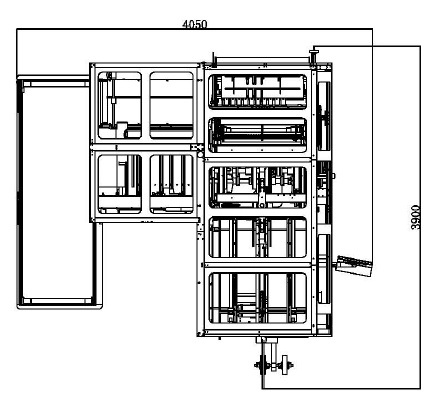

Layout

Machine (29)

Products

1)Can produce different shape hardcovers as follows:

Machine (17)

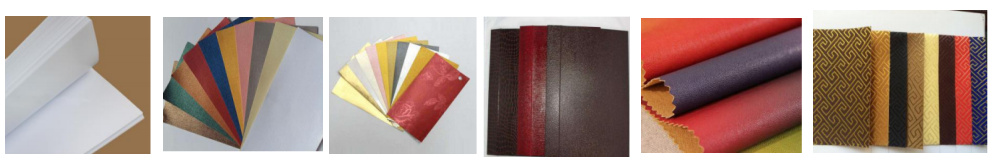

2)Can make different cover materials: art paper、silver and gold paper、special paper、coated paper、PU、binding cloth、from 70g to 300g

Machine (23)

3)Can  make the cover materials with the special cover process:

lamination one、deep debossing、embossing、hot stamping、spot UV

Machine (16)

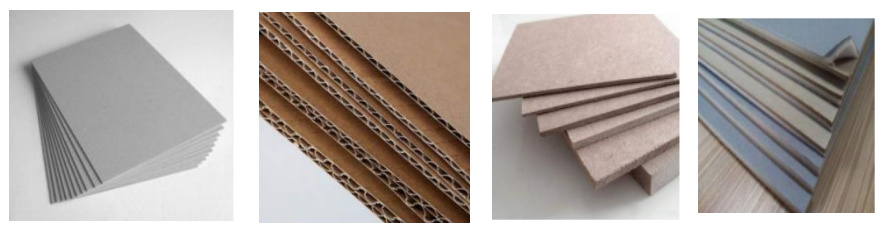

4)Can be applicable for different board materials: grey board、corrugated paper、density board、cover with sponge..etc.

Machine (15)

5)Board combination

Machine (14)

1—7 boards different boards          1----7 different shape board

Machine (13)

L design board                XXS board(100x45mm case size)

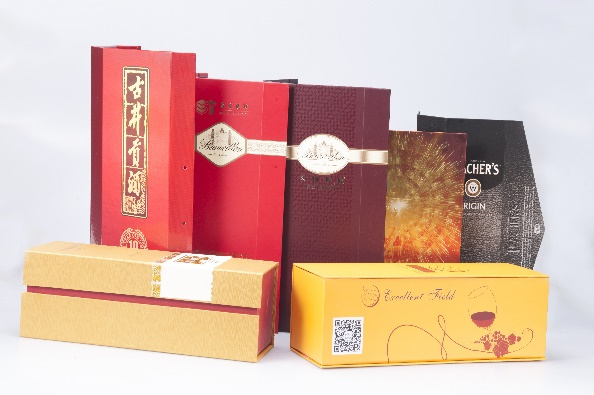

6)Can meet the requirements for the normal case rigid box:

Machine (26) Machine (22)

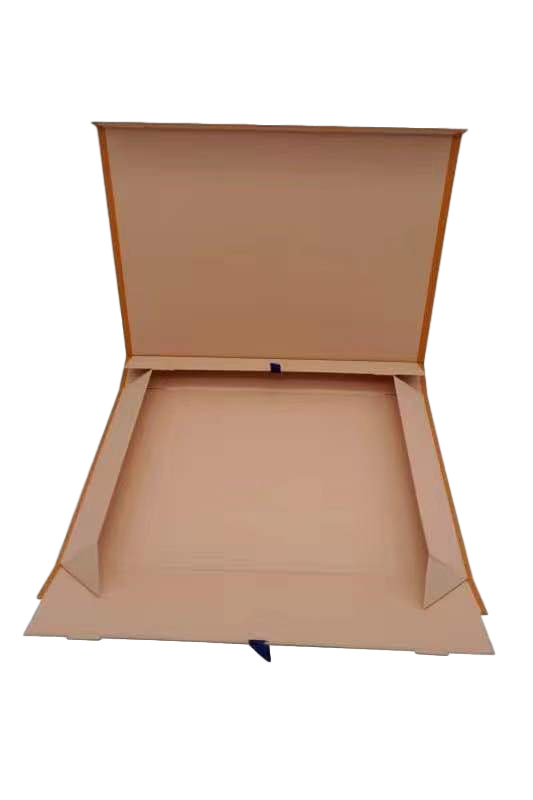

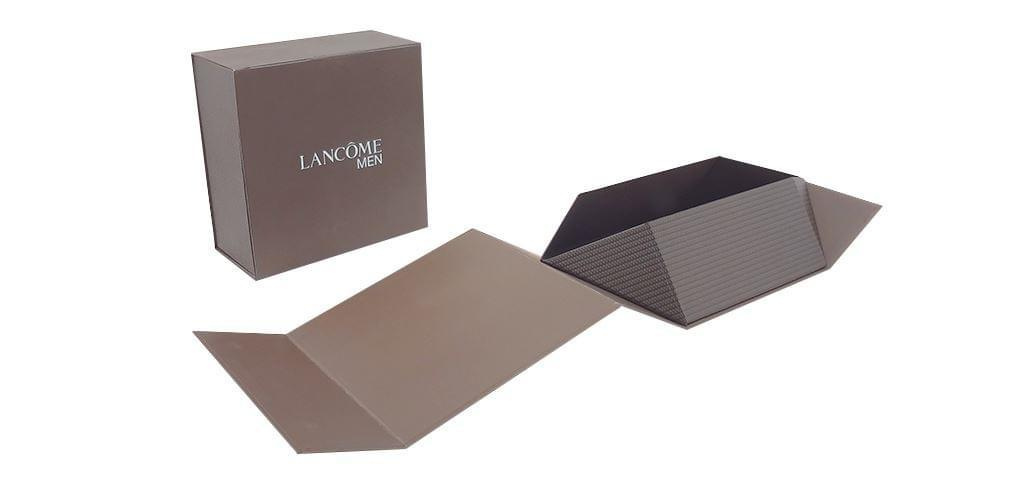

7)Can make the requirements of the collapsible box:

Machine (20) Machine (19) Machine (18)

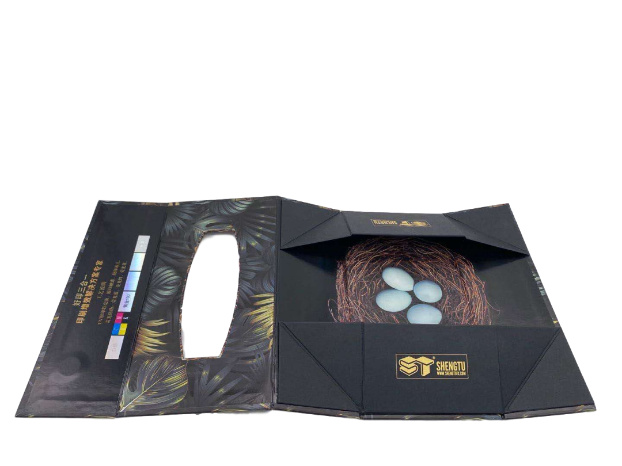

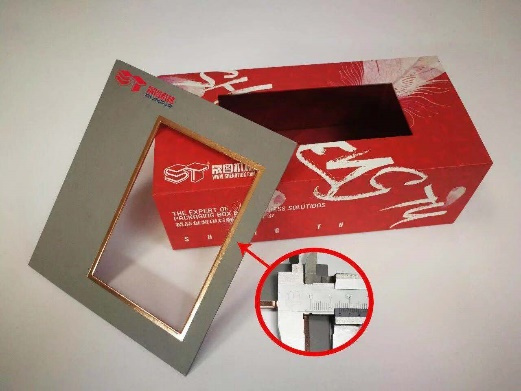

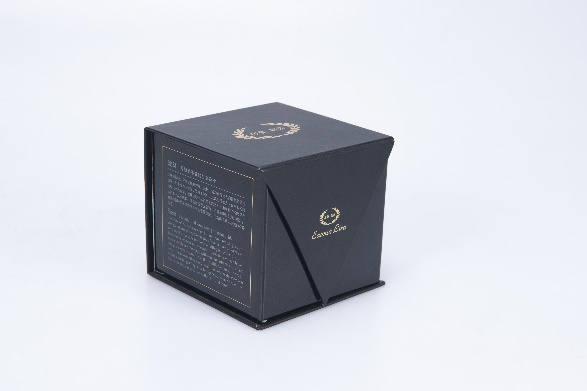

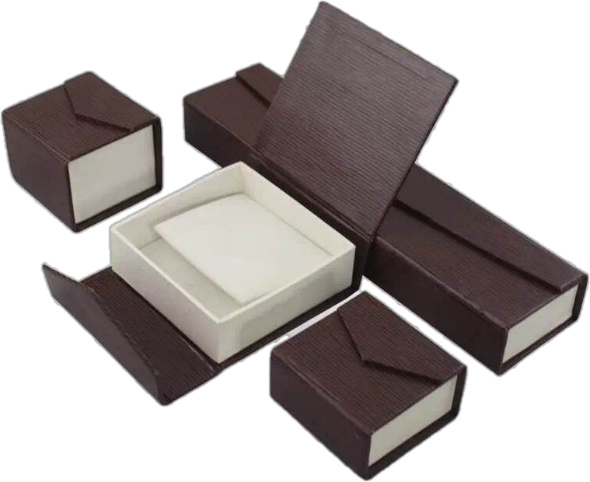

8)Can make the normal different shape box as well as the smaller size (100x45mm):

Machine (24) Machine (25) Machine (26) Machine (27) Machine (28)
