ST060H High-Speed Hardcover Machine
|
Machine size |
4000×4000 ×2200 mm |
|
Max opened size |
660 ×380 mm |
|
Min opened size |
150 ×110 mm |
|
Center board |
6— 100 mm |
|
Gutter width |
1— 17mm |
|
Flaps bending width |
7— 14 mm |
|
Board thickness |
1 —5 mm |
|
Cover weight |
100g—200g |
|
Voltage |
380 V/220V |
|
Power |
14kw |
|
Weight |
4500 Kg |
|
Speed |
15—55pcs/min |

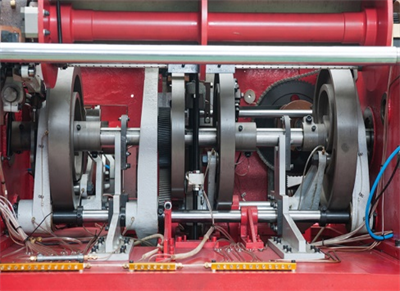

Cam position device：
1. Driving by cam, achieving great stability.
2. Positioning accurately.
Multi-functional cover platform device：
Can be applicable for PU, CLOTH, ART PAPER..etc
as well as different cover process such as stamping, UV and Imbossing..etc.
Soft spine automatic-cutting device:
Can make round back hardcover book which is beneficial to enlarge the product range.

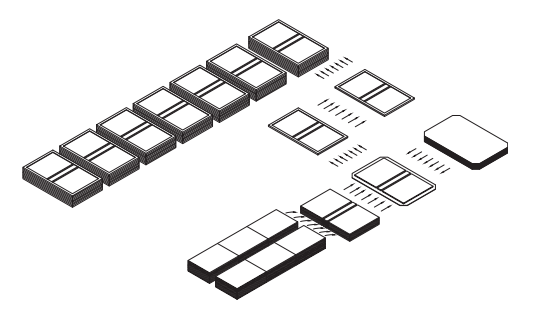

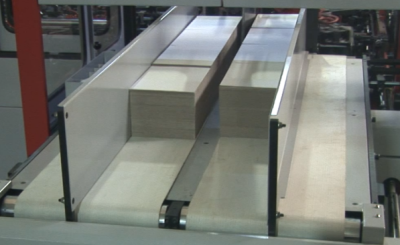

Grey board pre-stacking device：
1. Pre-stacking the grey board, saving the labor intensity.
2. Improving the production efficiency.

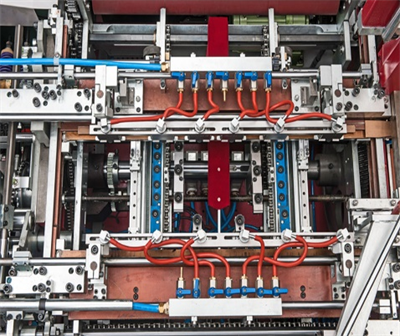

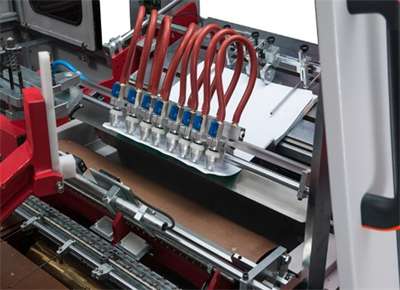

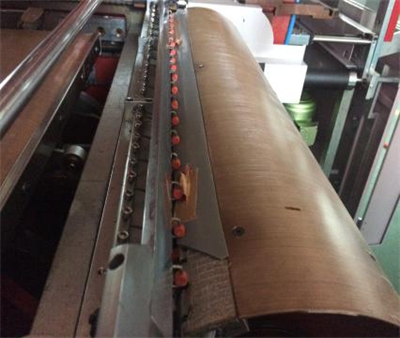

Multi-functional board suction device：
1. Multi-functional board suction device, saving the time for changing the jobs.
2. Improving the production efficiency.

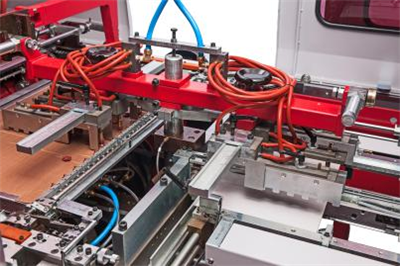

Multi-functional folding device：
1. Steel bending knife to fold the case more tight and nice.
2. Round corner device, no need for die-cutting the cover, saving the production process.

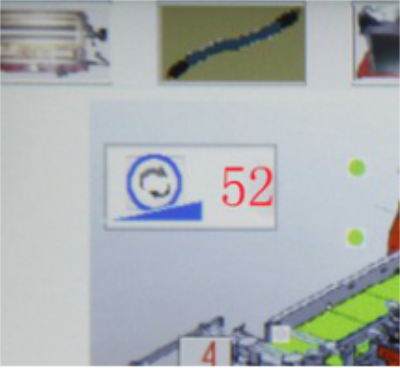

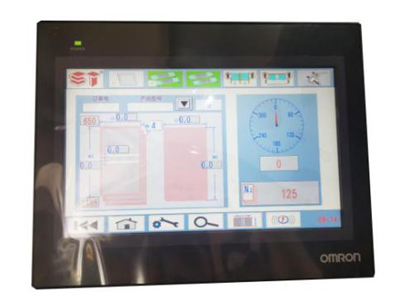

Intelligent operation device：
Stable production speed can be 45-50pcs/min, improving the production efficiency and output.

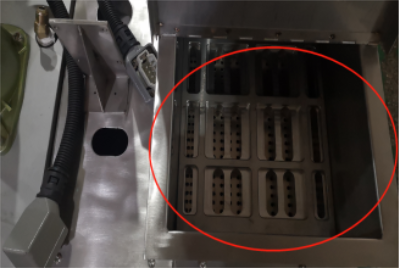

Multi-functional bottom plate device：
1. Adopting the foam bottom plate, saving the time for changing the jobs and improving the production efficiency.
2. Cover and board pasting more tightly and avoid bubbles.

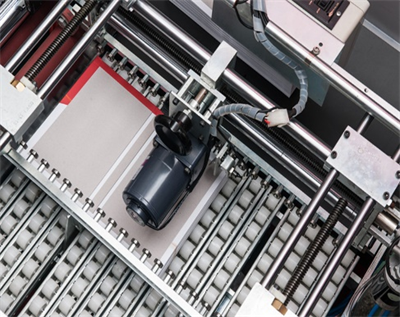

Automatic format changing device:
1. According to the case size, it can automatically change the format, fast make-ready time.
2. Compared with the brand case making machine, saving the format changing time greatly.

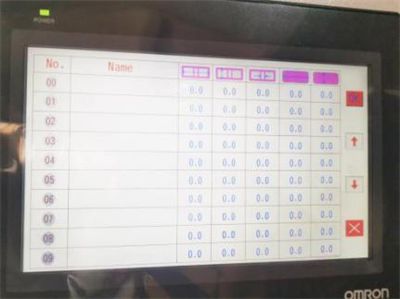

Data storage device ：
1. Obtaining the large data storage function.
2. Automatically saving the production data, for the repeated order, it can save the adjusting time.

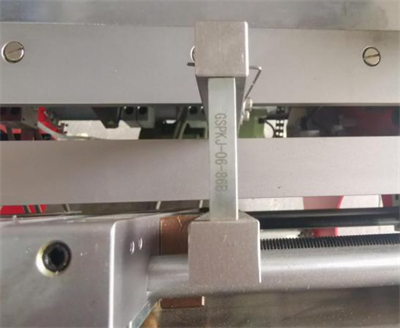

Gripper device ：
1. Gripper system: improving the accuracy

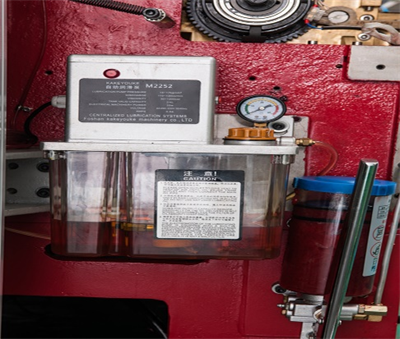

Automatic lubrication system Automatic:
reduce daily maintenance and improve production efficiency，thus reduce maintenance cost.

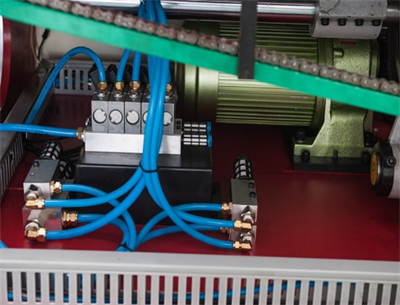

Vacuum exchange system:
reduce noise pollution，improve factory working environment.

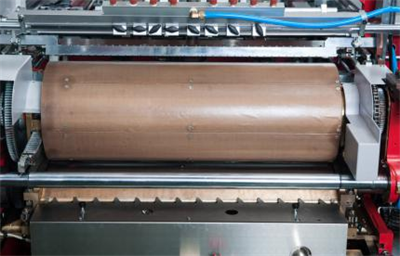

Multi-functional gluing system:
1. Adopting the upper gluing way, the front and back scrapter for gluing evenly and thin.
2. The glue tank no need for cleaning, maintain conveniently.
Layer melting the glue device:
1. Adopting the layer melting the glue, making full use of the glue using rate and saving the glue. reduce the production cost.
2. According to the production time, it can pre-melt the glue, improving the production efficiency.

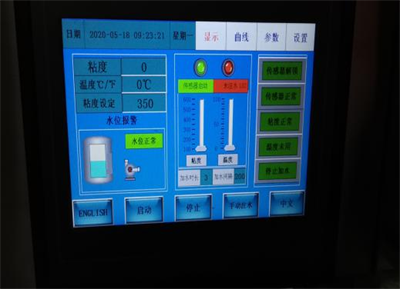

Viscosity meter device:
Checking the glue concentration, automatically adding the water, keeping the glue to the best status, improving the production efficiency
Auto stacking device:
can stack the hard case in quantity and reduce the labor intensity.
Standard spare parts:
Convenient for the after-sales service and saving the maintenance cost.

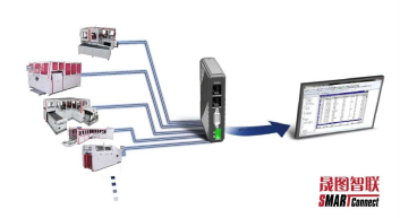

Internet of things system:
1. Can check the machine production status such as volume..etc.
2. Convenient for company management.

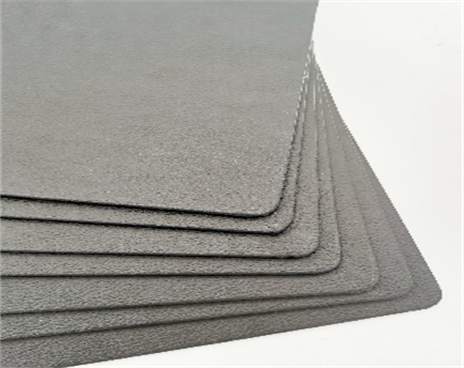

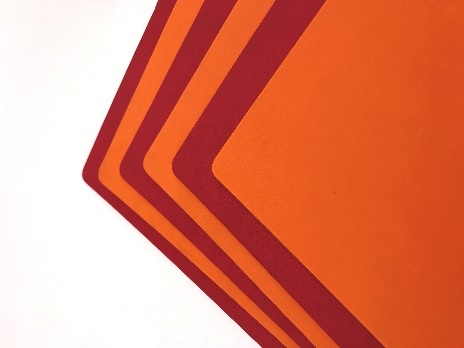

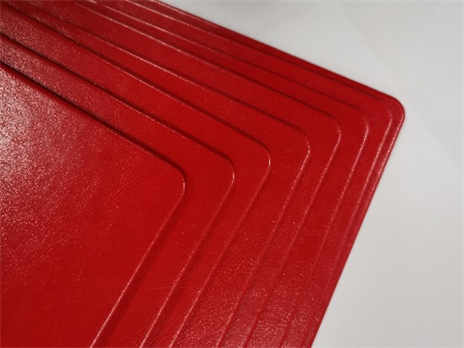

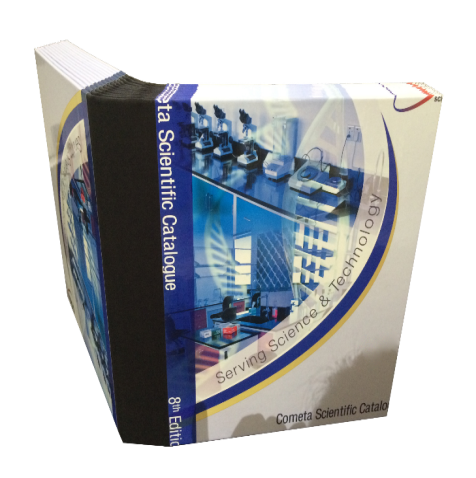

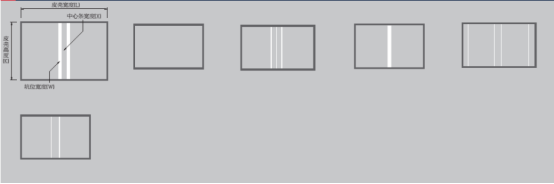

1.Can meet the requirements for the straight corner and round croner(optional) for the soft and hard spine:

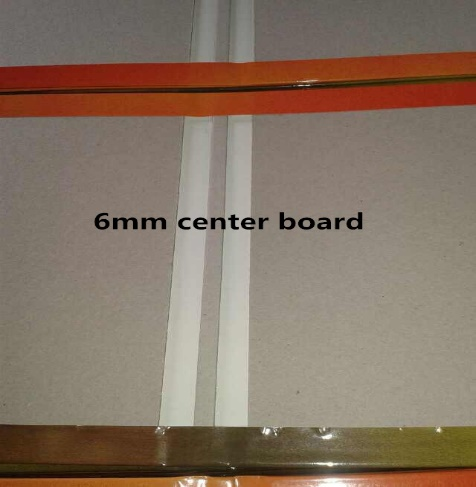

2.Can meet the requirements for the quarter bound book and 6mm hard spine:

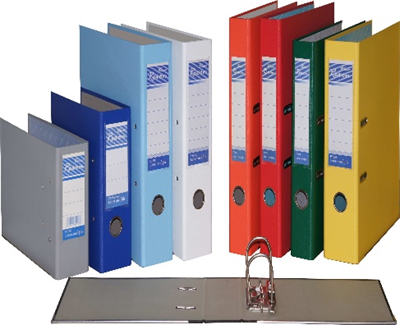

3.Can make the table calendar and files:

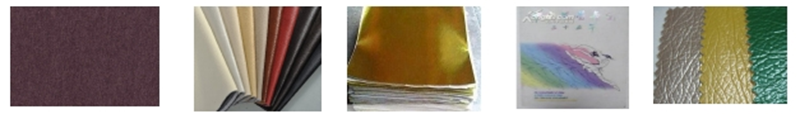

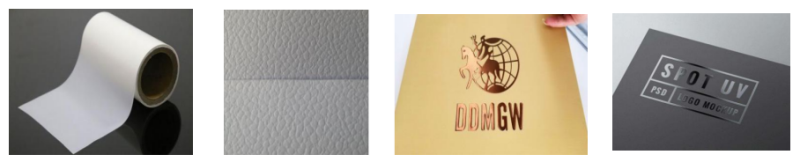

1) Can produce different cover materials: cloth、leather、silver and gold paper、coated paper、PP、PU、70g—275g

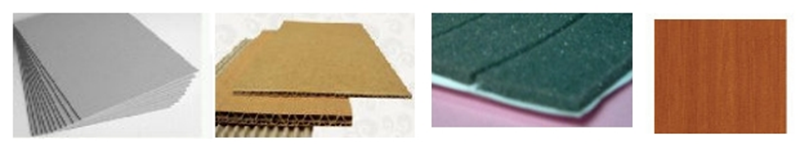

2) Can be applicable for different board materials: grey board、corrugated paper、density board、cover with sponge..etc
3) Can make the different cover process: Glossy and matte film、 Deep embossing、Imbossing and stamping、Spot UV.
