STC-1080A Window Patching Machine

Short Description:

Flat window patching

Single lane single speed

Max. speed 10000 Sheets/H

Max. paper size 1080mm*650mm

Max window size 780mm*450mm


Product Detail

Other product information

Technical Parameter

Model

STC- 650

STC-1080A

Max paper size(mm)

 650*650  1080*650

Min paper size(mm)

100*100

100*100

Max window size(mm)

380*450

780*450

Min window size(mm)

40*60

40*40

Cardboard (g/㎡)

200-1000

200-1000

Corrugated paper(mm)

≤4.0

≤4.0

Film thickness(mm)

0.05-0.25

0.05-0.25mm

Max working speed(s/h)

10000

10000

Total power (kw)

8

10

Total weight (T)

2

3

Dimension
(L*W*H)(mm)

4750*1550*1600

4958*1960*1600

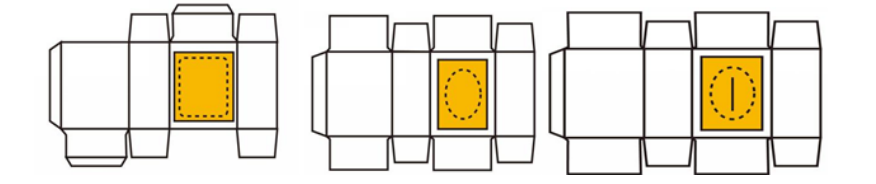

Types Of Window

Stc

Part Introduction

STC2

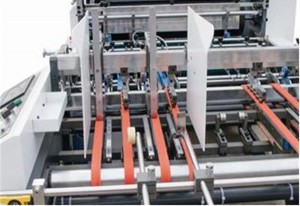

1.Feeder:

The unique supporting plate and wheel feeding type replaces the servo intermittent feeding type.

Ensure that the paper is smooth

Deliver the paper with high speed,stable and reliable.

Our company has won the national patent for this part.

STC3

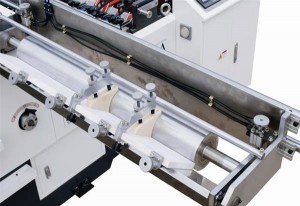

2. Rotation rubber roller(can pull-out):

Single rubber roller cooperate with baffle to gluing.

Avoid the waste of glue,reduce the volatilization.

When the machine stopped,the rubber roller can rotation driving by the motor. Avoid the glue solidify on the face of rubber roller.

When cleaning the rubber roller, this part can pull-out entirely,reduce cleaning time.

STC4

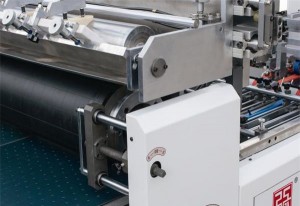

3. Gluing:

◆ Use automatic gluing instead of hand movement.
◆ This part can adjust the glue roller right or left、up or down.
◆ When the photoelectric sensor reacted the paper. If there are papers pass,the machine will use the air cylinder to control platform to uplift.
◆ If there are no papers pass,the platform will decline.
◆ Avoid the glue smear on the belt.

STC5

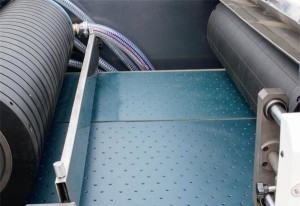

4. Suction belt:

The two suction belts are wide and thick,increase service life.

With the device of adjust the wind power.

Can adjust wind power according to the sizes of papers.

Ensure that no position offset.

STC6

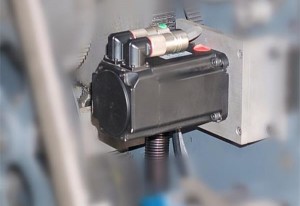

5. Film transport:

Film Transport is controlled by the servo motor.

With high precision,make the error of cutting the film is less than 0.5mm.

Adopt the touch screen to adjust the length of the film.

Make the adjustment more convenient and efficient.

STC7

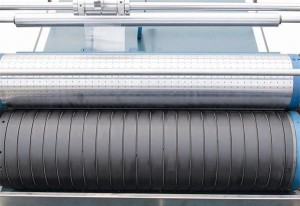

6. Roller knife:

Quality alloy steel was adopted special heat treatment process to ensure long working hours.

Use the touch screen to set the film length so that the machine can runs more accurate, stable and reliable.

STC8

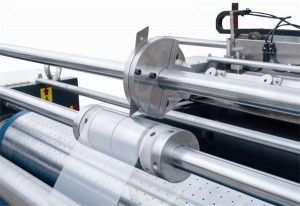

7. Jog film cutting (Special for tissue boxes):

Special design for the middle cutting of the film, such as tissue boxes point cut or long cut.

Incision length is adjustable, ensure accurate and never shifting.

Part Introduction

STC9

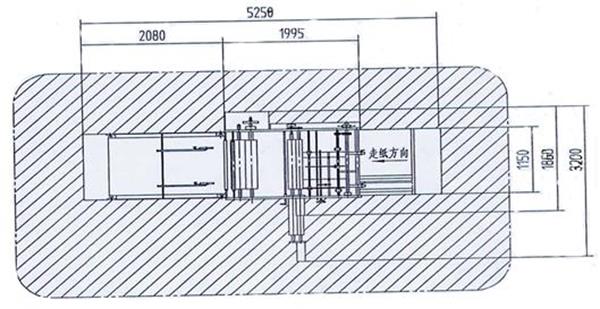

Operating conditions:

Working temperature is 5ºC to 40ºC.

Transportation and storage temperature is-25ºC to 55ºC.

>◆ The relative temperature is not greater than 60% (20%c), and the altitude is not

more than 1000 m.

Power supply specification:

Total power: 3 phase 4 wire,380V 50HZ

◆ Control power: single phase,220V   AC   24V   DC

◆ Deviation: ±10%V  ±1HZ

◆ Total power:10KW

NoteDue to the diversity of products, the applicability of the machine will be affected. So the above data is not applicable to every product.

Electric Specification

1.Low voltage apparatus:

NO.

NAME

MODEL

QTY

NOTE

1

Breaker

DZ108-20  0.6-1A

1

TANGANT

2

Breaker

DZ108-20  4-6.3A

1

TANGANT

3

Breaker

DZ108-20  5-8A

3

TANGANT

4

Breaker

DZ47-63-1PD 6A

2

TANGANT

5

AC Contactor

LC1-D901

4

SCHNEIDER

6

Button

ZB2BA2+ZB101C

14

SCHNEIDER

7

Emergency Stop Switch

ZB2BS54+BZ102C

2

SCHNEIDER

8

Switching Power

ABL2REM24045H

1

SCHNEIDER

9

Cooling fan

TA12025SL-2 AC220

2



10

Buzzer

TBNAC220V-240VJBK5-400VA PUT IN

1

TEND

11

Speed Control  Knob

4.7KΩ

1



12

Change-over Switch

GLD11-63/04

1

TEND

13

Photoelectric Switch

E3ZD61

2

OMRON

14

Encoder

MT3806-2000B2-24T

1

MT

2.Frequency converter, PLC, Servo control:

NO.

NAME

MODEL

QTY

NOTE

1

Frequency Converter

VFDO 3.7EL43A

1

DELTA

2

Programmable Controller

VS1-32MT

1

VIGOR

3

Servo Motor

0.75KW

1

WEIKEDA

4

Servo Driver

VEC-VC-R75H23B-M-C

1

WEIKEDA

5

Human Machine Interface

MT4434T

1

KINCO

3 Motor configuration:

NO.

NAME

MODEL

QTY

NOTE

1

Main motor

VABPI00L-4 3.0KW

1

DEDONG

2

Vortex pump

2LG5107AH362LG4107AH36

1

MEILAILE

3

Pump

ZFB80A

1

TONGNENG

4

Rubber roller motor

90YS90GY38X 100GF6H

1

JINGYAN

 4.Pneumatic component:

NO.

NAME

MODEL

QTY

NOTE

1

Cylinder For Support Paper

CQ2A32-10DM

1

SMC

2

Cylinder For Suction Plate.

SDA25*10

2

SNS

3

Rubber Roller Cylinder

SDAJ25*15-15-B

2

SNS

4

Vibrating Motor

GT-08

1

SNS

5

Five-way Valve

SY7120-5GD-02

1

SMC

Samples

STC10
STC11
