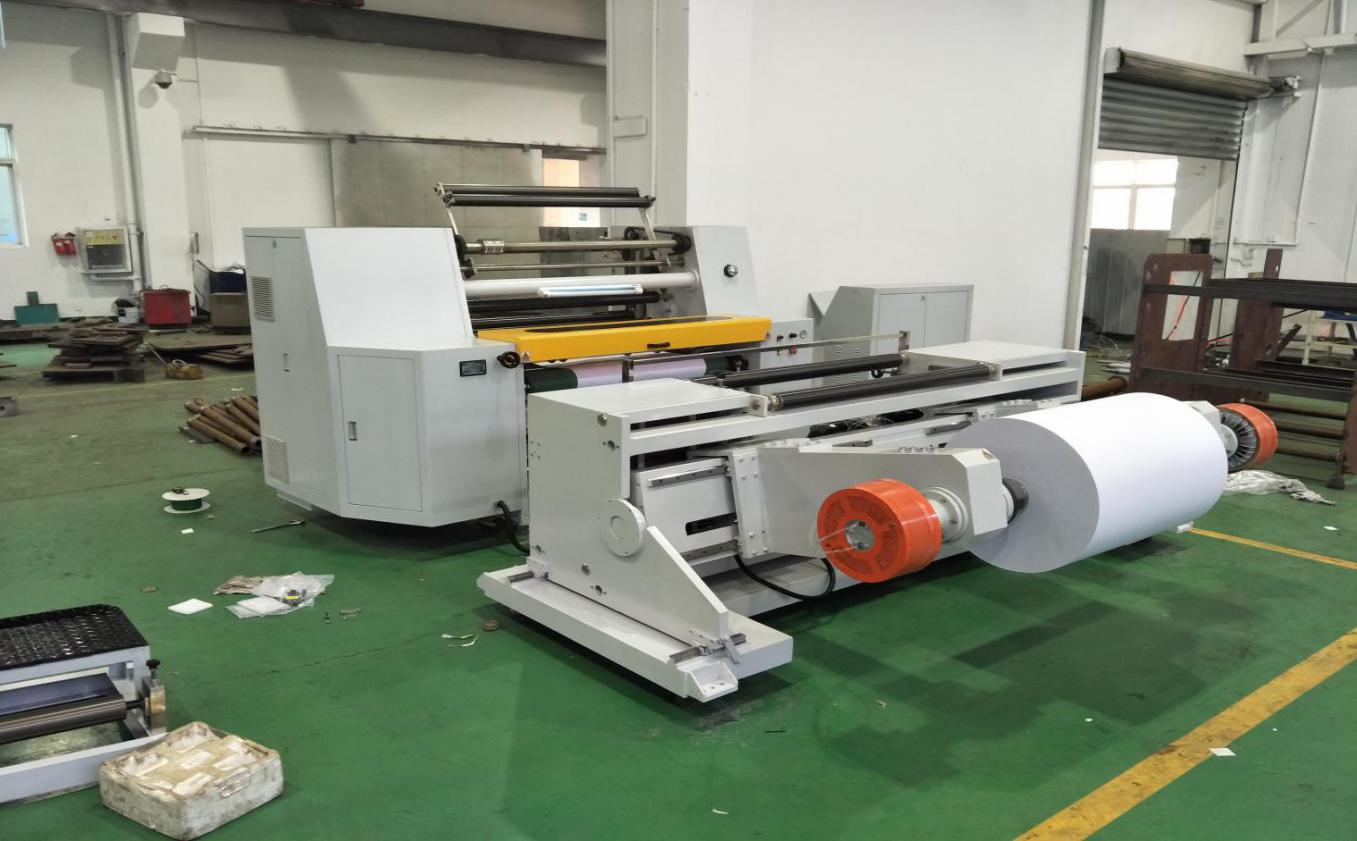

WZFQ-1300A Model slitting machine
| Model | WZFQ-1100A /1300A/1600A |
| Precision | ±0.2mm |
| Max. width of unwinding | 1100mm/1300mm/1600mm |
| Max. diameter of unwinding
(Hydraulic shaft loading system) |
￠1600mm |
| Min. width of slitting | 50mm |
| Max. diameter of rewinding | ￠1200mm |
| Speed | 350m/min |
| Total power | 20-35kw |
| Suitable power supply | 380v/50hz |
| Weight (approx.) | 3000kg |
| Overall dimension
(L×W×H )(mm) |
3800×2400×2200 |
 |

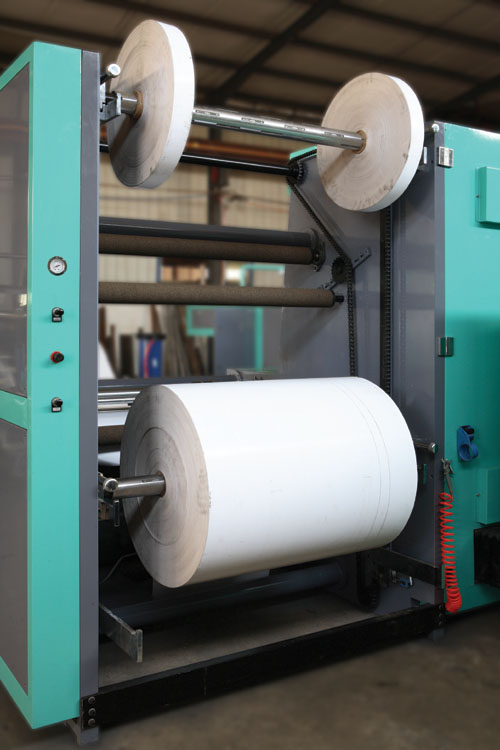

1.UnwindingHydraulic shaftless automatic loading）Maximum diameter 1600mm |
 |

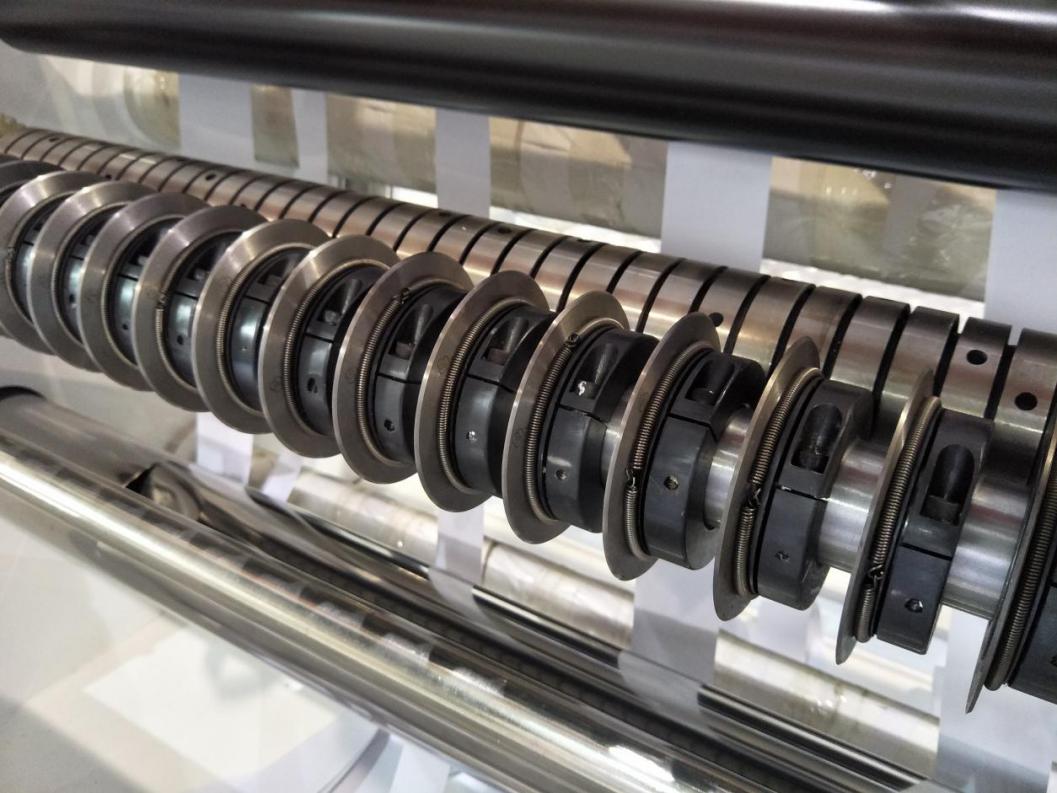

2.Slitting Knives Bottom knives are self-lock type, easy adjust the width |
  |

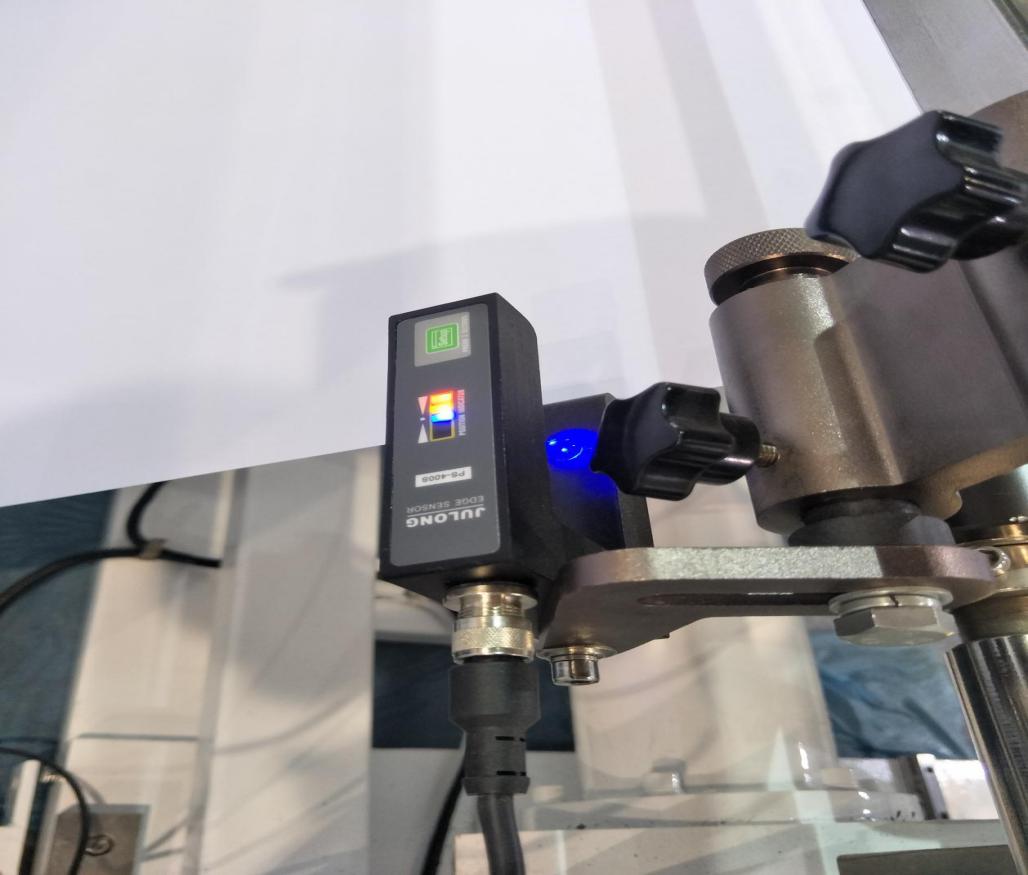

3.EPC system Sensor for tracking paper edges U type |
 |

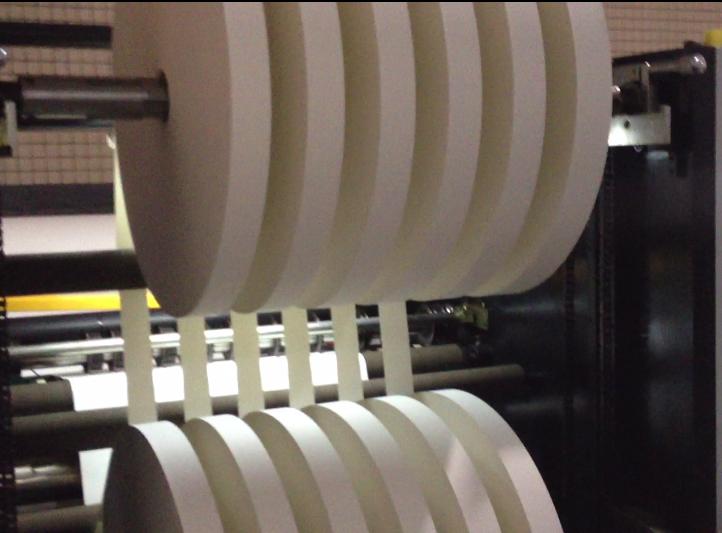

4.Rewinding with gear device for automatic discharge of the rolls |
1. This machine uses three servo motors for controlling, automatic taper tension, central surface reeling.
2. Frequency converter timing for main machine，keeping speedup and stable operation.
3. It has the functions of automatic metering, automatic alarm, etc.
4. Adopt A and B pneumatic shaft structure for rewinding, easy for loading and unloading.
5. It adopts air shaft pneumatic loading system
6. Equipped with automatic waste film blowing device by circle blade.
7. Automatic material inputting with pneumatic, matched with inflatable
8. PLC control (Siemens)
