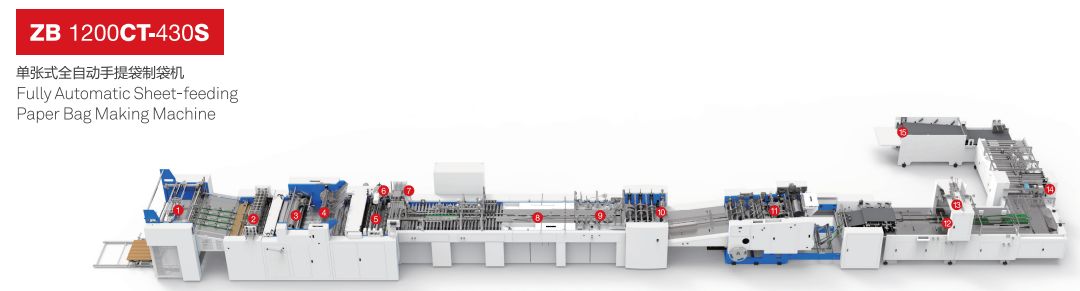

ZB1200CT-430S Fully Automatic Sheet Feeding Paper Bag Making Machine

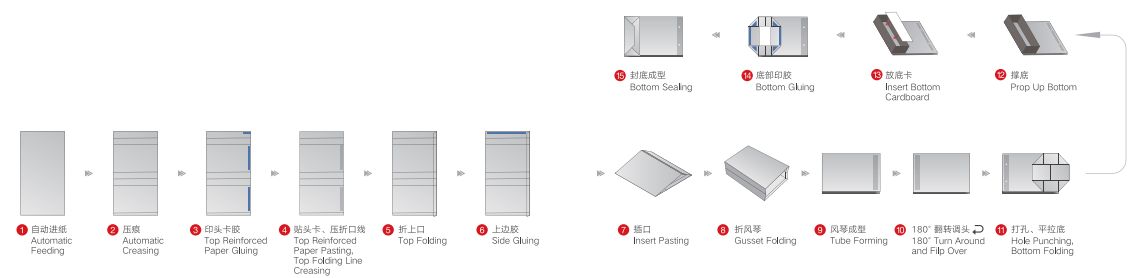

The basic working flow is sheet feeding, creasing, servo top reinforced card taking and pasting, top folding (insert pasting), tube forming, gusset forming, bottom open and Bottom Cardboard inserting, bottom gluing and pasting, compaction and output. All these steps increase the bag making efficiency and reduce the setup time, save a lot of labor cost for top reinforced card pasting. Realize automation, intelligent and high efficiency production requirement.
|

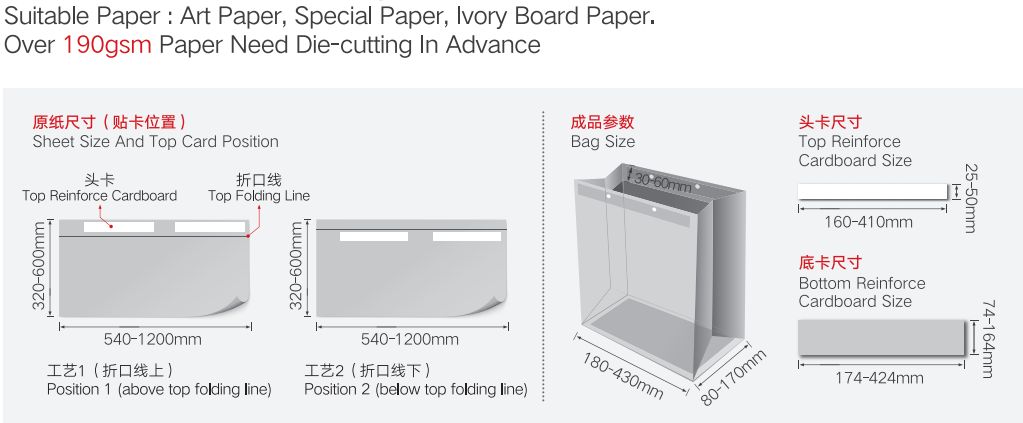

ZB 1200CT-430S |

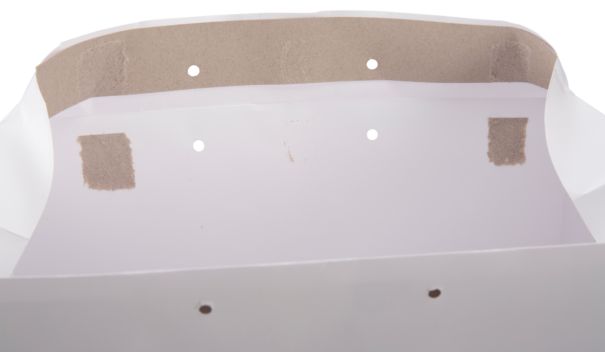

||
| Max.sheet (LX W): | mm | 1200 x600mm |
| Min.sheet (LX W): | mm | 540 x 320mm |
| Sheet weight: | gsm | 120-250gsm |
| Top folding width | mm | 30 - 60mm |
| Bag Width: | mm | 180- 430mm |
| Bottom Width(Gusset): | mm | 80- 170mm |
| Paper Tube Length | mm | 280-570mm |
| Top Reinforced paper width:: | mm | 25-50 mm |
| Top Reinforced paper length: | mm | 160-410mm |
| Bottom reinforce cardboard weight | gsm | 250-400gsm |
| Bottom reinforce cardboard length | mm | 174 - 424mm |
| Bottom reinforce cardboard width | mm | 74 - 164mm |
| Bottom type | Square bottom | |
| Machine speed | Pcs/min | 40 - 70 |
| Total power/Production Power | kw | 45/27KW |
| Total weight | tone | 20T |
| Glue type | Water base glue and hot melt glue | |
| Machine size (L x W x H) | mm | 21500 x 6000x 1800 mm |
| Top reinforce cardboard Position 1 | Top reinforce cardboard Position 2 |
 |
 |

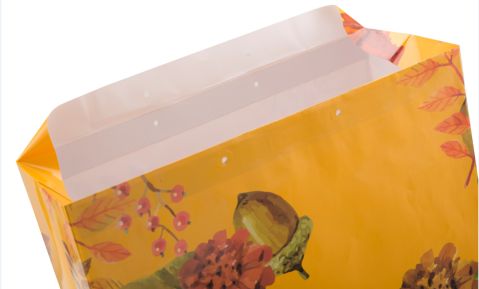

 Hole Punching |

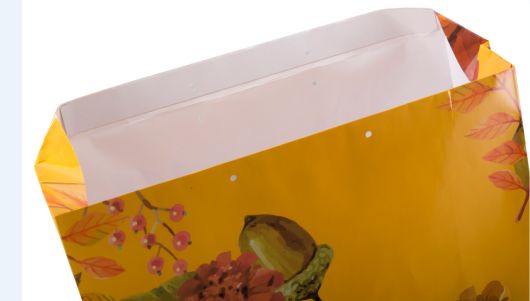

 Top Folding |

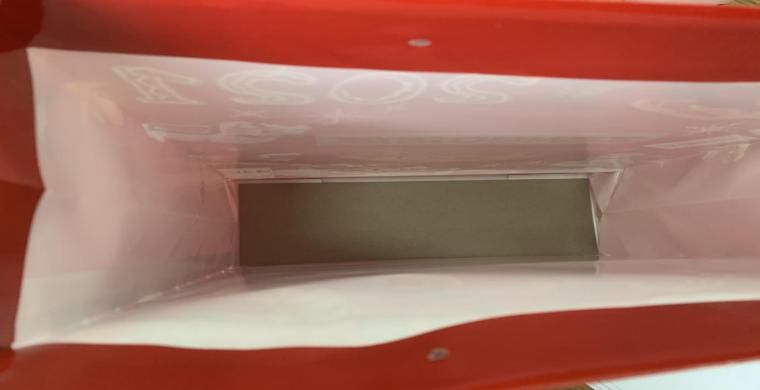

 Bottom Cardboard Inserting |
|
| Main part and origin place | |||||||
|
No. |
Name |
Origin |
Brand |
No. |
Name |
Origin |
Brand |
|
No. |
Name |
Origin |
Brand |
No. |
Name |
Origin |
Brand |
|
1 |
Feeder | China |
RUN |
12 |
Bearing |
Germany |
BEM |
|
2 |
Main motor | China |
Fangda |
13 |
Belt |
Japan |
NITTA |
|
3 |
PLC | Japan |
Mitsubishi |
14 |
Synchronize belt |
Germany |
Continental |
|
4 |
Frequency converter |
France |
Schneider |
15 |
Air pump |
Germany |
Becker |
|
5 |
Button |
Germany |
16 |
Pneumatic component |
Taiwan/Japan |
Airtac/SMC
|
|
|
6 |
Electric relay |
Germany |
Weidmuller |
17 |
Pilot valve |
Taiwan/Japan |
Airtac/SMC |
|
7 |
Air switch |
Germany |
18 |
Photoelectric switch | Korea/Germany | Autonics/Sick
|
|
|
8 |
AC contactor |
Germany |
19 |
Hot melt glue system |
America |
Nordson
|
|
|
9 |
Wiring terminal |
Germany |
Weidmuller |
20 |
Servo motor |
Taiwan |
Delta
|
|
10 |
Touch screen |
Taiwan |
Weinview |
21 |
Servo gear box |
Japan |
Desboer |
|
11 |
Switching Power Supply | Taiwan |
MW |
|
|
|
|
|
|
|
|
|
|
|
|
|
| Remarks：The above configuration is ZENBO standard, the brand is subject to change according to the actual production without prior notice. | |||||||
| Function: 1. Automatic feeder
2. Automatic reinforce cardboard gluing 3.Automatic Reinforced cardboard pasting 4.Automatic top folding 5.Automatic side gluing(hot melt+water base glue) 6. Automatic tube forming 7.Automatic square bottom open 8.Automatic bottom Cardboard inserting 9.Automatic square bottom pasting |
|||||||
