ZJR-330 Flexo Printing Machine

Short Description:

This machine has 23 servo motors in total for 8color machine which ensure the accurate registration during high-speed running.


Product Detail

Technical Parameters

Max. printing speed 180 m/min
Printing color 4-12 colors
Max. printing width 330 mm
Max. web width 340 mm
Printing repeat length Z76-190 (241.3mm-603.25mm)
Max. Unwinding dia. 900 mm
Max. Rewinding dia. 900 mm
Dimensions (for 8 colors, 3 die cutting stations) 10.83m*1.56m*1.52m (L*W*H)

Parts Introduction

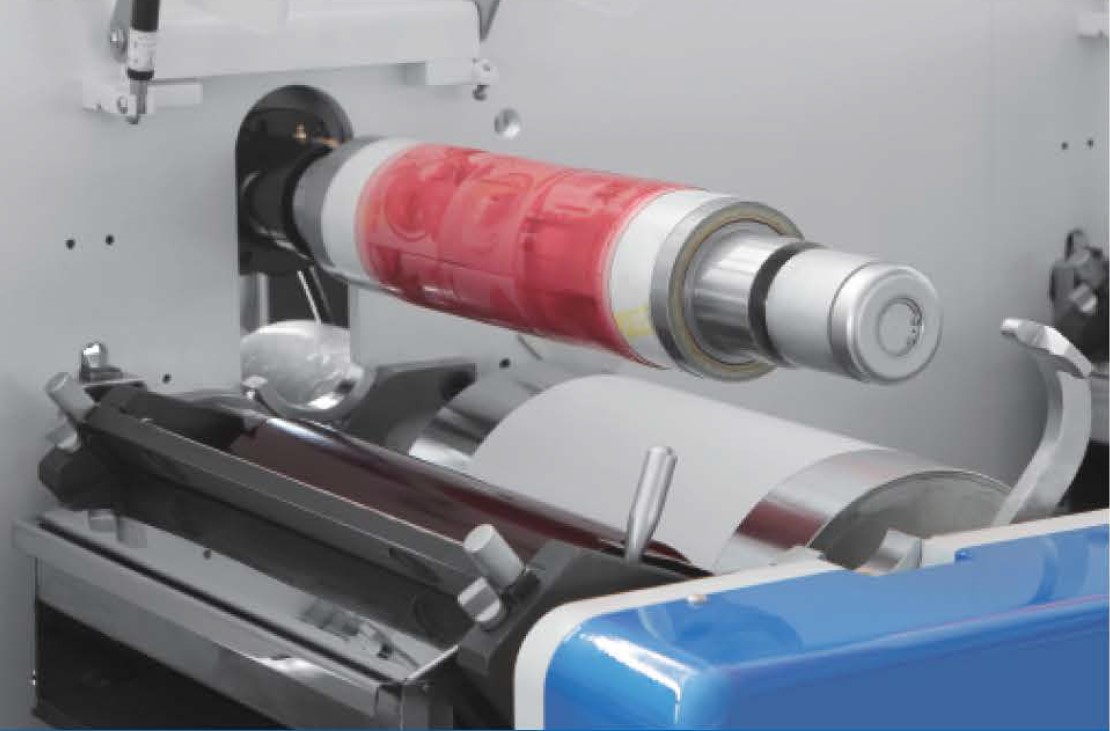

Sleeve:

ZJR-330 Flexo Printing Machine (2)

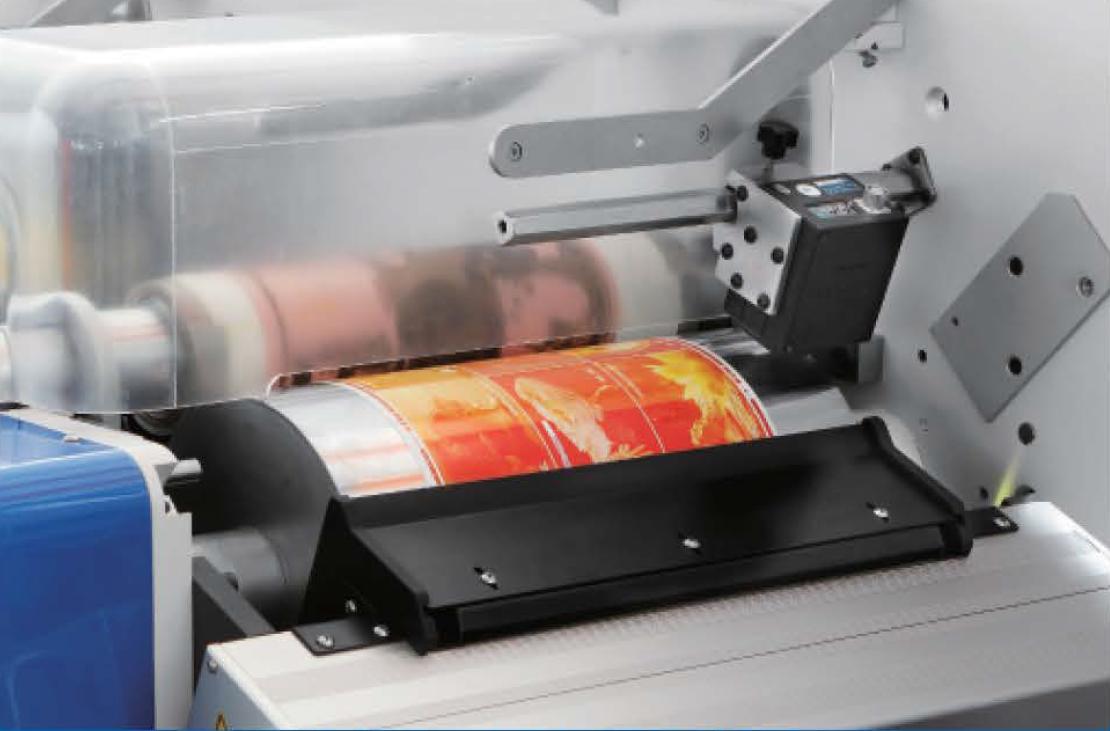

Anvil Roller With Water Chiller

Sleeve1

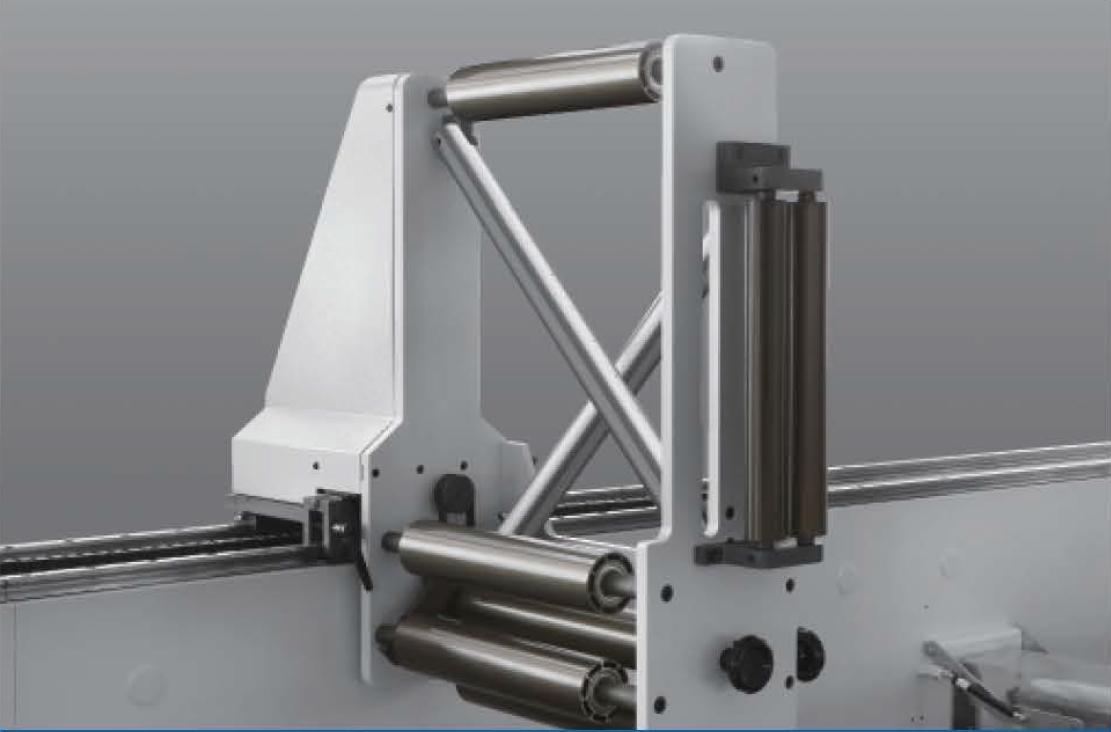

Movable turn bar:

 Sleeve2

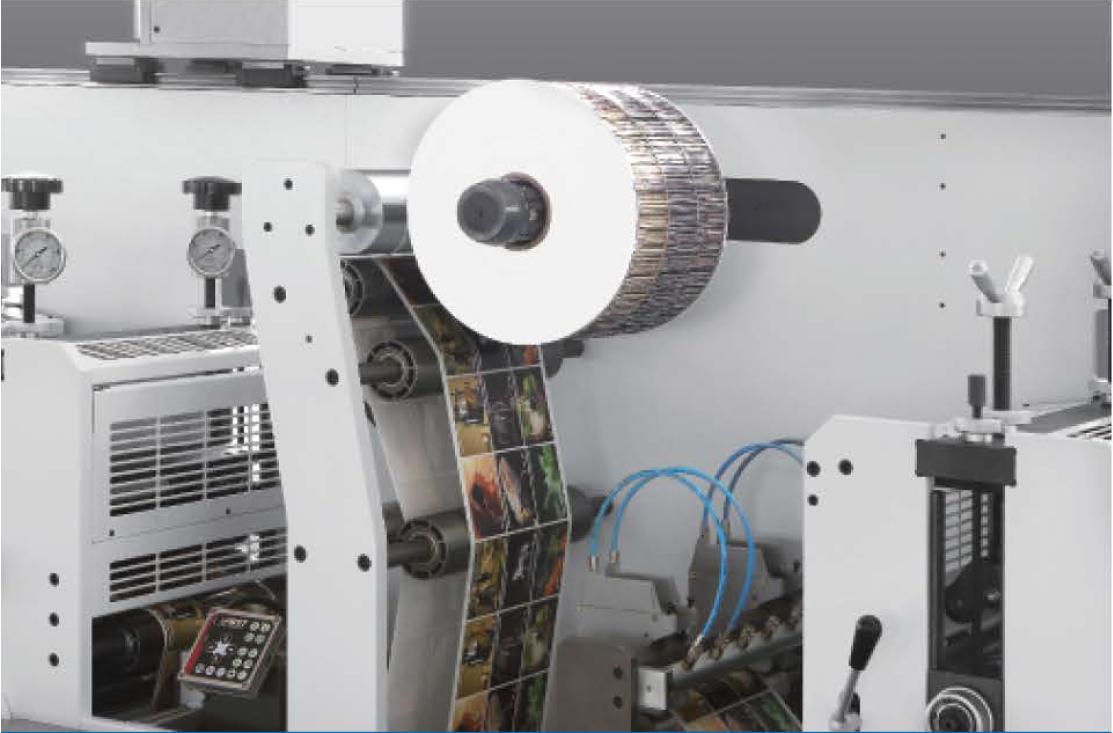

Matrix unit:

Sleeve3

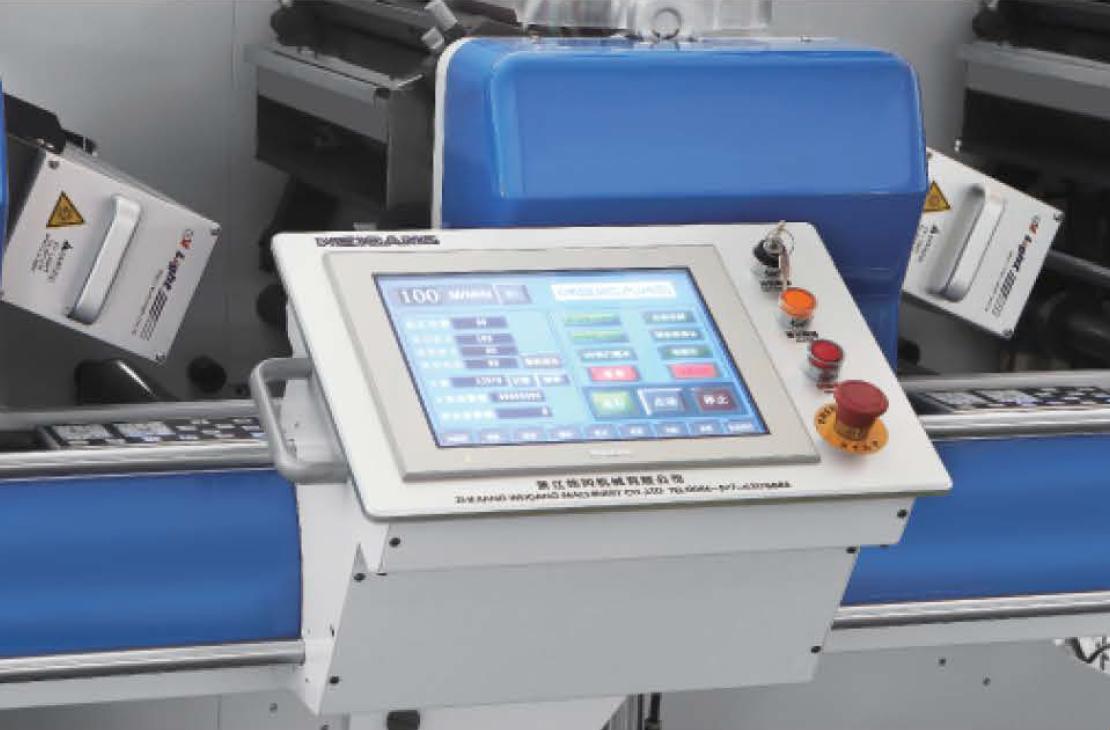

Movable touch screen:

Sleeve4

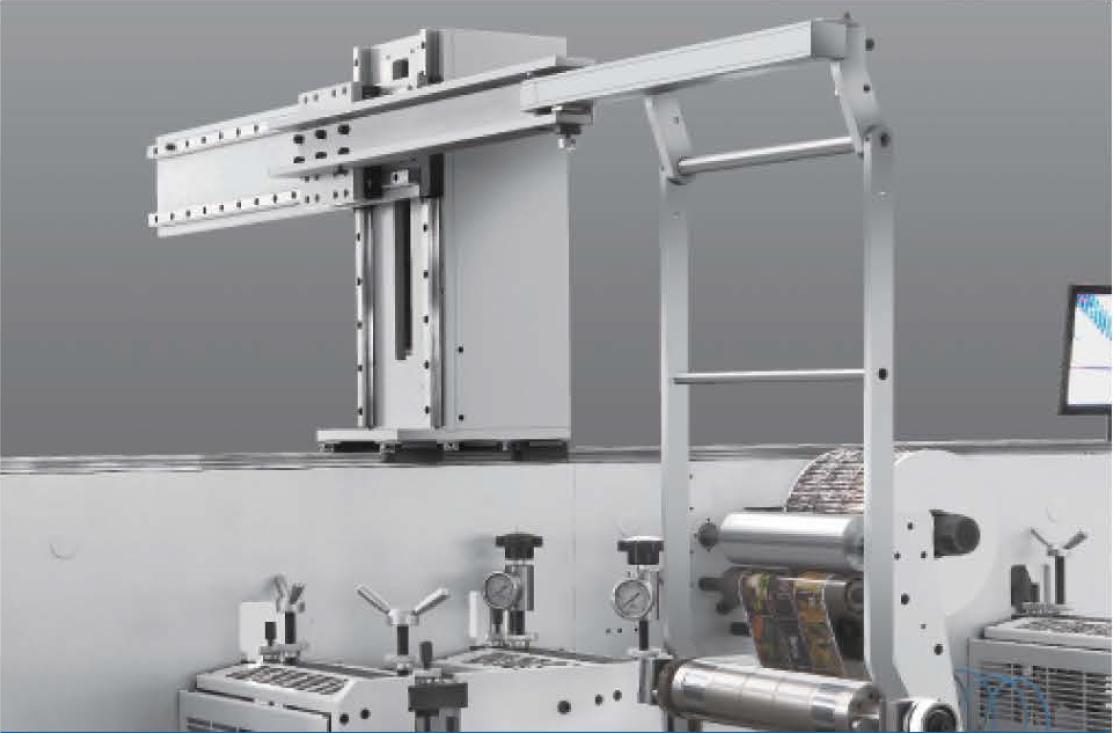

Die cutting roller lifter

Sleeve5

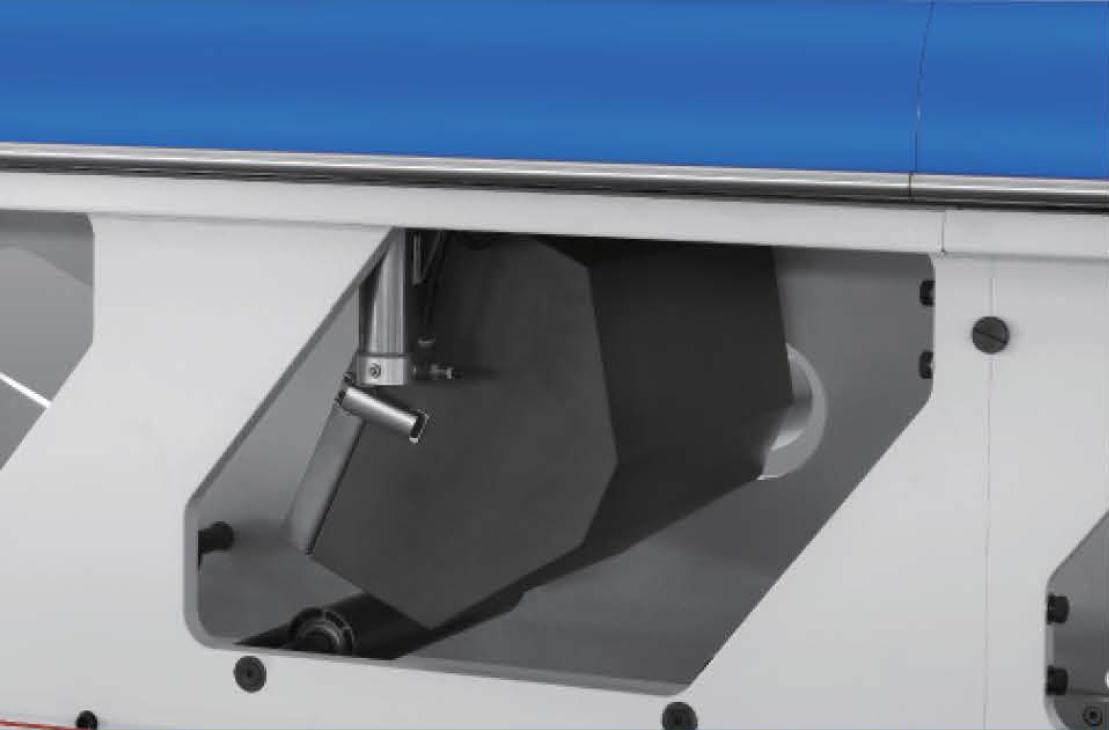

Hot air dryer (Option)

Sleeve6

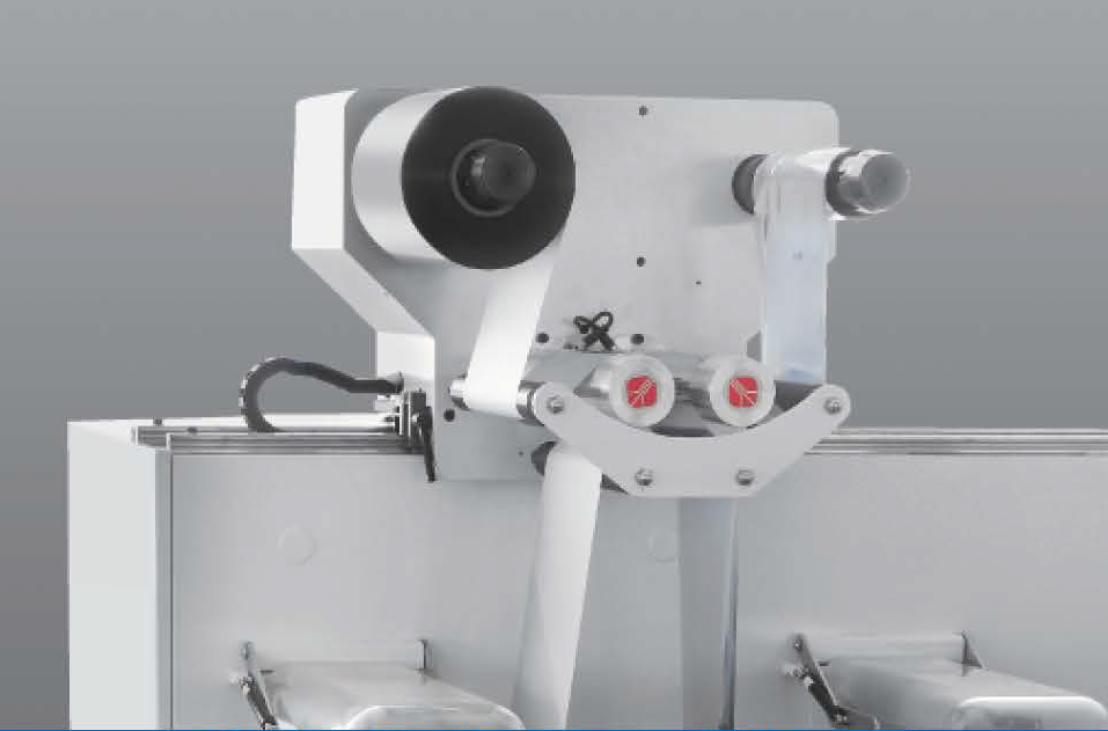

Movable cold stamping (Option)

Sleeve7

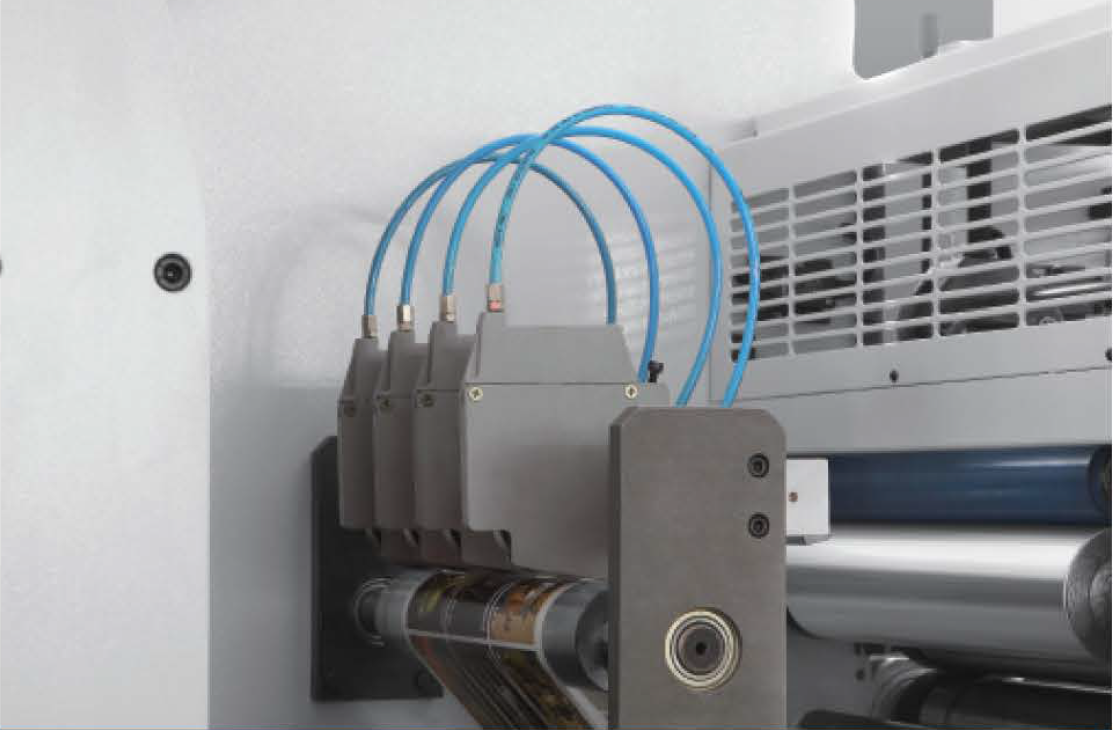

Slitting unit (Option)

Sleeve8

Parts Details

Auto control system:

The latest Rexroth-Bosch(Germany) control system

Operation in both English and Chinese

Registration sensor(P+F)

Automatic fault detection and alarm system

BST Video inspecting system (4000 type)

Power supply: 380V-400V, 3P, 4l

50Hz-60Hz

Material Feeding System

Unwinder with pneumatic lift (Max. diameter:900㎜ )

Air shaft (3 inches)

Automatic inflated and deflated

Pneumatic rotating joint

Magnetic powder brake

Automatic tension control

Automatic stopping system for lacking of material

RE web guiding system

Nip in by servo motor(Bosch- Rexroth servo motor)

Printing system

Super flexo printing unit

Anvil roller driven by independent servo motor

Anvil roller with water chiller

Automatic cooling circulatory system

Printing roller driven by independent servo motor

Sleeve (easy operation)

Operation panel for fine adjustment with self - locking function

Fine pressure adjustment for the bearer

2nd pass registration sensor (P+F)

Easy take-off anilox roller

Easy take-off ink tray, auto up/down

Movable touch screen (easy operation)

Guard line for whole machine (Schneider—France)

Rotary die-cutting unit (option)

Die-cutting unit driven by independent servo motor

Left-right and forward-backward registration control

Die-cutting roller lifter (easy load and take off)

Matrix unit is snow ball type, with magnetic device, rewinding motor and inverter

Sheeting unit (option)

Driven by two servo motors from Rexrot-Bosch

Sheeter conveyer (option)

Counting function

Screen printing unit (option)

Movable rotary screen printing unit

STORK or WTS is for optional

Without UV dryer

UV dryer (fan cooler 5.6KW/unit)

UV Ray brand from Italy

Independent power control for each UV dryer

Power auto changing according to printing speed

Auto Control with UV exhaust

Independent UV control panel

Rewinding system

Driven by independent servo motor (3 inches air shaft)

Double rewinders for optional

Automatic inflated and deflated

SMC Pneumatic swivel

RE Automatic tension control system

Rewinder with pneumatic lift(max. diameter:900㎜ )
