ZK320 Book block trimming and book cover folding machine

Short Description:

The machine complete books enter, fore edge of block trimming ,  the scraps of paper sucking, book scoring , cover folding and book collecting and other processes .


Product Detail

Principle of operation

The machine complete books enter, fore edge of block trimming ,  the scraps of paper sucking, book scoring , cover folding and book collecting and other processes .

Characteristic:

1、Automatic book sending and receiving。

2、fore edge be smooth cutting , book cover be accurate folding。

3、block edge cutting ,book cover scoring and folding complete in one time.

4、High production efficiency, convenient, less material consumption

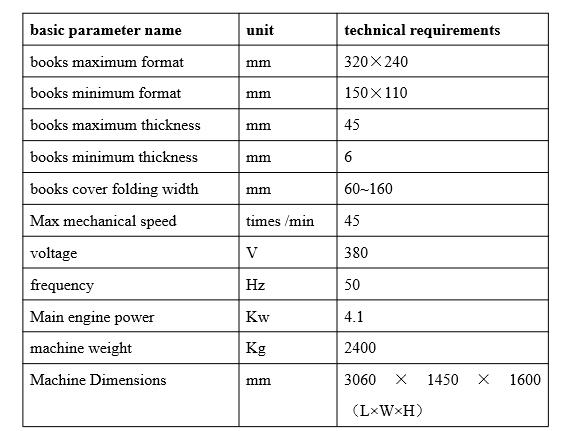

technical parameters:

machine2

Main configuration of electrical equipment

DESCRIPTION Specifications Brand remarks
General power switch TDS25 Tend C E
travel switch TM1703 15A  250VAC Omron C E
inching switch CM1301 15A  250VAC Omron C E
Circuit breaker C65  ND16  3P Schneider C E
Circuit breaker C65  ND10  3P Schneider C E
Circuit breaker C65  ND4  3P Schneider C E
Circuit breaker C65  NC4  1P Schneider C E
switching power ABL2REM24020 Schneider C E
AC contactor LCI  09M7C Schneider C E
Thermal relay LRD  101C Schneider C E
Frequency converter ATV312HU40N4 Schneider C E
intermediate relay RXM4AB2BD Schneider C E
Intermediate relay RXZE2M114 Schneider C E
Switch on and off



ZB2  BE101C Schneider C E
Emergency stop



ZB2  BE102C Schneider CE
Forward turn button



ZB2  BE101C Schneider Green
Power indicator light



XB2BW34MIC Schneider red
Reverse jog button



ZB2 BE101C Schneider white
Main electric machine



4KW WEG C E
