ZMA105 Multiply-Function Gravue Printing Machine

Short Description:

ZMA104 multiply-function roto-gravue printing machine could be easily combined with offset, flexo, screen printing and others. Thanks to its thick and even ink on the printing sheets, it is an ideal equipment for cigarette package, cosmetic package, high level packaging industry.


Product Detail

Product Video

Technical Parameters

Max Printing speed 13000 sheets per hour
Max sheet size 720×1040mm
Min sheet size 360×520mm
Paper thickness   80~450g
Printing margin   20mm
Feeding pile height 1200mm
Delivery pile height    1100mm
Power consumption   around 80kw
Main motor power      7.5 kw
Feeding table motor power    0.55/0.37kW
Overall dimension(L×W×H) 7600×4000×2700mm
Net Weight:   around 13000kg
Plate cylinder and blanket cylinder gap 3.0mm
Printing cushion gasket + blanket rubber + 1 sheet≤3.20mm

Features

1)Patent ZL 96204910.7 down swing paper transmission patent and down swing front lay device are adopted to achieve stable and excellent registration

2)High feeding pile of 1500mm similar to Heisenberg with non-stop feeding and delivery

3)Patent ZL 03209755.7 printing cylinder dismantling  device adopted for quick dismantling, changing and washing

4)double diameter paper delivery cylinder is adopted

Patent ZL 03209756.5 dust proof device adopted

5)Pneumatic control for the engagement of the cylinder and doctor blade

6)Motorized ink pump are used for stable performance and safety

7)double diameter impressure cylinder to improve the speed and lower the sheet deviation

8)Automatic lubrication

9)Hot air and IR system used for water base ink and UV curing for UV ink

10)This machine is extended

11)The tooth portion of the transmission gear is finely ground after high-frequency quenching for high precision and long life.

12)The cam adopts computer optimization design, CNC grinding, which ensures the machine run smoothly with low noise.

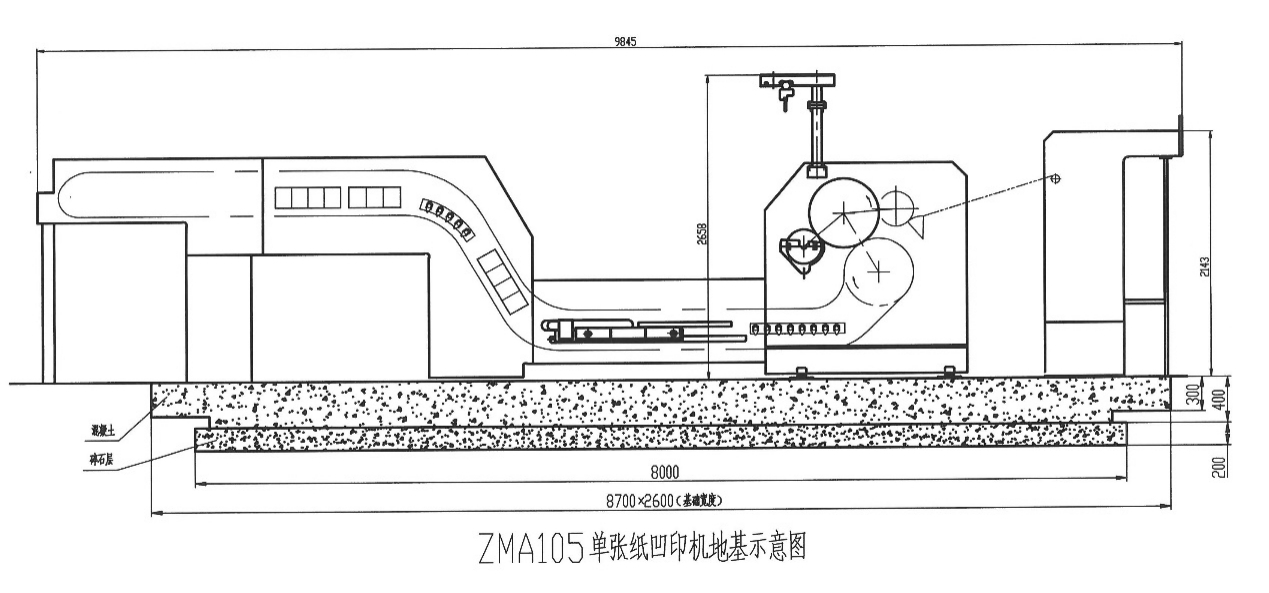

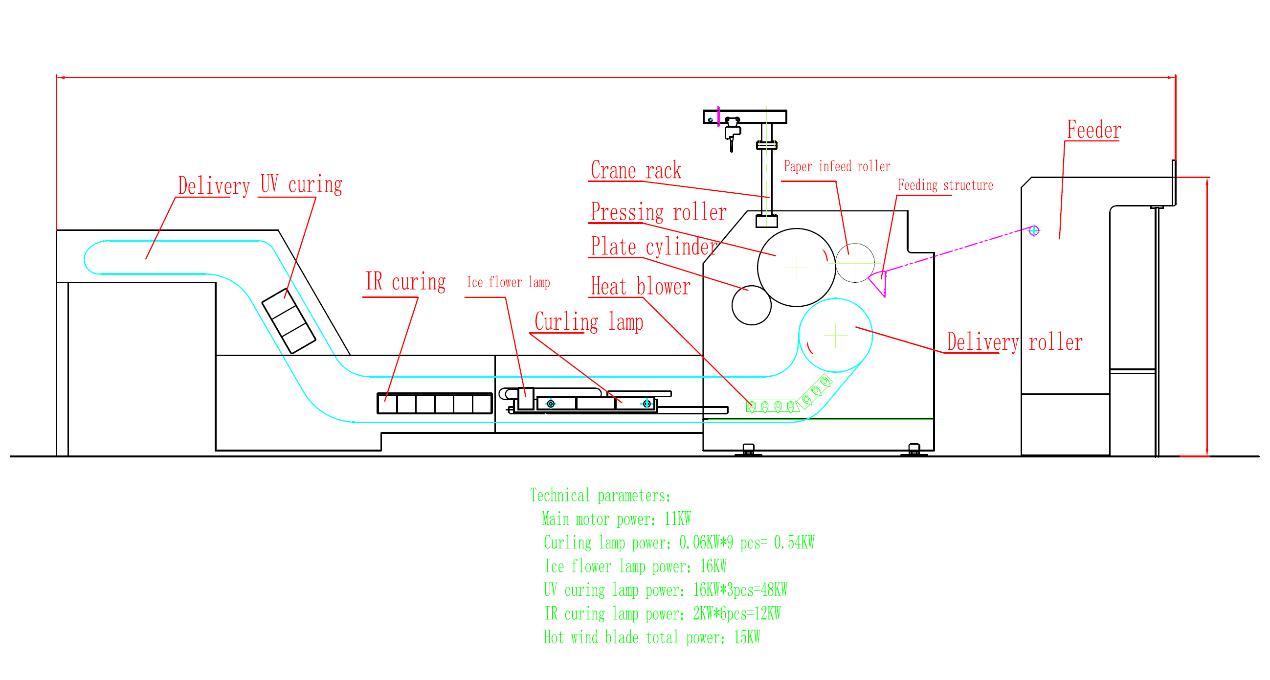

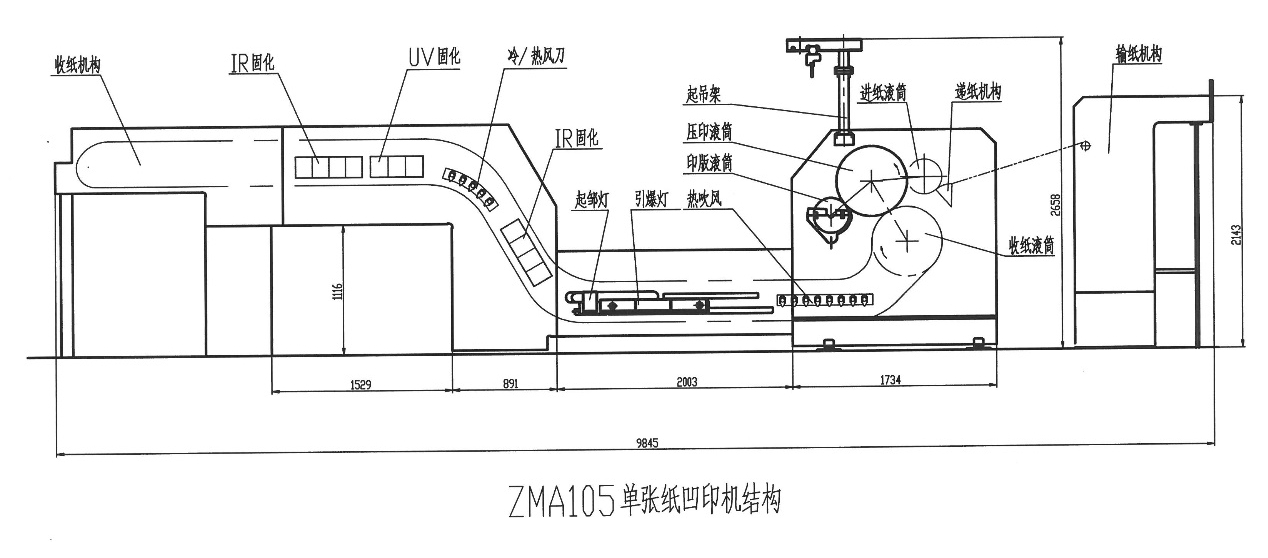

Layout

Layout1 Layout2 Layout3
