GUOWANG T-1060Q DIE-CUTTER WITH STRIPPING

Short Description:

Clearance box can optional use Japan Sankyo. Can make the machine more stable and reliable when the operation meets emergency stops. Stripping chase adopt automatic pneumatic lifting function, quick lock system and center line alignment positioning system. It can make operation easier and more convenient. Operation screen adopts 19 inches HD LED Touch screen, makes the most complex settings simple and intuitive, greatly improve the efficiency of equipment. Auxiliary delivery table is with automatic delivery function.


Product Detail

Other product information

Product Video

Feature Highlights

highlights2

FEEDING UNIT

-Non-stop feeding with automatic pile lift and pre-pile device. Max pile height 1800mm

-High quality feeder head with 4 sucker and 4 forwarder to assure stable and fast feeding for various of materials* Optional Mabeg feeder

-Front control panel for easy operation

-Anti-static device for feeder and transfer table*option

-Photocell anti step in detection

highlights3

TRANSFER UNIT

-Double cam gripper bar structure to make the sheet closer to the working platform and stripping frame, more stable in high-speed operation

-Mechanical double sheet device for cardboard, supersonic double sheet detector for paper *option

-Pull and push side lay suitable for thin paper and thick cardboard, corrugated

-Paper speed reducer to make smooth transfer and precise positioning.

-Side and front lay are with precise photocells, sensitivity adjustable and can be set by monitor

highlights4

DIE-CUTTING UNIT

-Die-cutting pressure controlled by YASAKAWA Servo System Max. 300T

Max. Die-cutting speed 8000s/h

-Pneumatic quick lock upper&lower chase

-Centerline system on die-cutting chase with transversal micro adjustment ensures accurate registration that result in quick job changeover.

highlights5

STRIPPING UNIT

-Quick lock and center line system for stripping frame to minimize job changing time

-Pneumatic upper frame lifting

-Stripping make ready table to reduce job setting time*option

highlights8

DELIVERY UNIT

- Non-stop delivery with automatic pile lowering

Max. Pile height 1400mm

-Automatic curtain style non-stop delivery rack

- 10.4" monitor touch monitor

- Anti-static device*option

- Tap inserter*option

--Photocell anti step in detection, dedicated reset button for safety.

GASM8

SMART HUMAN MACHINE INTERFACE (HMI)

-15" and 10.4" touch screen with graphical interface at feeder and delivery section for easy control of machine at different position, all settings and function can be easily set through this monitor.

-Self diagnosis system, error code and message

-Full jam detection

Specifications

Maximum paper size

1060*760

mm

Minimum paper size

400*350

mm

Maximum cutting size

1060*745

mm

Maximum Die-cutting plate size

1075*765

mm

Die-cutting plate thickness

4+1

mm

Cutting rule height

23.8

mm

First die-cutting rule

13

mm

Gripper margin

7-17

mm

Cardboard spec

90-2000

gsm

Cardboard thickness

0.1-3

mm

Corrugated spec

≤4

mm

Maximum working pressure

350

t

Maximum die-cutting speed

8000

S/H

Feeding board height (incl. pallet)

1800

mm

Non-stop feeding height(incl. pallet)

1300

mm

Delivery height(incl. pallet)

1400

mm

Main motor power

11

kw

Whole machine power

17

kw

Voltage

380±5% 50Hz

v

Cable thickness

10

mm²

Air pressure requirement

6-8

bar

Air consumption

200

L/Min

Outsource list for key components

Configurations Country of origin
Feeding unit
Jet-feeding Mode
Feeder head China/German MABEG*option
Pre-loading device, Non-stop feeding
Front & side lay photocell induction
Light guard protecting device
Vacuum pump German Becker
Pull/push switch type side guide
Die-cutting unit
Die chase Japan SMC
Centre line alignment system
Gripper mode adopt latest double cam tech Japan
Pre-stretched high quality chain German
Torque limiter and index gear box drive Japan Sankyo
Cutting plate pneumatic ejecting system
Automatic lubrication and cooling
Automatic chain lubrication system
Main motor German SIEMENS
Paper miss detector German LEUZE
Stripping unit
3-way stripping structure
Centre line alignment system
Pneumatic lock device
Quick lock system
Delivery unit
Non-stop delivery
Delivery motor German NORD
Secondary delivery motor German NORD
Electronic parts
High quality electrical components EATON/OMRON/SCHNEIDER
Safety controller German PILZ safety module
Main monitor 19 inch AMT
Secondary monitor 19 inch AMT
Inverter SCHNEIDER/OMRON
Sensor LEUZE/OMRON/SCHNEIDER
Switch German MOELLER
Low-voltage distribution German MOELLER

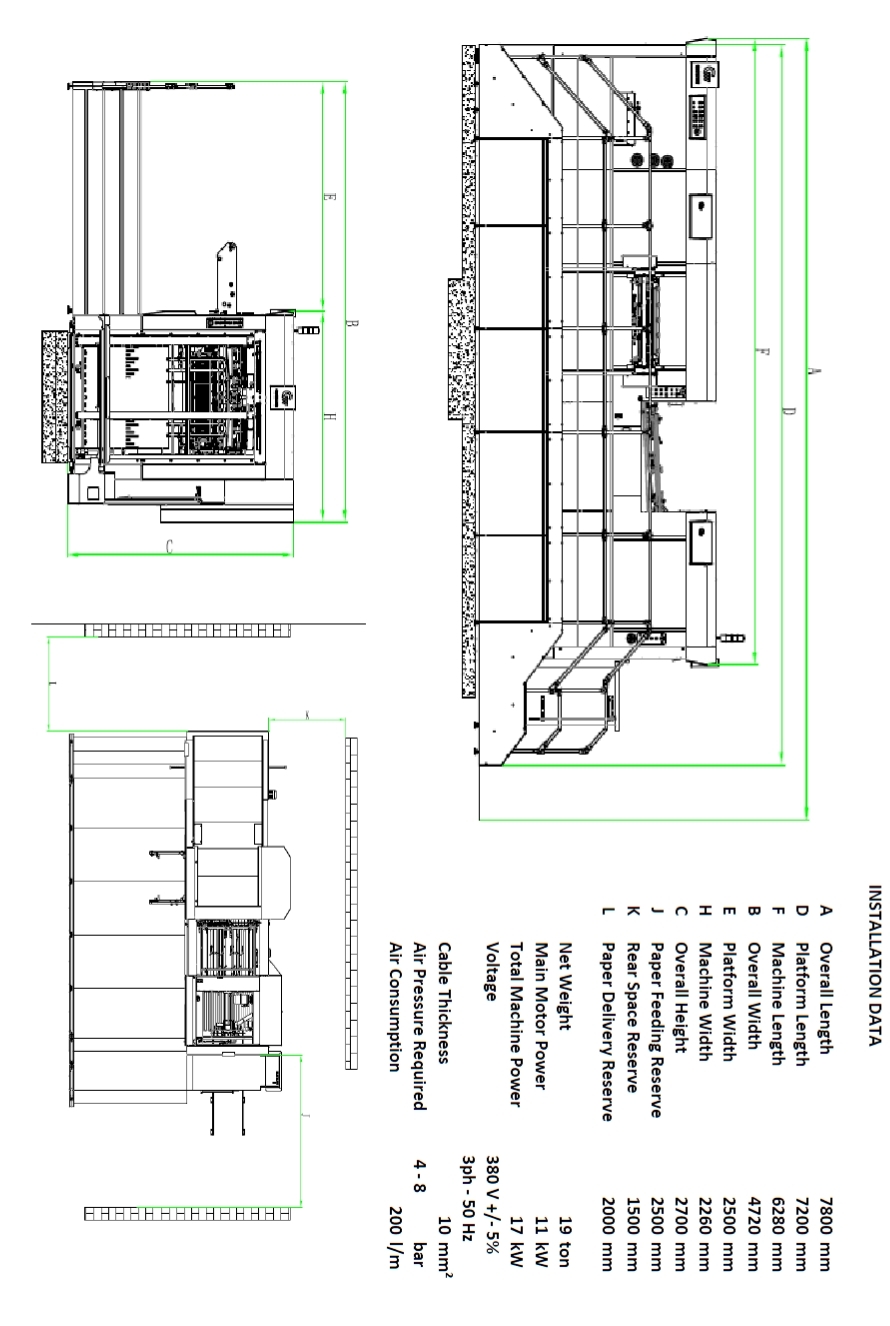

LAYOUT

LAYOUT

CE Certificate

highlights7

Manufacturer Introduction

Through the co-operation with top-level partner in the world, Guowang Group (GW) owns Joint venture company with Germany partner and KOMORI global OEM project. Based on the German and Japanese advanced technology and more than 25 years experience, GW continually offer the best and highest efficient post-press solution.

GW adopts the advanced production solution and 5S management standard, from R&D, purchase, machining, assembling and inspection, every process strictly follow the highest standard.

GW invest a lot in the CNC, import DMG, INNSE- BERADI, PAMA, STARRAG, TOSHIBA, OKUMA, MAZAK, MITSUBISHI etc. from all over the world. Only because pursues the high quality. The strong CNC team is the firm guaranty of the quality of your products. In GW, you will feel the “high efficient and high precision”
